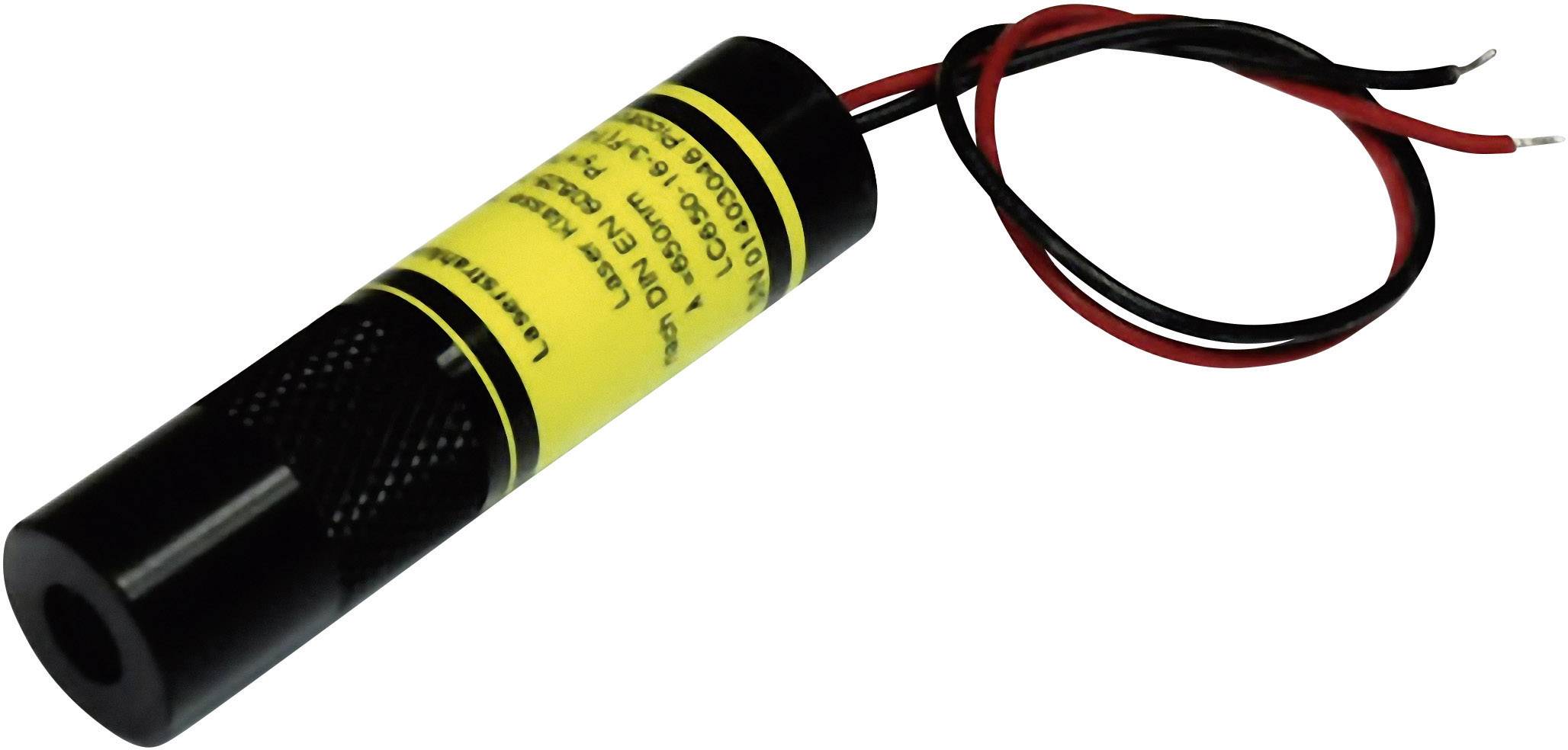

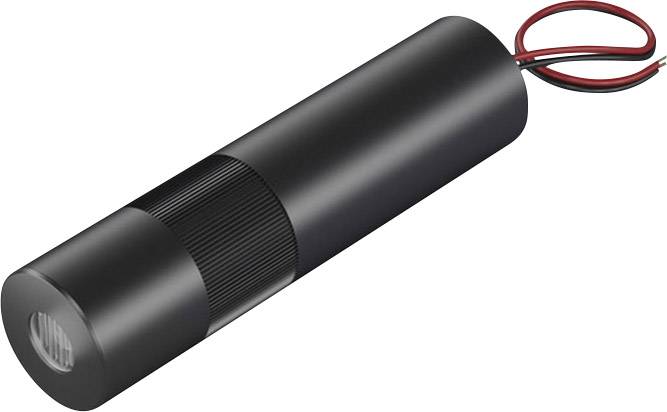

Picotronic Laser module Line Red 16 mW LC 650-16-3-F (14x55)
Product type
Laser module
Emission characteristics
Line
Wavelength
650 nm
Power
16 mW
(Ø)
14 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 234.99 / piece)
€ 234.99
incl. VAT
Only 1 Piece(s) available
Highlights & Details
Insulated line laser, red
- Red
- Laser category: 2
- Emission characteristics: Line
Technical specifications
- Product type
Laser module
- Type
LC 650-16-3-F (14x55)
- Emission characteristics
Line
- Focus properties
adjustable
- Factory colour
Red
- Wavelength
650 nm
16 mW
- (Ø)
14 mm
- Length
55 mm
- Laser category
2
- Beam divergence
0.4 mrad
- Clearance
5 m
- Operating voltage
2.7 - 3.3 V DC
- Operating current
75 mA
- Material
Aluminium

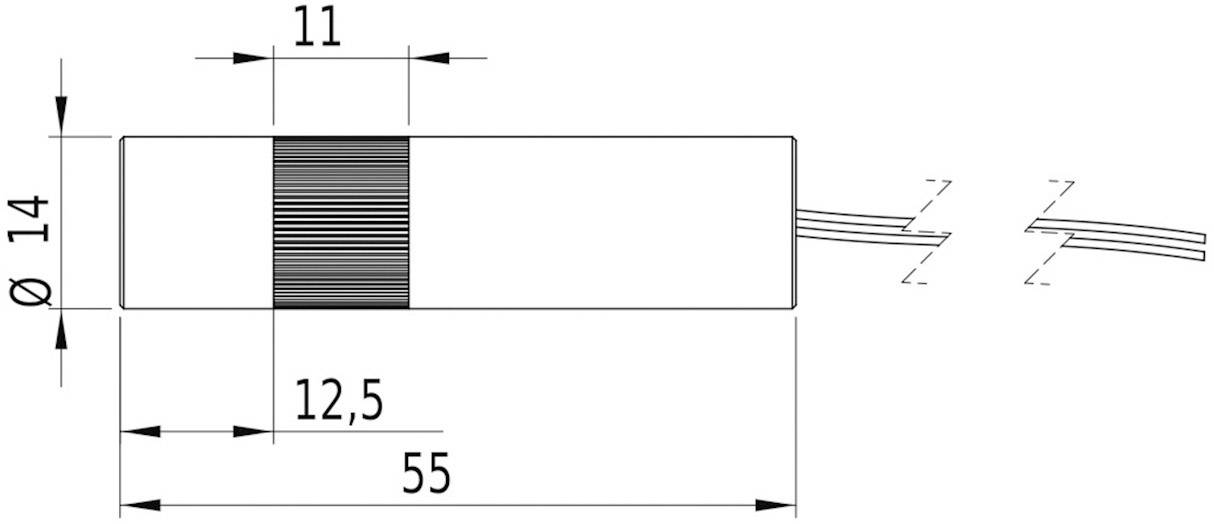

- Dim
(Ø x L) 14 mm x 55 mm
- Weight
16.5 g
- RoHS-compliant
Yes
- Max. operating voltage
3.3 V DC
- Min. operating voltage
2.7 V DC
Documents & Downloads
Datasheet
Datasheet 817949 Picotronic Laser module Line Red 16 mW LC 650-16-3-F (14x55)
User & Safety Instructions
User & Safety Instructions 817949 Picotronic Laser module Line Red 16 mW LC 650-16-3-F (14x55)
Information
Information 817949 Picotronic Laser module Line Red 16 mW LC 650-16-3-F (14x55)
Conformity certificate
Conformity certificate 817949 Picotronic Laser module Line Red 16 mW LC 650-16-3-F (14x55)
Description
Hints
Laser beam! Observe safety instructions! Never look into the beam (may damage your retina).
