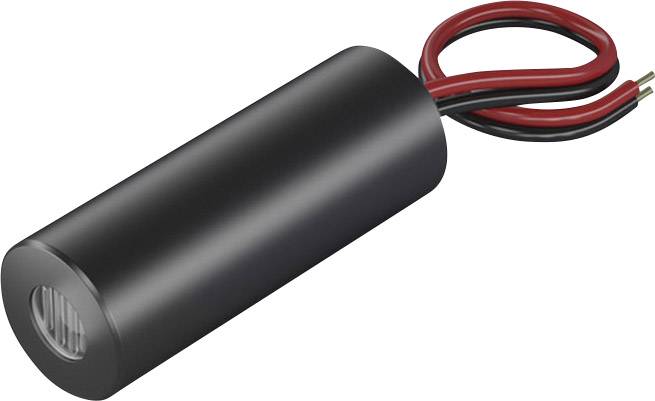

Picotronic Laser module Line Red 2.5 mW LE 635-2. 5-3 (12 x 32)
Product type
Laser module
Emission characteristics
Line
Wavelength
635 nm
Power
2.5 mW
(Ø)
12 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 85.99 / piece)
€ 85.99
incl. VAT
14-day return policy included
Highlights & Details
Insulated line laser, red
- Red
- Laser category: 1
- Emission characteristics: Line
Technical specifications
- Line width:< 1.5 mm (2 m)
- Product type
Laser module
- Type
LE 635-2. 5-3 (12 x 32)
- Emission characteristics
Line
- Focus properties
2000 mm fixed-focus
- Factory colour
Red
- Wavelength
635 nm
2.5 mW

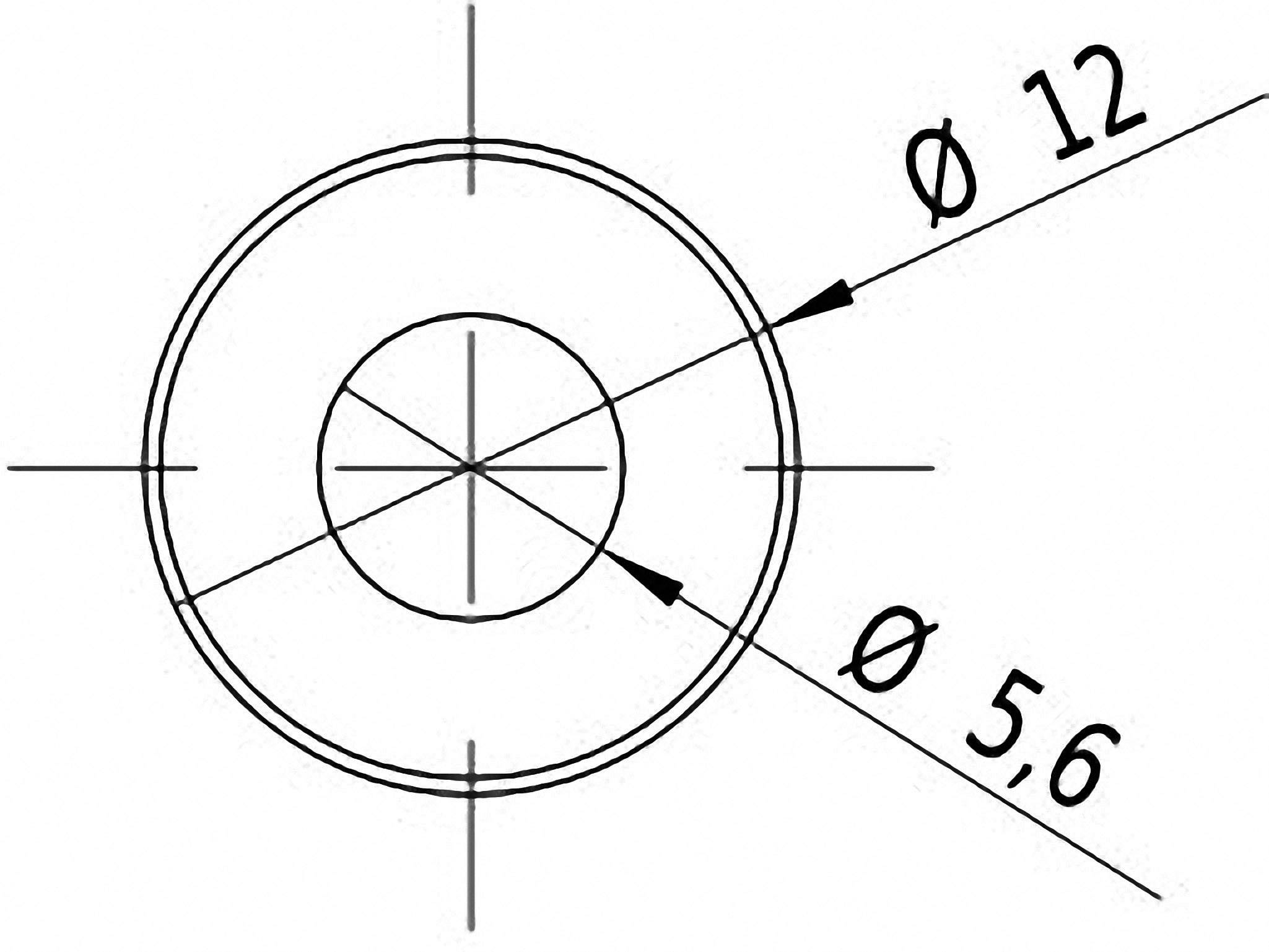

- (Ø)
12 mm
- Length
32 mm
- Laser category
1
- Angular aperture
90°
- Beam divergence
0.6 mrad
- Clearance
2 m
- Operating voltage
3 V DC
- Operating current
30 mA
- Material
Aluminium

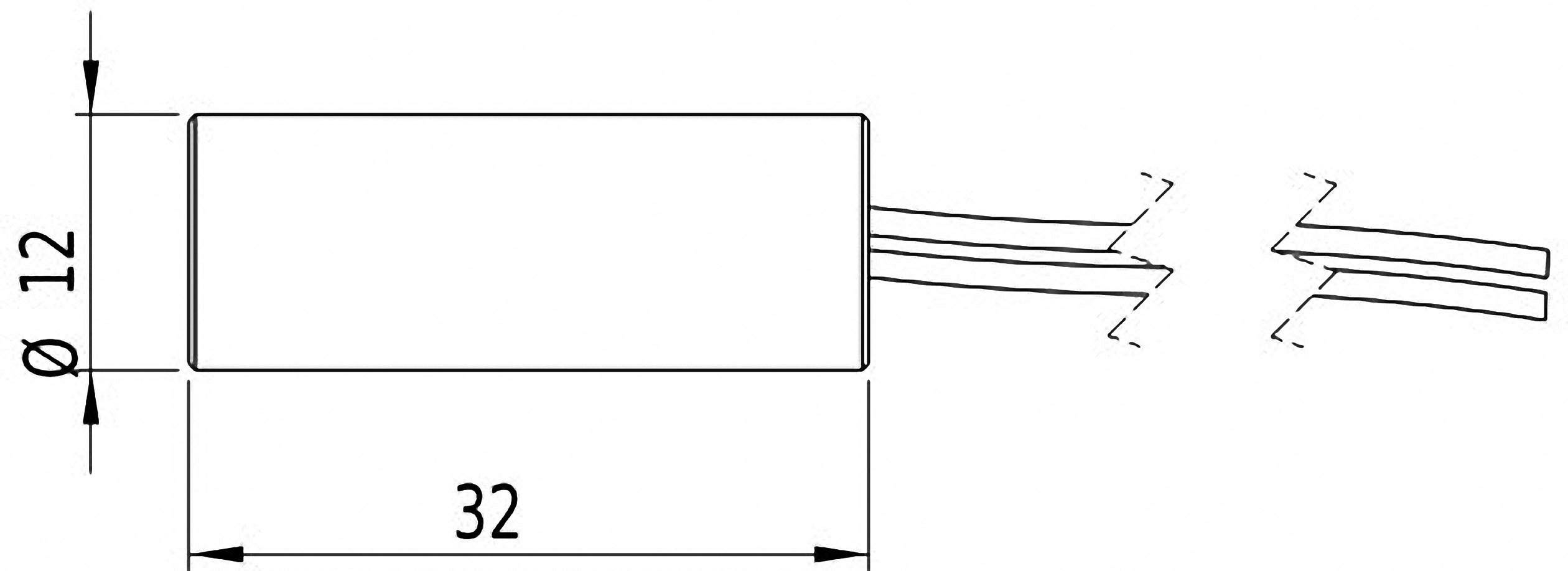

- Dim
(Ø x L) 12 mm x 32 mm
- Weight
13 g
- RoHS-compliant
Yes
- Max. temperature
50 °C
- Min. temperature
-20 °C
Documents & Downloads
Datasheet
Datasheet 1283354 Picotronic Laser module Line Red 2.5 mW LE 635-2. 5-3 (12 x 32)
User & Safety Instructions
User & Safety Instructions 1283354 Picotronic Laser module Line Red 2.5 mW LE 635-2. 5-3 (12 x 32)
Information
Information 1283354 Picotronic Laser module Line Red 2.5 mW LE 635-2. 5-3 (12 x 32)
Conformity certificate
Conformity certificate 1283354 Picotronic Laser module Line Red 2.5 mW LE 635-2. 5-3 (12 x 32)
Description
Hints
Laser beam! Observe safety instructions! Never look into the beam (may damage your retina).
