Name: Picotronic Laser module Line Red 2.5 mW LH 635-2. 5-5 (12 x 32)-F400-C160
Brand: Picotronic
SKU: 1283424
Availability: InStock

Black cylindrical electromagnet with two connected cables, one red and one black, protruding from the back.

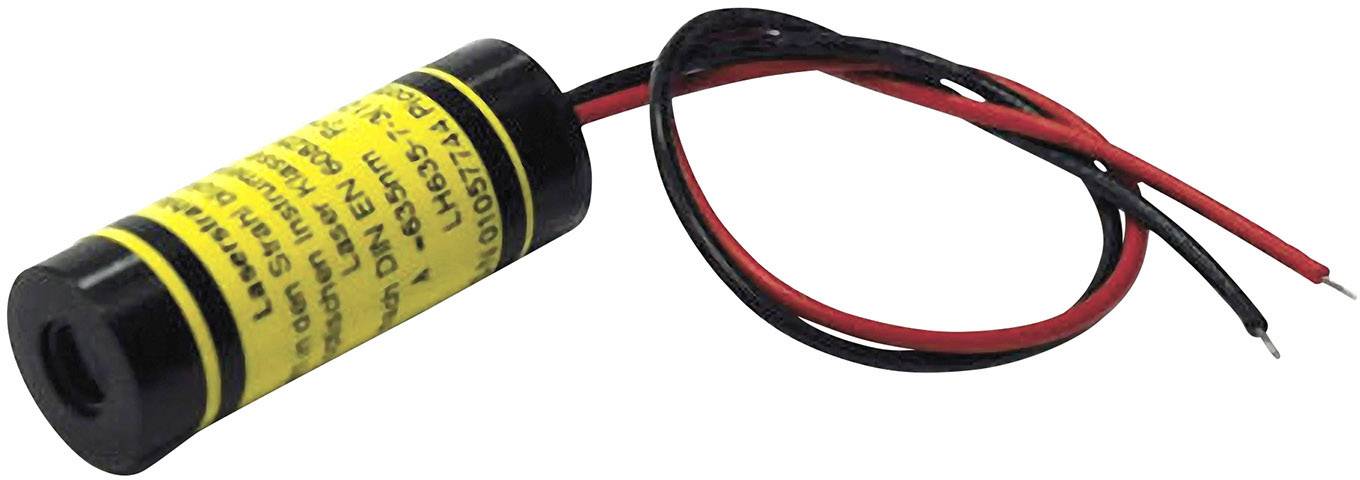

Cylindrical laser module with a yellow warning sticker and two protruding cables (red and black) for power supply.

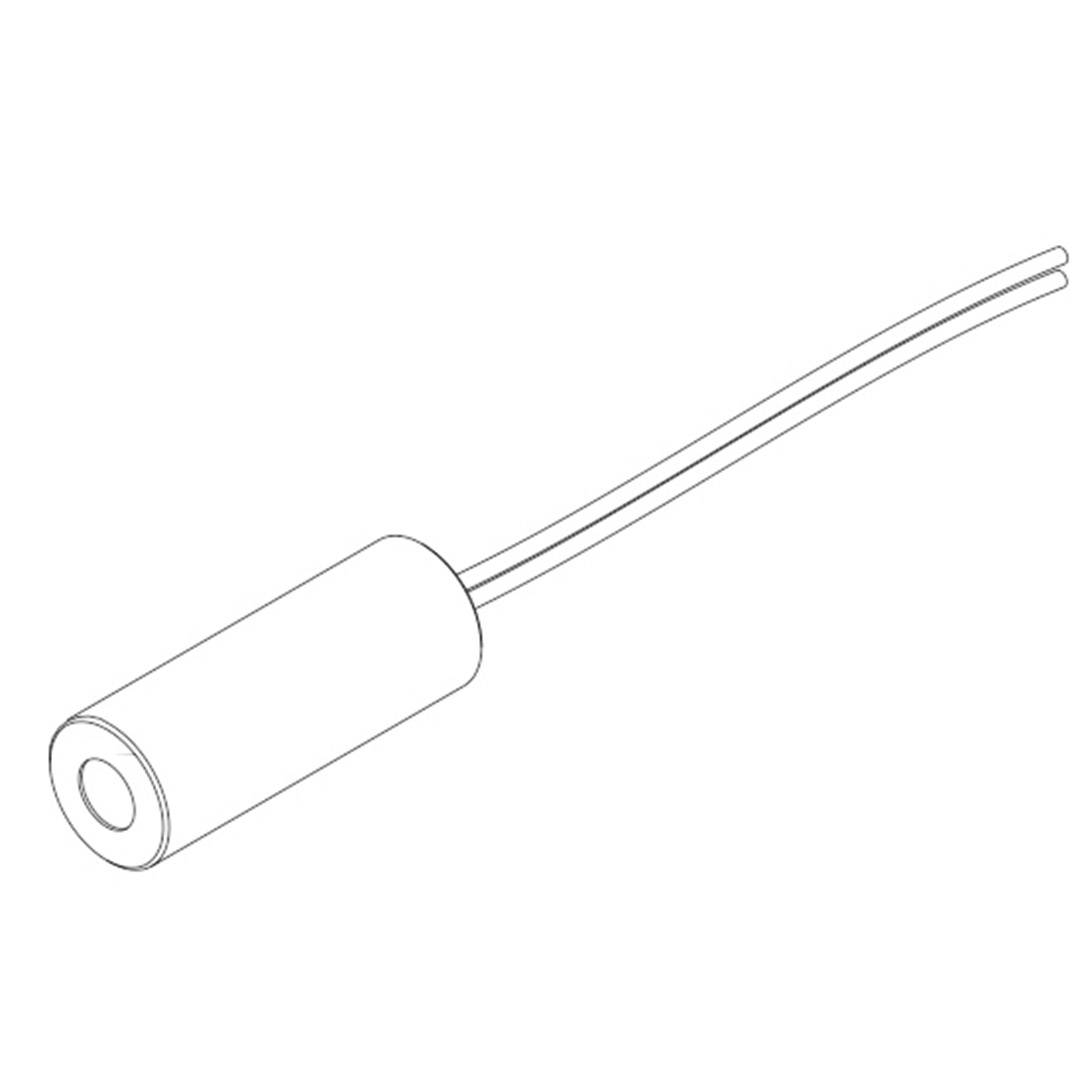

Line drawing of a cylindrical sensor with two connecting wires.

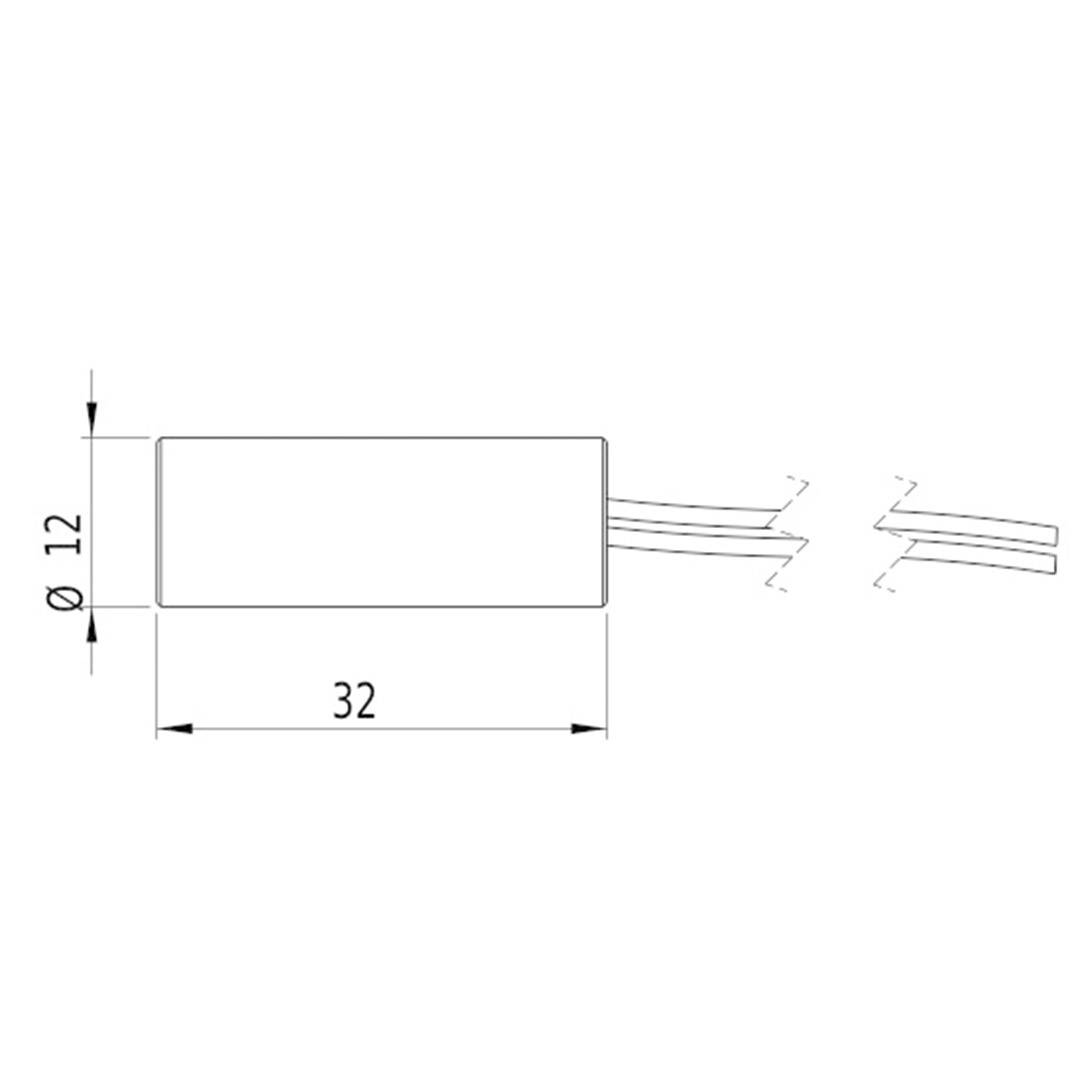

Technical drawing of a cylindrical component with dimensions: length 32 mm, diameter 12 mm. Connections on the right-hand side.

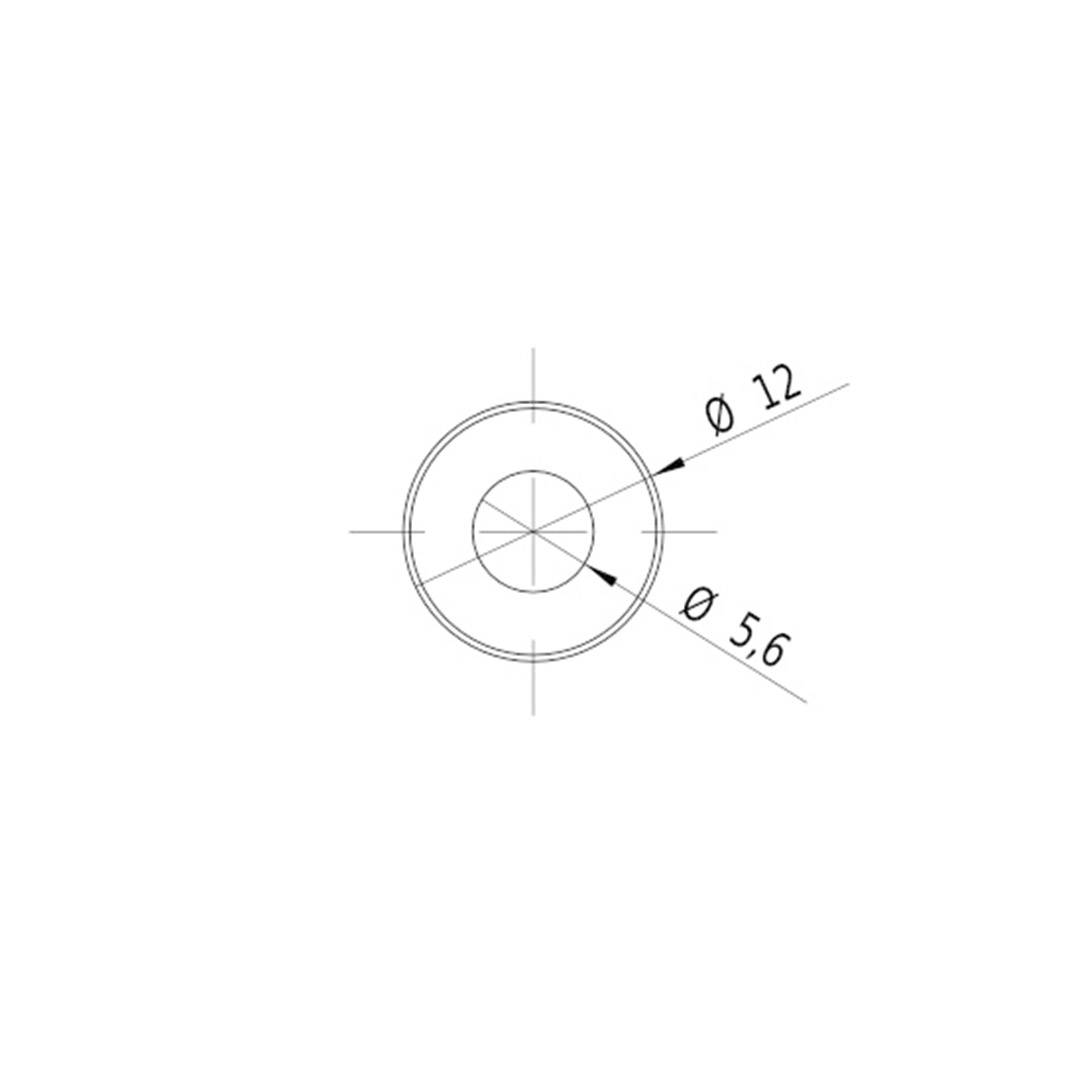

'Technical drawing of a circle. Outer diameter: 12 mm, Inner diameter: 5.6 mm.'

1/5

Product type

Laser module

Emission characteristics

Line

Wavelength

635 nm

Power

2.5 mW

(Ø)

12 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Wed 11 Nov

8 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 87.99 / piece)

€ 87.99

incl. VAT

Only 8 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Insulated line laser, red

Red
Laser category: 1
Emission characteristics: Line

Technical specifications

Line width:< 0.3 mm (0.4 m)

Product type: Laser module

Type: LH 635-2. 5-5 (12 x 32)-F400-C160

Emission characteristics: Line

Focus properties: 400 mm fixed-focus

Factory colour: Red

Wavelength: 635 nm

: 2.5 mW

(Ø): 12 mm

Length: 32 mm

Laser category: 1

Angular aperture: 90°

Beam divergence: 1 mrad

Clearance: 0.4 m

Operating voltage: 5 V DC

Operating current: 30 mA

Material: Aluminium

Dim: (Ø x L) 12 mm x 32 mm

Weight: 18 g

RoHS-compliant: Yes

Max. temperature: 50 °C

Min. temperature: -20 °C
