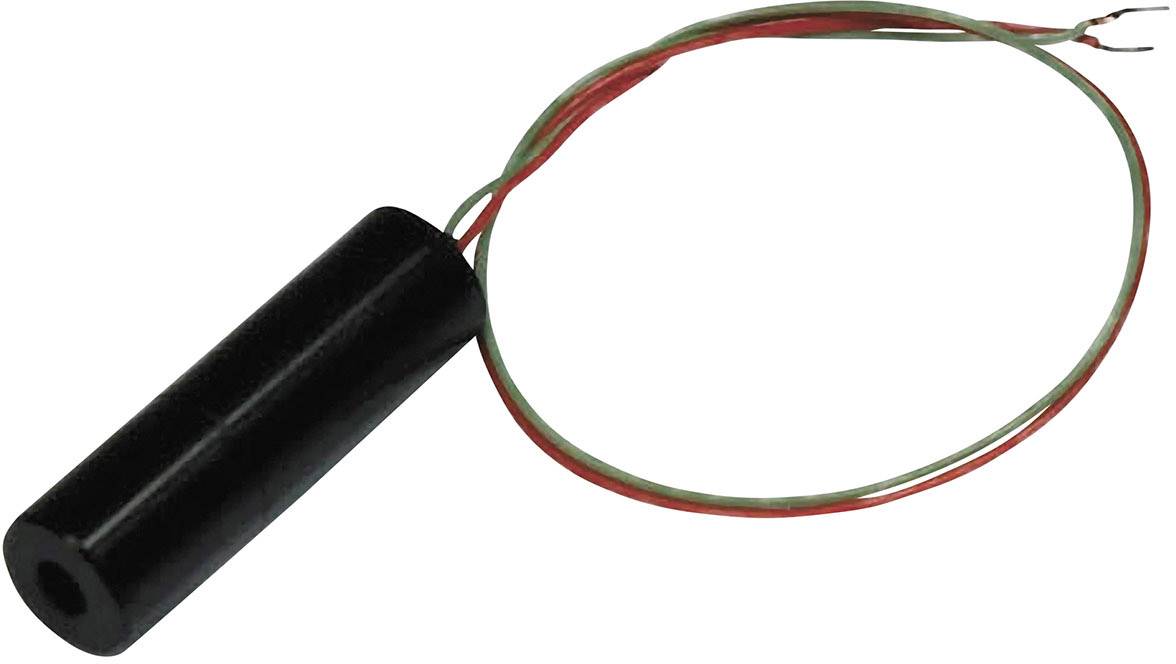

Picotronic Laser module Line Red 2.5 mW LI 635-2. 5-3 (8 x 26)-F100
Product type
Laser module
Emission characteristics
Line
Wavelength
635 nm
Power
2.5 mW
(Ø)
8 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 67.99 / piece)
€ 67.99
incl. VAT
Only 1 Piece(s) available
Highlights & Details
Insulated line laser, red
- Red
- Laser category: 1
- Emission characteristics: Line
Technical specifications
- Line width:< 0.3 mm (100 mm)
- Product type
Laser module
- Type
LI 635-2. 5-3 (8 x 26)-F100
- Emission characteristics
Line
- Focus properties
100 m fixed-focus
- Factory colour
Red
- Wavelength
635 nm
2.5 mW

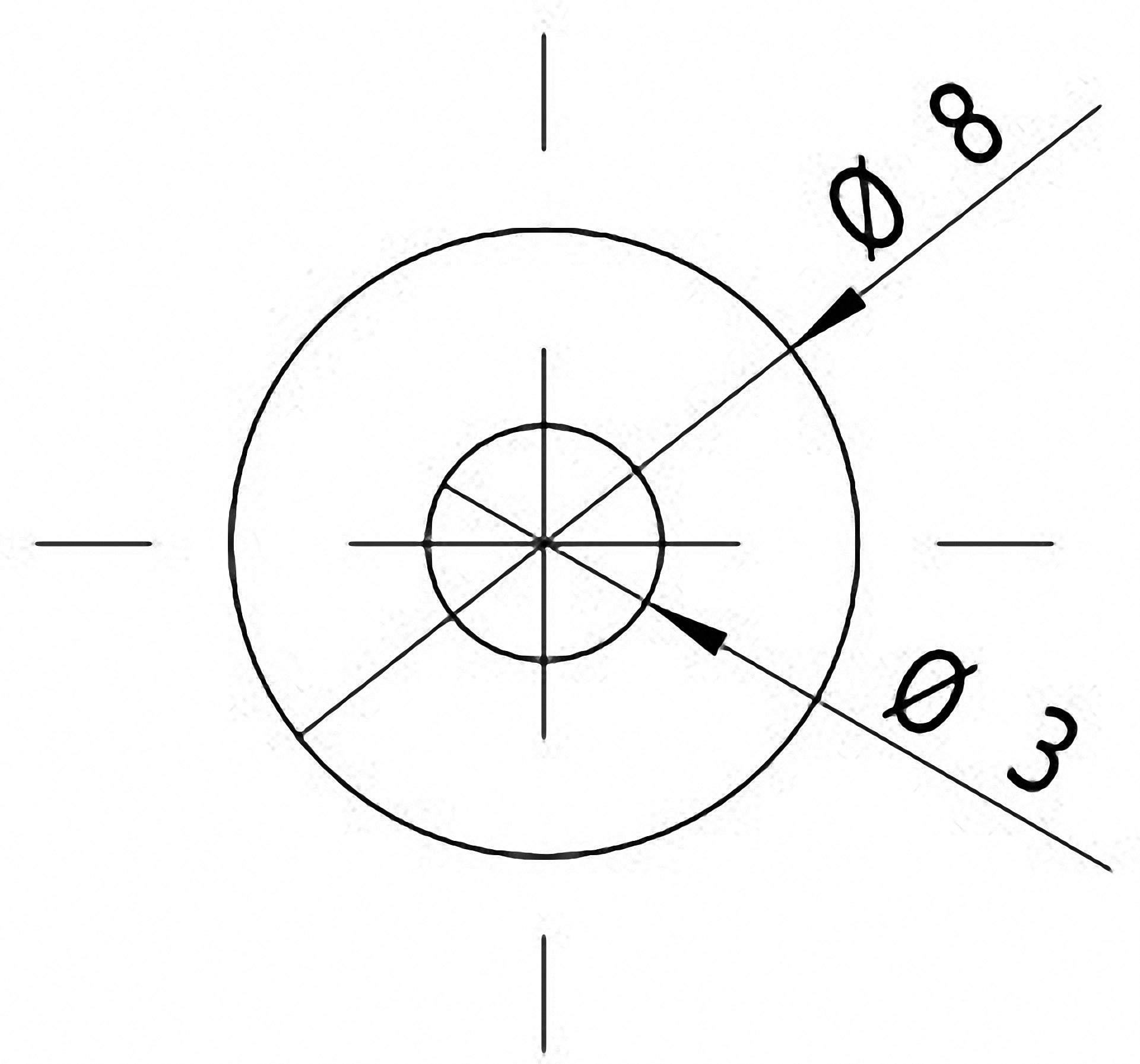

- (Ø)
8 mm
- Length
26 mm
- Laser category
1
- Angular aperture
90°
- Beam divergence
1.5 mrad
- Clearance
0.1 m
- Operating voltage
3 V DC
- Operating current
32 mA
- Material
Aluminium

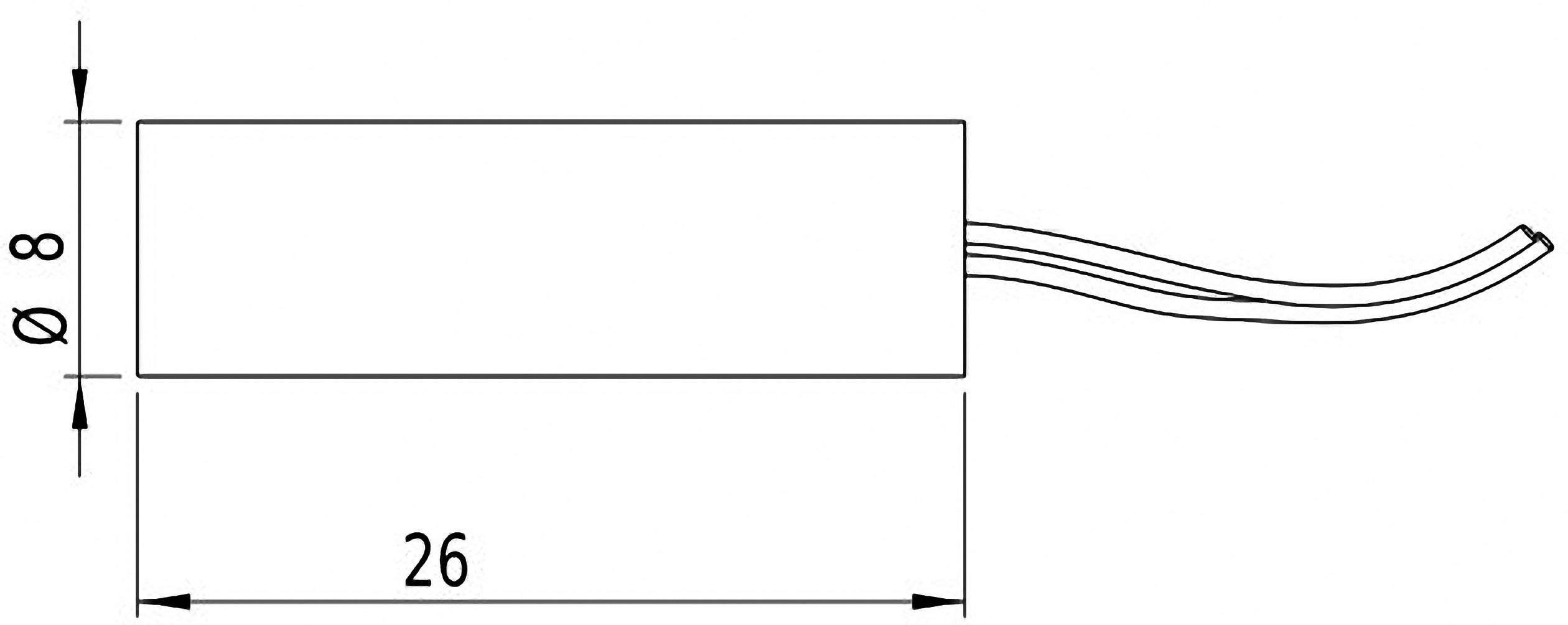

- Dim
(Ø x L) 8 mm x 26 mm
- Weight
3.5 g
- RoHS-compliant
Yes
- Max. temperature
50 °C
- Min. temperature
-20 °C
Documents & Downloads
Datasheet
Datasheet 1283328 Picotronic Laser module Line Red 2.5 mW LI 635-2. 5-3 (8 x 26)-F100
User & Safety Instructions
User & Safety Instructions 1283328 Picotronic Laser module Line Red 2.5 mW LI 635-2. 5-3 (8 x 26)-F100
Information
Information 1283328 Picotronic Laser module Line Red 2.5 mW LI 635-2. 5-3 (8 x 26)-F100
Conformity certificate
Conformity certificate 1283328 Picotronic Laser module Line Red 2.5 mW LI 635-2. 5-3 (8 x 26)-F100
Description
Hints
Laser beam! Observe safety instructions! Never look into the beam (may damage your retina).
