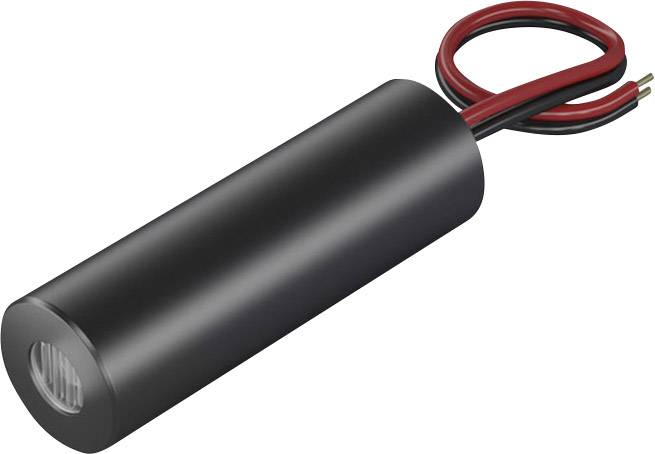

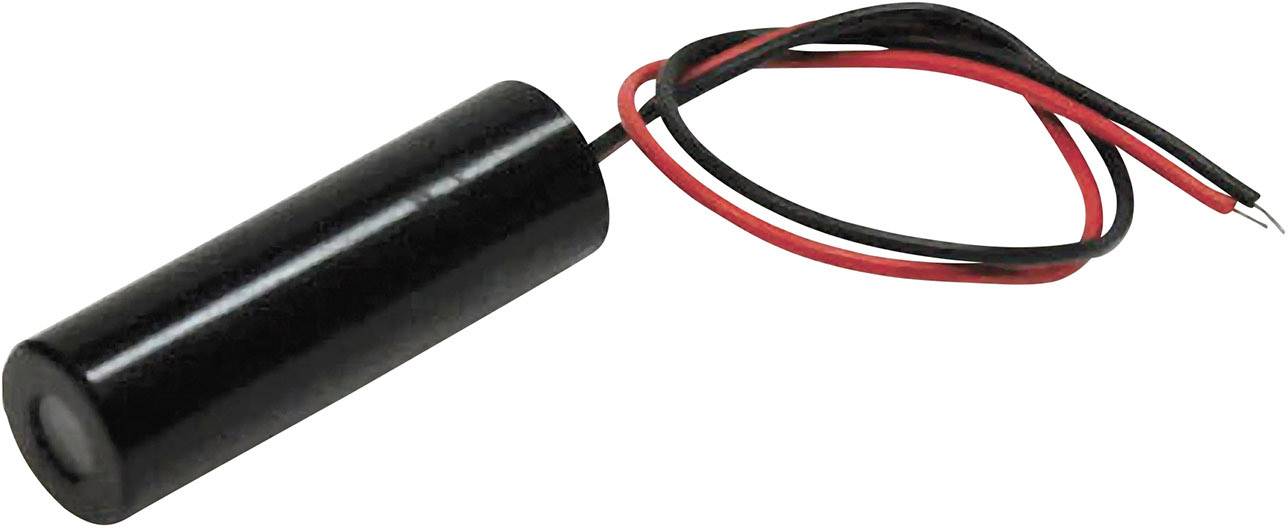

Picotronic Laser module Line Red 24 mW LH 650-24-5 (12x37)
Product type
Laser module
Emission characteristics
Line
Wavelength
650 nm
Power
24 mW
(Ø)
12 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 265.00 / piece)
€ 265.00
incl. VAT
Only 2 Piece(s) available
Highlights & Details
Line laser, red
- Red
- Laser category: 2M
- Emission characteristics: Line
Technical specifications
- Line width:< 1.5 mm (3 m)
- Product type
Laser module
- Type
LH 650-24-5 (12x37)
- Emission characteristics
Line
- Focus properties
3000 mm fixed-focus
- Factory colour
Red
- Wavelength
650 nm
24 mW
- (Ø)
12 mm
- Length
37 mm
- Laser category
2M
- Angular aperture
90°
- Beam divergence
1 mrad
- Clearance
3 m
- Operating voltage
5 V DC
- Operating current
70 mA
- Material
Aluminium
- Dim
(Ø x L) 12 mm x 37 mm
- Weight
7 g
- RoHS-compliant
Yes
- Max. temperature
50 °C
- Min. temperature
-20 °C
Documents & Downloads
Datasheet
Datasheet 1283428 Picotronic Laser module Line Red 24 mW LH 650-24-5 (12x37)
User & Safety Instructions
User & Safety Instructions 1283428 Picotronic Laser module Line Red 24 mW LH 650-24-5 (12x37)
Information
Information 1283428 Picotronic Laser module Line Red 24 mW LH 650-24-5 (12x37)
Conformity certificate
Conformity certificate 1283428 Picotronic Laser module Line Red 24 mW LH 650-24-5 (12x37)
Description
Hints
Laser beam! Observe safety instructions! Never look into the beam (may damage your retina).
