Name: Picotronic Laser module Line Red 25 mW LE 635-25-3 (14x45)
Brand: Picotronic
SKU: 1283365
Availability: InStock

Cylindrical, black LED lamp with red and black connecting cables, commonly used for model making or specialist lighting.

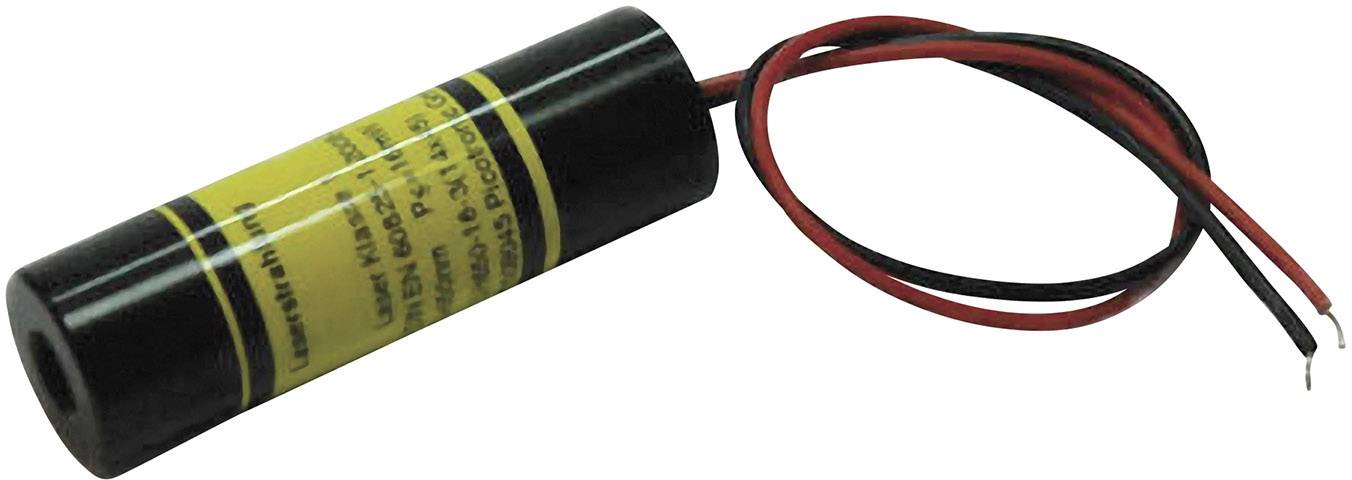

Black cylinder with yellow label and two protruding wires, red and black; possibly an electronic component.

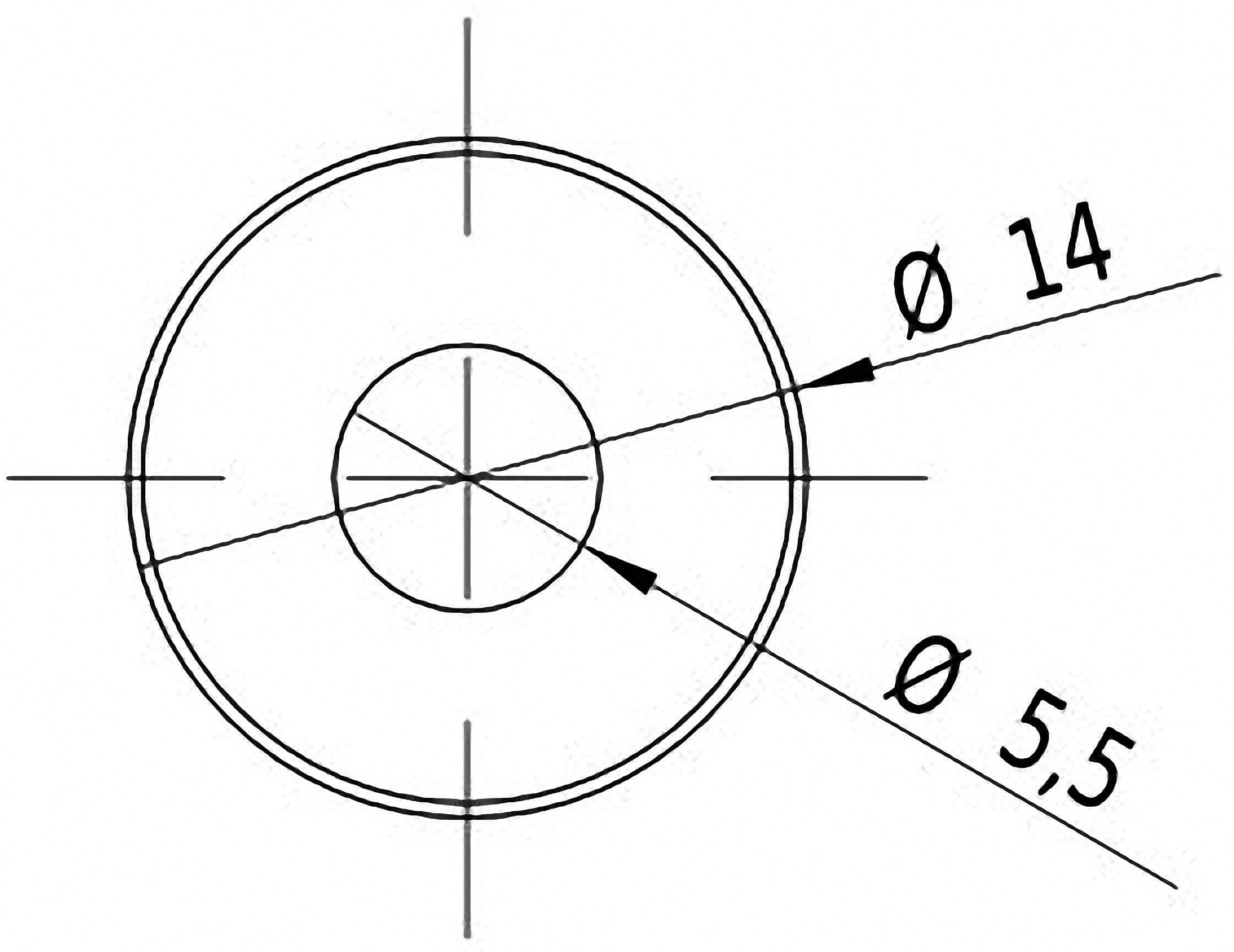

Technical drawing of a circle with two diameters: Internal diameter 'ø 5.5' and external diameter 'ø 14'.

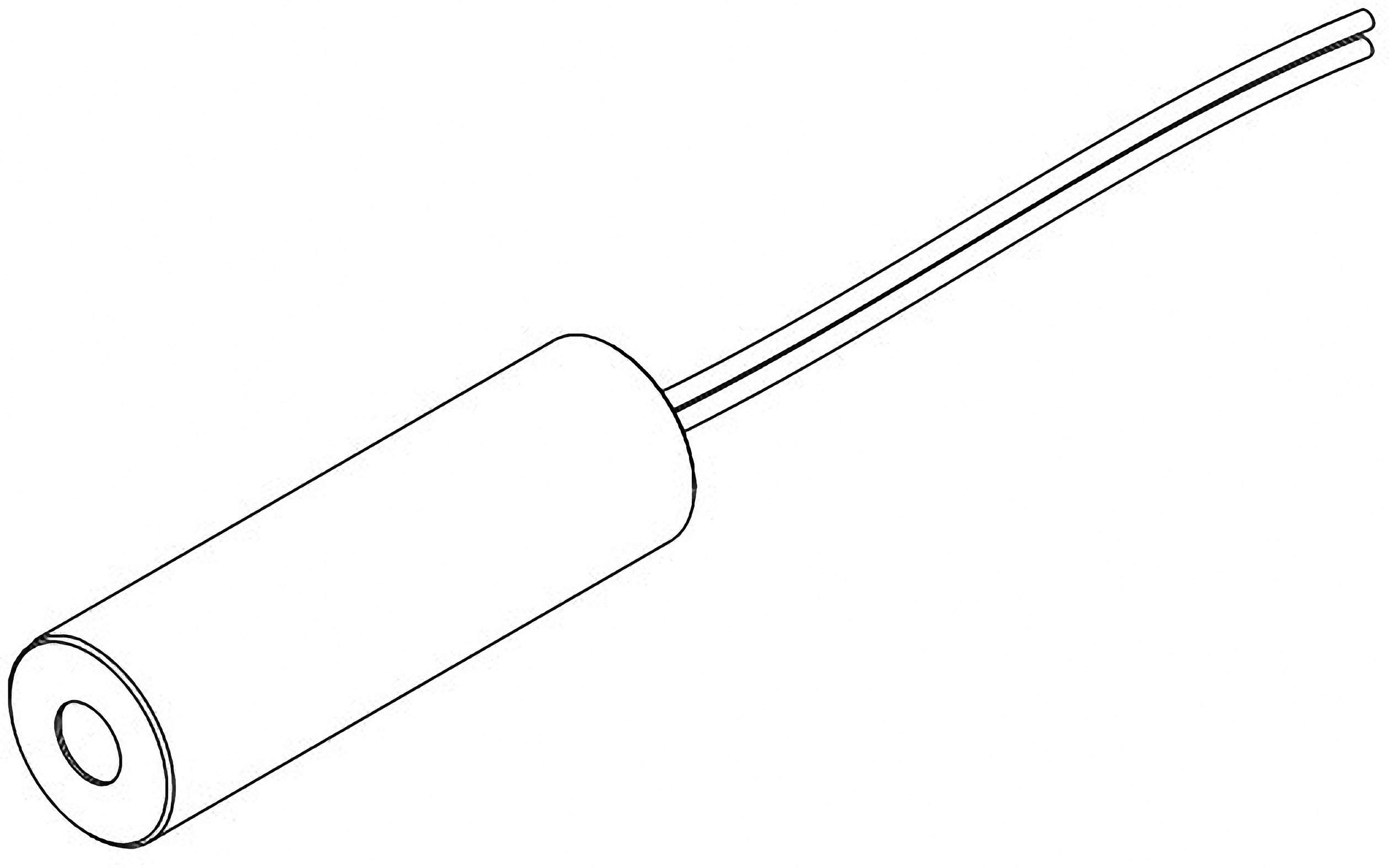

Long-cylinder sensor with two protruding wires; typical design for electrical device applications.

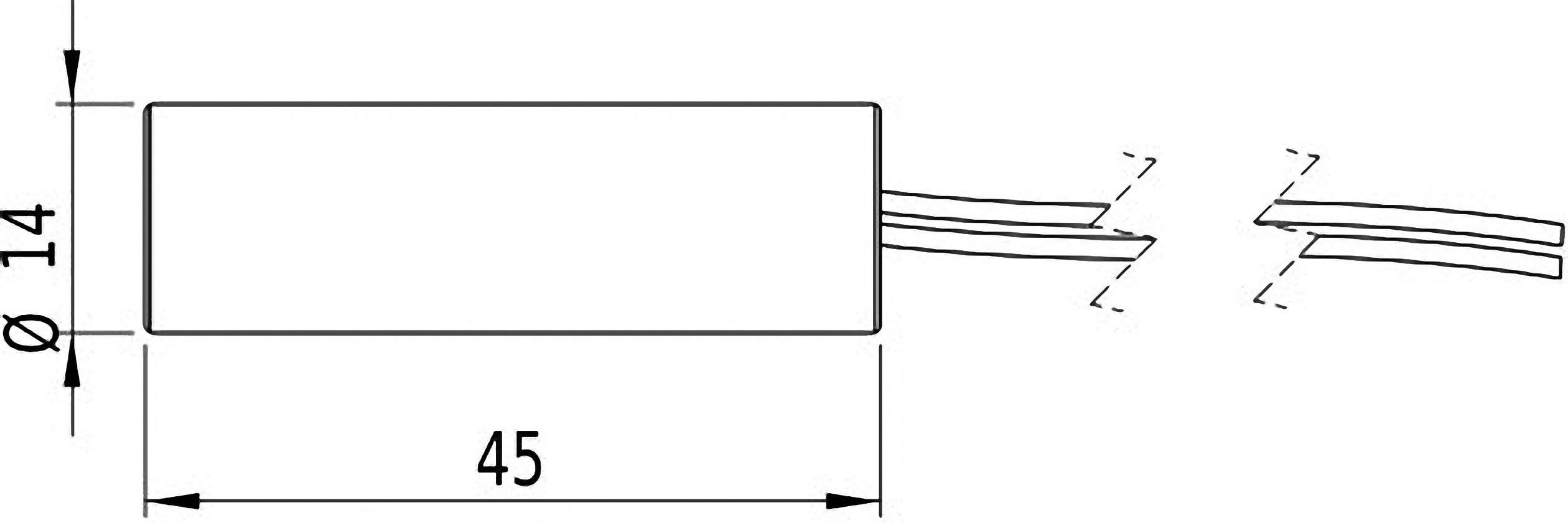

Diagram of a cylindrical component with a diameter of 14 mm and a length of 45 mm, with cables protruding.

1/5

Product type

Laser module

Emission characteristics

Line

Wavelength

635 nm

Power

25 mW

(Ø)

14 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Mon 2 Nov

3 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 535.00 / piece)

€ 535.00

incl. VAT

Only 3 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Insulated line laser, red

Red
Laser category: 2M
Emission characteristics: Line

Technical specifications

Line width:< 2.5 mm (5 m)

Product type: Laser module

Type: LE 635-25-3 (14x45)

Emission characteristics: Line

Focus properties: 5000 mm fixed-focus

Factory colour: Red

Wavelength: 635 nm

: 25 mW

(Ø): 14 mm

Length: 45 mm

Laser category: 2M

Angular aperture: 90°

Beam divergence: 0.6 mrad

Clearance: 7 m

Operating voltage: 3 V DC

Operating current: 90 mA

Material: Aluminium

Dim: (Ø x L) 14 mm x 45 mm

Weight: 18 g

RoHS-compliant: Yes

Max. temperature: 50 °C

Min. temperature: -20 °C

Variants(All information include VAT, plus shipping costs)

(Ø)

Clearance

Factory colour

Laser category

Length

Power

Wavelength

Picotronic Laser module Line Blue 10 mW LE 405-10-5-F (14x60)

Item no:1283409

Dispatches on Mon 2 Nov

7 Piece(s)Conrad Electronic

14 mm

5 m

Blue

60 mm

10 mW

405 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 855.00^*

Picotronic Laser module Line Blue 5 mW LE 405-5-3-F-S (22 x 100)

Item no:1283434

Dispatches on Mon 2 Nov

5 Piece(s)Conrad Electronic

22 mm

3 m

Blue

100 mm

5 mW

405 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 825.00^*

Picotronic Laser module Line Blue 5 mW LE 405-5-5-F (14x60)

Item no:1283431

Dispatches on Mon 2 Nov

8 Piece(s)Conrad Electronic

14 mm

3 m

Blue

60 mm

5 mW

405 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 635.00^*

Picotronic Laser module Line Green 10 mW LD 532-10-24 (20 x 80)-C500

Item no:1283319

Dispatches on Mon 2 Nov

29 Piece(s)Conrad Electronic

20 mm

1.5 m

Green

80 mm

10 mW

532 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 435.00^*

Picotronic Laser module Line Green 10 mW LD 532-10-24 (20 x 80)-PL-C1500

Item no:1283355

Dispatches on Mon 2 Nov

22 Piece(s)Conrad Electronic

20 mm

5 m

Green

80 mm

10 mW

532 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 455.00^*

Picotronic Laser module Line Green 10 mW LD 532-10-3 (20x80)

Item no:1283386

Dispatches on Mon 2 Nov

15 Piece(s)Conrad Electronic

20 mm

5 m

Green

80 mm

10 mW

532 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 329.00^*

Picotronic Laser module Line Green 15 mW LD 532-15-24 (20 x 80) 45-PL-C 3000

Item no:1283392

Dispatches on Mon 2 Nov

5 Piece(s)Conrad Electronic

20 mm

5 m

Green

80 mm

15 mW

532 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 445.00^*

Picotronic Laser module Line Green 3 mW LD 532-3-3 (14x60)

Item no:1283339

Dispatches on Mon 2 Nov

9 Piece(s)Conrad Electronic

14 mm

3 m

Green

60 mm

3 mW

532 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 249.99^*

Picotronic Laser module Line Green 5 mW LC 520-5-5-F (16 x 65) - QCW

Item no:1283368

Dispatches on Mon 2 Nov

6 Piece(s)Conrad Electronic

16 mm

5 m

Green

65 mm

5 mW

520 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 445.00^*

Picotronic Laser module Line Green 5 mW LC 532-5-3-F (16x65)

Item no:1283343

Dispatches on Mon 2 Nov

18 Piece(s)Conrad Electronic

16 mm

3 m

Green

65 mm

5 mW

532 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 329.00^*

Documents & Downloads

Datasheet

Datasheet 1283365 Picotronic Laser module Line Red 25 mW LE 635-25-3 (14x45)

User & Safety Instructions

User & Safety Instructions 1283365 Picotronic Laser module Line Red 25 mW LE 635-25-3 (14x45)

Information

Information 1283365 Picotronic Laser module Line Red 25 mW LE 635-25-3 (14x45)

Conformity certificate

Conformity certificate 1283365 Picotronic Laser module Line Red 25 mW LE 635-25-3 (14x45)

Hints

Laser beam! Observe safety instructions! Never look into the beam (may damage your retina).

Description

Hints

Laser beam! Observe safety instructions! Never look into the beam (may damage your retina).
