A cylindrical black sensor with red and green cables at one end. The sensor is suitable for electronic applications.

A cylindrical black sensor with red and green cables at one end. The sensor is suitable for electronic applications.

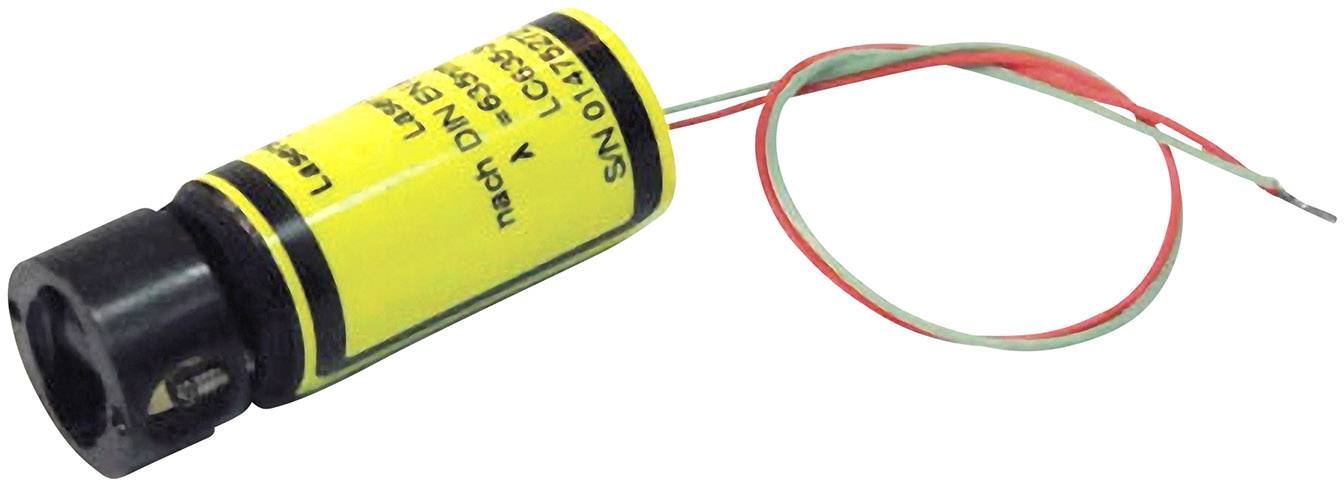

A yellow laser diode module with red and green insulated connection cables. Used for precise alignment or measuring instruments.

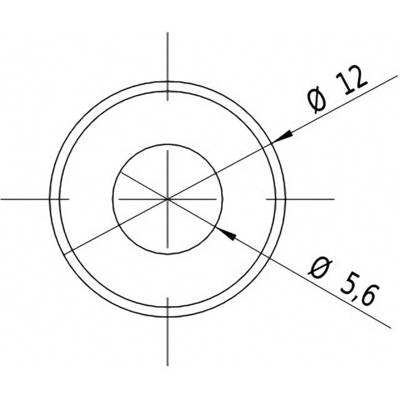

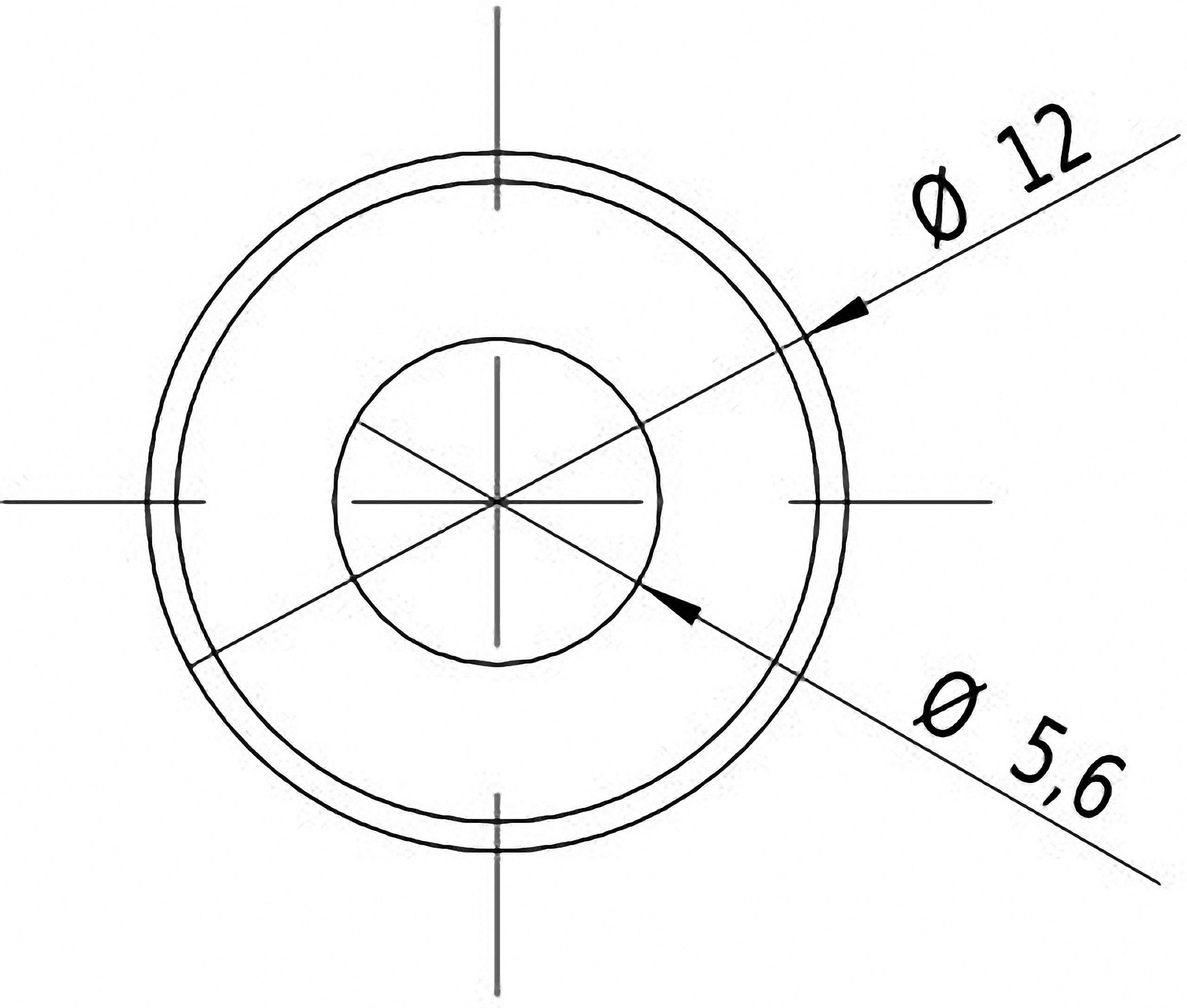

Technical drawing of a circle with two diameters: inner circle Ø 5.6 and outer circle Ø 12, both marked with arrows.

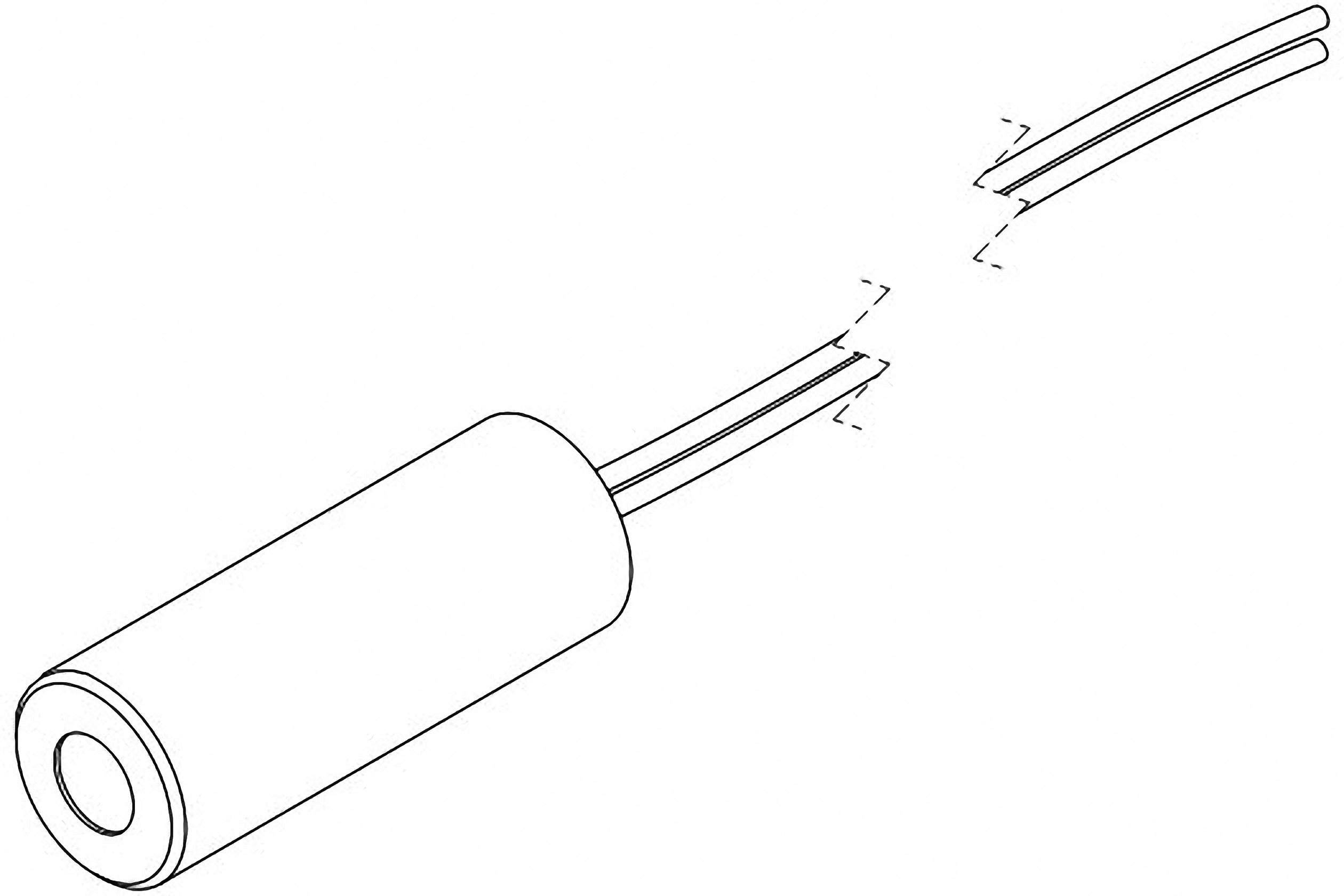

Abstract diagram of a cylinder with two wire connections; one is shielded. Representation of a technical component.

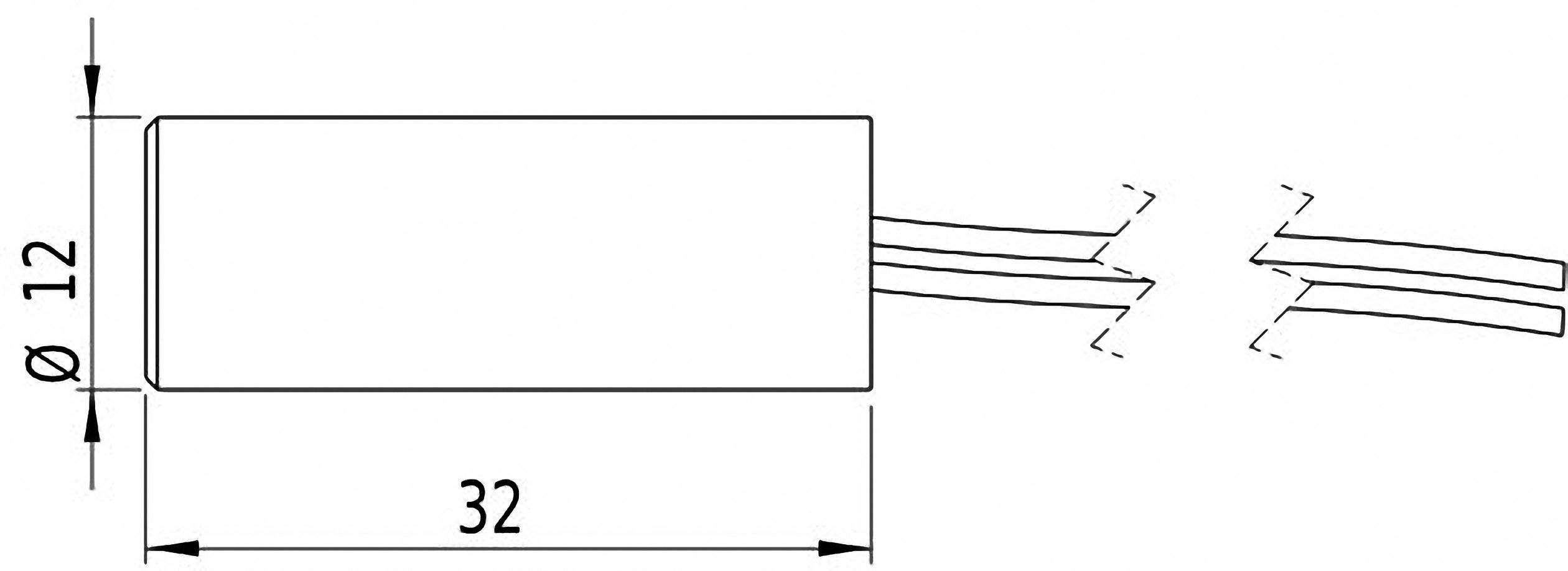

Technical drawing of a rectangular component with dimensions of 32 mm length and 12 mm diameter, cable end on the right.

1/5

Picotronic

Datasheet (PDF)

English

8 Piece(s)

Sales and shipping:

Number

Piece(s)

Total (€ 67.22 / piece)

€

Only 8 Piece(s) available

Report legal concerns

Highlights & Details

Line laser, red

Red
Laser category: 1
Emission characteristics: Line

Technical specifications

Line width:< 1.5 mm (3 m)

Type: LC 635-3-4.5 (12x32)

Emission characteristics: Line

Focus properties: 3000 mm fixed-focus

Factory colour: Red

Wavelength: 635 nm

: 3 mW

Laser category: 1

Angular aperture: 90°

Beam divergence: 0.4 mrad

Clearance: 3 m

Operating voltage: 4.5 V DC

Operating current: 28 mA

Material: Brass

Dim: (Ø x L) 12 mm x 32 mm

Weight: 19 g

RoHS-compliant: Yes

(Ø): 12 mm

Length: 32 mm

Max. temperature: 50 °C

Min. temperature: -20 °C

Product type: Laser module

Documents & Downloads

Datasheet

English

Datasheet 1283334 Picotronic Laser module Line Red 3 mW LC 635-3-4.5 (12x32)

Information

European union

Information 1283334 Picotronic Laser module Line Red 3 mW LC 635-3-4.5 (12x32)

Conformity certificate

Conformity certificate 1283334 Picotronic Laser module Line Red 3 mW LC 635-3-4.5 (12x32)

Description

Hints

Laser beam! Observe safety instructions! Never look into the beam (may damage your retina).
