Name: Picotronic Laser module Line Red 5 mW LC 635-5-3-F (14x45)
Brand: Picotronic
SKU: 1283338
Availability: InStock

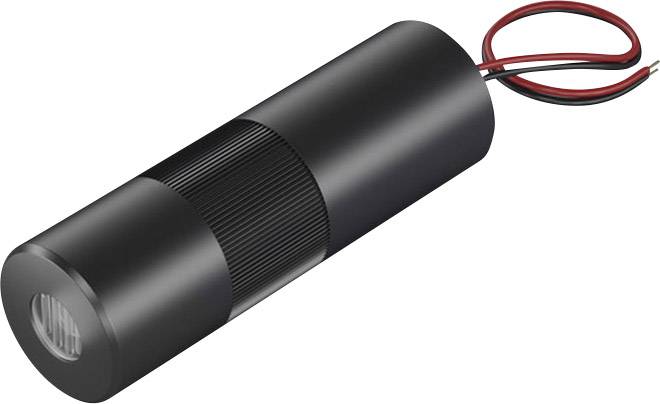

Black cylindrical LED torch with a ridged grip, viewed from the side. Two cables are attached at the end.<br><br>Note: In British English, "torch" is typically used instead of "flashlight", and the description maintains the original meaning and structure.

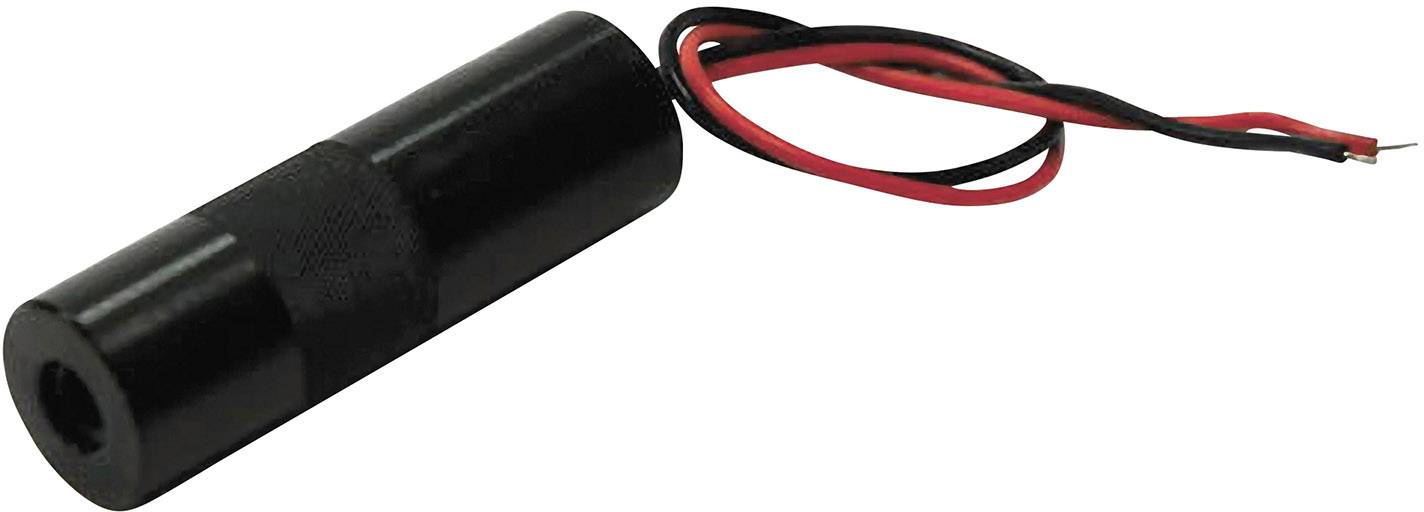

Black cylindrical electronic component with two protruding cables, one red and one black.

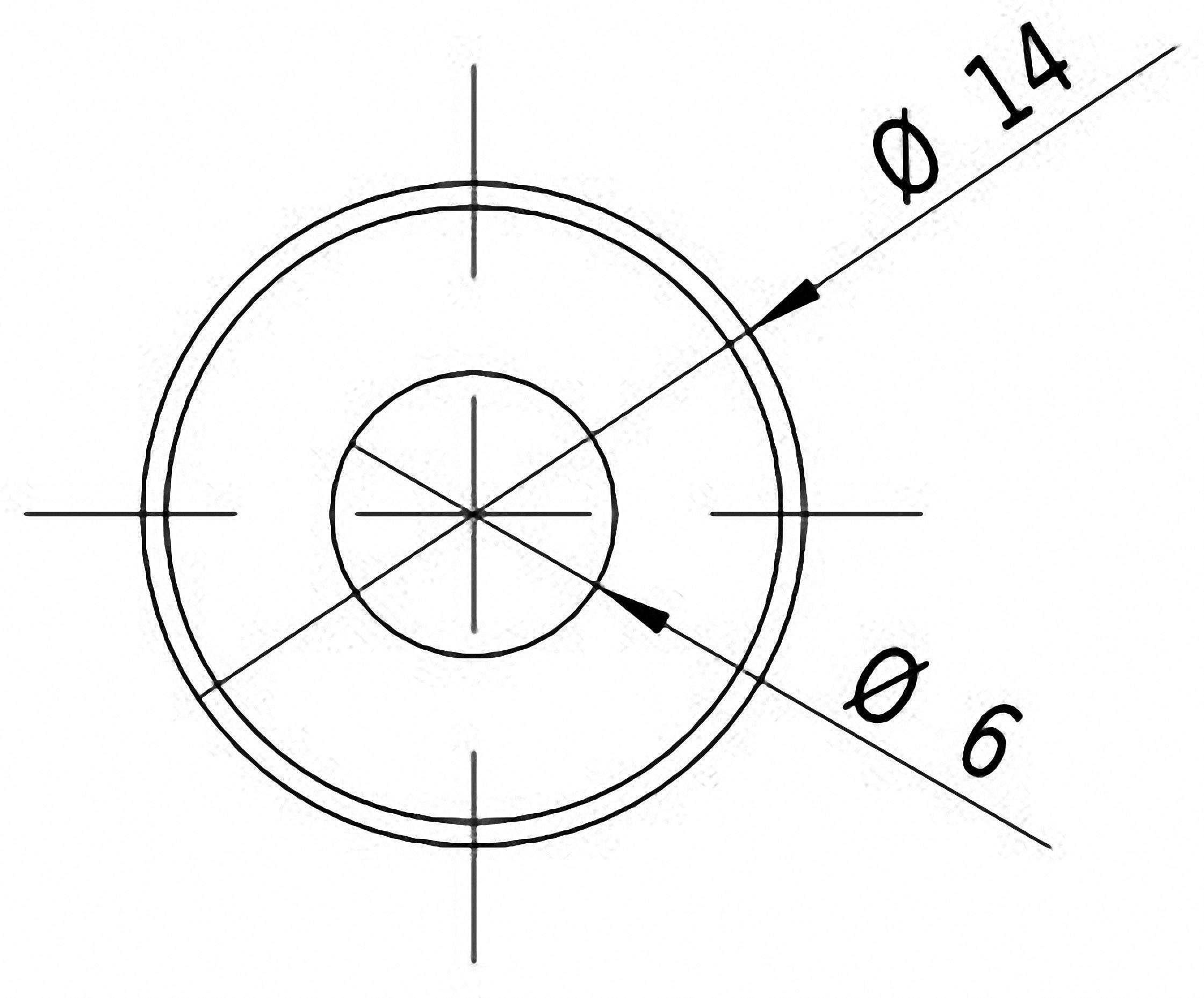

Technical drawing of a circle with two diameters: outer circle Ø 14 mm, inner circle Ø 6 mm, both with centre lines.

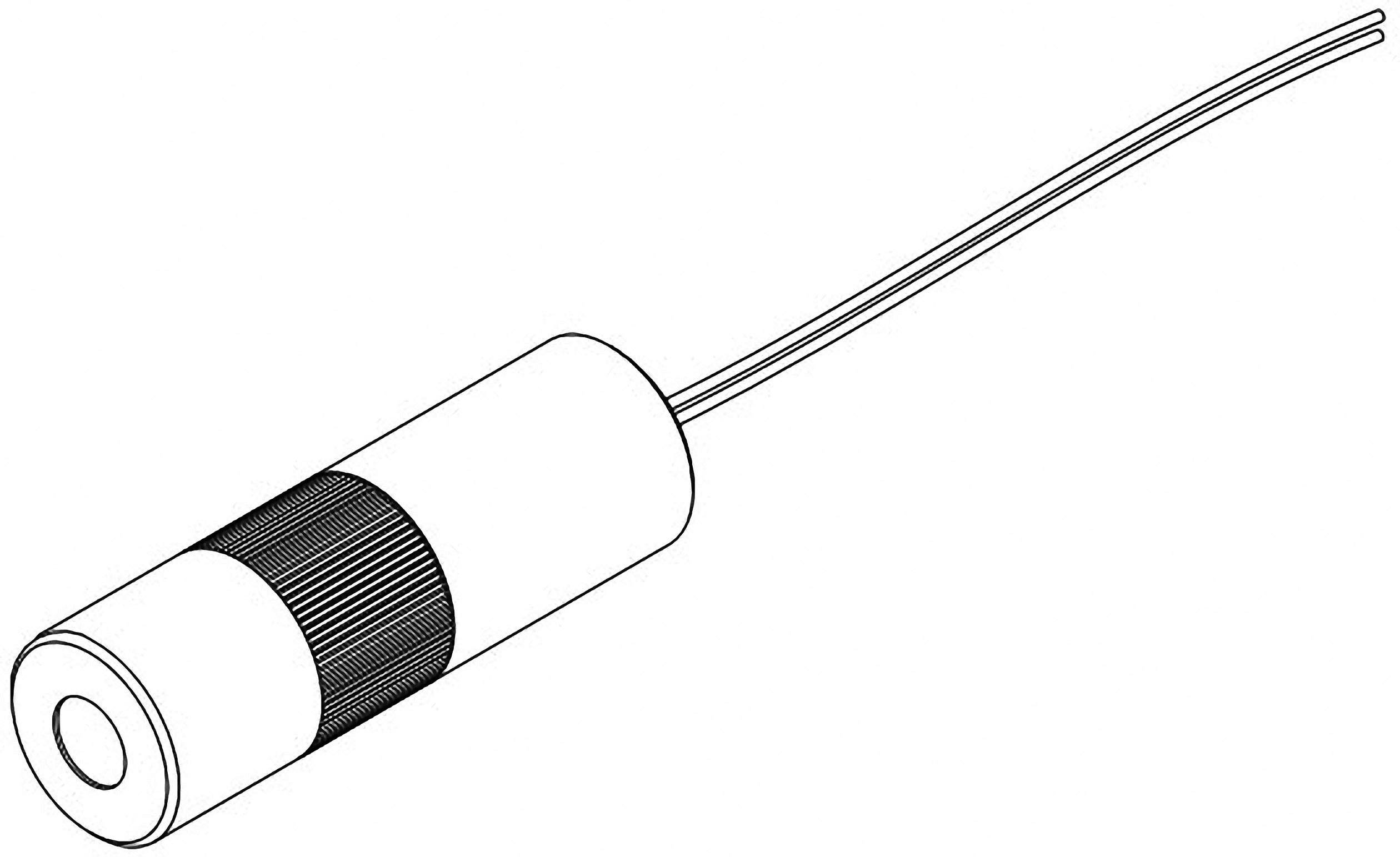

Drawing of a cylindrical microphone with cable connection, suitable for audio systems or recording studios.

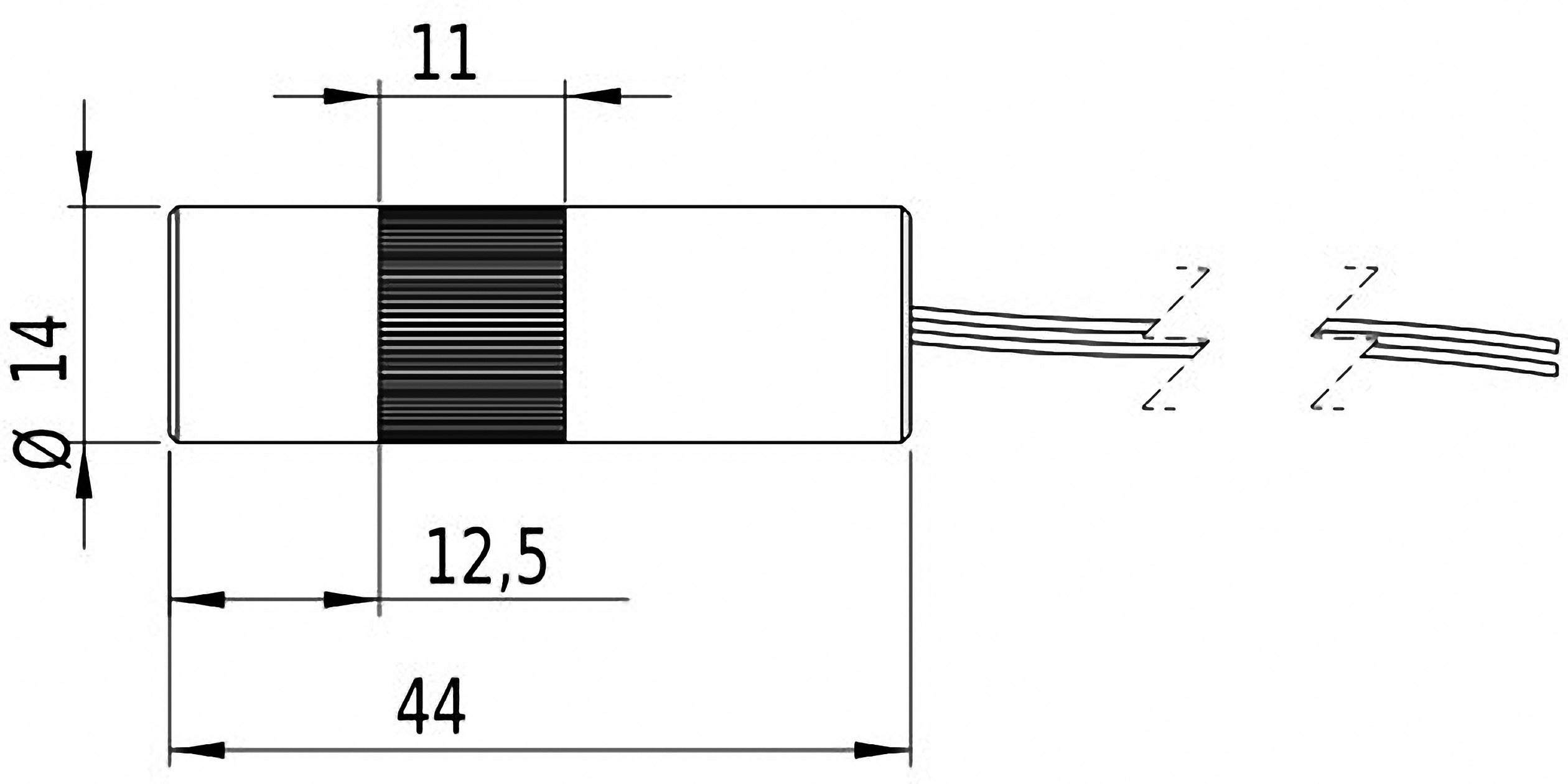

Side view of a cylindrical sensor with cable. Dimensions: Length 44 mm, diameter 14 mm, centre to cable distance 12.5 mm.

1/5

Product type

Laser module

Emission characteristics

Line

Wavelength

635 nm

Power

5 mW

(Ø)

14 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Mon 9 Nov

18 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 199.99 / piece)

€ 199.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Insulated line laser, red

Red
Laser category: 1
Emission characteristics: Line

Technical specifications

Product type: Laser module

Type: LC 635-5-3-F (14x45)

Emission characteristics: Line

Focus properties: Selectable focus

Factory colour: Red

Wavelength: 635 nm

: 5 mW

(Ø): 14 mm

Length: 45 mm

Laser category: 1

Angular aperture: 90°

Beam divergence: 0.4 mrad

Clearance: 2 m

Operating voltage: 3 V DC

Operating current: 54 mA

Material: Aluminium

Dim: (Ø x L) 14 mm x 45 mm

Weight: 15 g

RoHS-compliant: Yes

Max. temperature: 50 °C

Min. temperature: -20 °C

Variants(All information include VAT, plus shipping costs)

Power

Clearance

Length

(Ø)

Wavelength

Factory colour

Laser category

Picotronic Laser module Line Blue 10 mW LE 405-10-5-F (14x60)

Item no:1283409

Dispatches on Mon 9 Nov

7 Piece(s)Conrad Electronic

10 mW

5 m

60 mm

14 mm

405 nm

Blue

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 855.00^*

Picotronic Laser module Line Blue 5 mW LE 405-5-3-F-S (22 x 100)

Item no:1283434

Dispatches on Mon 9 Nov

5 Piece(s)Conrad Electronic

5 mW

3 m

100 mm

22 mm

405 nm

Blue

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 825.00^*

Picotronic Laser module Line Blue 5 mW LE 405-5-5-F (14x60)

Item no:1283431

Dispatches on Mon 9 Nov

8 Piece(s)Conrad Electronic

5 mW

3 m

60 mm

14 mm

405 nm

Blue

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 635.00^*

Picotronic Laser module Line Green 10 mW LD 532-10-24 (20 x 80)-C500

Item no:1283319

Dispatches on Mon 9 Nov

27 Piece(s)Conrad Electronic

10 mW

1.5 m

80 mm

20 mm

532 nm

Green

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 435.00^*

Picotronic Laser module Line Green 10 mW LD 532-10-24 (20 x 80)-PL-C1500

Item no:1283355

Dispatches on Mon 9 Nov

18 Piece(s)Conrad Electronic

10 mW

5 m

80 mm

20 mm

532 nm

Green

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 455.00^*

Picotronic Laser module Line Green 10 mW LD 532-10-3 (20x80)

Item no:1283386

Dispatches on Mon 9 Nov

15 Piece(s)Conrad Electronic

10 mW

5 m

80 mm

20 mm

532 nm

Green

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 329.00^*

Picotronic Laser module Line Green 15 mW LD 532-15-24 (20 x 80) 45-PL-C 3000

Item no:1283392

Dispatches on Mon 9 Nov

5 Piece(s)Conrad Electronic

15 mW

5 m

80 mm

20 mm

532 nm

Green

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 445.00^*

Picotronic Laser module Line Green 3 mW LD 532-3-3 (14x60)

Item no:1283339

Dispatches on Mon 9 Nov

9 Piece(s)Conrad Electronic

3 mW

3 m

60 mm

14 mm

532 nm

Green

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 249.99^*

Picotronic Laser module Line Green 5 mW LC 520-5-5-F (16 x 65) - QCW

Item no:1283368

Dispatches on Mon 9 Nov

6 Piece(s)Conrad Electronic

5 mW

5 m

65 mm

16 mm

520 nm

Green

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 445.00^*

Picotronic Laser module Line Green 5 mW LC 532-5-3-F (16x65)

Item no:1283343

Dispatches on Mon 9 Nov

18 Piece(s)Conrad Electronic

5 mW

3 m

65 mm

16 mm

532 nm

Green

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 329.00^*

Documents & Downloads

Datasheet

Datasheet 1283338 Picotronic Laser module Line Red 5 mW LC 635-5-3-F (14x45)

User & Safety Instructions

User & Safety Instructions 1283338 Picotronic Laser module Line Red 5 mW LC 635-5-3-F (14x45)

Information

Information 1283338 Picotronic Laser module Line Red 5 mW LC 635-5-3-F (14x45)

Conformity certificate

Conformity certificate 1283338 Picotronic Laser module Line Red 5 mW LC 635-5-3-F (14x45)

Hints

Laser beam! Observe safety instructions! Never look into the beam (may damage your retina).

Description

Hints

Laser beam! Observe safety instructions! Never look into the beam (may damage your retina).
