Name: Picotronic Laser module Line Red 5 mW LC 650-5-5-F (14x45)-C 1000
Brand: Picotronic
SKU: 1695991
Availability: InStock

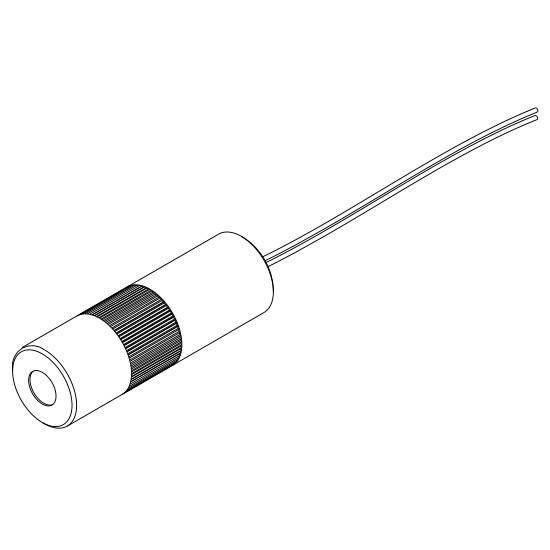

Black cylindrical torch with a ribbed handle and two protruding red and black wires.

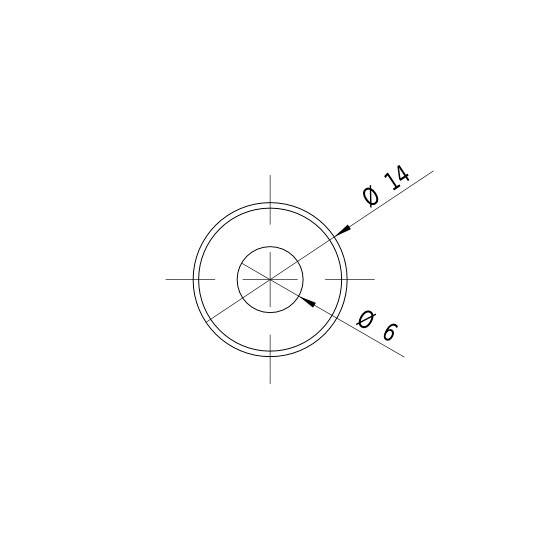

Technical drawing of a circle with markings for diameter: 14 and 6. The markings show dimensions in detail.

Sensor with a cylindrical housing and fixing screw, with three lead-out cables, typically used for temperature measurements.

1/3

Product type

Laser module

Emission characteristics

Line

Wavelength

650 nm

Power

5 mW

Laser category

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Mon 2 Nov

4 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 159.99 / piece)

€ 159.99

incl. VAT

Only 4 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Laser module line

Red
Laser category: 1
Emission characteristics: Line

Technical specifications

Connection cable 1000 mm

Product type: Laser module

Type: LC 650-5-5-F (14x45)-C 1000

Emission characteristics: Line

Focus properties: Selectable focus

Factory colour: Red

Wavelength: 650 nm

: 5 mW

Laser category: 1

Angular aperture: 90°

Beam divergence: 0.4 mrad

Clearance: 3 m

Operating voltage: 5 V DC

Operating current: 35 mA

Material: Aluminium

RoHS-compliant: Yes

Max. temperature: +50 °C

Min. temperature: -20 °C

Variants(All information include VAT, plus shipping costs)

Clearance

Factory colour

Laser category

Power

Wavelength

Picotronic Laser module Line Blue 1 mW LE 405-1-3 (14x45) 90 DEG F 150

Item no:1695952

Dispatches on Mon 2 Nov

5 Piece(s)Conrad Electronic

0.15 m

Blue

1 mW

405 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 285.00^*

Picotronic Laser module Line Blue 16 mW LC 405-16-3-F (14x55) 30

Item no:1695871

Dispatches on Mon 14 Dec

Conrad Electronic

5 m

Blue

16 mW

405 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 485.00^*

Picotronic Laser module Line Blue 30 mW LC 450-30-24-F (14x60)

Item no:1695901

Dispatches on Mon 2 Nov

3 Piece(s)Conrad Electronic

6 m

Blue

30 mW

450 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 535.00^*

Picotronic Laser module Line Green 0.1 mW LC 520-0 1-5-F (16 x 65) - QCW

Item no:1695904

Dispatches on Thu 5 Nov

Conrad Electronic

1 m

Green

0.1 mW

520 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 609.00^*

Picotronic Laser module Line Green 0.1 mW LC 520-0. 1-24-F (16x65)-MV

Item no:1695978

Dispatches on Mon 2 Nov

5 Piece(s)Conrad Electronic

1 m

Green

0.1 mW

520 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 655.00^*

Picotronic Laser module Line Green 1 mW LE 520-1-3 (14x45) 90 DEG F 150 - QCW

Item no:1696011

Dispatches on Mon 2 Nov

2 Piece(s)Conrad Electronic

0.15 m

Green

1 mW

520 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 419.00^*

Picotronic Laser module Line Green 10 mW LD 520-10-24 (16 x 80) C1000 QCW

Item no:1695989

Dispatches on Mon 2 Nov

6 Piece(s)Conrad Electronic

5 m

Green

10 mW

520 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 399.00^*

Picotronic Laser module Line Green 10 mW LD 532-10-24 (20 x 80)-F800

Item no:1695981

Dispatches on Mon 2 Nov

8 Piece(s)Conrad Electronic

0.8 m

Green

10 mW

532 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 419.00^*

Picotronic Laser module Line Green 10 mW LD 532-10-24 (20 x 80)-PL-C1500-G

Item no:1695863

Dispatches on Mon 2 Nov

28 Piece(s)Conrad Electronic

3 m

Green

10 mW

532 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 555.00^*

Picotronic Laser module Line Green 10 mW LD 532-10-24 (20 x 80)-PL-C1500-NT

Item no:1695975

Dispatches on Mon 2 Nov

23 Piece(s)Conrad Electronic

5 m

Green

10 mW

532 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 515.00^*

Documents & Downloads

Datasheet

Datasheet 1695991 Picotronic Laser module Line Red 5 mW LC 650-5-5-F (14x45)-C 1000

User & Safety Instructions

User & Safety Instructions 1695991 Picotronic Laser module Line Red 5 mW LC 650-5-5-F (14x45)-C 1000

Information

Information 1695991 Picotronic Laser module Line Red 5 mW LC 650-5-5-F (14x45)-C 1000

Conformity certificate

Conformity certificate 1695991 Picotronic Laser module Line Red 5 mW LC 650-5-5-F (14x45)-C 1000

Hints

Class 1: laser beam! Observe safety instructions! Never look into the beam (may damage your retina).

Description

Hints

Class 1: laser beam! Observe safety instructions! Never look into the beam (may damage your retina).
