Name: Picotronic Laser module Line Red 5 mW LE 650-5-3 (12x32)-F 400-10 DEG
Brand: Picotronic
SKU: 1695958
Availability: InStock

Cylindrical black LED light with two protruding cables in red and black, designed for illumination or decorative purposes.

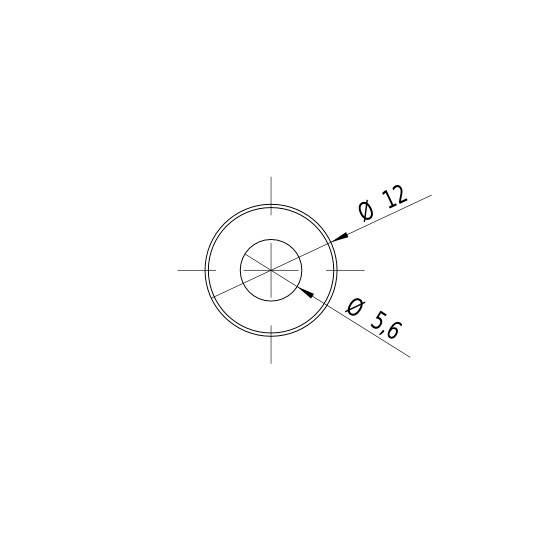

Technical drawing of a circle with two diameters. The outer diameter is 12 mm, the inner diameter 5.6 mm.

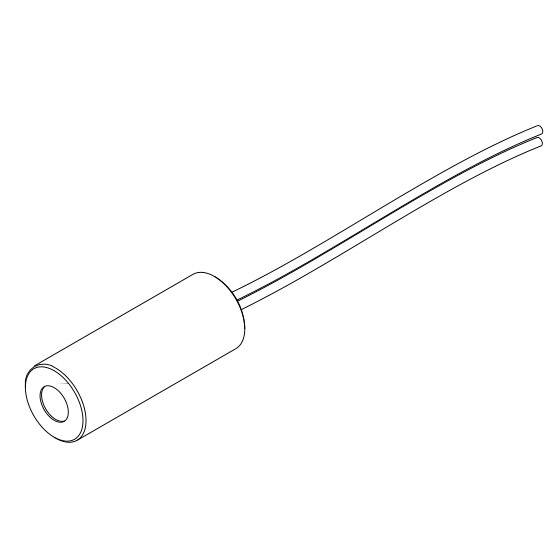

Small cylindrical audio socket with two attached cables. Used for connecting electronic devices to audio sources.

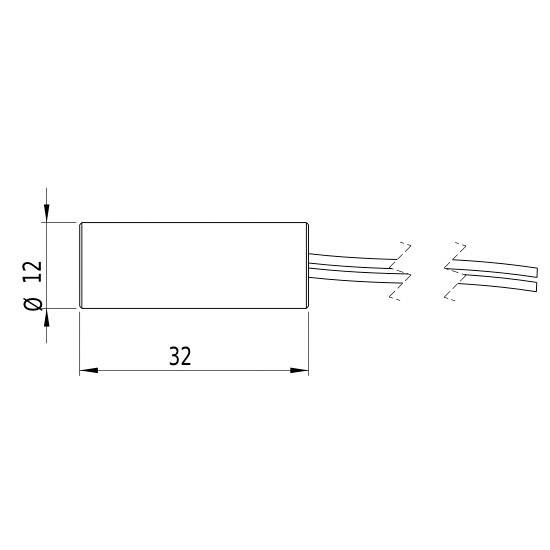

Sketch of a cylindrical component with dimensions of 12 mm diameter and 32 mm length, with cables extending from one end.

1/4

Product type

Laser module

Emission characteristics

Line

Wavelength

650 nm

Power

5 mW

Laser category

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 5 Nov

13 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 89.99 / piece)

€ 89.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Laser module line

Red
Laser category: 2M
Emission characteristics: Line

Technical specifications

Connection cable 100 mm

Product type: Laser module

Type: LE 650-5-3 (12x32)-F 400-10 DEG

Emission characteristics: Line

Focus properties: 400 mm fixed-focus

Factory colour: Red

Wavelength: 650 nm

: 5 mW

Laser category: 2M

Angular aperture: 10°

Beam divergence: 0.6 mrad

Clearance: 0.4 m

Operating voltage: 3 V DC

Operating current: 30 mA

Material: Aluminium

RoHS-compliant: Yes

Max. temperature: +50 °C

Min. temperature: -20 °C

Variants(All information include VAT, plus shipping costs)

Clearance

Factory colour

Laser category

Power

Wavelength

Picotronic Laser module Line Blue 1 mW LE 405-1-3 (14x45) 90 DEG F 150

Item no:1695952

Dispatches on Thu 5 Nov

5 Piece(s)Conrad Electronic

0.15 m

Blue

1 mW

405 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 285.00^*

Picotronic Laser module Line Blue 16 mW LC 405-16-3-F (14x55) 30

Item no:1695871

Dispatches on Wed 16 Dec

Conrad Electronic

5 m

Blue

16 mW

405 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 485.00^*

Picotronic Laser module Line Blue 30 mW LC 450-30-24-F (14x60)

Item no:1695901

Dispatches on Thu 5 Nov

3 Piece(s)Conrad Electronic

6 m

Blue

30 mW

450 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 535.00^*

Picotronic Laser module Line Green 0.1 mW LC 520-0 1-5-F (16 x 65) - QCW

Item no:1695904

Dispatches on Tue 10 Nov

Conrad Electronic

1 m

Green

0.1 mW

520 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 609.00^*

Picotronic Laser module Line Green 0.1 mW LC 520-0. 1-24-F (16x65)-MV

Item no:1695978

Dispatches on Thu 5 Nov

5 Piece(s)Conrad Electronic

1 m

Green

0.1 mW

520 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 655.00^*

Picotronic Laser module Line Green 1 mW LE 520-1-3 (14x45) 90 DEG F 150 - QCW

Item no:1696011

Dispatches on Thu 5 Nov

2 Piece(s)Conrad Electronic

0.15 m

Green

1 mW

520 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 419.00^*

Picotronic Laser module Line Green 10 mW LD 520-10-24 (16 x 80) C1000 QCW

Item no:1695989

Dispatches on Thu 5 Nov

6 Piece(s)Conrad Electronic

5 m

Green

10 mW

520 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 399.00^*

Picotronic Laser module Line Green 10 mW LD 532-10-24 (20 x 80)-F800

Item no:1695981

Dispatches on Thu 5 Nov

8 Piece(s)Conrad Electronic

0.8 m

Green

10 mW

532 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 419.00^*

Picotronic Laser module Line Green 10 mW LD 532-10-24 (20 x 80)-PL-C1500-G

Item no:1695863

Dispatches on Thu 5 Nov

28 Piece(s)Conrad Electronic

3 m

Green

10 mW

532 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 555.00^*

Picotronic Laser module Line Green 10 mW LD 532-10-24 (20 x 80)-PL-C1500-NT

Item no:1695975

Dispatches on Thu 5 Nov

23 Piece(s)Conrad Electronic

5 m

Green

10 mW

532 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 515.00^*

Documents & Downloads

Datasheet

Datasheet 1695958 Picotronic Laser module Line Red 5 mW LE 650-5-3 (12x32)-F 400-10 DEG

User & Safety Instructions

User & Safety Instructions 1695958 Picotronic Laser module Line Red 5 mW LE 650-5-3 (12x32)-F 400-10 DEG

Information

Information 1695958 Picotronic Laser module Line Red 5 mW LE 650-5-3 (12x32)-F 400-10 DEG

Conformity certificate

Conformity certificate 1695958 Picotronic Laser module Line Red 5 mW LE 650-5-3 (12x32)-F 400-10 DEG

Hints

Class 2M: laser radiation! Observe safety instructions! Never look into the beam (may damage your retina).

Description

Hints

Class 2M: laser radiation! Observe safety instructions! Never look into the beam (may damage your retina).
