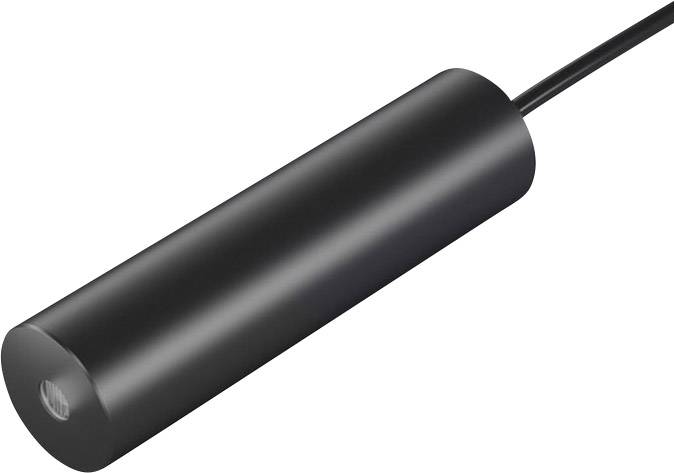

Picotronic Laser module Line Red 5 mW LE 650-5-3 (20 x 75) 30 - C3000
Product type
Laser module
Emission characteristics
Line
Wavelength
650 nm
Power
5 mW
(Ø)
20 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 114.99 / piece)
€ 114.99
incl. VAT
14-day return policy included
Highlights & Details
Insulated line laser, red
- Red
- Laser category: 1
- Emission characteristics: Line
Technical specifications
- Line width:< 1.5 mm (3 m)
- Product type
Laser module
- Type
LE 650-5-3 (20 x 75) 30 - C3000
- Emission characteristics
Line
- Focus properties
3000 mm fixed-focus
- Factory colour
Red
- Wavelength
650 nm
5 mW

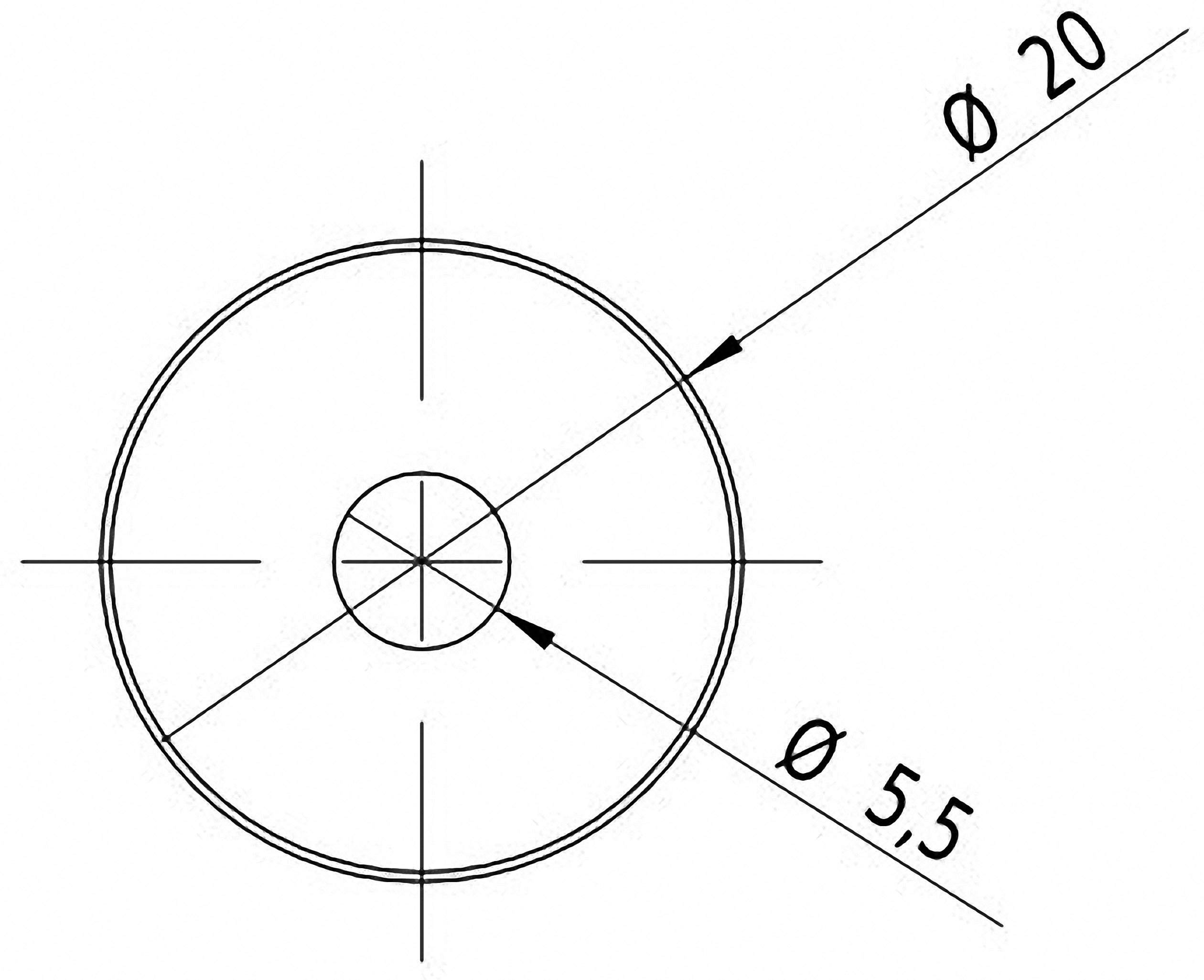

- (Ø)
20 mm
- Length
75 mm
- Laser category
1
- Angular aperture
30°
- Beam divergence
0.6 mrad
- Clearance
5 m
- Operating voltage
3 V DC
- Operating current
30 mA
- Material
Aluminium

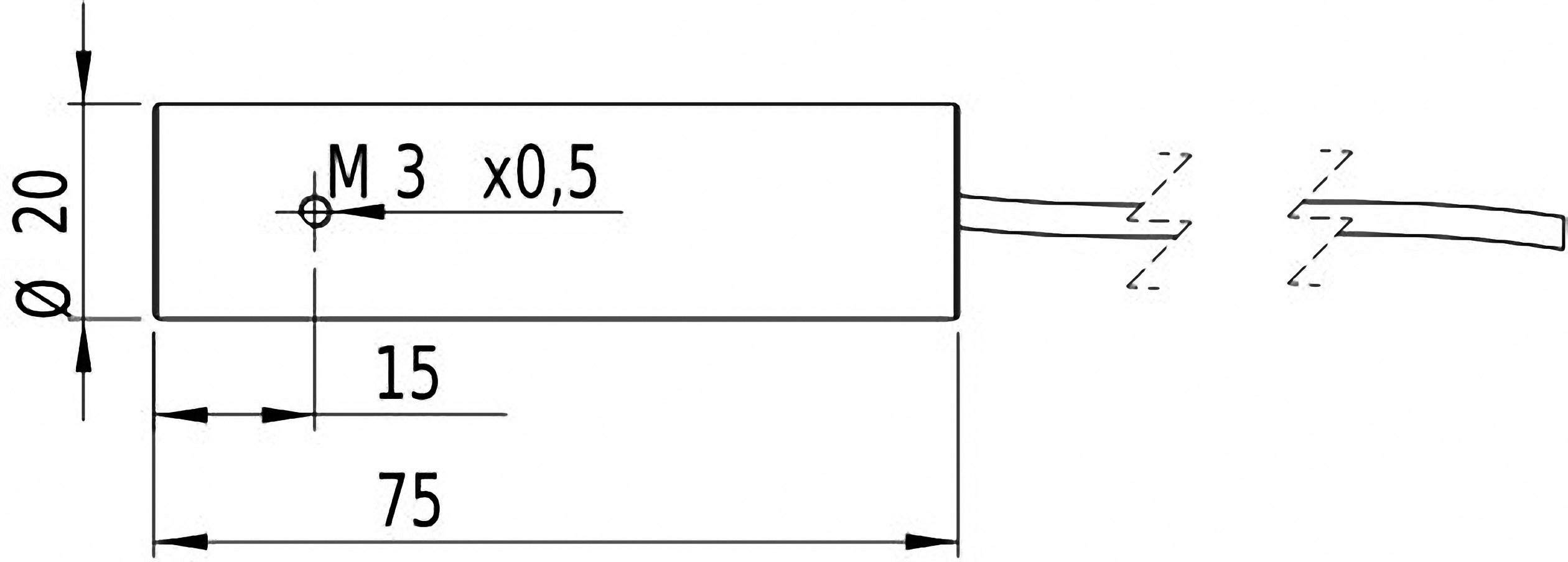

- Dim
(Ø x L) 20 mm x 75 mm
- Weight
100 g
- RoHS-compliant
Yes
- Max. temperature
50 °C
- Min. temperature
-20 °C
Documents & Downloads
Datasheet
Datasheet 1283357 Picotronic Laser module Line Red 5 mW LE 650-5-3 (20 x 75) 30 - C3000
User & Safety Instructions
User & Safety Instructions 1283357 Picotronic Laser module Line Red 5 mW LE 650-5-3 (20 x 75) 30 - C3000
Information
Information 1283357 Picotronic Laser module Line Red 5 mW LE 650-5-3 (20 x 75) 30 - C3000
Conformity certificate
Conformity certificate 1283357 Picotronic Laser module Line Red 5 mW LE 650-5-3 (20 x 75) 30 - C3000
Description
Hints
Laser beam! Observe safety instructions! Never look into the beam (may damage your retina).
