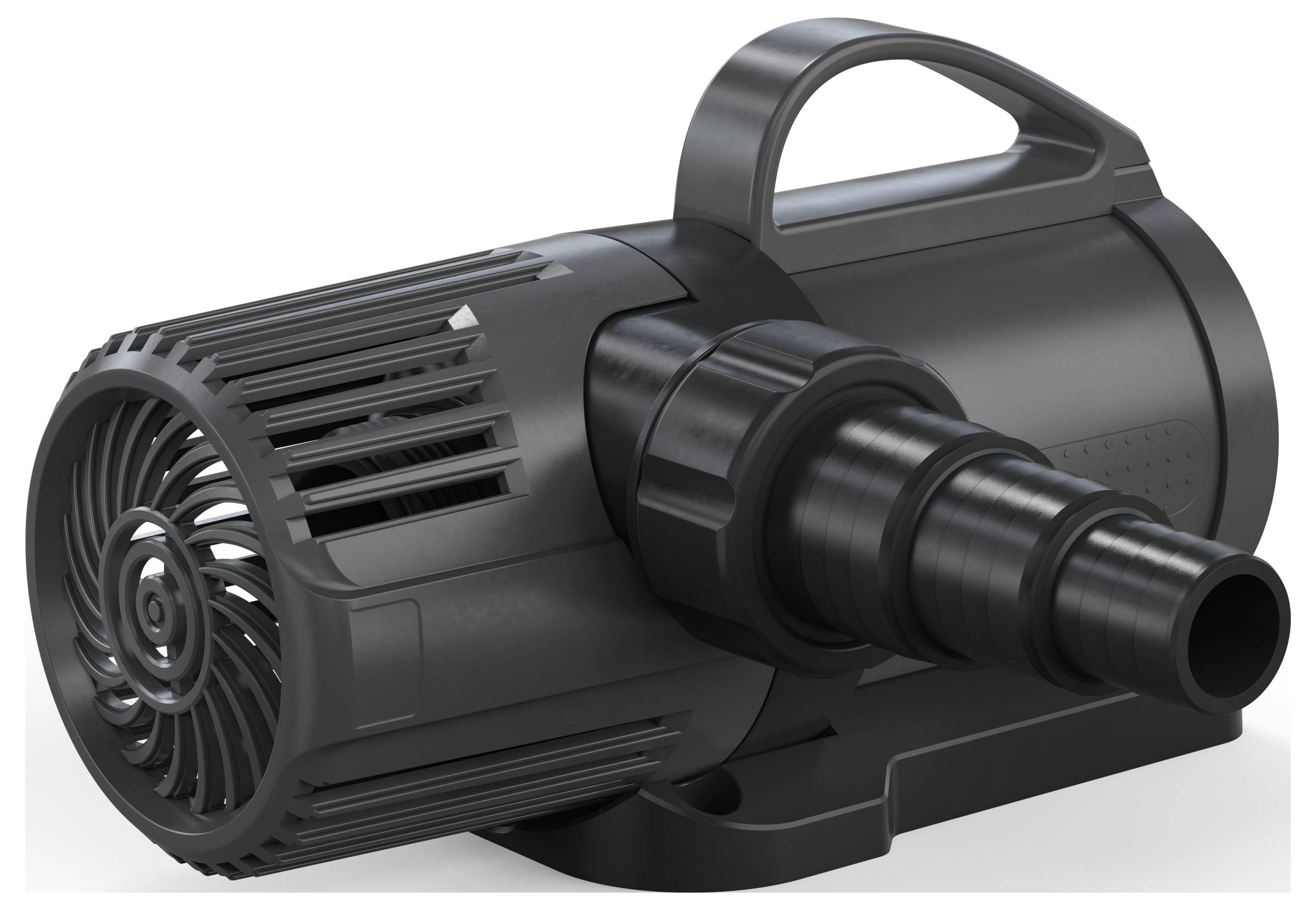

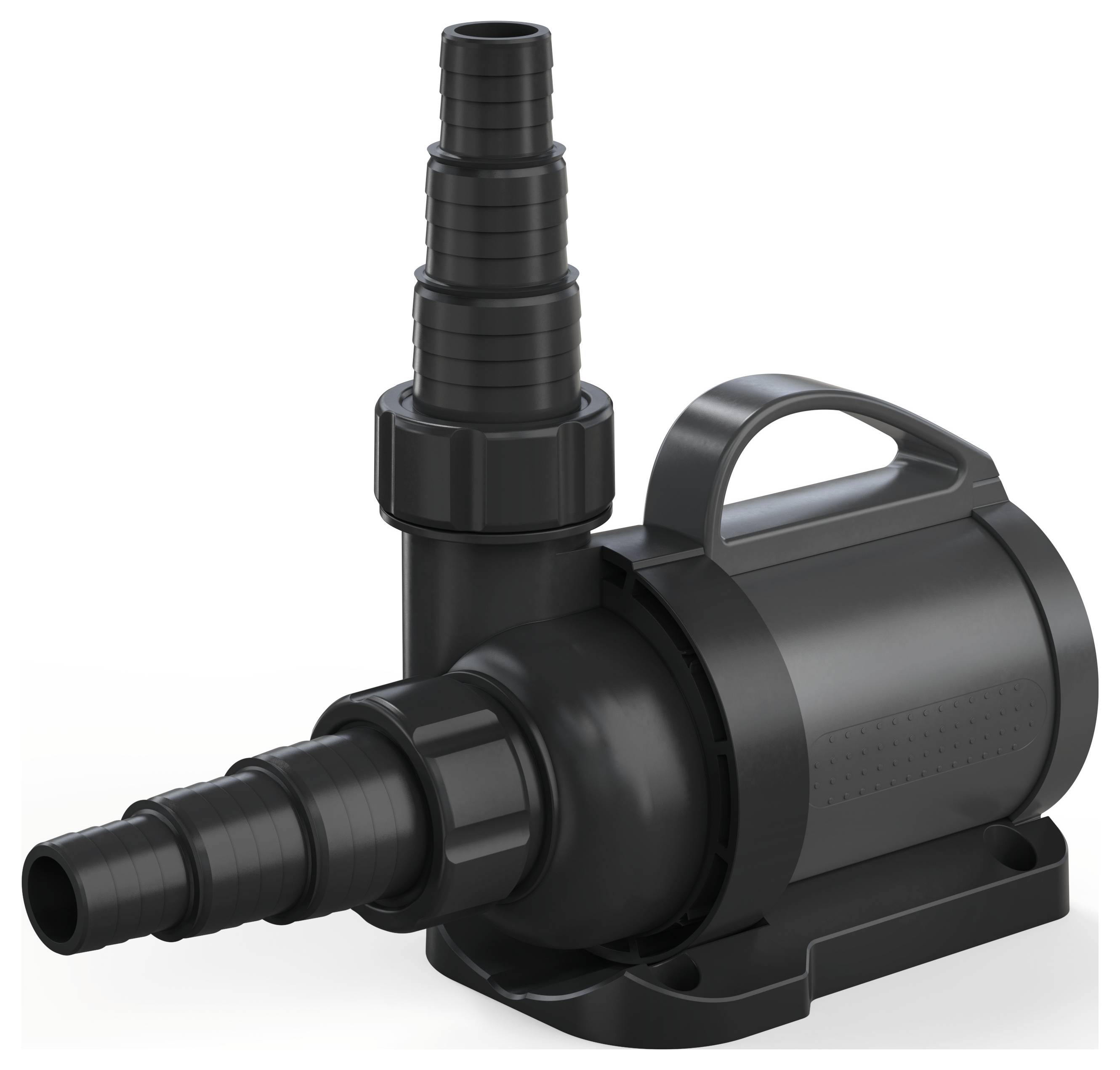

Pontec 95663 Stream pump, Filter pump incl. filter 10000 l/h
EAN:
Part number:
Item no:
Number
Total (€ 159.66 / piece)
€ 159.66
plus VAT.
Only 1 Piece(s) available
Highlights & Details
Pontec PondoMax eco 10000 control
- Compact filter and stream pump with integrated controller for adjustment of flow rate in 7 levels and fault indication
- Reliably Conveys dirt particles up to 8 mm from the pond in the filter for clear pond water
- Flexible installation options, dipped or dry (e.g. in a pump chamber)
- Protected against dry-running and blocking
Technical specifications
- Fountain pump features
incl. filter
- Operating voltage
230 V
- Power consumption
100 W
- Hose connection
25 mm (1") Ø
32 mm (1 1/4") Ø
38 mm (1 1/2") Ø
IP68
- Dim
(L x W x H) 22 x 13.5 x 10 cm
- Length
22 cm
- Width
13.5 cm
- Height
10 cm
- Weight
4.2 kg
- Max. delivery head
5.5 m
- Max. feed rate
10000 l/h
- Product type
Stream pump
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3376070 Pontec 95663 Stream pump, Filter pump incl. filter 10000 l/h
Description
The PondoMax Eco Control 10000 filter and stream pump comes with an integrated controller. This displays error messages and allows you to adjust the performance in 7 levels. The energy-efficient pump with a delivery rate of 10,000 l/h and a delivery height of max. 5.5 m supports dirt particles of up to 8 mm from the pond in the filter for clear pond water. If it is set up in a dry or submerged way, the pump is protected from dry running and blocking.
This text is machine translated.
This text is machine translated.
Scope of delivery
- PondoMax eco control
- 2 Level hose adapter
- Controller
- User manual.
Hints
Litres per minute max. 166 L/min.
Litres per hour max. 10000 l/h
Meter water column max.: 5.5 m.
Connection pressure side G 1 ½
Connection suction side G 1 ½
Connection for hoses 25 / 32 / 38 mm
Connection for hoses 1", 1 ¼", 1 ½"
Filter inlet area 250 cm2
Coarse dirt handling max. 8 mm
Electronically controlled
Mounting type: Dipped and dry set up
