Name: Power meter PCE-PA6000 PCE Instruments Power Analyzer
Brand: PCE Instruments
SKU: 2452551
Availability: InStock

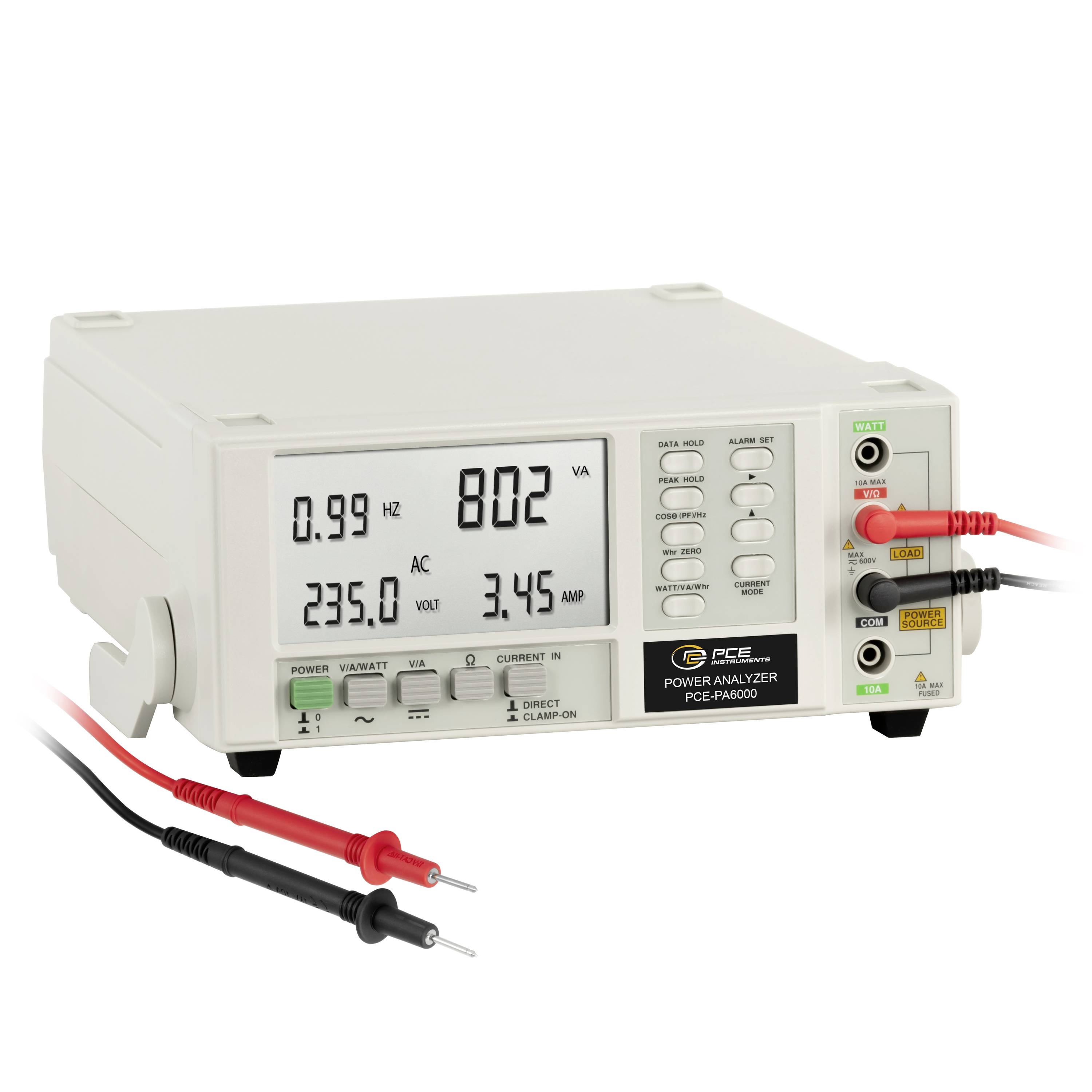

Digital power analyzer showing voltage, current, and power readings, with red and black test leads connected on the right side.

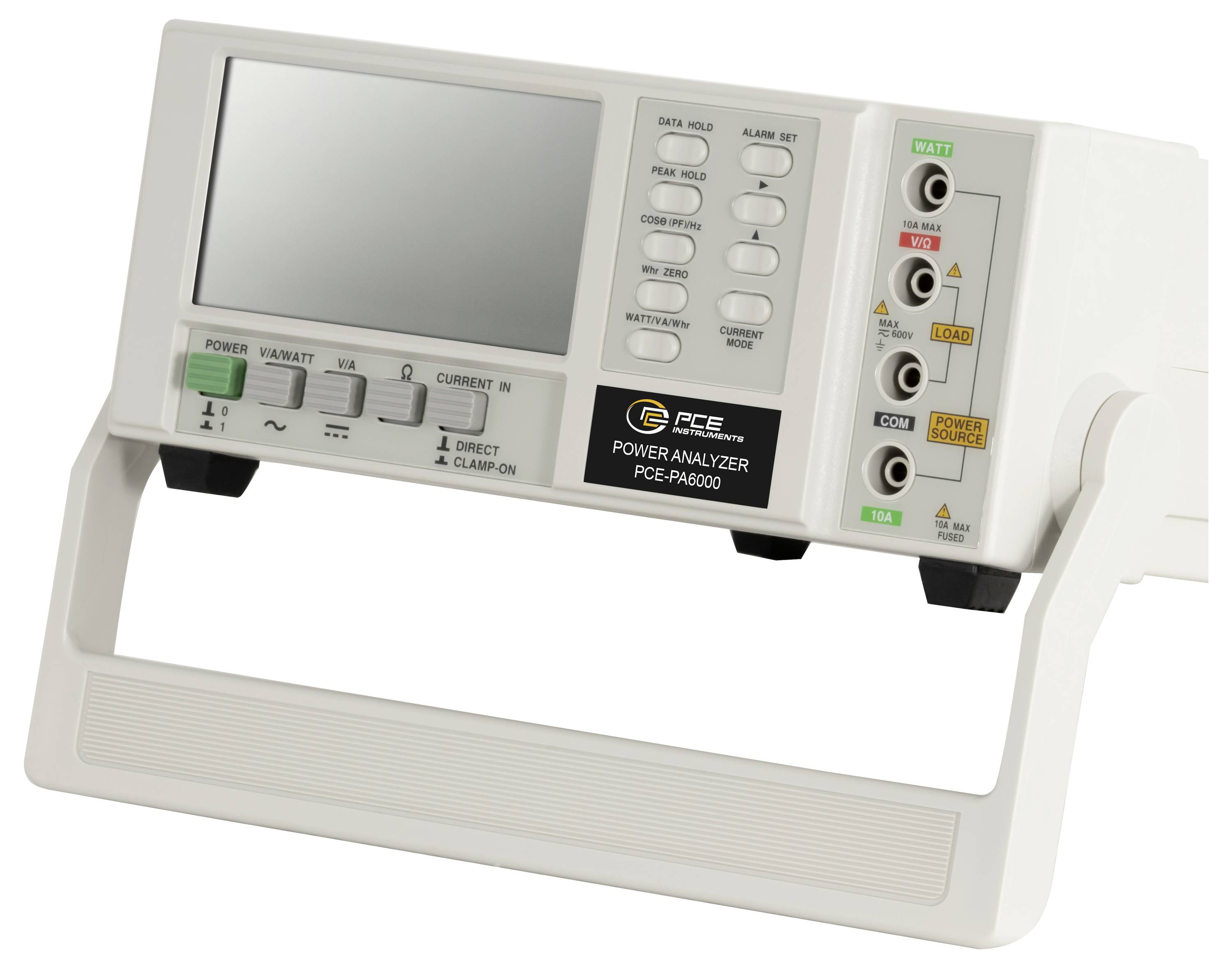

Digital power analyzer meter with blank display, buttons, and labeled input terminals in a carrying frame.

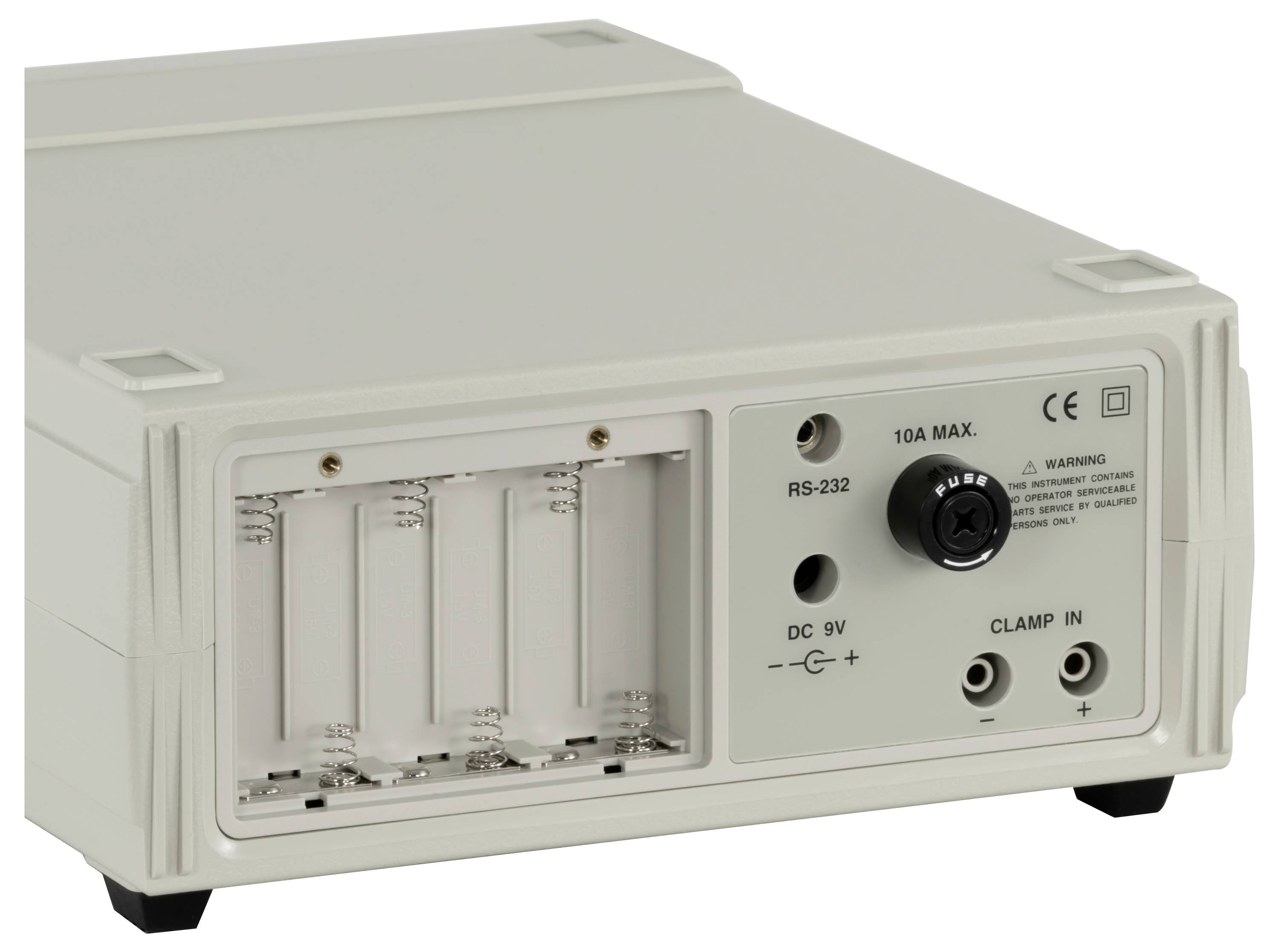

Small gray electronic device with battery compartment, RS-232 port, 9V DC input, and clamp-in connectors on the front panel.

Red and black multimeter test probes with pointed metal tips, shown side by side on a white background.

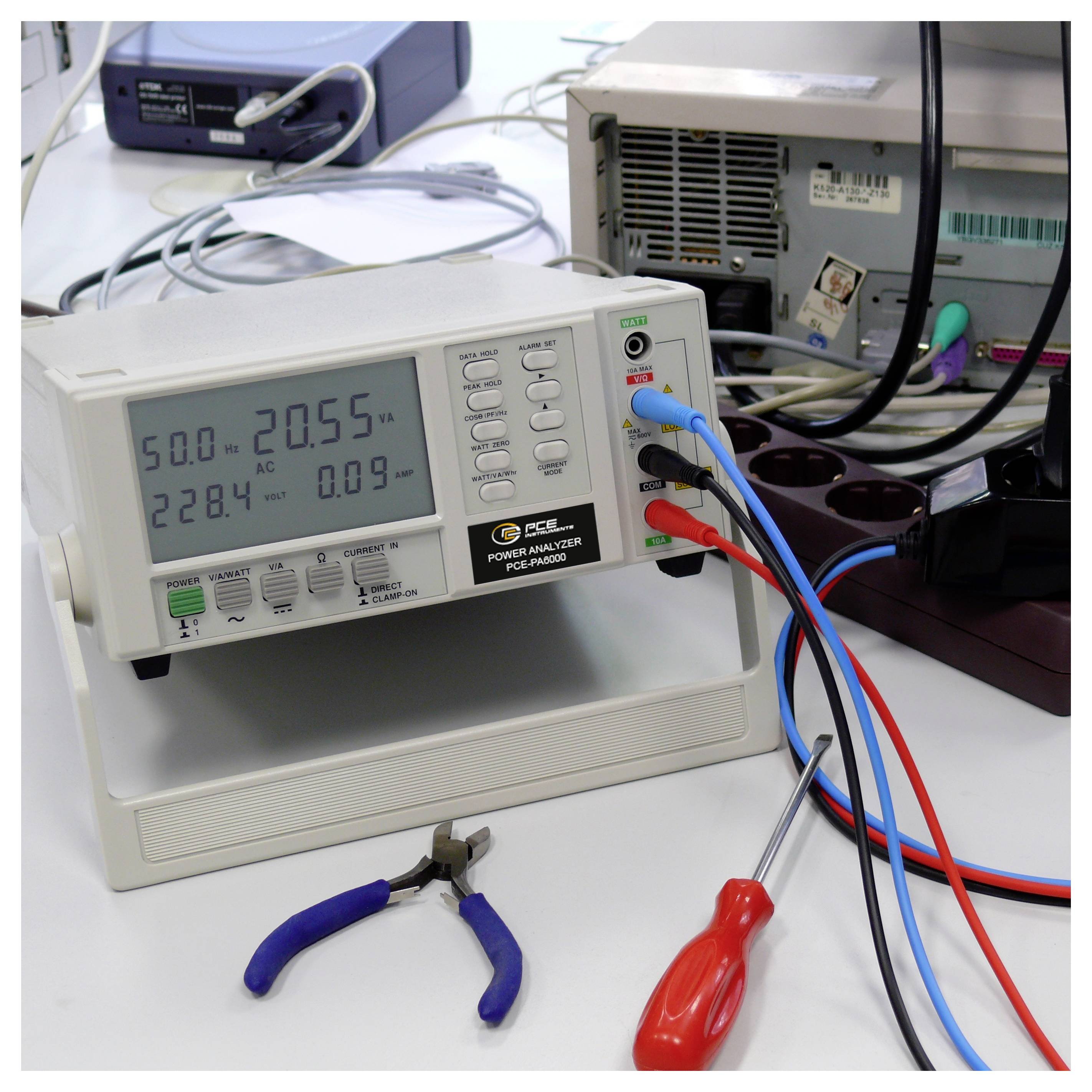

Benchtop power analyzer displays electrical readings while red, blue, and black test leads connect to nearby equipment.

In a laboratory, an open computer sits on a table with connected electronic measuring instruments and tools.

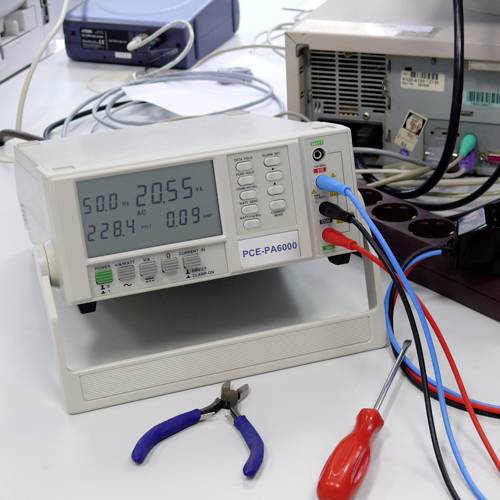

A digital ammeter displays '20.55' at '220 V AC'. A screwdriver and pliers are placed beside it. Background: Laboratory environment.

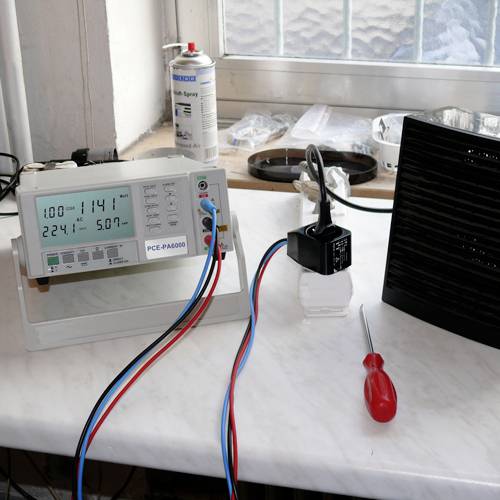

A measuring device with digital displays shows readings next to a plug socket, a screwdriver, and a spray can on a table.

1/8

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

2 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 605.00 / piece)

€ 605.00

incl. VAT

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Power meter PCE-PA6000

Technical specifications

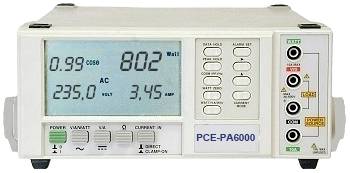

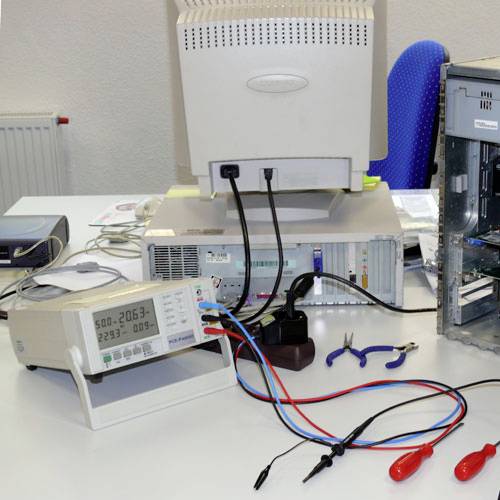

Technical specification Function Measuring range Accuracy Resolution Real power measurement (AC, real value power), direct measurement 1 W ... 6 kW 1 W ±1.5 % + 5 dgt. Active power measurement (AC, real value power), via ext. Clamp adapter or current transformer 1 W ... 999.9 kW 1 W ±1.5 % + 5 dgt. Apparent power measurement (AC) 0.01 VA ... 9.999 kVA 0.01 VA ±2 % +2 dgt. Power factor (cos f) 0.00 ... 1.00 0.01 ±1.5 % + 2 dgt. KWh-counter 0.001 Wh ... 9999 kWh 0.001 Wh ±1 % + 1 dgt. ACV / DCV 0.1 V ... 600 V 0.1 / 1 V ±1 % + 1 dgt. (101 ... 600V) ACAeff/rms DCAeff/rms directly max. 10 A 10 mA, with inductive probe max. 1000 A 1 A ±1 % + 3 dgt. ACA with pliers up to 2000 A (depending on the pliers) Frequency 10.0 ... 999 Hz 0.1 Hz 1 % + 1 dgt. Ohm 1 Ω ... 19.99 kΩ 1 / 10 Ω ±1% +1 dgt. Display 93 x 52 mm Multifunction LCD display Ambient conditions max. 80 % relative humidity / 0 ... +50 °C Power supply 6 x 1.5 V AA batteries or power supply Dimensions (W x H x D) 280 x 210 x 90 mm Weight 1600 g Examples of use in the adjacent figure show the PCE-PA6000 power analyzer in use in computer repair. Due to the use of the power adapter, the power consumption and power measurements can be carried out quickly and safely against contact voltages without large wiring expenditure or wiring expenditure. Here you can see the very large and informative LCD display of the power analyzer. Up to four measured values are displayed simultaneously. The way the display is displayed changes depending on the function mode. Furthermore, the optionally available power adapter is very nice to see. Simply plug the adapter into the socket and connect the consumer with the safety plug and the power adapter. In this application, the heating power of an electric fan heater is checked after successful repair with our power meter PCE-PA6000. The power adapter is also very helpful here. Simple installation with the highest safety, no cable ends wide and wide bare as usual. With the power analyzer, all electrical small devices up to 16A can be checked directly, as well as large consumers (with current clamp or current transformer) very precisely, safely and easily.

Product type: Power meter

Display: LCD

Optical display: Yes

Test sockets: RS232

Dim: (L x W x H) 210 x 280 x 90 mm

: Manufacturer's standards (no certificate)

Weight: 1600 g

Reading category: CAT II 600 V

Width: 280 mm

Height: 90 mm

Length: 210 mm

Depth: 90 mm

Type: Power Analyzer

Interfaces: DC 3.5 plug
RS232
RS232C
USB 1.1 connector A
Mains plug
RS232 socket 3-pin
USB
Serial
USB host
3-core
USB 2.0 connector A
Serial interface
DC 3.5 socket
USB 2.0 connector internal 4-pin
1x USB 2.0 (device)
1x USB 2.0 (host)
Pin strip (3-pin)
Show more

Phase detection: No / No

PG recognition: No / No

Documents & Downloads

Datasheet

Datasheet 2452551 Power meter PCE-PA6000 PCE Instruments Power Analyzer

User & Safety Instructions

User & Safety Instructions 2452551 Power meter PCE-PA6000 PCE Instruments Power Analyzer

Description

Universally usable power analyzer with RS-232 interface and evaluation software for the power analysis of consumers of the power analyzer PCE-PA6000 is as a desktop device or portable measuring device for measuring active power, apparent power, power factor, energy consumption, alternating voltage, AC, DC, DC, resistance and frequency can be used. The current/power measurement can be done with this power analyzer either directly with the supplied test leads, or indirectly via current clamps. The analyzer also offers the option of connecting industrial current transformers with a transmission ratio of 100/5 A or 1000/5A. The large, easy-to-read LCD display with 93 x 52 mm displays several measurement results simultaneously, e.g. Watt, cos f, ACV, ACA. The PCE-PA-ADP power adapter, which can be supplied as an option, allows consumers with a safety plug (up to 16 ACA) to be connected to the power analyzer very easily and safely for measurement and analysis. The measuring device has an RS-232 data interface, and with the help of the analysis software you can transfer, process and save the data on a PC. Thus it is the ideal device for use in the workshop or for measuring performance and troubleshooting at consumers on site.
