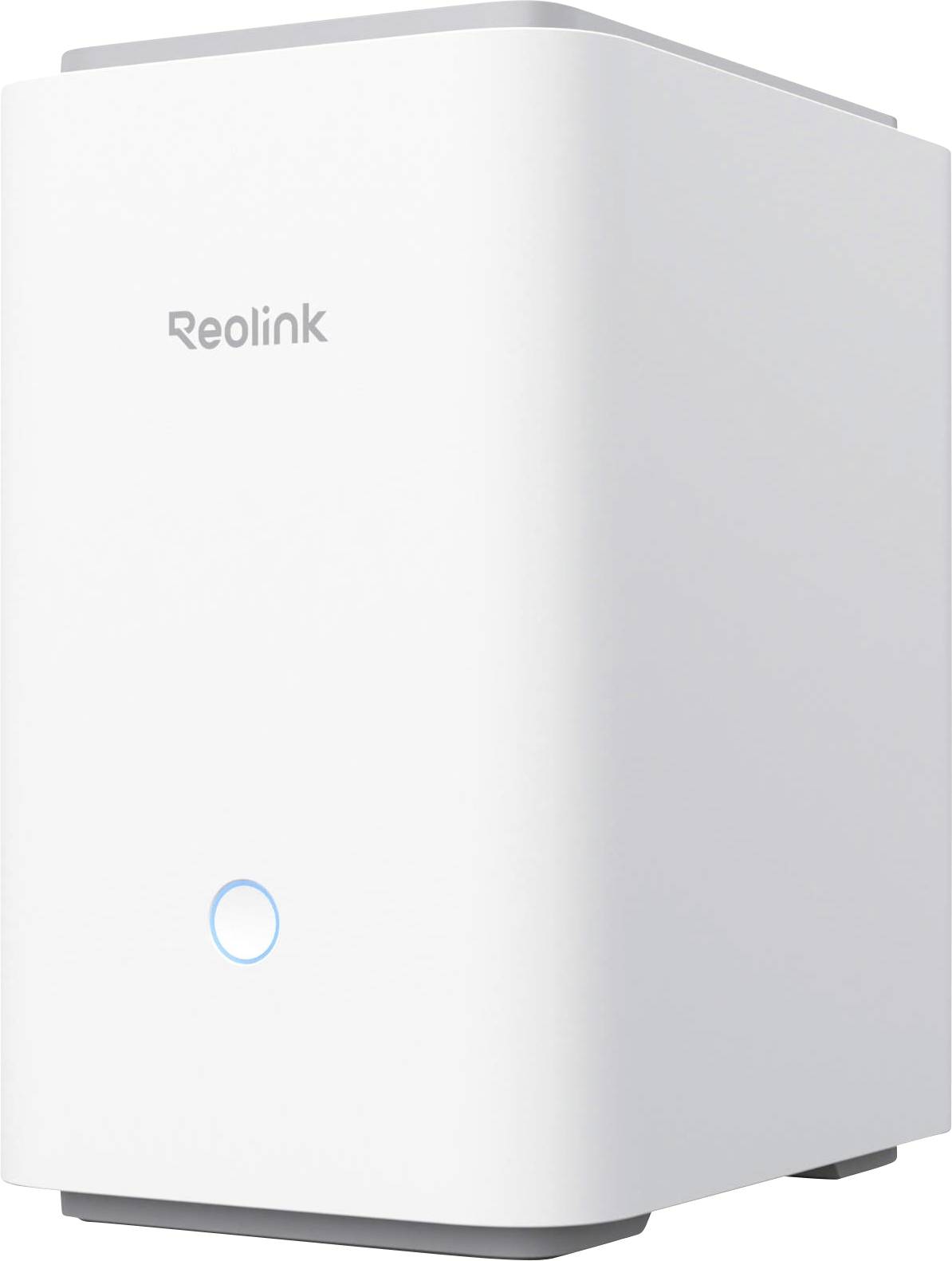

Reolink Home Hub P1 HHP01 Wi-Fi IP Security hub
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 298.32 / piece)
€ 298.32
plus VAT.
Wi-Fi IP-ReolinkHome Hub P1;HHP01Indoors
Highlights & Details
- Local storage: Built-in 2 TB hard drive, expandable up to 16TB, microSD card slot up to 512GB, with no additional cost or cloud subscriptions
- AES-128 encryption: Highest security for all recordings
- Camera management: Management of up to 24 Reolink cameras via an intuitive user interface
- 16 MP resolution: High-resolution live streams and recordings in the best quality
- Wi-Fi 6 Dual band: Fast, stable connection for smooth streaming, even with multiple cameras
- LAN support: Independent connection for maximum privacy and network security
- Mains failure security: Protection of recordings even in case of Internet failures through local storage
- Integrated siren: Preset and customizable alarms for flexible security solutions
- Event Summary: Weekly reports and statistics for improved visibility and security optimization
- Voice control: Seamless integration with Google Assistant and Amazon Alexa for easy operation
Technical specifications
- Camera: Up to 24 cameras (up to 12 PoE & plug-in cameras)
- Compatible with all Reolink WLAN/PoE cameras (battery cameras may require a firmware upgrade)
- Security Protection: Access to accounts and sharing options only available from the Home Hub
- HDMI: Yes
- USB: Yes
- Reset button: Yes
- CURRENT DC 12 V/2 A
- Speakers: Yes (max. 120 dB)
- Ethernet: 1x 10/100 Mbit RJ45 port (WAN), 1x 10/100 Mbit RJ45 port (for IP cameras)
- SATA: 1x (2 TB built-in hard drive)
- MicroSD-card slot 1x Up to 512 GB
- Memory encryption: AES-128 for protection of privacy and theft protection
- Live view: Via APP and PC client
- Playback: Intelligent playback / event history
- WLAN standard: IEEE 802.11 a/b/g/n/ac/ax (Wi-Fi 6)
- Operating frequency 2.4 GHz / 5 GHz
- WLAN-SECURITY WPA/WPA2/WPA2
- Sub-1 GHz
- Operating frequency 868/915 MHz
- NETWORK PROTOCOLS: TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, RTMP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP
- Supported operating systems: Windows, Mac OS, iOS, Android
- Max. User access: 1 admin and 10 shared accounts
- Smart home: Google assistant, Amazon Alexa
- Operating temperature: -10°C to + +45°C.
- Humidity: 10% to 90%
- Product type
Security hub
- CCTV features
Saves footage on SD card
- Power supply
12 V / DC
Google Home
- App compatibility
Yes
- Transfer type
Wi-Fi
- Wi-Fi standard
IEEE802.11ax
- Used at
Indoors
- Type
microSD card (up to 512 GB)

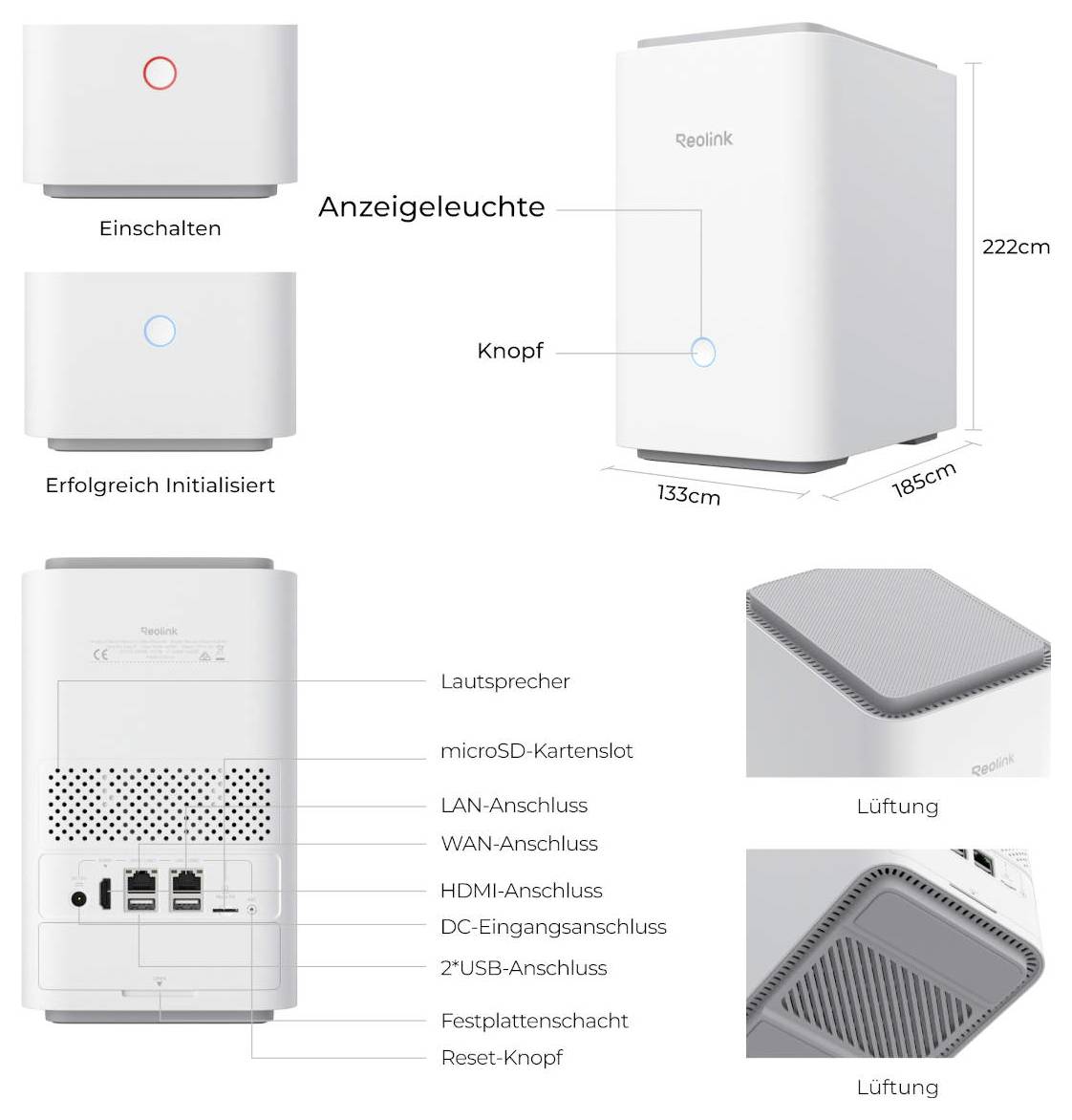

- Width
183 mm
- Height
222 mm
- Depth
133 mm
- Dim
(W x H x D) 183 x 222 x 133 mm
- Weight
1096 g
- Factory colour
White
- Signal standard
IP
Documents & Downloads
Datasheet
Datasheet 3476125 Reolink Home Hub P1 HHP01 Wi-Fi IP Security hub
User & Safety Instructions
User & Safety Instructions 3476125 Reolink Home Hub P1 HHP01 Wi-Fi IP Security hub
Description

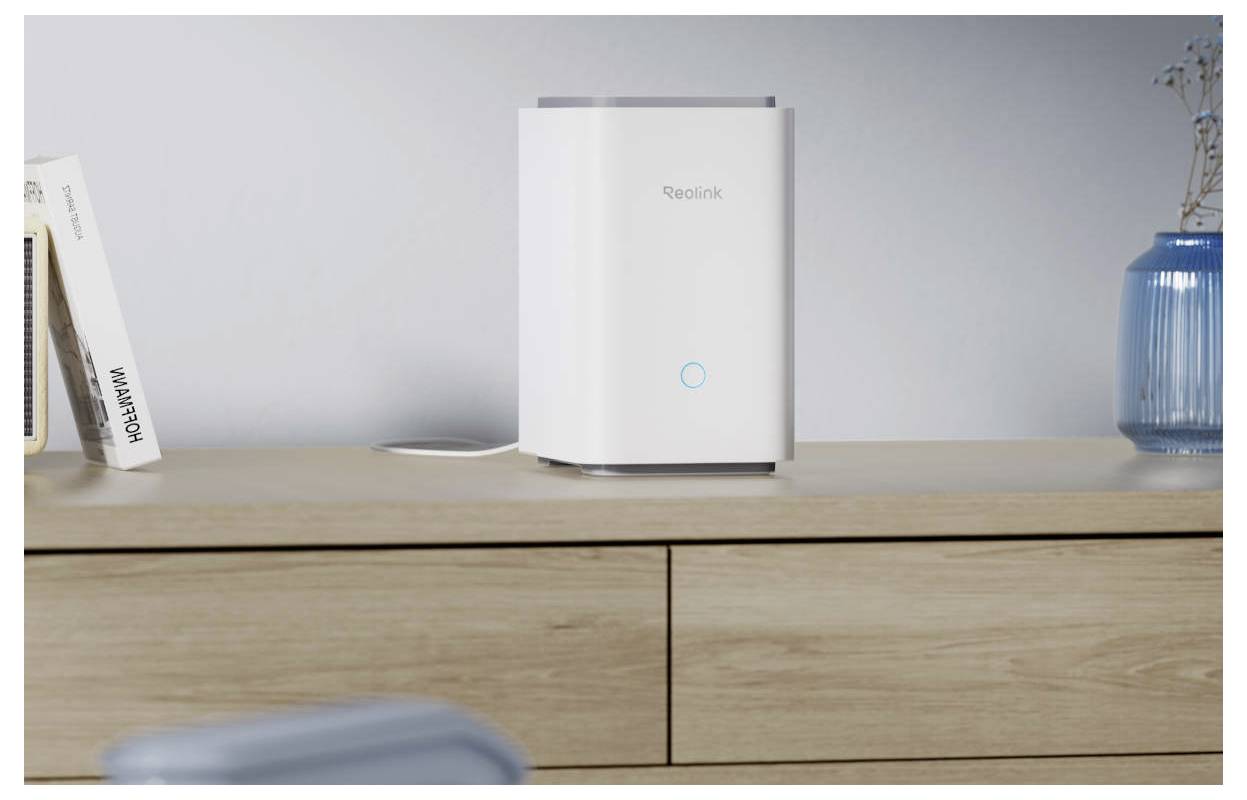

The Reolink home hub P1 combines user-friendliness, advanced technology and data protection in a compact device. This innovative device allows you to manage up to 24 cameras (up to 12 PoE & plug-in cameras). With functions like high-resolution video, flexible camera compatibility and alarm-controlled motion detection, the hub is the perfect solution for all those who want to make security simple and efficient. Local storage makes it a cost-effective alternative to cloud-based systems.

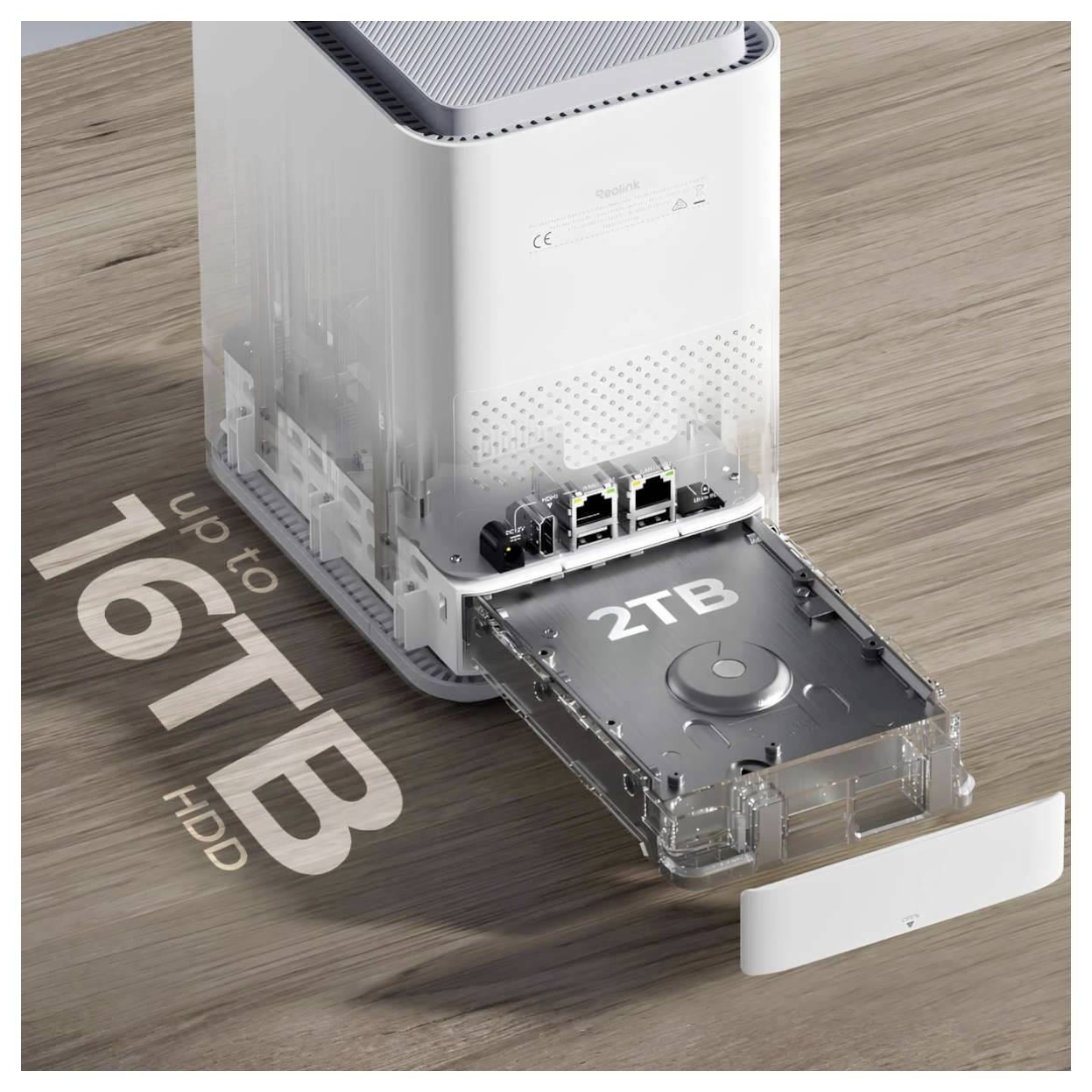

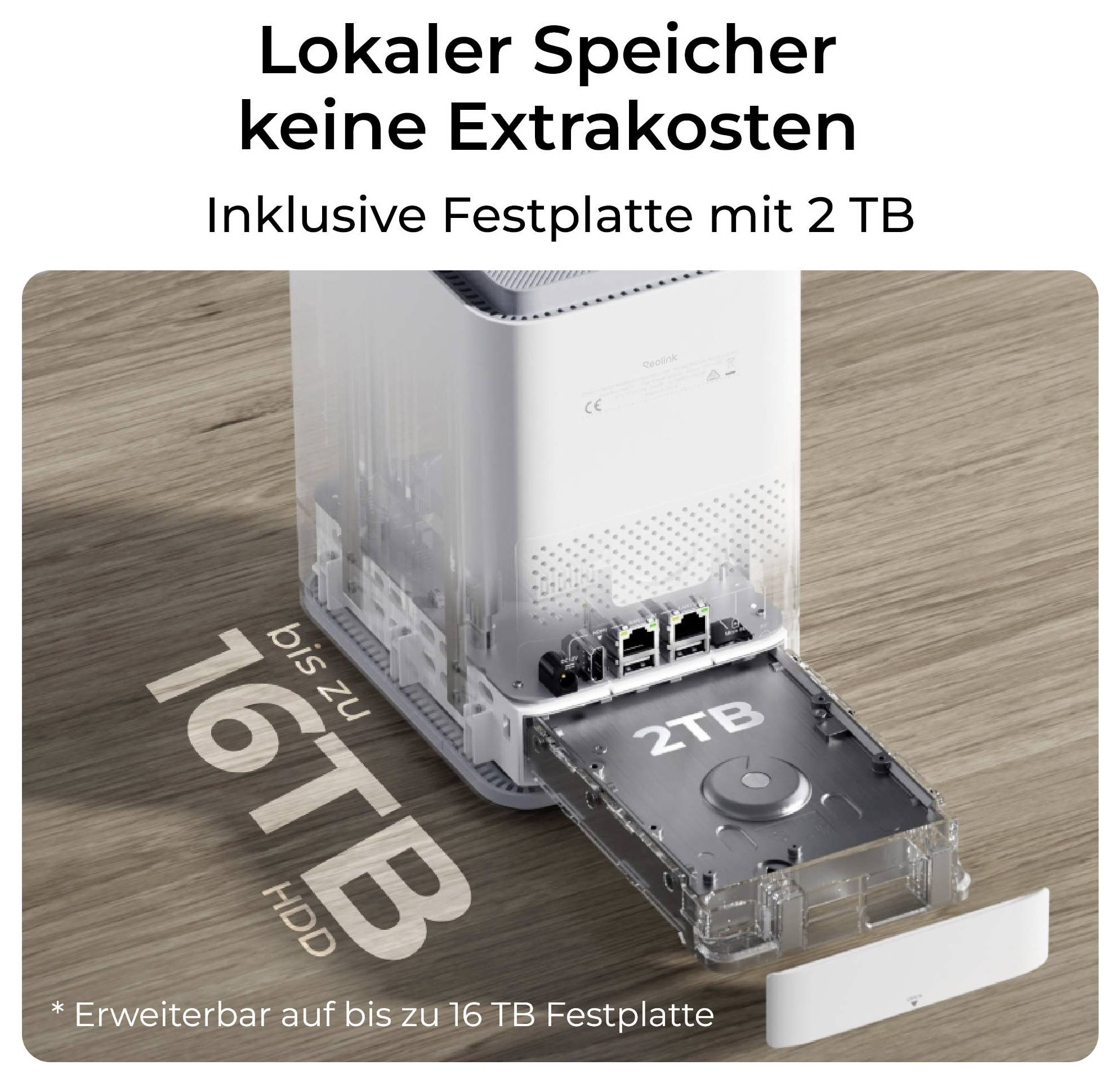

Local storage and security
Record every second locally with the Reolink home hub P1. The integrated 2TB hard drive offers you enough storage space, completely without monthly charges. Do you need more space? Extend the memory easily to up to 16 TB. Sleep your peace of mind: Your home is monitored safely round the clock.

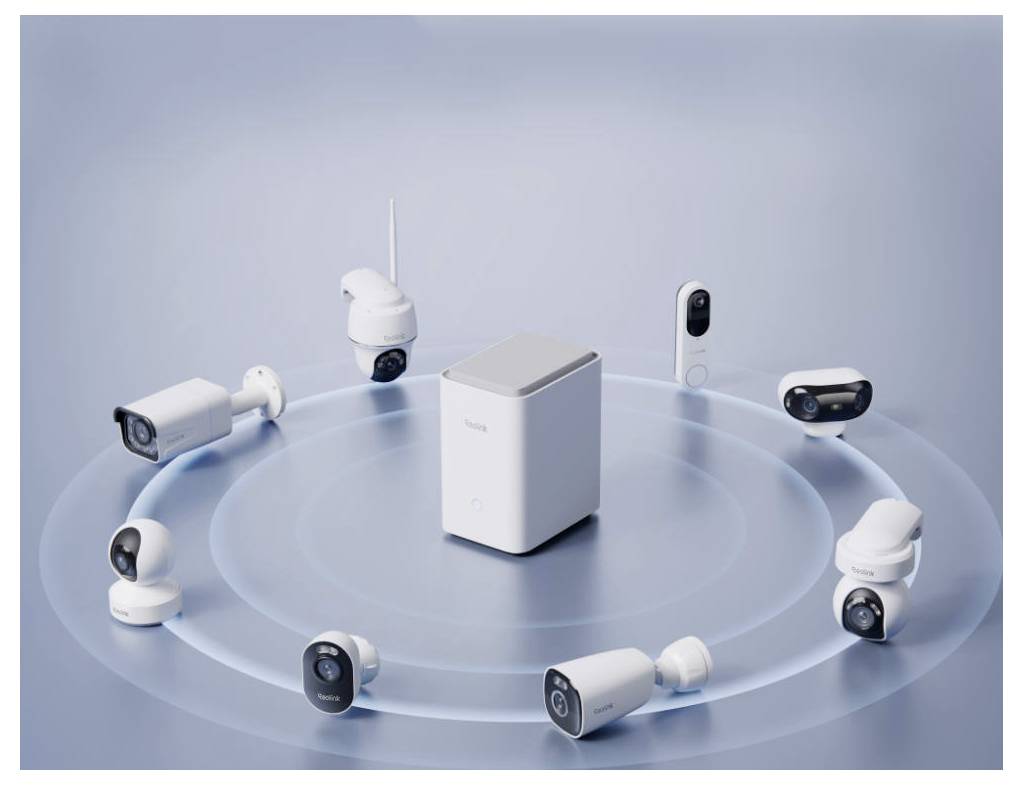

Centralized management and camera integration
Optimize your security with this centralized solution. The Home Hub P1 integrates seamlessly with a variety of cameras and manages your Reolink-devices as well as recordings via several channels from a single interface. Compatible with all Reolink PoE cameras, plug-in wireless cameras and the latest battery wireless cameras (except 2MP battery cameras and 4G cameras).

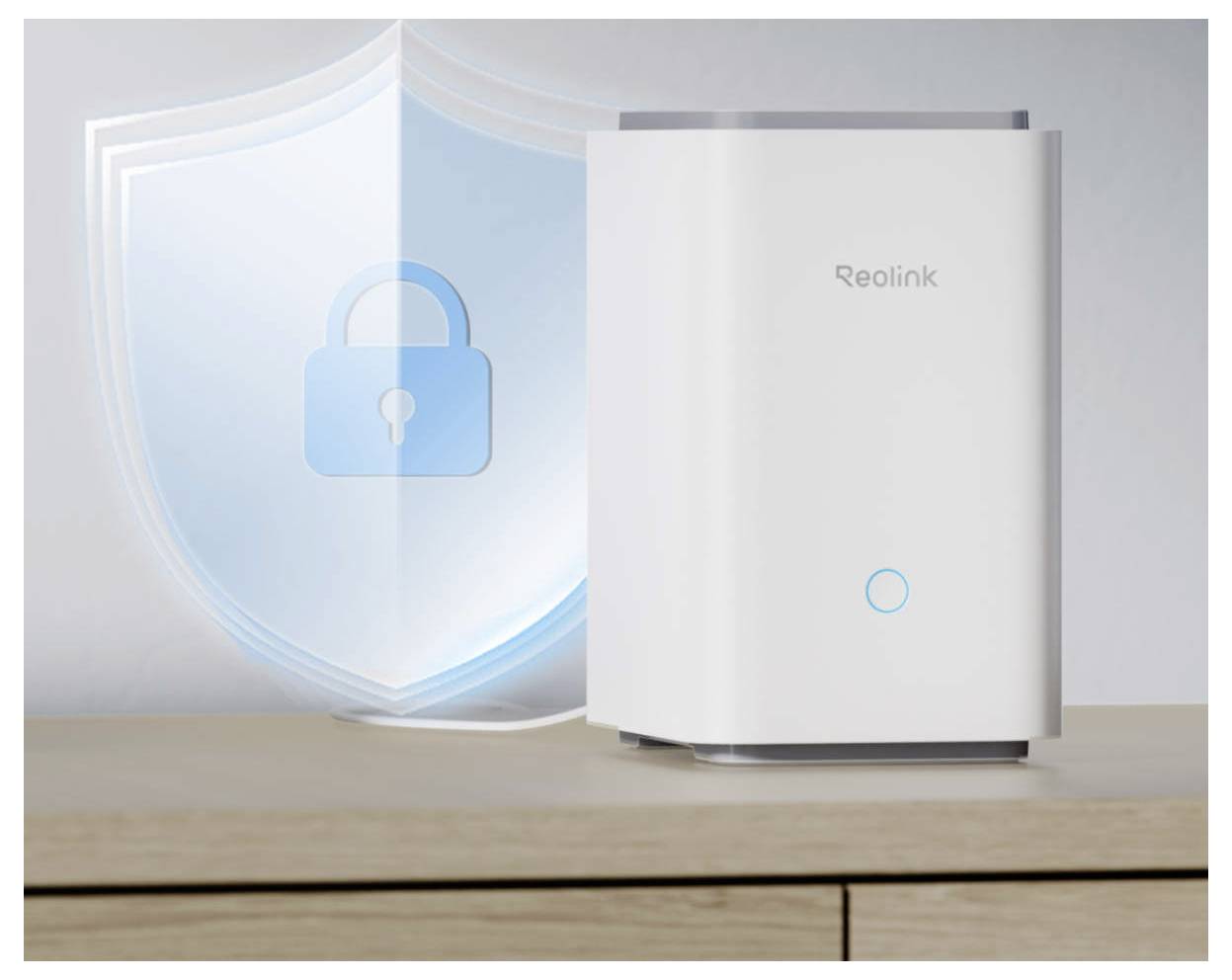

Encrypted memory
Thanks to the anti-theft encryption your recordings are inaccessible even after a device reset without the right password. Your data remains private and secure, no matter whether your device is stolen or videos are transmitted unauthorized.
LAN access
The Home Hub Pro enables the direct administration and control of your data in the local network. This increases data security and reduces the vulnerability of external threats compared to Internet-based methods.

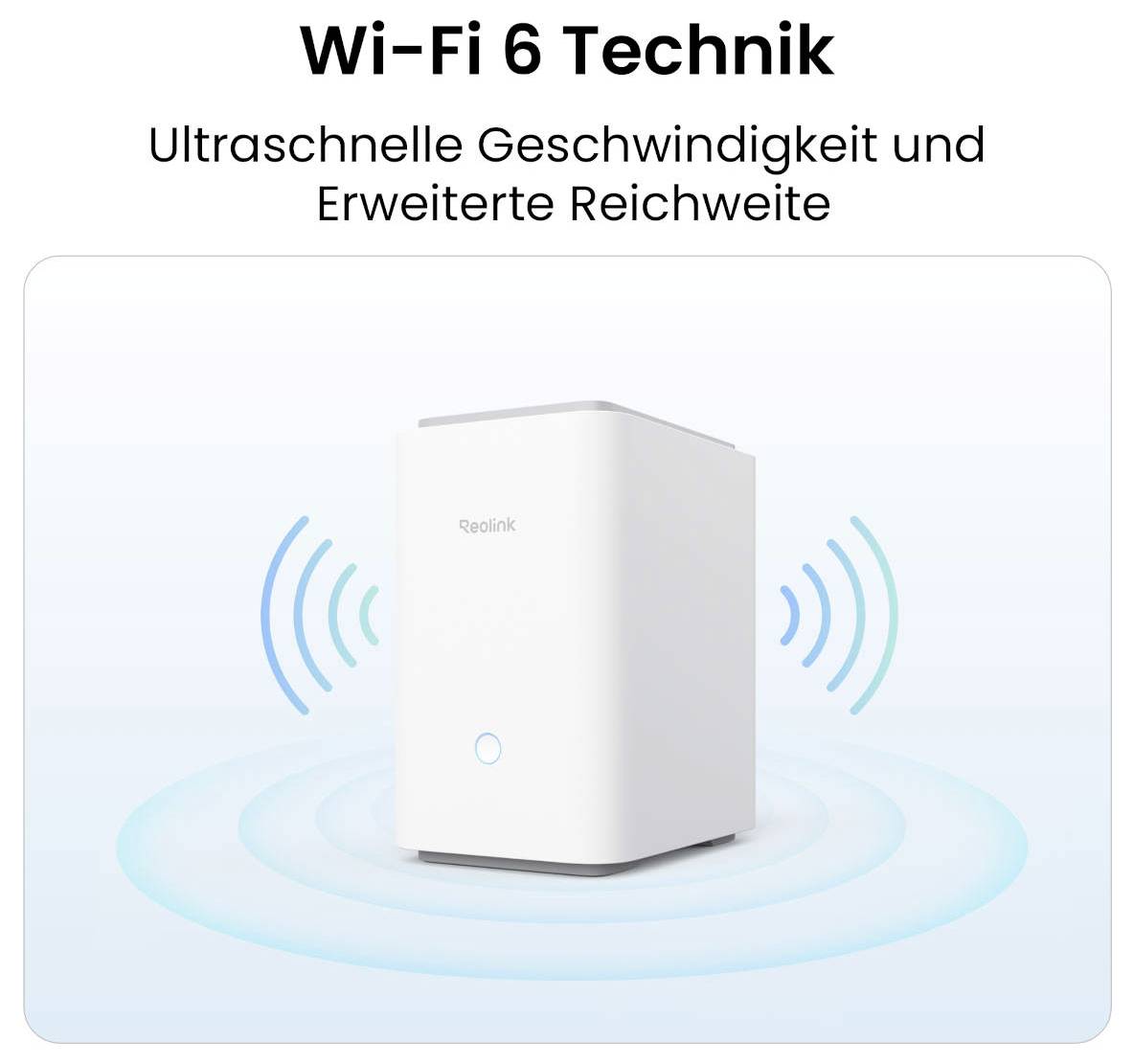

Wi-Fi 6: Excellent speed and coverage
Experience first-class connectivity with Wi-Fi 6 support. Combine it with Reolink Wi-Fi 6 cameras for seamless, lag-free data transfer and live streaming. Enjoy signal coverage of up to 1000 square meters (data collected under laboratory conditions).

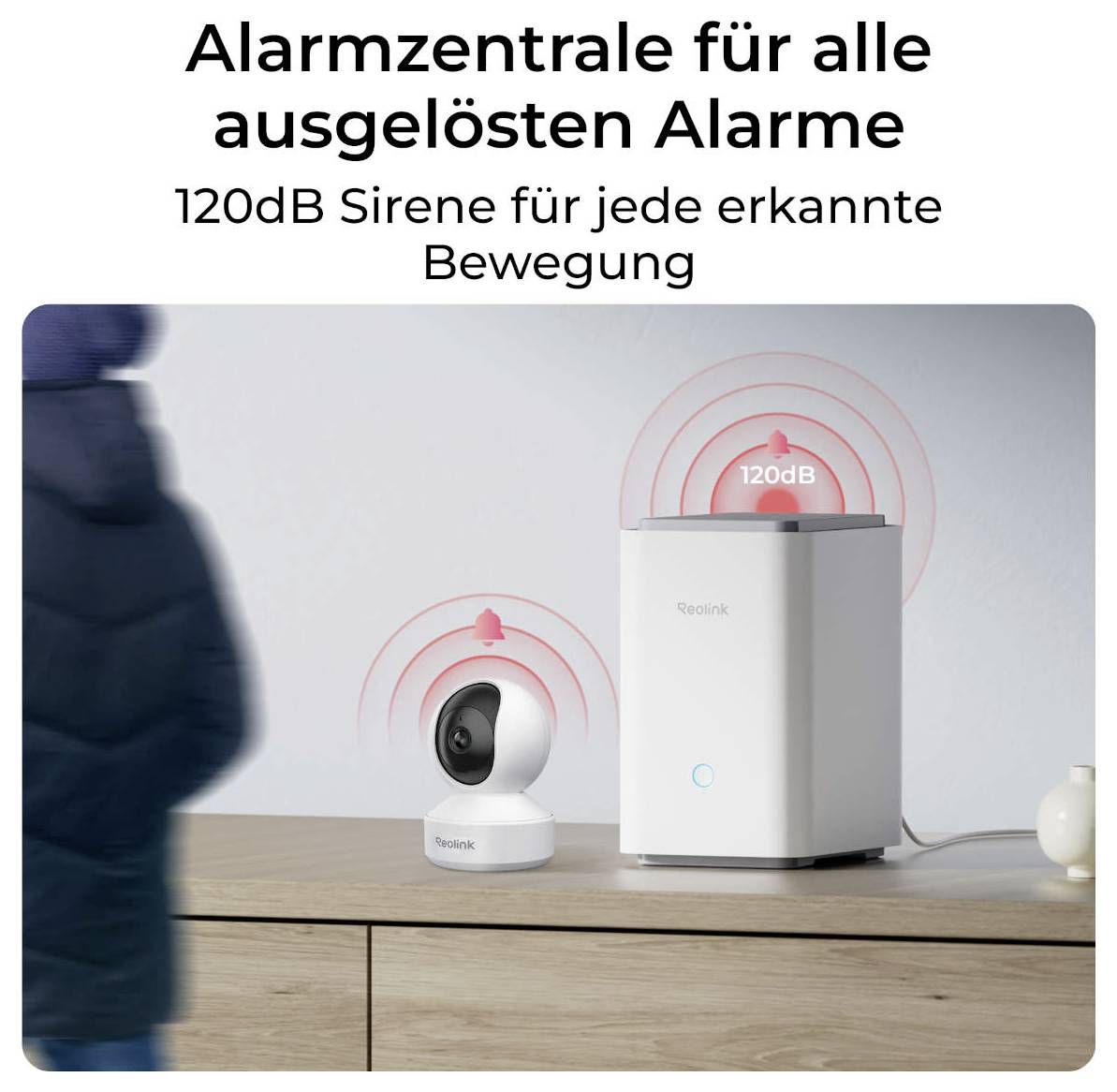

Intelligent alarm center
Through the integration with intelligent cameras, which offer free persons, vehicle and animal recognition, the Reolink home hub pro triggers a siren alarm with every recognized movement. Enjoy a personalized security experience by selecting different ring tones or adjusting your own alarm tone.

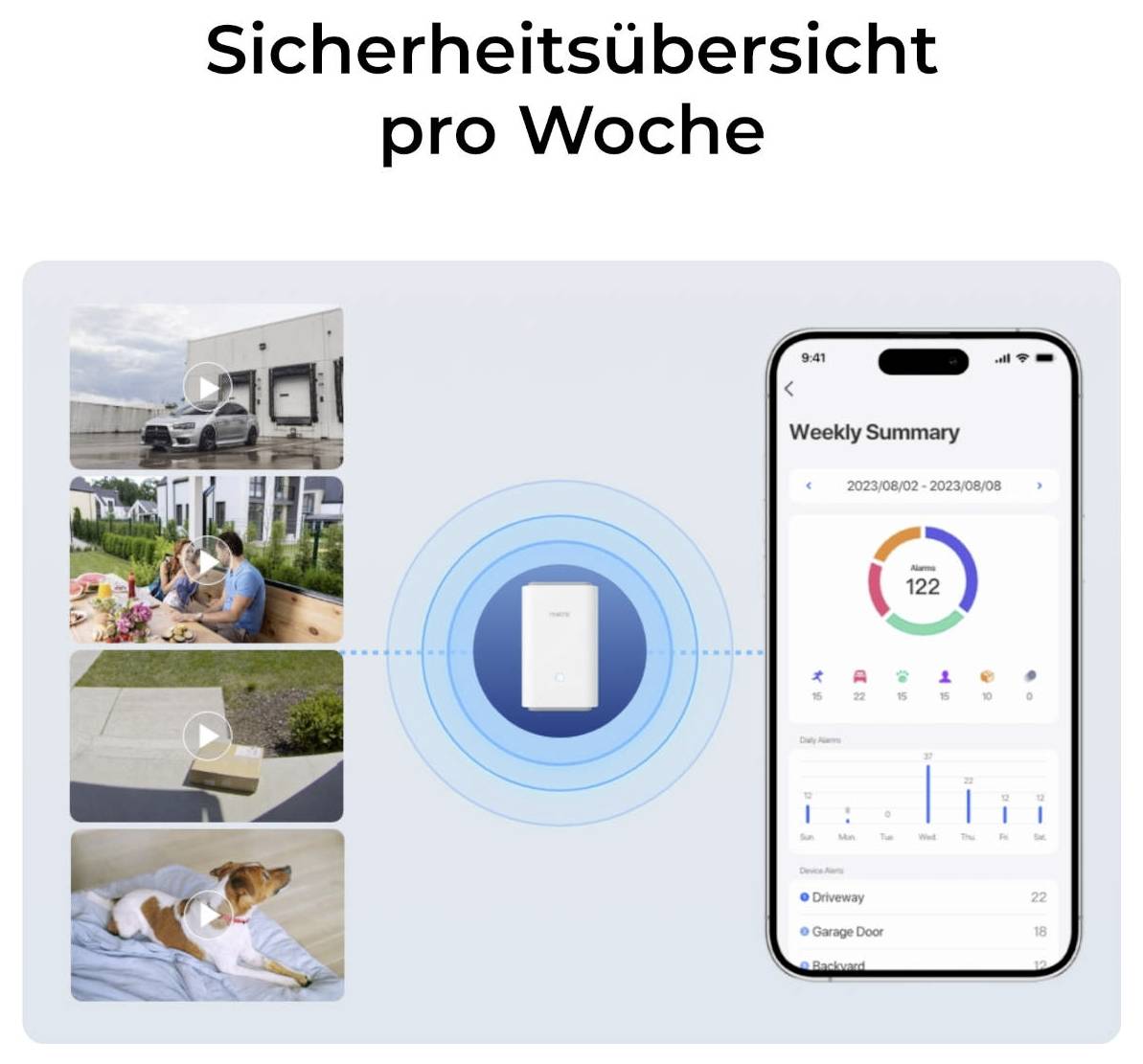

Regular safety report
Track and filter events of all connected cameras by date, device, and event type. Get a complete picture by watching shots from different cameras at the same time. Stay up to date on the security of your home with weekly summaries that show alarm trends and devices involved.
Live streaming of up to 16MP
Experience unbelievably detailed live views with up to 16MP and intelligent playback via several cameras – all with just one finger-tip in the Reolink APP.
Voice control and Smart home integration
Google Assistant and Amazon Alexa enable live streams, verify recordings or easily adjust camera settings via voice command. This function integrates the hub seamlessly into modern Smart home systems and considerably increases operating comfort.
This text is machine translated.
Local storage and security
Record every second locally with the Reolink home hub P1. The integrated 2TB hard drive offers you enough storage space, completely without monthly charges. Do you need more space? Extend the memory easily to up to 16 TB. Sleep your peace of mind: Your home is monitored safely round the clock.
Centralized management and camera integration
Optimize your security with this centralized solution. The Home Hub P1 integrates seamlessly with a variety of cameras and manages your Reolink-devices as well as recordings via several channels from a single interface. Compatible with all Reolink PoE cameras, plug-in wireless cameras and the latest battery wireless cameras (except 2MP battery cameras and 4G cameras).
Encrypted memory
Thanks to the anti-theft encryption your recordings are inaccessible even after a device reset without the right password. Your data remains private and secure, no matter whether your device is stolen or videos are transmitted unauthorized.
LAN access
The Home Hub Pro enables the direct administration and control of your data in the local network. This increases data security and reduces the vulnerability of external threats compared to Internet-based methods.
Wi-Fi 6: Excellent speed and coverage
Experience first-class connectivity with Wi-Fi 6 support. Combine it with Reolink Wi-Fi 6 cameras for seamless, lag-free data transfer and live streaming. Enjoy signal coverage of up to 1000 square meters (data collected under laboratory conditions).
Intelligent alarm center
Through the integration with intelligent cameras, which offer free persons, vehicle and animal recognition, the Reolink home hub pro triggers a siren alarm with every recognized movement. Enjoy a personalized security experience by selecting different ring tones or adjusting your own alarm tone.
Regular safety report
Track and filter events of all connected cameras by date, device, and event type. Get a complete picture by watching shots from different cameras at the same time. Stay up to date on the security of your home with weekly summaries that show alarm trends and devices involved.
Live streaming of up to 16MP
Experience unbelievably detailed live views with up to 16MP and intelligent playback via several cameras – all with just one finger-tip in the Reolink APP.
Voice control and Smart home integration
Google Assistant and Amazon Alexa enable live streams, verify recordings or easily adjust camera settings via voice command. This function integrates the hub seamlessly into modern Smart home systems and considerably increases operating comfort.
This text is machine translated.
Scope of delivery
- Reolink hub P1
- 2 TB hard drive
- Mains adapter
- Network cable
