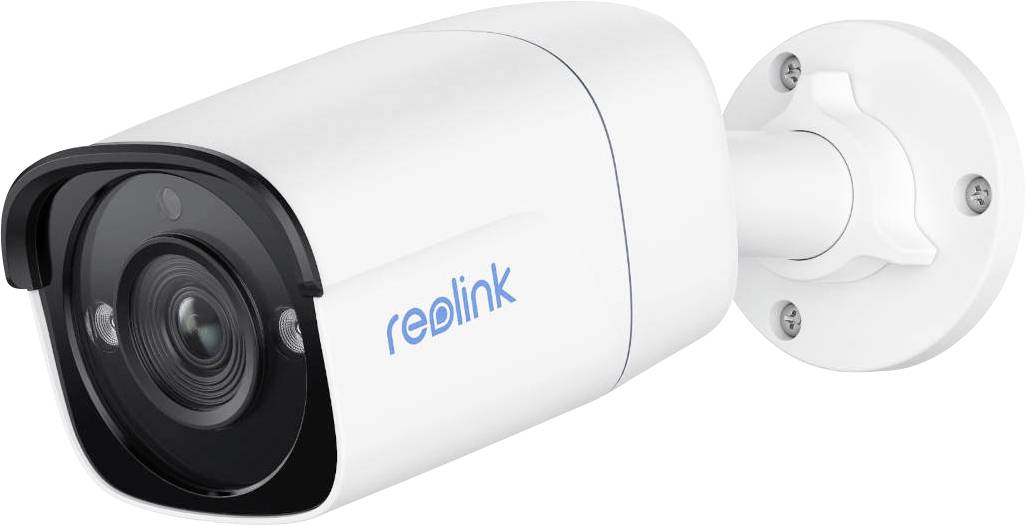

Reolink P320 PC510AB2K01 LAN IP CCTV camera 2880 x 1616 p

The Reolink P320 is a PoE surveillance camera and has a resolution of 5 MP and thus offers clear video transmission and sharp images.

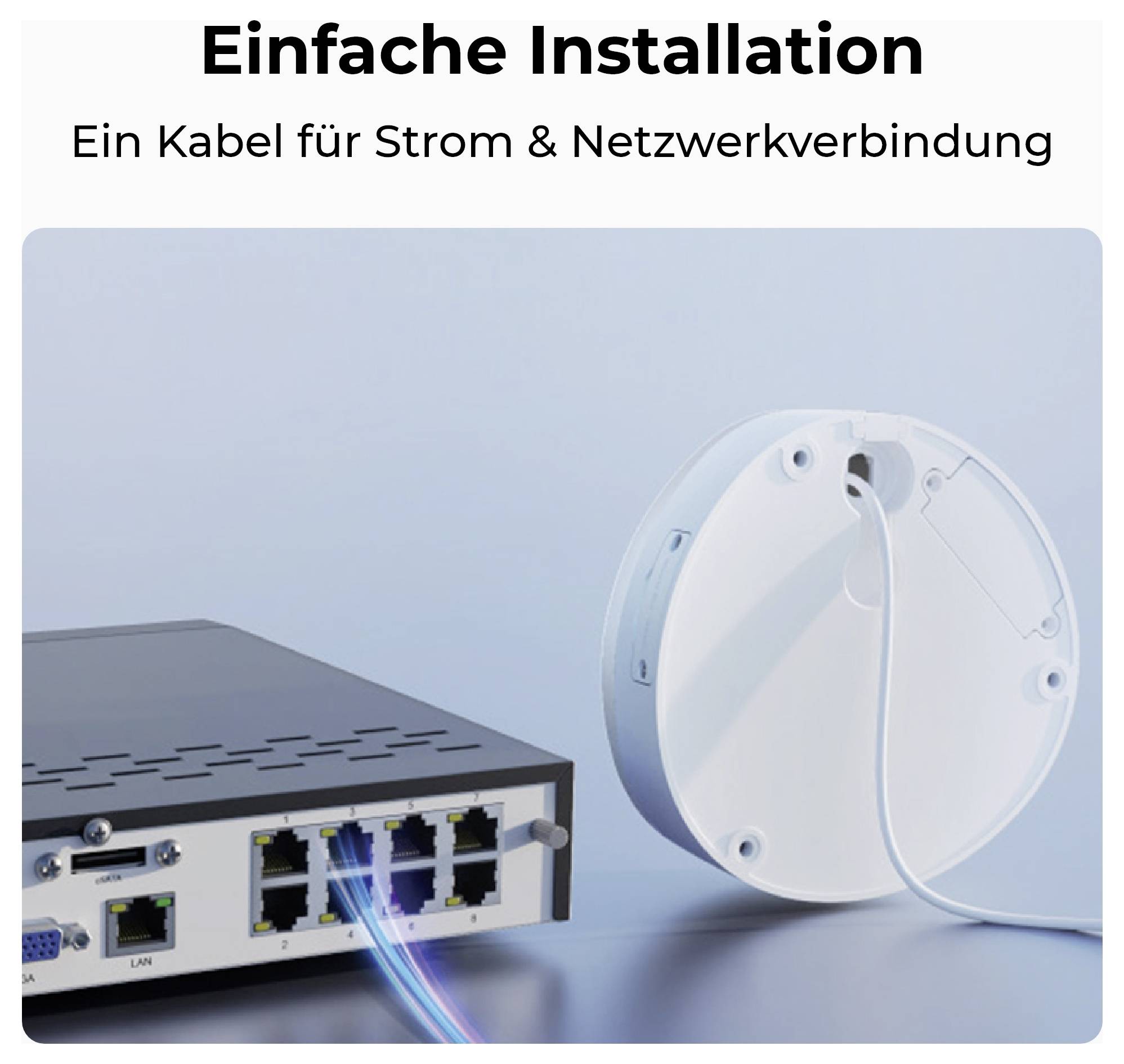

Thanks to PoE (Power over Ethernet), a network cable is sufficient for data transfer and power supply of the P320 camera. This means that installation and cabling are quick and easy.

The P320 PoE camera has multiple storage options. Motion activated and continuous recording is possible as required. You only need to insert an SD card or connect the camera to the Reolink NVR* or set up an FTP server.

With a capacity of up to 256 GB Micro SD-cards you can store your records freely on the SD-card.

Regardless of location and time you can access the camera from a distance:

- With the free Reolink APP on your mobile device
- With the free Reolink client software on your computer
- With the web browser without any additional plug-ins

With 2 infrared LEDs and advanced IR technology the Reolink P320 is an excellent night vision camera. The visibility in darkness can be up to 30 meters.

Thanks to movement detection, you have everything in view. This function can be adapted to your needs. If something is detected, the camera will alert you immediately:

- Send alert emails and push notifications.
- Upload images/videos to FTP server
- Motion detection videos on the micro SD card up to 256 GB (sold separately)
Or record and save NVR* in your Reolink.

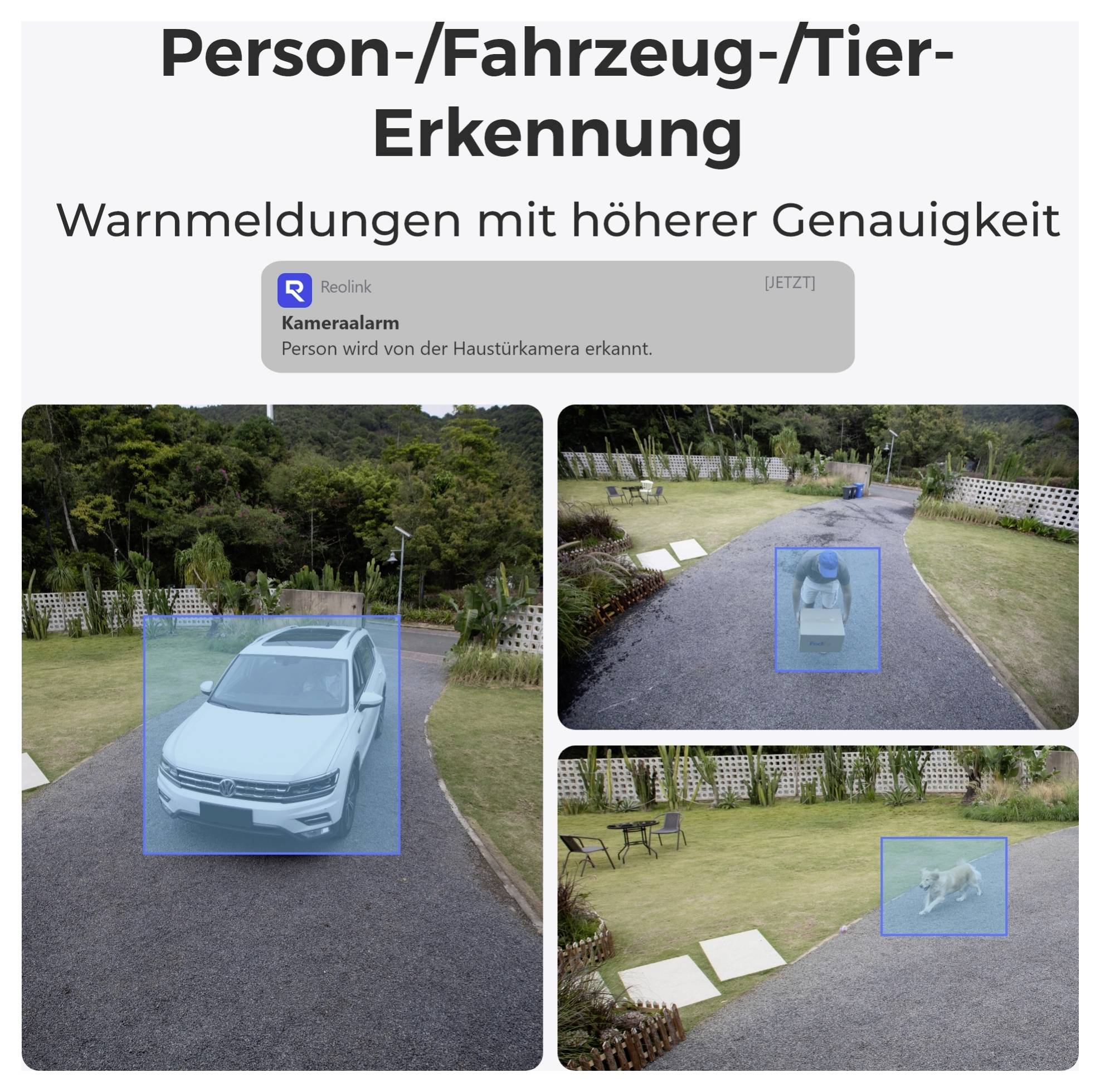

With advanced intelligent people and vehicle detection technology, the P320 offers effective protection. This allows you to minimize false alarms without missing important alarms.

Time-lapse: Create your own video story

The "time lapse" feature allows you to view videos in seconds or minutes, such as documenting a construction process, or record sunrise and sunset in a short film.

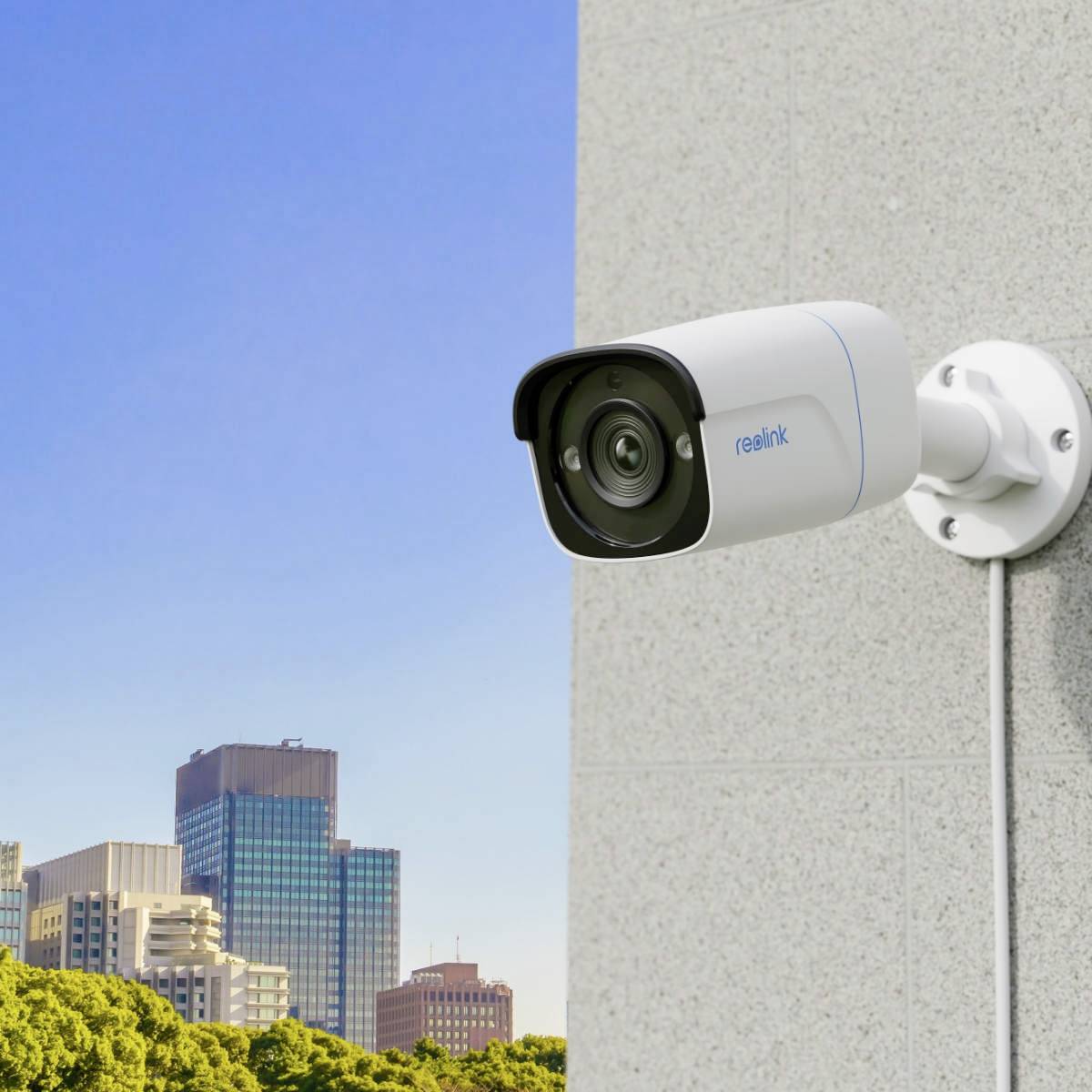

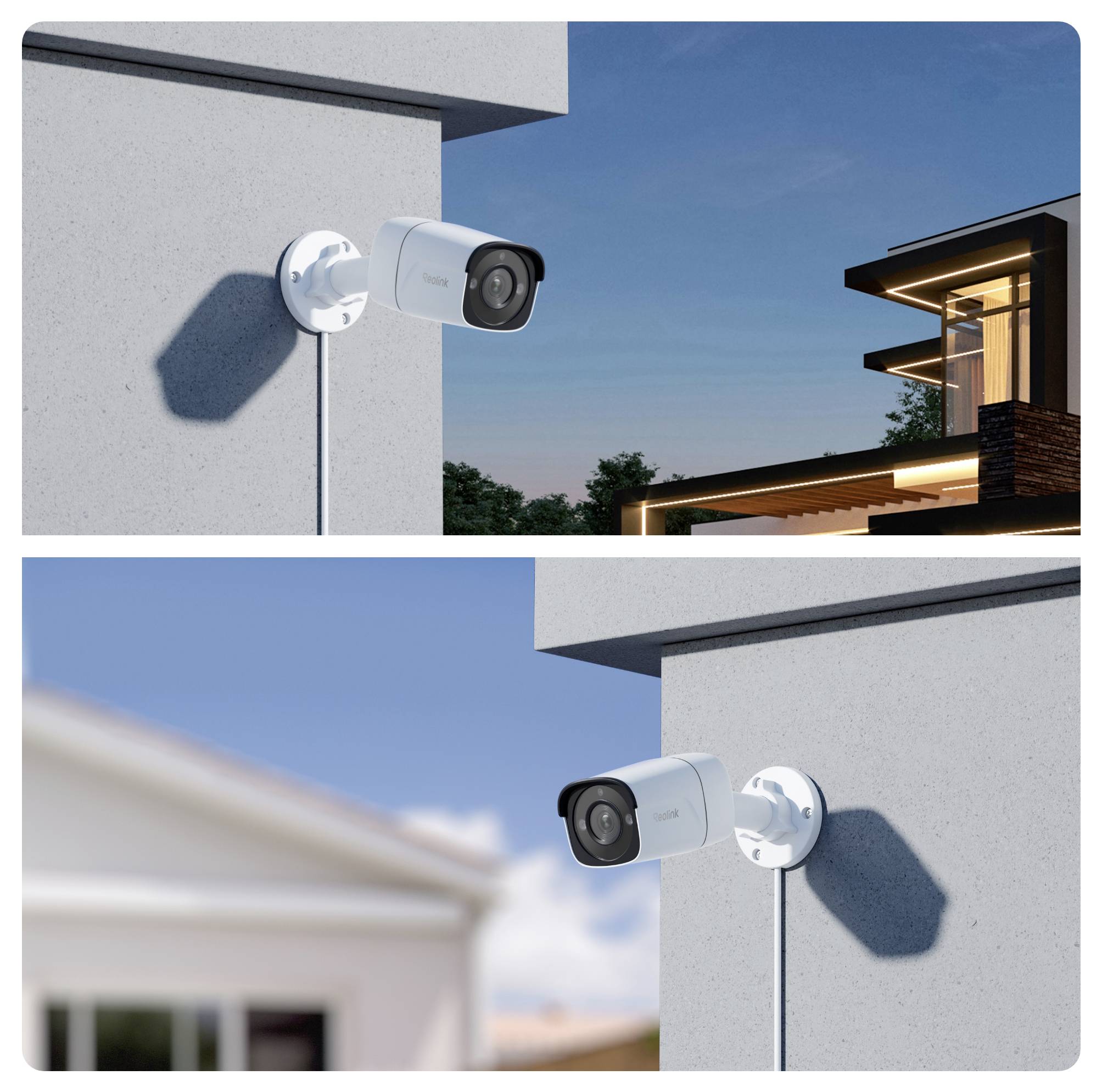

The P320 consists of a solid, water-proof IP67 aluminum housing and is thus ideally suited for use in outdoor areas. The P320 camera can be mounted in the house and outdoors and it functions without any problems even under harsh weather conditions.

The firmware updates for P320 IP surveillance cameras are very easy to install. Download the latest firmware from the firmware page and update it with the client software.

* When selecting an NVR, it is recommended to use the Reolink NVR for better compatibility.


Technical data

Video & audio

1/2.7" CMOS sensor
Video resolution 2880 x 1616 (5.0 megapixels) at 30 fps
Lens: F=2.8mm fixed, F=1.6
H.264 video format
Viewing angle: Horizontal 110°, vertical 57°
Day/night mode: IR band-blocking filter with automatic switching
Night vision: Up to 30 m (IR LED: 2 piece/1.8 W/850 nm)
Audio recording: Supported

Power Supply

PoE: IEEE 802.3af, 48 V active
DC Power DC 12.0 V/1 a, <12 W

Interface

Power DC power connection
System: Reset button
Ethernet 1 x 10 M/100 Mbps RJ45
Storage: Micro SD-card slot (Max. 256 GB

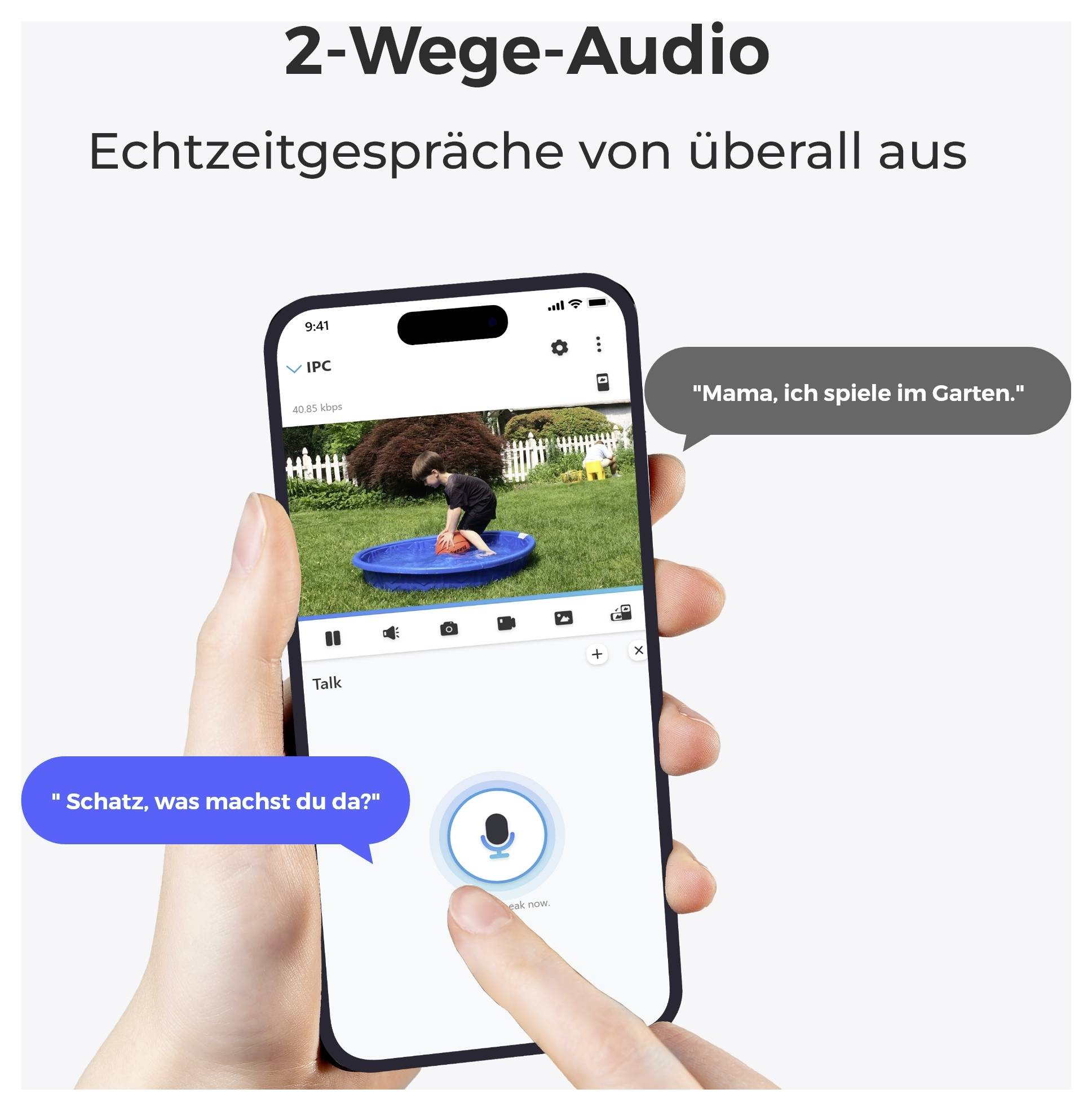

Audio: Built-in microphone and speaker

Software

Frame rate: Main stream: 2 fps – 30 fps, sub-stream: 4 fps – 20 fps
Bit rate: Main-Stream: 2048 Kbps -6144 Kbps, Sub-Stream: 64Kbps - 512Kbps
Browser: IE, Edge, Chrome, Firefox, Safari
Operating system: PC: Windows, Mac OS; Smartphone: IOS, Android
Smart alarm: Motion detection/human detection/ vehicle detection/domestic animal detection
Recording mode: Motion recording / recording schedule
NETWORK PROTOCOL & STANDARDS: HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
Max. User access: 20 users (1 administrator account & 19 user accounts); supports up to 12 simultaneous video streams (10 x Substream & 2 x Mainstream)
Google assistant: Supported

Work environment

Temperature: Operating temperature: -10°C~+55°C (14°F~131°F)
Humidity: Operating humidity: 10% ~ 90%
IP 67 protection

Size & weight

Dimensions 68 x 63 x 188 mm
Weight: 452 g
