Name: Rittal SK 3244.900 Fan and filter 116.4 W (W x H x D) 323 x 323 x 161 mm 1 pc(s)
Brand: Rittal
SKU: 3386716
Availability: InStock

Product type

Fan and filter

Power

116.4 W

Noise emission (max.)

66 dBa

Width

323 mm

Height

323 mm

Dispatches on Mon 19 Oct

55 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 325.00 / piece)

€ 325.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Material: plastic
Net weight: 4.15 kg
Gross weight: 4.248 kg
Dimensions: Width 323 mm
Height: 323 mm
Depth: 161 mm
Benefit: Highest air output by pleated filter in the delivery state
Wide-range input 100 - 240 V
IoT connectivity enables exclusive features such as automatic filter cleaning, filter maintenance indicator, emergency cooling
Easy change of filter through a new opening mechanism at the lamellar grid
Faster mounting on the cabinet by optimized latching hooks
Diagonal fan technology provides for a more even and constant ventilation of the control cabinet through higher pressure stability
Installation without any tools
Colour RAL 7035
Design: Wall-mounting
EC
Rated operating voltage 100 V - 240 V, 1~, 50 Hz/60 Hz
Sound pressure level: At 50 Hz: 66 dB(A)
Operating temperature range --25°C...55°C.
Nominal capacity Pel: At 50 Hz: 116.4 W.
Rated current max.: At 50 Hz: 1.97 A
Storage temperature range -25°C...70°C.
Fuse: Circuit breaker / safety fuse 6 A
NEMA protection class: Type 12 with nonwoven filter/wrinkle filter
Type 3
Type 3R
Type 4
Type 4X with fleece filter and spray water hood
Fan: Diagonal, EC-motor
Air flow free-blowing (with fleece filter): At 50 Hz: 700 m³/h.
Installation depth: 141 mm
Mounting cut-out width: 292 mm
Outbreak - Height 292 mm
Air power with associated outlet filter incl. nonwoven filter: At 50 Hz: 535 m³/h.
Interfaces: 0 - 10 V/PWM input
Speed output
Potential-free fault indicator contact
RS485 (Modbus)
Air performance free-blowing (with folded filter): At 50 Hz: 867 m³/h.
At 60 Hz: 867 m³/h
IP rating according to IEC 60 529:IP54 with fleece filter/folding filter
IP55 with folded filter and absorption mat
IP56 with fleece filter/line filter and jet-water hood

Product type: Fan and filter

Type: SK 3244.900

Features: incl. filter

Min. operating voltage: 100 V

Max. operating voltage: 240 V

Operating voltage: 100 - 240 V

Max. current consumption: 1.97 A

: 116.4 W

Noise emission (max.): 66 dBa

Air flow rate: 867 m³/h

Compatible with: Rittal

Factory colour: Grey (RAL 7035)

Min. temperature: -25 °C

Max. temperature: +55 °C

: IP54
IP55
IP56

Width: 323 mm

Height: 323 mm

Depth: 161 mm

Dim: (W x H x D) 323 x 323 x 161 mm

Weight: 4.15 kg

Content: 1 pc(s)

: Snap mounting

: Grey

: 323 mm

: 323 mm

: 161 mm

: 7035

: AC

: FALSE

: 1

: FALSE

: IP54

: TRUE

: TRUE

: FALSE

: FALSE

: 867 m³/h

: TRUE

: TRUE

: 12

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Power

Width

Dim

Depth

Height

Noise emission (max.)

Rittal SK 3244.900 Fan and filter 116.4 W (W x H x D) 323 x 323 x 161 mm 1 pc(s)

Item no:3386716

Dispatches on Mon 19 Oct

55 Piece(s)Conrad Electronic

This article

116.4 W

323 mm

(W x H x D) 323 x 323 x 161 mm

161 mm

323 mm

66 dBa

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 325.00^*

Rittal SK 3240.900 Fan and filter 13.4 W (W x H x D) 255 x 255 x 137.5 mm Piece 1 pc(s)

Item no:3386713

Dispatches on Mon 19 Oct

224 Piece(s)Conrad Electronic

13.4 W

255 mm

(W x H x D) 255 x 255 x 137.5 mm

137.5 mm

255 mm

48 dBa

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 239.99^*

Rittal SK 3241.900 Fan and filter 19.8 W (W x H x D) 255 x 255 x 137.5 mm 1 pc(s)

Item no:3386714

Dispatches on Mon 19 Oct

8 Piece(s)Conrad Electronic

19.8 W

255 mm

(W x H x D) 255 x 255 x 137.5 mm

137.5 mm

255 mm

54 dBa

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 249.99^*

Rittal SK 3243.900 Fan and filter 55.1 W (W x H x D) 323 x 323 x 156.5 mm 1 pc(s)

Item no:3386715

Dispatches on Mon 19 Oct

348 Piece(s)Conrad Electronic

55.1 W

323 mm

(W x H x D) 323 x 323 x 156.5 mm

156.5 mm

323 mm

65 dBa

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 285.00^*

Rittal SK 3245.900 Fan and filter 173.5 W (W x H x D) 323 x 323 x 161 mm Piece 1 pc(s)

Item no:3386711

Dispatches on Mon 19 Oct

119 Piece(s)Conrad Electronic

173.5 W

323 mm

(W x H x D) 323 x 323 x 161 mm

161 mm

323 mm

72 dBa

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 425.00^*

Rittal SK 3245.908 Fan and filter 173.5 W (W x H x D) 323 x 323 x 161 mm Piece 1 pc(s)

Item no:3386712

Dispatches on Mon 19 Oct

38 Piece(s)Conrad Electronic

173.5 W

323 mm

(W x H x D) 323 x 323 x 161 mm

161 mm

323 mm

72 dBa

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 459.00^*

Rittal SK 3245.910 Fan and filter 174.6 W (W x H x D) 323 x 323 x 156 mm Piece 1 pc(s)

Item no:3386709

Dispatches on Mon 19 Oct

5 Piece(s)Conrad Electronic

174.6 W

323 mm

(W x H x D) 323 x 323 x 156 mm

156 mm

323 mm

72 dBa

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 465.00^*

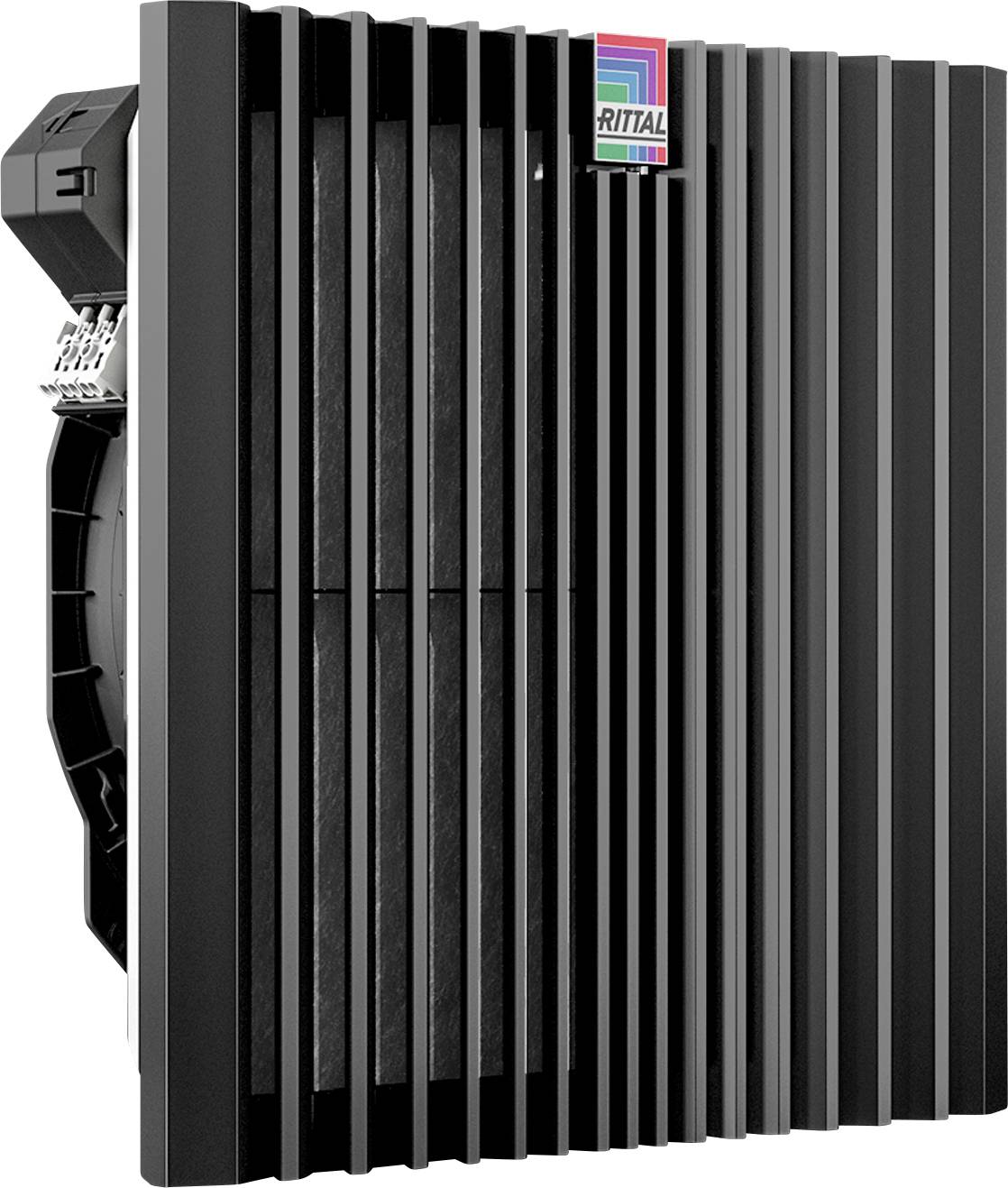

Rittal SK 3245.918 Fan and filter 174.6 W (W x H x D) 323 x 323 x 156 mm Piece 1 pc(s)

Item no:3386710

Available soon

Conrad Electronic

174.6 W

323 mm

(W x H x D) 323 x 323 x 156 mm

156 mm

323 mm

72 dBa

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 499.00^*

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3386716 Rittal SK 3244.900 Fan and filter 116.4 W (W x H x D) 323 x 323 x 161 mm 1 pc(s)

Description

SK Blue e+ filter fan, EC technology, 867 m³/h, 100 V - 240 V, 1~ , 50 Hz/60 Hz, BHT 323 x 323 x 161 mm, RAL 7035

The energy-efficient design with EC technology is characterized not only by its first-time IoT capability. The Blue e+ filter fan also opens the door to many other advantages – from energy efficiency to monitoring and sustainability to a higher air output (175 - 1,160 m³/h).
