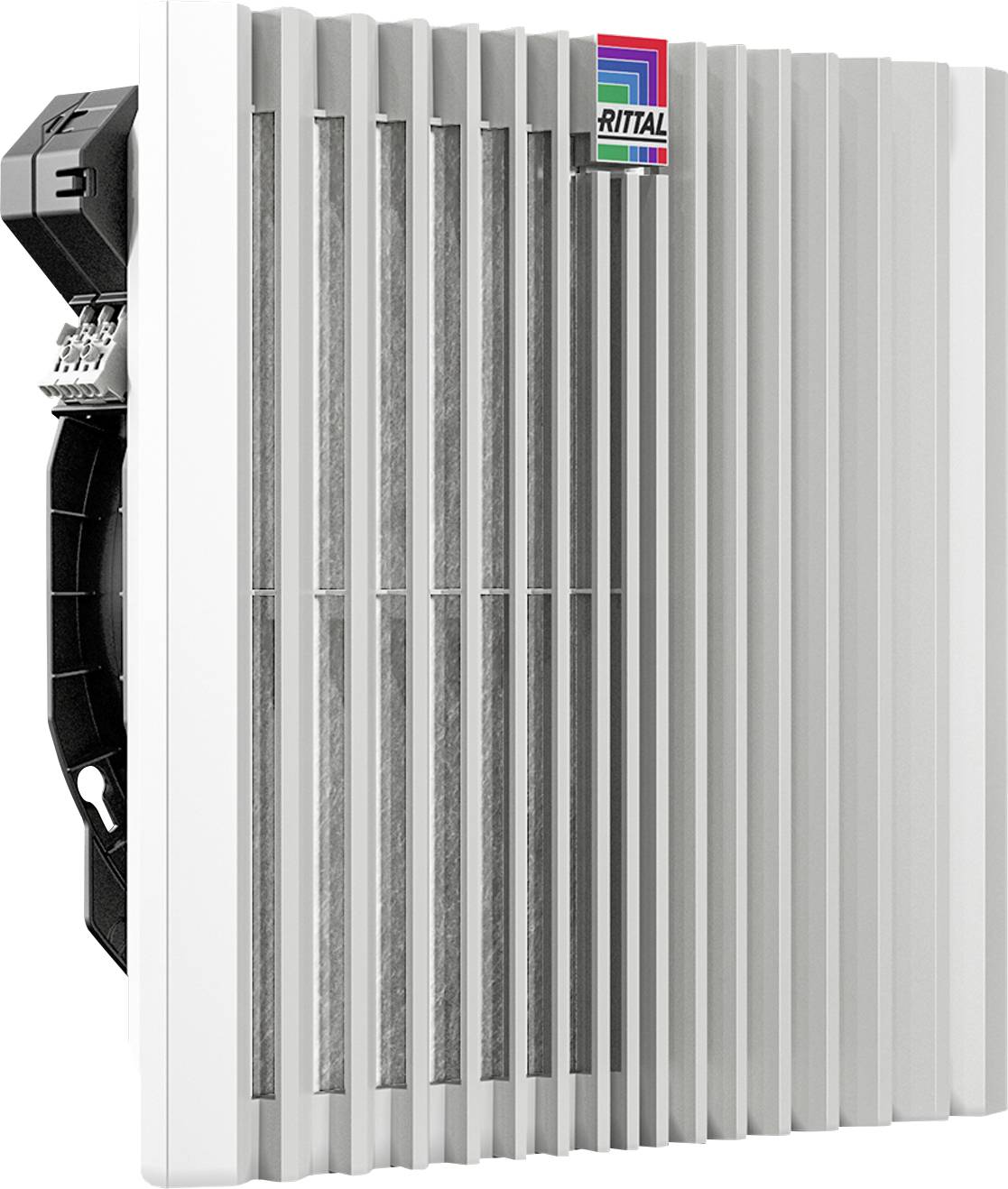

Name: Rittal SK 3245.800 Fan and filter 173.5 W (W x H x D) 323 x 323 x 161 mm Piece 1 pc(s)
Brand: Rittal
SKU: 3386730
Availability: InStock

Packaging type

Piece

Product type

Fan and filter

Power

173.5 W

Noise emission (max.)

72 dBa

Width

323 mm

Dispatches on Mon 19 Oct

153 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 679.00 / piece)

€ 679.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Material: plastic
Net weight: 4.01 kg
Gross weight: 4.218 kg
Dimensions: Width 323 mm
Height: 323 mm
Depth: 161 mm
Benefit: Easy filter change through a new opening mechanism on the louver grid
Faster mounting on the cabinet by optimized latching hooks
Diagonal fan technology provides for a more even and constant ventilation of the control cabinet through higher pressure stability
Installation without any tools
Colour RAL 7035
Design: Wall-mounting
EMC
Rated operating voltage 200 V - 240 V, 1~, 50 Hz/60 Hz
Sound pressure level: At 50 Hz: 72 dB(A)
Operating temperature range --25°C...55°C.
Nominal capacity Pel: At 50 Hz: 173.5 W.
Rated current max.: At 50 Hz: 1.38 A
Storage temperature range -25°C...70°C.
Protection class NEMA: Type 12 with nonwoven filter
Type 3
Type 3R with fleece filter and water spray hood
Fan: Diagonal, EC-motor
Air flow free-blowing (with fleece filter): At 50 Hz: 931 m³/h.
Installation depth: 141 mm
Mounting cut-out width: 292 mm
Outbreak - Height 292 mm
Air power with associated outlet filter incl. nonwoven filter: At 50 Hz: 728 m³/h.
Interfaces: 0 - 10 V/PWM input
Speed output
Potential-free fault indicator contact
RS485 (Modbus)
Protection class IP according to IEC 60 529: IP51 with fleece filter
IP56 with fleece filter and jet-water hood

Packaging type: Piece

Product type: Fan and filter

Type: SK 3245.800

Features: EMC

Min. operating voltage: 200 V

Max. operating voltage: 240 V

Operating voltage: 200 - 240 V

Max. current consumption: 1.38 A

: 173.5 W

Noise emission (max.): 72 dBa

Air flow rate: 931 m³/h

Compatible with: Rittal

Factory colour: Grey (RAL 7035)

Min. temperature: -25 °C

Max. temperature: +55 °C

: IP51
IP56

Width: 323 mm

Height: 323 mm

Depth: 161 mm

Dim: (W x H x D) 323 x 323 x 161 mm

Weight: 4.01 kg

Content: 1 pc(s)

: Snap mounting

: Grey

: 323 mm

: 323 mm

: 161 mm

: 7035

: FALSE

: 1

: TRUE

: IP54

: TRUE

: TRUE

: FALSE

: FALSE

: TRUE

: TRUE

: 12

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Power

Width

Dim

Depth

Height

Noise emission (max.)

Packaging type

Rittal SK 3245.800 Fan and filter 173.5 W (W x H x D) 323 x 323 x 161 mm Piece 1 pc(s)

Item no:3386730

Dispatches on Mon 19 Oct

153 Piece(s)Conrad Electronic

This article

173.5 W

323 mm

(W x H x D) 323 x 323 x 161 mm

161 mm

323 mm

72 dBa

Piece

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 679.00^*

Rittal SK 3237.800 Fan and filter 230 V 11.1 W, 13 W (W x H x D) 116.5 x 116.5 x 64.5 mm Piece 1 pc(s)

Item no:3386721

Dispatches on Mon 19 Oct

142 Piece(s)Conrad Electronic

11.1 W

116.5 mm

(W x H x D) 116.5 x 116.5 x 64.5 mm

64.5 mm

116.5 mm

47 dBa

Piece

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 149.99^*

Rittal SK 3238.800 Fan and filter 230 V 16.5 W, 14.7 W (W x H x D) 148.5 x 148.5 x 82.5 mm Piece 1 pc(s)

Item no:3386724

Dispatches on Mon 19 Oct

354 Piece(s)Conrad Electronic

16.5 W

148.5 mm

(W x H x D) 148.5 x 148.5 x 82.5 mm

82.5 mm

148.5 mm

54 dBa

Piece

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 219.99^*

Rittal SK 3239.800 Fan and filter 230 V 16.5 W, 14.7 W (W x H x D) 204 x 204 x 105 mm Piece 1 pc(s)

Item no:3386718

Dispatches on Mon 19 Oct

282 Piece(s)Conrad Electronic

16.5 W

204 mm

(W x H x D) 204 x 204 x 105 mm

105 mm

204 mm

54 dBa

Piece

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 279.00^*

Rittal SK 3239.810 Fan and filter 115 V 15.8 W, 15.4 W (W x H x D) 204 x 204 x 105 mm 1 pc(s)

Item no:3386717

Available soon

Conrad Electronic

15.8 W

204 mm

(W x H x D) 204 x 204 x 105 mm

105 mm

204 mm

54 dBa

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 285.00^*

Rittal SK 3240.800 Fan and filter 230 V 37.3 W, 33.1 W (W x H x D) 255 x 255 x 129 mm Piece 1 pc(s)

Item no:3386720

Dispatches on Mon 19 Oct

55 Piece(s)Conrad Electronic

37.3 W

255 mm

(W x H x D) 255 x 255 x 129 mm

129 mm

255 mm

45 dBa

Piece

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 305.00^*

Rittal SK 3240.810 Fan and filter 115 V 38.2 W, 35.5 W (W x H x D) 255 x 255 x 129 mm Piece 1 pc(s)

Item no:3386719

Available soon

Conrad Electronic

38.2 W

255 mm

(W x H x D) 255 x 255 x 129 mm

129 mm

255 mm

45 dBa

Piece

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 345.00^*

Rittal SK 3241.800 Fan and filter 230 V 54.5 W, 43.2 W (W x H x D) 255 x 255 x 129 mm 1 pc(s)

Item no:3386722

Dispatches on Mon 19 Oct

278 Piece(s)Conrad Electronic

54.5 W

255 mm

(W x H x D) 255 x 255 x 129 mm

129 mm

255 mm

54 dBa

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 315.00^*

Rittal SK 3241.810 Fan and filter 115 V 52.2 kW, 43.4 kW (W x H x D) 255 x 255 x 129 mm Piece 1 pc(s)

Item no:3386723

Available soon

Conrad Electronic

52.2 kW

255 mm

(W x H x D) 255 x 255 x 129 mm

129 mm

255 mm

54 dBa

Piece

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 375.00^*

Rittal SK 3243.800 Fan and filter 230 V 106.4 W, 77.7 W (W x H x D) 323 x 323 x 144.5 mm 1 pc(s)

Item no:3386726

Dispatches on Mon 19 Oct

93 Piece(s)Conrad Electronic

106.4 W

323 mm

(W x H x D) 323 x 323 x 144.5 mm

144.5 mm

323 mm

65 dBa

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 339.00^*

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3386730 Rittal SK 3245.800 Fan and filter 173.5 W (W x H x D) 323 x 323 x 161 mm Piece 1 pc(s)

Description

SK Blue e+ Filter fan, EMC, 931 m³/h, 200 V - 240 V, 1~, 50 Hz/60 Hz, BHT 323 x 323 x 161 mm, RAL 7035

Complete fan unit with EMC shielding for tool-free mounting on surfaces. Air flow from 20 - 900 m³/h, protection class standard IP 54.
