Name: Rohde & Schwarz HMF 2550 Mains-powered 10 µHz - 50 MHz 1-channel Sinus, Rectangle, Pulse, Triangle, Arbitrary
Brand: Rohde & Schwarz
SKU: 122233
Availability: BackOrder

An arbitrary waveform generator with a digital display shows parameters such as frequency and amplitude. Control knobs are located to the right of the display.

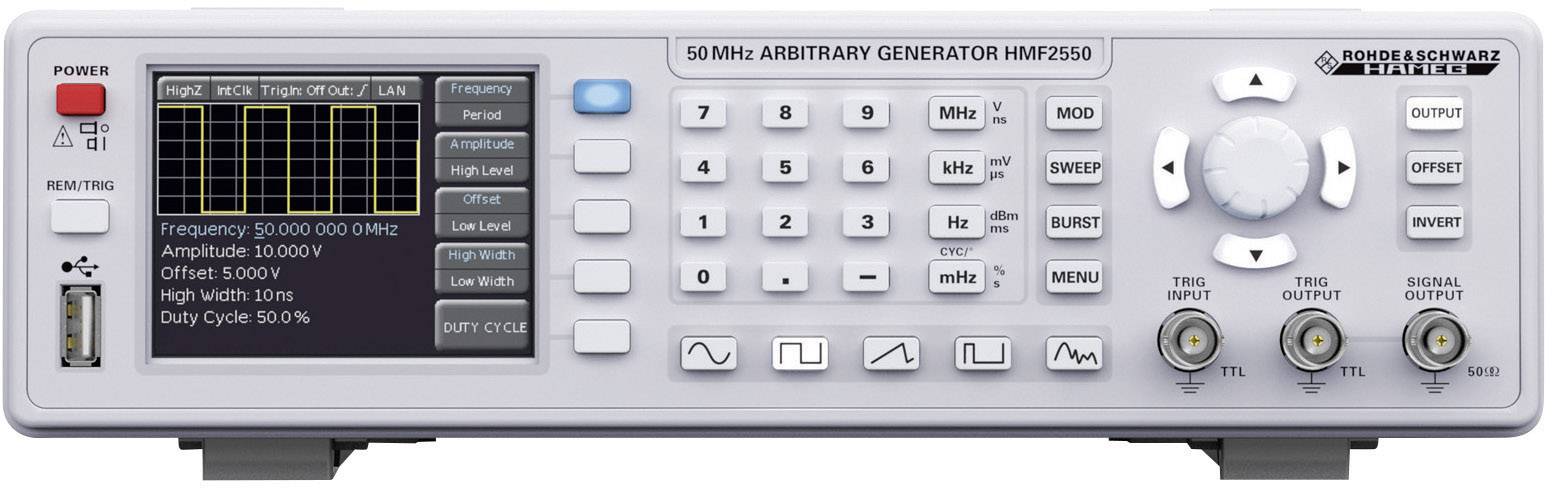

'Arbitrary Signal Generator 50 MHz HMF2550', displays frequencies, amplitude and other parameters on a screen with control elements on the right.

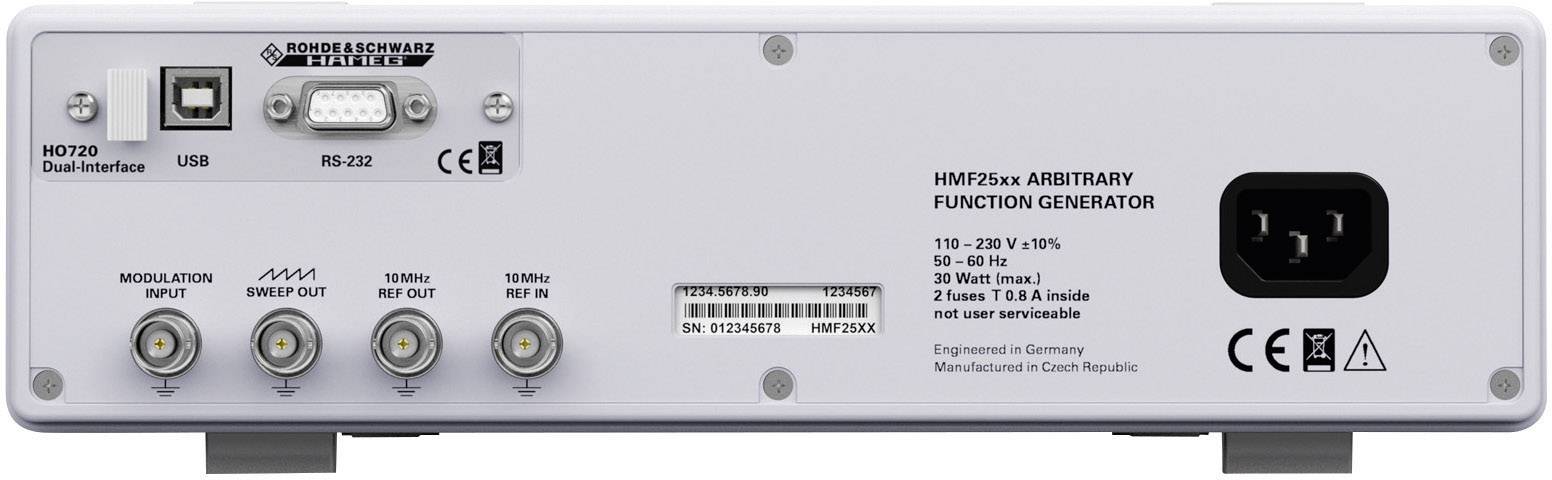

Rear view of an Arbitrary Function Generator, model name 'HM8125xx', with USB, RS-232, modulation and mains connections.

1/3

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Wed 18 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 3,755.00 / piece)

€ 3,755.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Random Function generator HMF2550

Arbitrary Generator 250 MSa/s
Frequency range from 10μHz to 50MHz
Output voltage from 5mVSS to 10VSS (at 50Ω) DC Offset ±5mV to 5V
Burst, sweep, gating, ext. Triggering
Rise time: <8ns, adjustable in pulse mode 8…500ns
AM, FM, PM, PWM, FSK (int. and ext.) modulation types

Technical specifications

Sampling rate: 250 MS/s
Offset: ± 5 V
Curve memory: 2565 kpts
Impedance: 50 Ω
Input resistance: 5 kΩ : 100 pF
Resolution: 1µHz
Length: 365 mm

Signal output type: Sine/rectangle/pulse/triangle/ramp/Arbitrary

Product type: Mains-powered

Frequency range: 10 µHz - 50 MHz

Signal output types: Sinus
Rectangle
Pulse
Triangle
Arbitrary

Frequency range (sine): 10 µHz - 50 MHz

Distortion factor (sine): 0.04 %

Frequency range square wave: 10 µHz - 50 MHz

Square wave slew rate: <8 ns

Display: Digital

Frequency range triangle: 10 µHz - 10 MHz

ARB frequency range: 10 µHz - 25 MHz

: Manufacturer's standards (no certificate)

Wobble function: 1 ms - 500 s

Internal modulation: AM/FM/PM/FSK/PWM

External modulation: AM/FM/PM/FSK/PWM

VCF: -

Trigger (synchronous): -360 up to +360°

Gate (asynchronous): >100 ns

Frequency reading (external): -

Dim: (W x H) 285 mm x 75 mm

Weight: 3.4 kg

No. of channels: 1-channel

Max. frequency: 50 MHz

Min. frequency: 10 µHz

Features: Modulation

Width: 285 mm

Height: 75 mm

Interfaces: RS232
USB

Voltage supply: Mains

Type: HMF 2550

Display (details): TFT

Resolution: 1 µ Hz

Frequency range: 10 µHz - 50 MHz

Interfaces: USB/RS232

Power supply (details): 105 - 253 V AC

Documents & Downloads

Datasheet

Datasheet 122233 Rohde & Schwarz HMF 2550 Mains-powered 10 µHz - 50 MHz 1-channel Sinus, Rectangle, Pulse, Triangle, Arbitrary

User & Safety Instructions

User & Safety Instructions 122233 Rohde & Schwarz HMF 2550 Mains-powered 10 µHz - 50 MHz 1-channel Sinus, Rectangle, Pulse, Triangle, Arbitrary

Description

With the HMF 2500 series stand up to 5 signal forms for order and by the arbitrary function can output signals freely be defined. Beside the brushing, Wobbeln, Gating, ext. Trigger functions possess the devices still 5 different types of modulation (TO, FM, PM, PWM, FSK), which can be used both internally and externally. Thus the devices are in the best way for laboratories and suitable in the manufacturing .

Features

Arbitrary generator: 250 MS/s, 14 bits, 256 kPts
Different signal forms: Sine, rectangle, pulse, triangle, ramp, Arbitrary, inclusive of standard curves (white, pink noise etc.)
Brush, sweeping, Gating, ext Triggering function
Types of Modulations: AM, FM, PM, PWM, FSK (internal. and ext.)
10 MHz time base: ± 1 ppm TCXO, I/O back side
USB port for the Data transfer
TFT display
Galvanically separated USB/RS-232 dual interface, optional Ethernet/USB or IEEE-488.

Scope of delivery

Power cable
Software
Manual.
