Rohde & Schwarz R&S® RTM-BNDL Digital 100 MHz 5 GS/s 80 MP 10 Bit Function generator 1 pc(s)

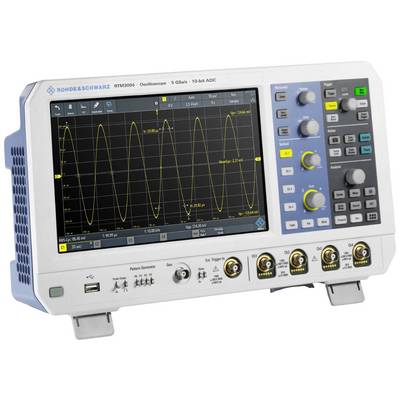

An oscilloscope with a graphical display shows a sinusoidal waveform. Controls and sockets are visible on the front panel.

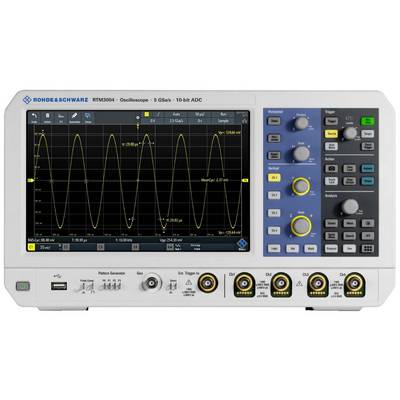

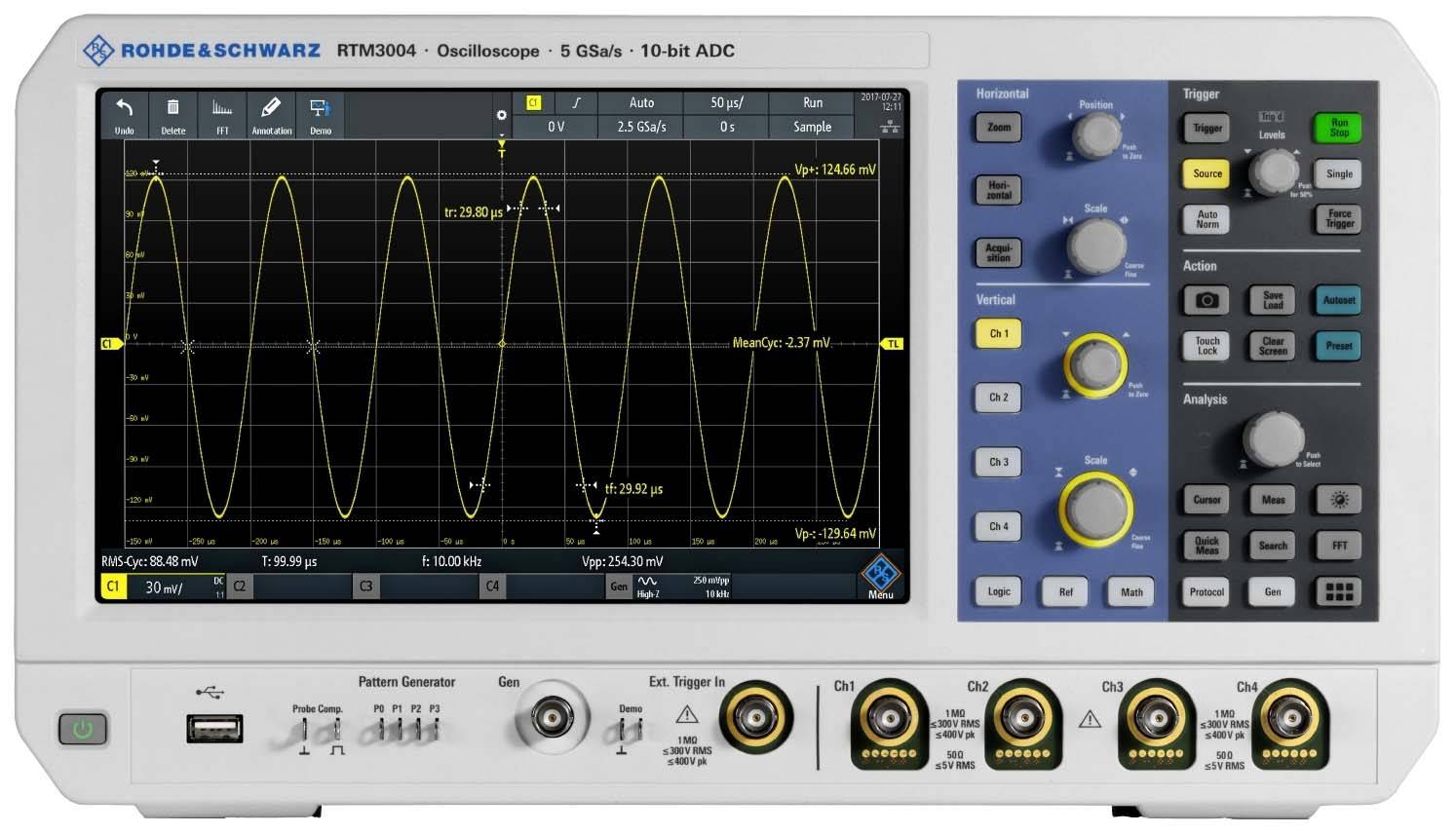

Oscilloscope on a table displaying sinusoidal waves on the screen. Control panel on the right with various operating elements and dials.

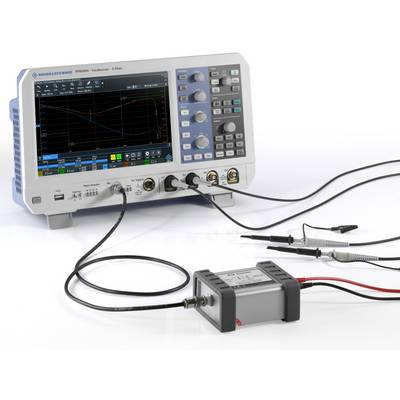

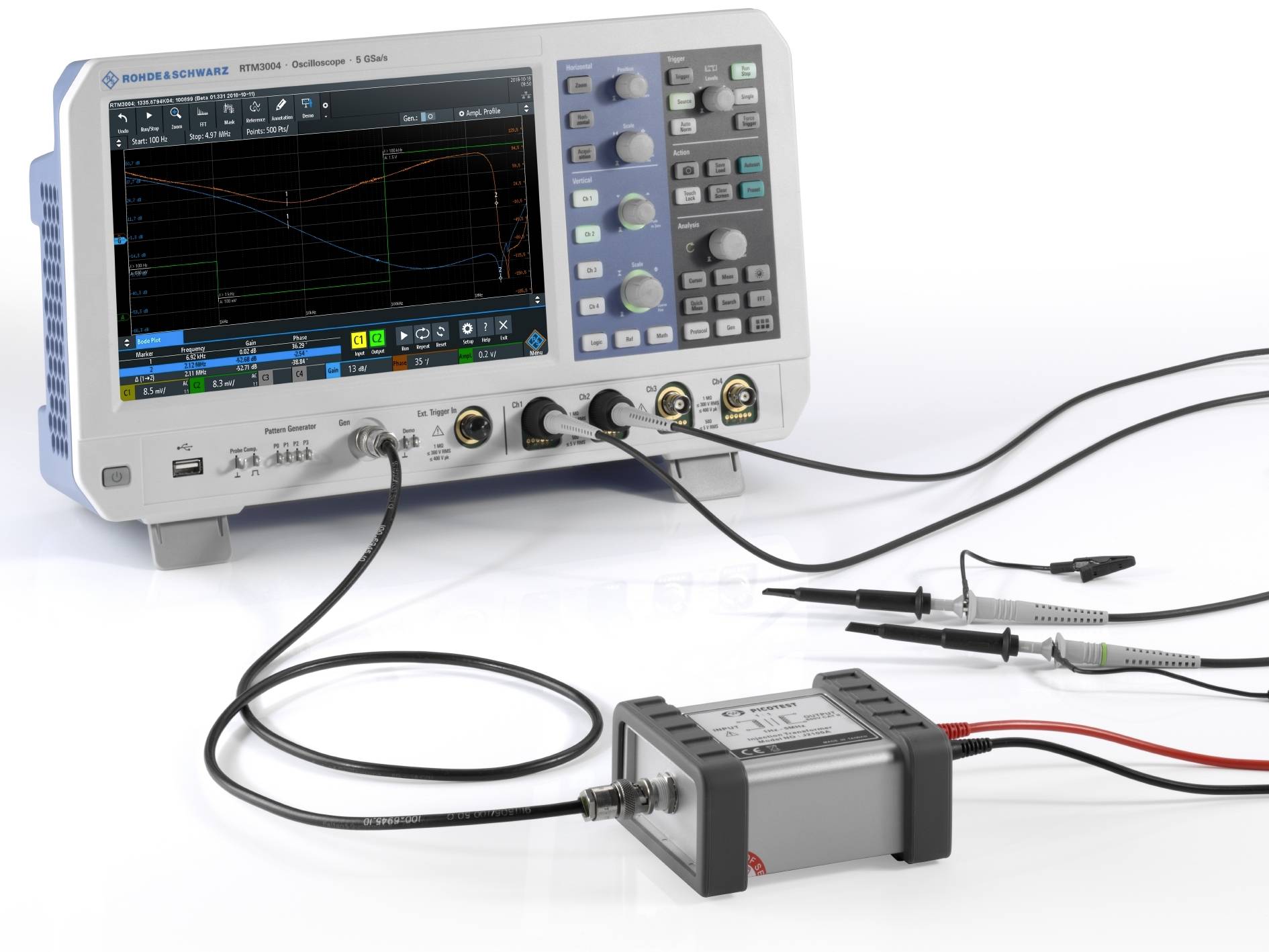

A oscilloscope with connected test leads shows a waveform and measurement data on the screen.

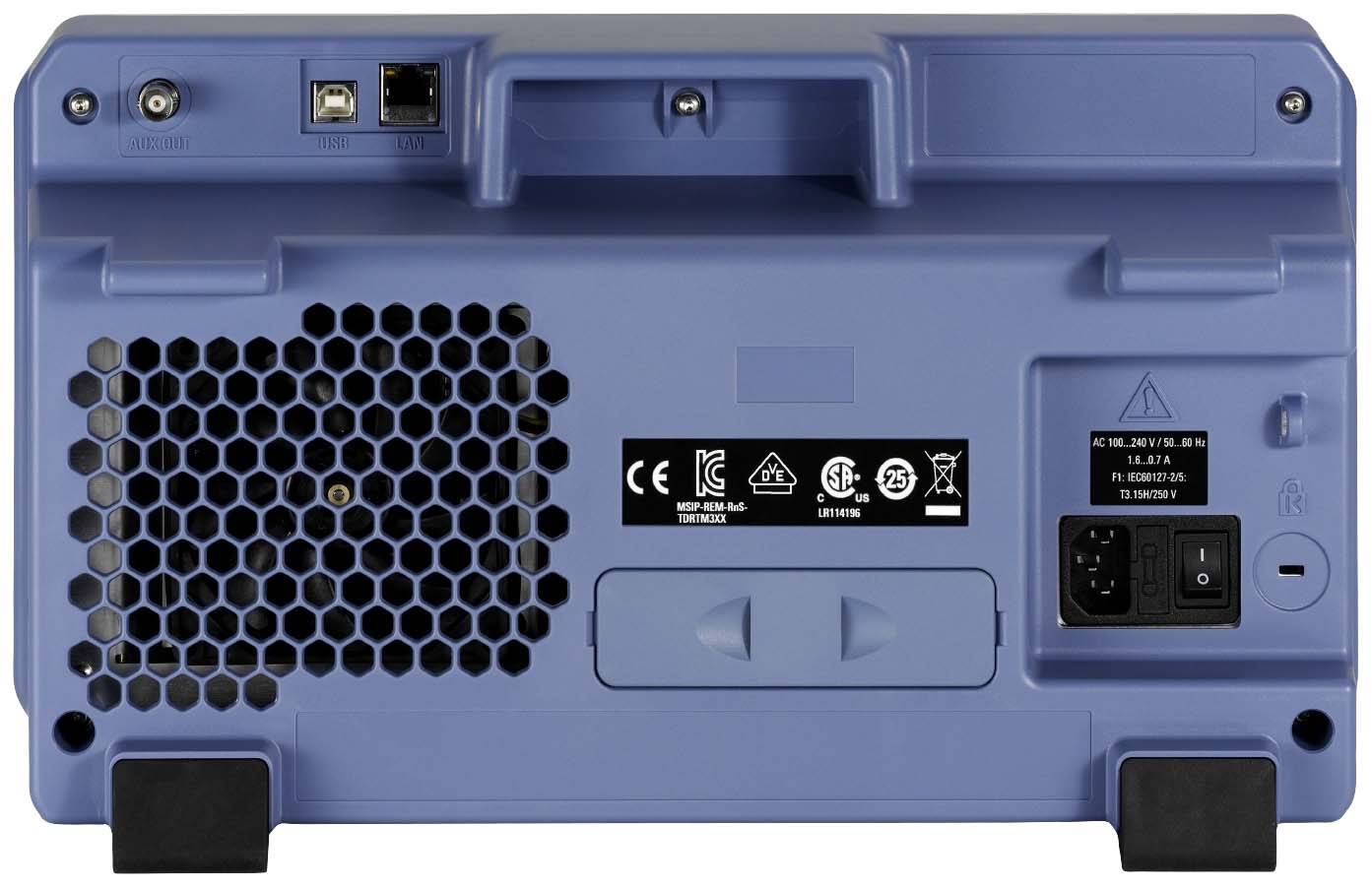

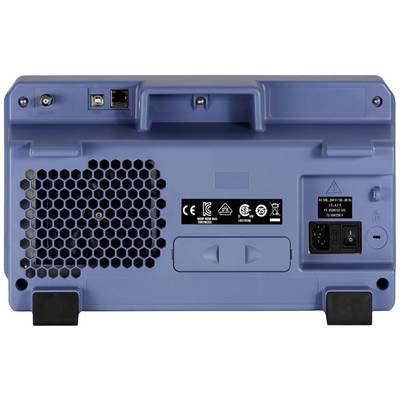

The rear side of a blue electronic device with ventilation grille, power connection, and sockets for network and telephone.

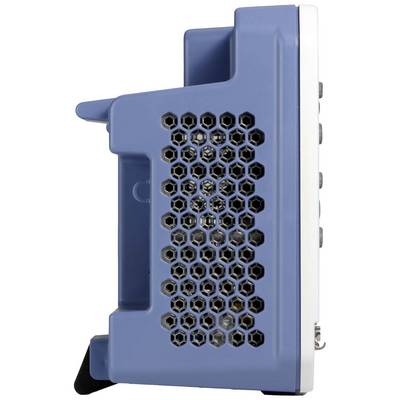

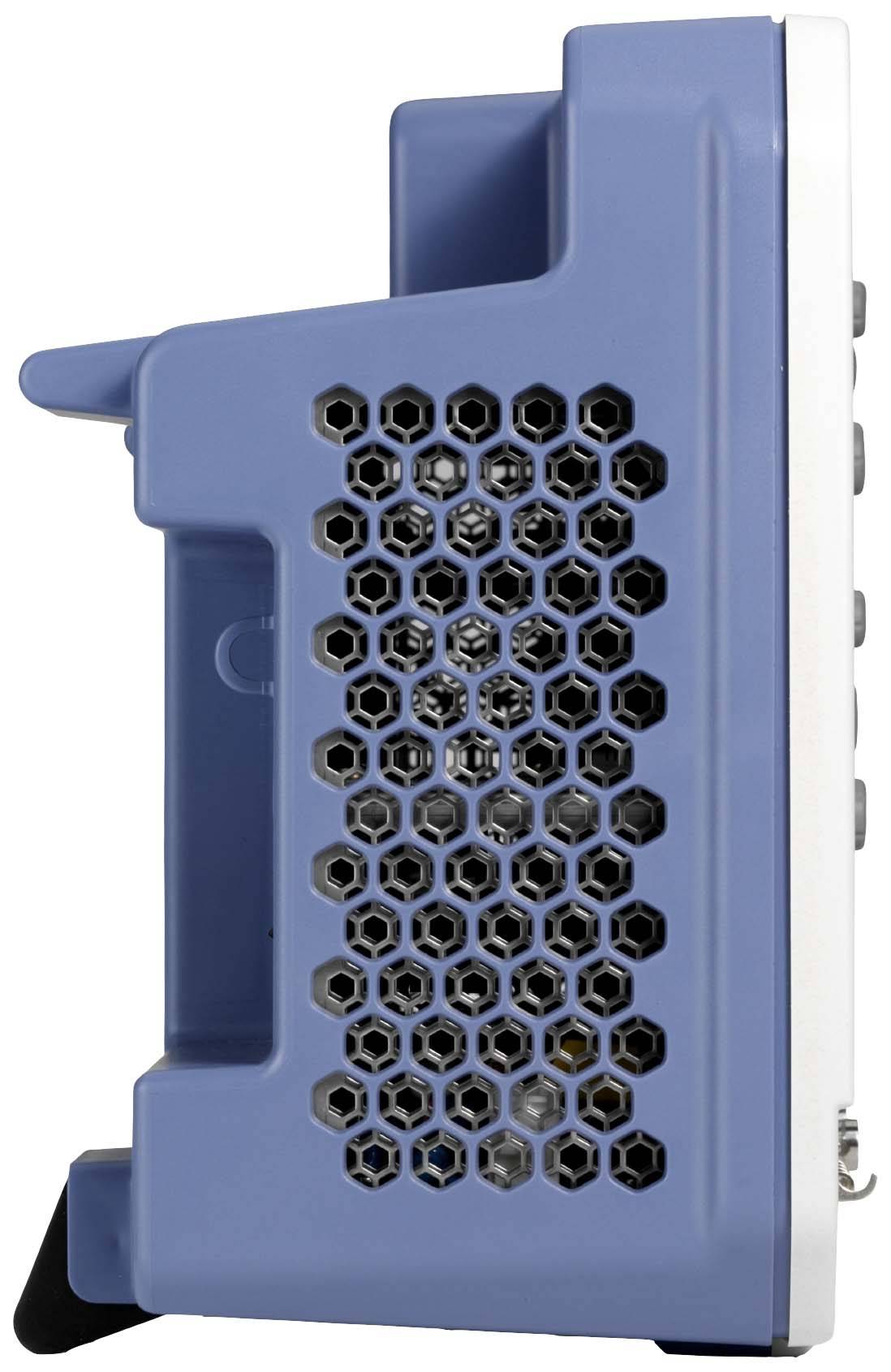

A blue, rectangular speaker with a hexagonal pattern on the side; image shows the side view of the device.

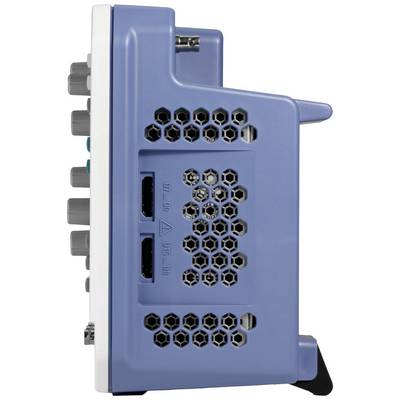

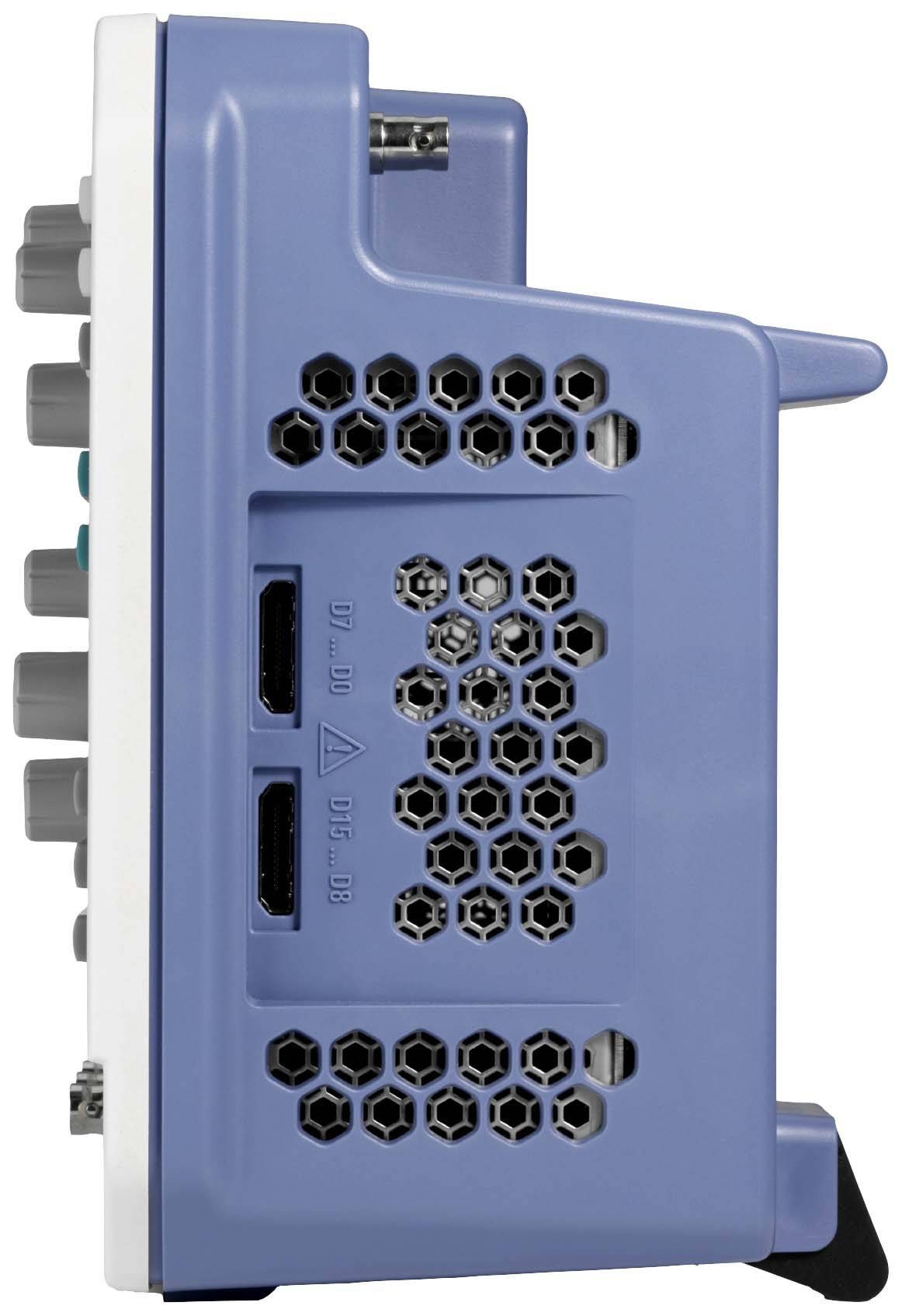

Side view of an electronic device with a blue cover, ventilation grilles, and two HDMI ports.

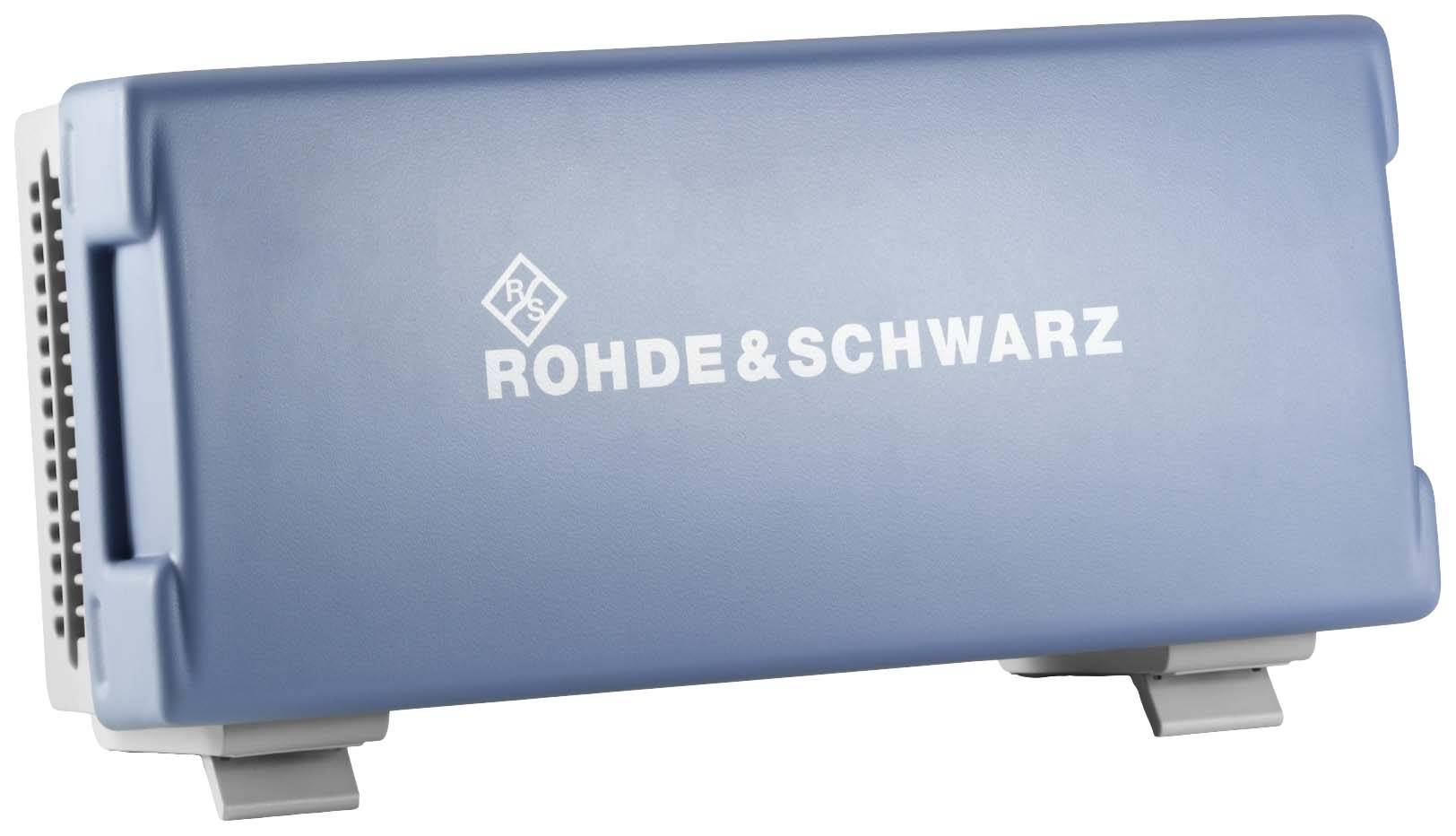

A blue device with 'Rohde & Schwarz' written on the front.

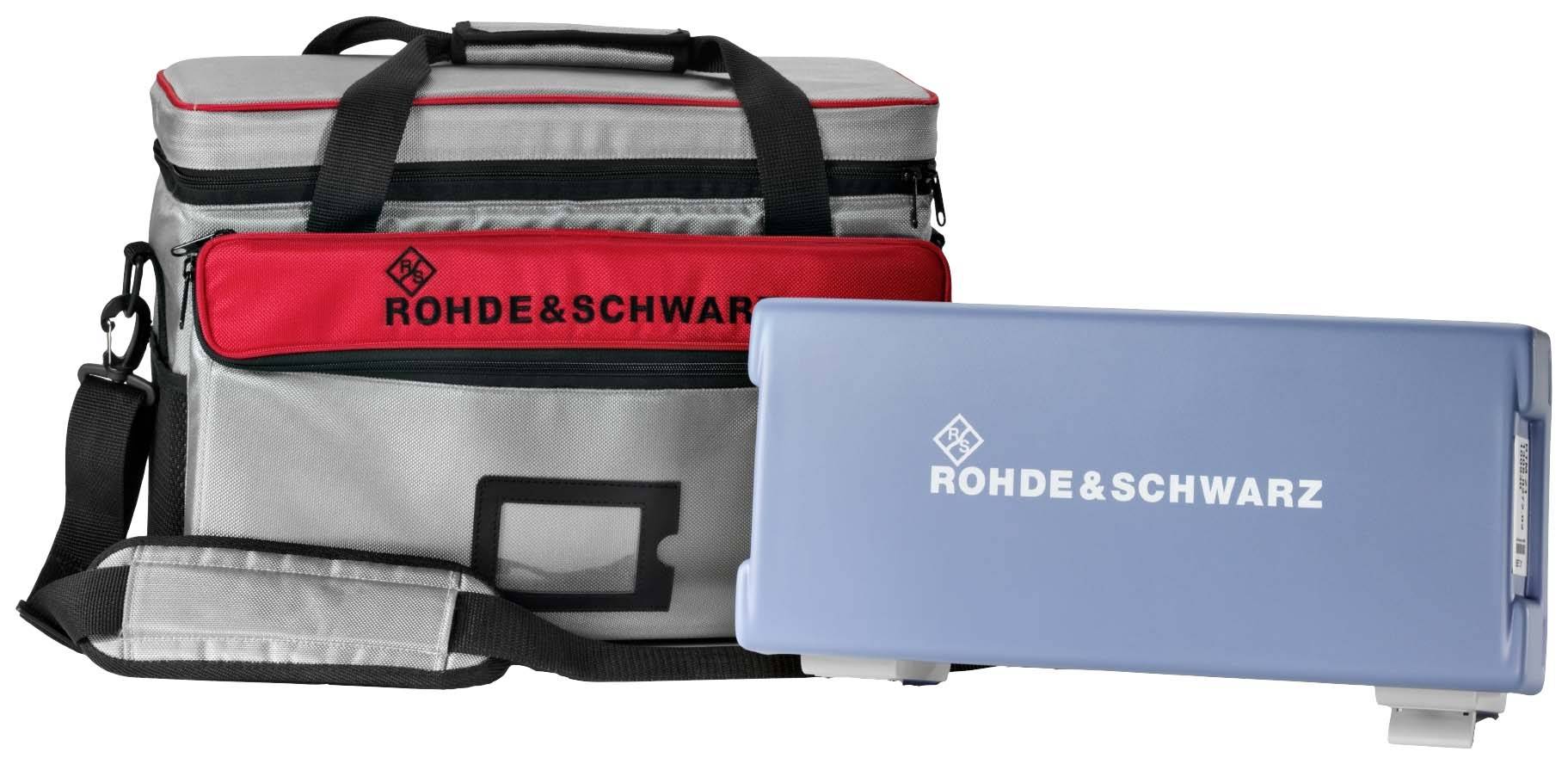

A grey and red bag with 'ROHDE & SCHWARZ' printed on it, next to a blue case with the same logo. Suitable for technical equipment.

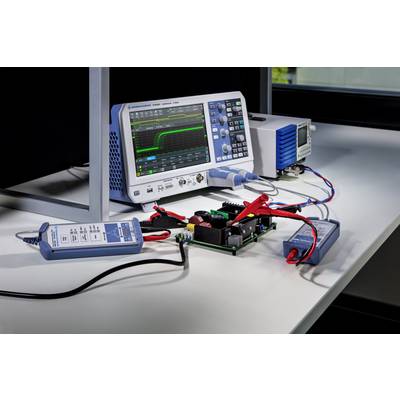

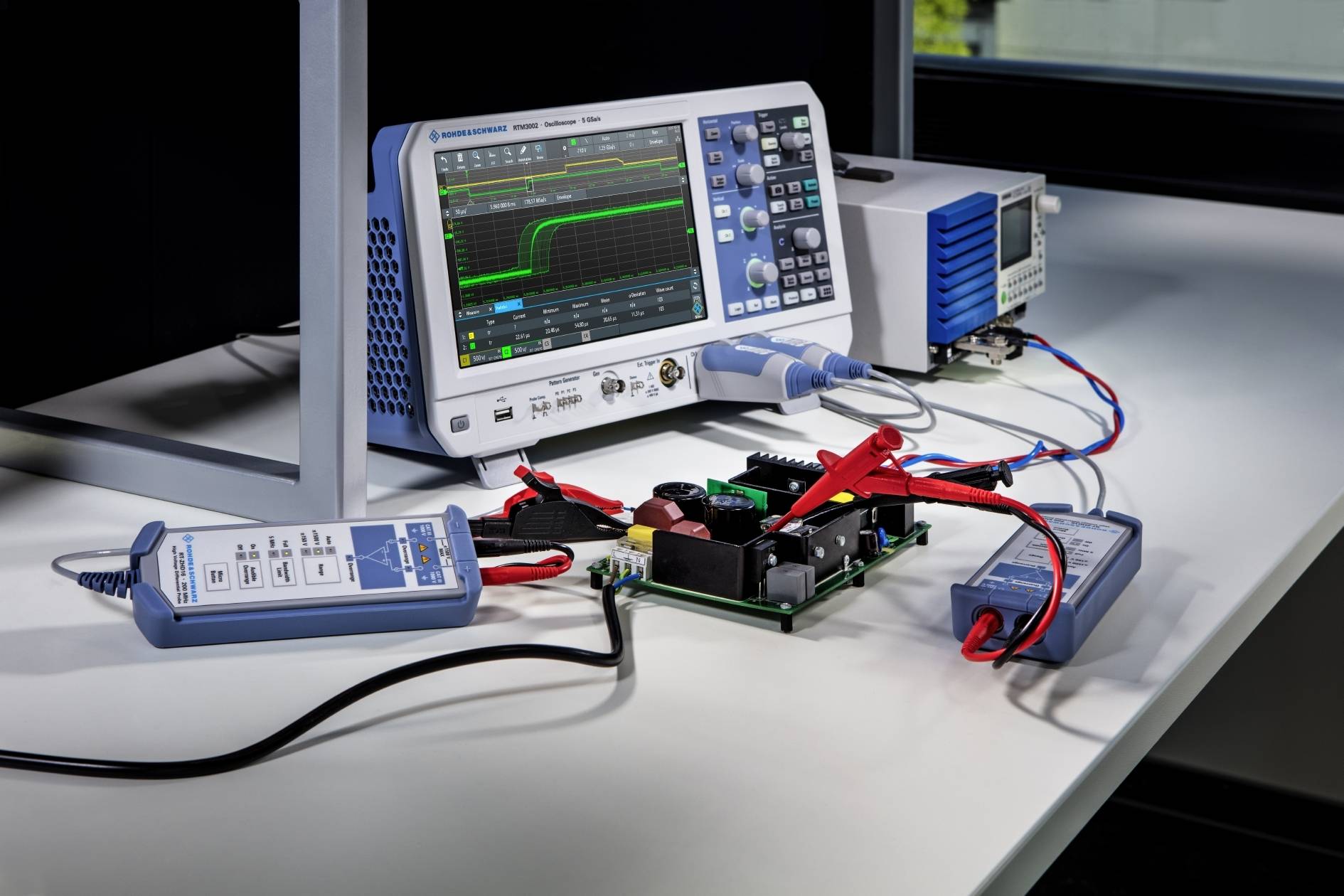

'An oscilloscope shows a graphical representation of voltage signals, connected with electronic components on a table.'
1/9
Datasheet (PDF)
EAN:
Part number:
Item no:
Available soon
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 12,109.00 / piece)
€ 12,109.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

RTM3004 Oscilloscope 4 channel 500 MHz package

  • 100 MHz
  • No. of analogue inputs 4

Technical specifications

Product type

Digital

Bandwidth

100 MHz

Channel sample rate

5 GS/s

Resolution

10 Bit

Screen size

25.65 cm (10.1")

Oscilloscope features

Function generator

Time base

0.5 ns/div to 500 s/div

No. of analogue inputs

4

Manufacturer's standards (no certificate)

Input impedance

1 MΩ

Power supply (details)

230 V

Dim

(L x W x H) 152 x 390 x 220 mm

Weight

3300 g

No. of digital inputs (max.)

16

Display

1280 x 800 p

Width

390 mm

Height

220 mm

Length

152 mm

Interfaces

I²C

Channel memory depth

80 MP

Type

R&S® RTM-BNDL

Documents & Downloads

Datasheet

Datasheet 2622881 Rohde & Schwarz R&S® RTM-BNDL Digital 100 MHz 5 GS/s 80 MP 10 Bit Function generator 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2622881 Rohde & Schwarz R&S® RTM-BNDL Digital 100 MHz 5 GS/s 80 MP 10 Bit Function generator 1 pc(s)

Description

The RTM3004 oscilloscope (4-channel 100 MHz bandwidth) stands out with a sampling rate of up to 5 Gsample/s and a memory depth of up to 80 Msample in its class. A refresh rate of more than 64000 waveforms/s provides a responsive device that reliably detects signal errors.

This text is machine translated.

Features

  • RTM-PK1 application package, consisting of: - RTC-B6 ARB GENERATOR- RTC-K1 I2C/SPI trigger & decode- RTC-K2 UART/RS232 Triggering and decoding- RTC-K3 CAN/LIN Triggers & Decode- RTM-K5 I2S Triggers & Decoding- RTM-K6 MIL-1553 T&D. - RTM-K7 ARINC 429 T&D.- RTM-K15 historical and segmented memory- RTM-K31 performance analysis- RTM-K36 Bode Plot Analysis- RTM-K37 SPECTRUM./SPEC

Scope of delivery

  • Incl. power cable
