RUKO 2004155 DIN 338 Typ N 338 Typ N HSS-G Twist drill bit 15.5 mm Total length 178 mm DIN 338 1 pc(s)
EAN:
Part number:
Item no:
Product type
Twist drill bit
Drill hole Ø
15.5 mm
Content
1 pc(s)
Material
HSS-G
Material suitability
Metal
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 15.96
3
5% = € 0.79
€ 15.17
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 15.96 / piece)
€ 15.96
plus VAT.
Only 4 Piece(s) available

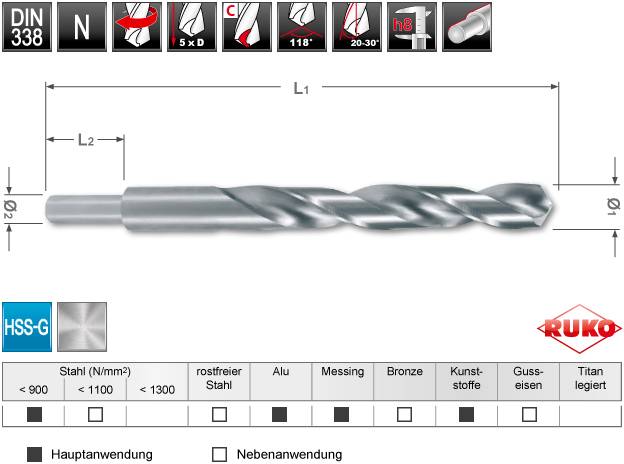

Technical specifications
- Cutting direction right-hand cutting
- Shank offset shaft
- Sitting shape C: Cross-ground
- Product type
Twist drill bit
- DIN standard
DIN 338
- Drill hole Ø
15.5 mm
- Tip angle
118°
- Content
1 pc(s)
- Material
HSS-G
- Material suitability
Metal
- Tensile strength (max.)
900 N/mm²
- Shank Ø
13.0 mm
- Working length
30 mm
- Total length
178 mm
- Drill hole diameter
15 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2290878 RUKO 2004155 DIN 338 Typ N 338 Typ N HSS-G Twist drill bit 15.5 mm Total length 178 mm DIN 338 1 pc(s)
Description
Ø 15.5 x 178 x 30 mm ideal for drilling larger drill diameters for all standard drills with a chuck of up to 13.0 mm. - High-performance high-speed working steel for drilling in well-machined materials with a strength of up to 900 N/mm².
