Schabus 300228 SHT 226 Aquastop incl. float switch mains-powered
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 73.94 / piece)
€ 73.94
plus VAT.
Highlights & Details

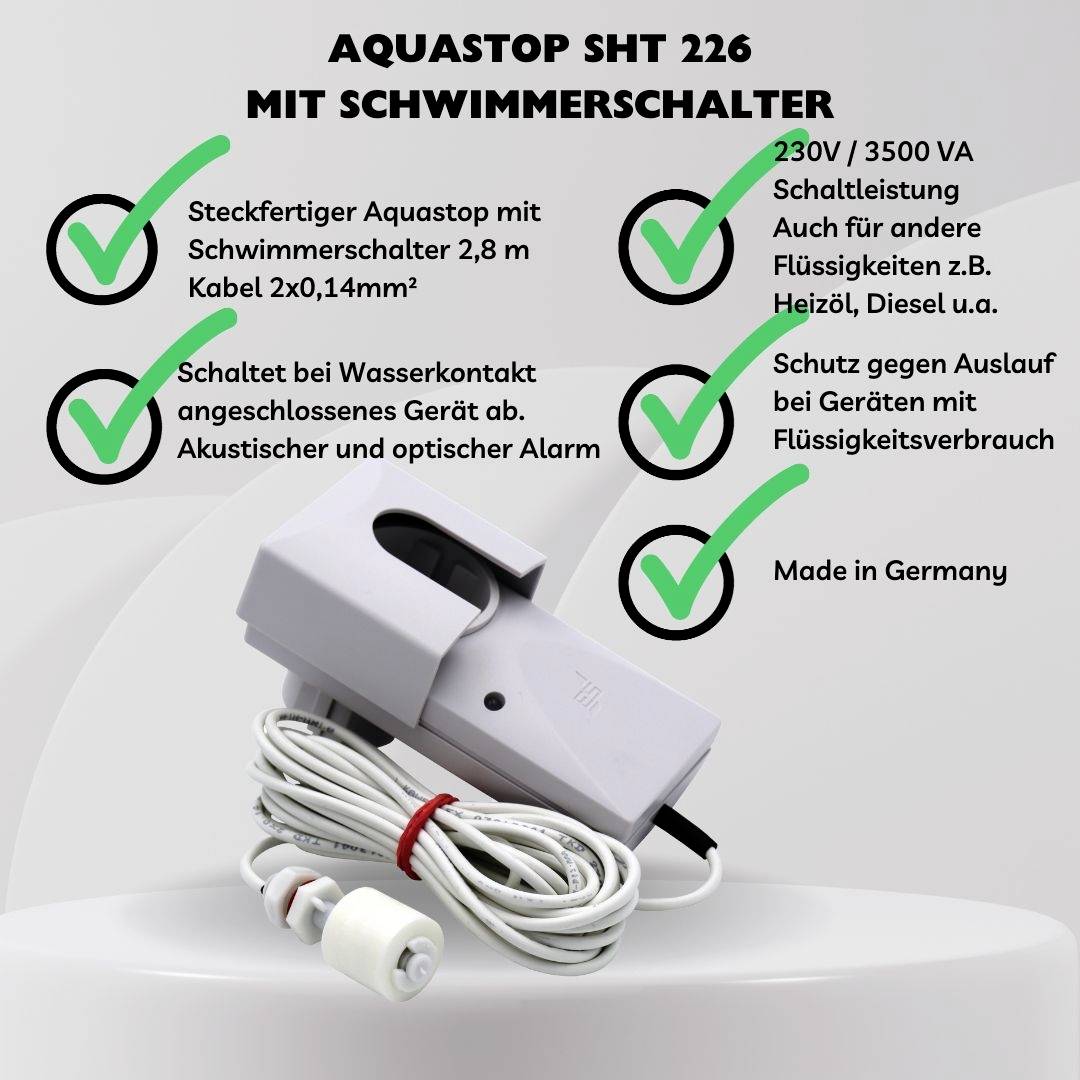

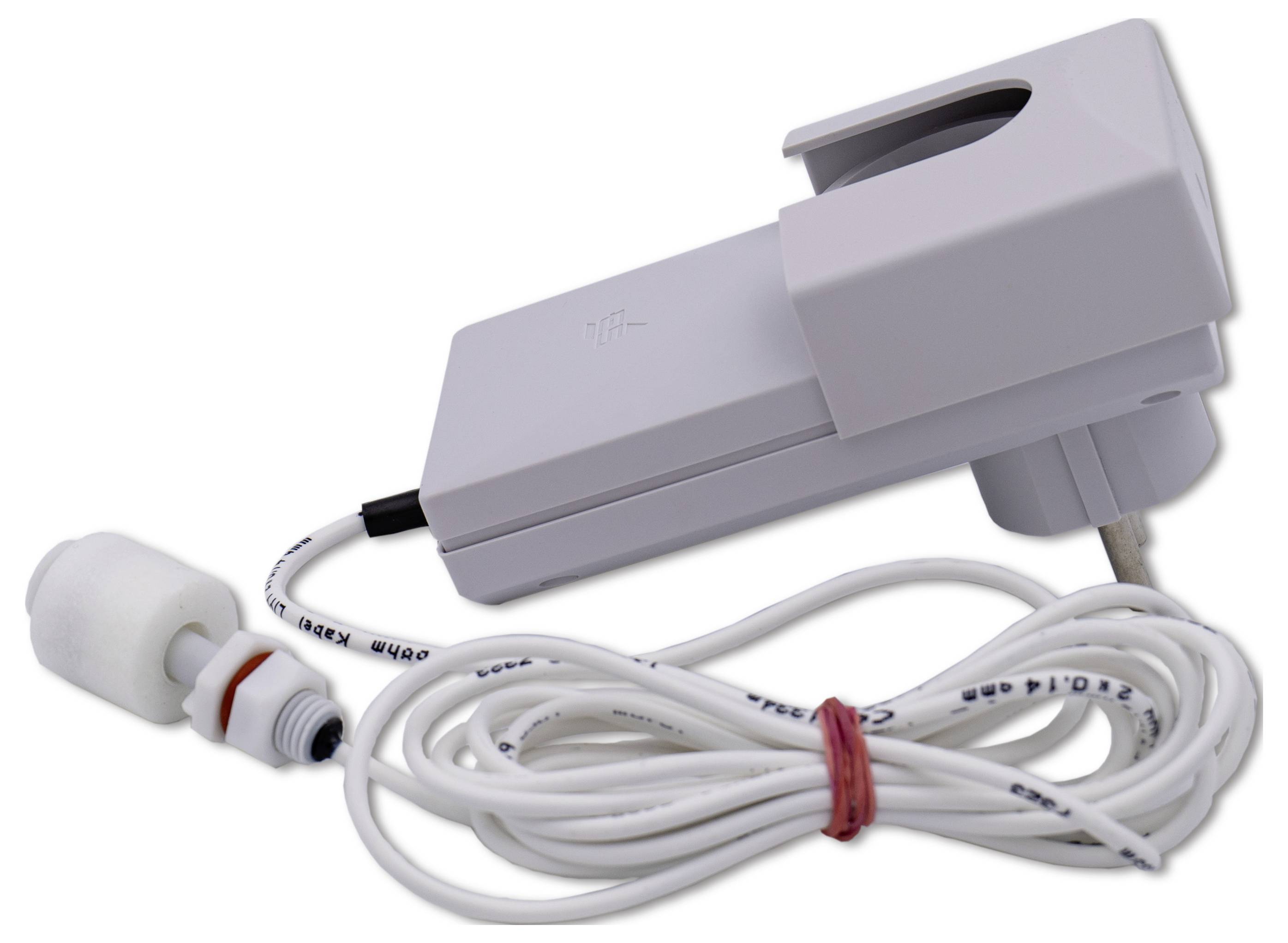

Aquastop SHT 226 with float switch
- Simple installation (230 V socket output)
- Audio and visual warning
- Unit cut-off when the alarm message
Technical specifications
- Sound pressure 80 dB (10 cm), cable length: 2.5 m.
- Product type
Aquastop
- Detector features
incl. float switch
- Mounting type
Wall
- Operating voltage
230 V
- Power supply (LOV)
mains-powered
- Sound pressure
85 dB
- Width
57 mm
- Height
121 mm
- Depth
38 mm
- Dim
(W x H x D) 57 x 121 x 38 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1405643 Schabus 300228 SHT 226 Aquastop incl. float switch mains-powered
User & Safety Instructions
User & Safety Instructions 1405643 Schabus 300228 SHT 226 Aquastop incl. float switch mains-powered
Description
The Aquastop SHT 226 is a protection system with additional unit shut down. As soon as the liquid level on the float switch increases, the SHT 226 of the connected device and gives an audible and visual warning.
The robust float switch is particularly suitable for dirty water or other liquids (e.g. Fuel oil, diesel, vegetable oil, lubricating oil, etc.).
The switching contact of the float closes from approx. 4 cm level high and activates the input of the water sensor. By turning the float body, you also get the reverse switching function for a low status message.
Combined with shut-off valve:

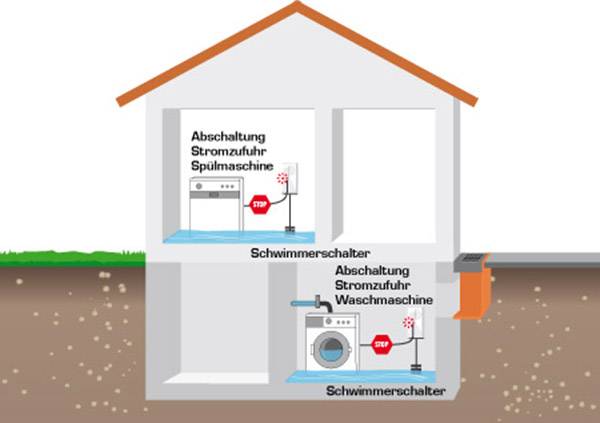

Using the switchable socket can also be simply a magnet shut-off valve (normally closed), so that in the event of flooding the water supply is disconnected.
Extension sensor cable:
If required, you can change the sensor cable up to 50 m with a cable (2 x 0.14 mm²) extend. You must re-connect the existing sensor cable cut and terminals.
This text is machine translated.
The robust float switch is particularly suitable for dirty water or other liquids (e.g. Fuel oil, diesel, vegetable oil, lubricating oil, etc.).
The switching contact of the float closes from approx. 4 cm level high and activates the input of the water sensor. By turning the float body, you also get the reverse switching function for a low status message.
Combined with shut-off valve:
Using the switchable socket can also be simply a magnet shut-off valve (normally closed), so that in the event of flooding the water supply is disconnected.
Extension sensor cable:
If required, you can change the sensor cable up to 50 m with a cable (2 x 0.14 mm²) extend. You must re-connect the existing sensor cable cut and terminals.
This text is machine translated.
Features
- Also suitable for other liquids (e.g. Fuel oil, diesel, vegetable oil, lubricating oils, etc.)
- Float switch with 2.5 m cable (extendable).
Scope of delivery
- Aquastop SHT 226
- User manual.
