Schabus 300241 SHT 241 Water leak detector mains-powered
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 83.99 / piece)
€ 83.99
incl. VAT
14-day return policy included
Highlights & Details

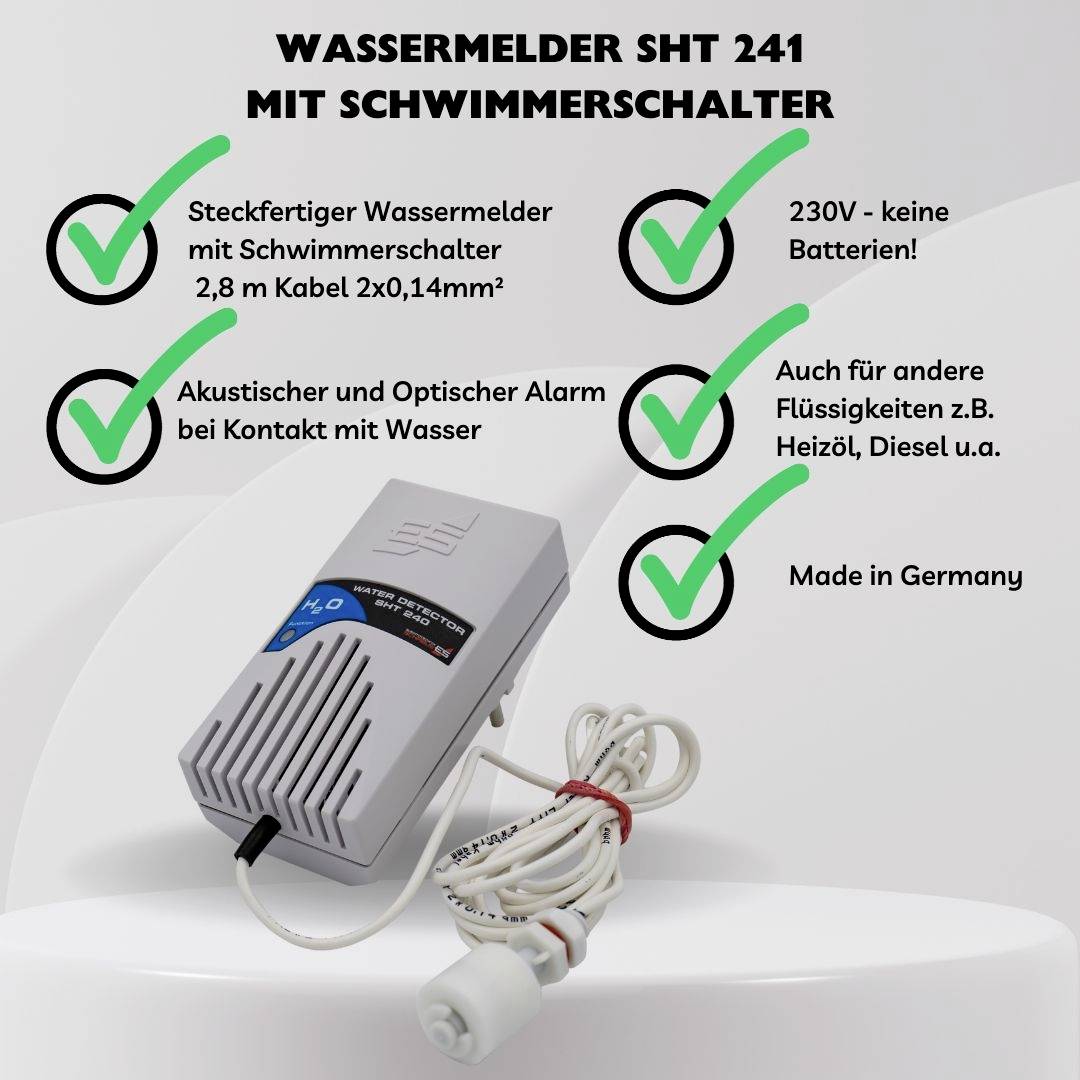

Water detector SHT 241
- Simple installation (230 V socket output)
- Audible and visual alarm message
- Also for other liquids (e.g. fuel oil, diesel, vegetable oil, lubricating oils, etc.)
Technical specifications
- Product type
Water leak detector
- Mounting type
Wall
- Operating voltage
230 V
- Power supply (LOV)
mains-powered
- Sound pressure
90 dB
- Width
60 mm
- Height
118 mm
- Depth
44 mm
- Dim
(W x H x D) 60 x 118 x 44 mm
- Function
Water leak detector
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1405637 Schabus 300241 SHT 241 Water leak detector mains-powered
User & Safety Instructions
User & Safety Instructions 1405637 Schabus 300241 SHT 241 Water leak detector mains-powered
Description
The water detector SHT 241 is a quick-less socket device for monitoring basements, laundry rooms, Heating rooms, tanks, and much more. The float switch is attached with a mounting bracket (optional) and the device is plugged into the socket. A signal transmitter is installed for a loud alarm signal.
The robust float switch is particularly suitable for dirty water or other liquids (e.g. fuel oil, diesel, vegetable oil, lubricating oil, etc.).
The switching contact of the float closes from approx. 4 cm level high and activates the input of the water sensor. By turning the float body, one gets the reverse switching function.
Extension sensor cable:
If required, you can change the sensor cable up to 50 m with a cable (2 x 0.5 mm²) extend. You must re-connect the existing sensor cable cut and terminals.
This text is machine translated.
The robust float switch is particularly suitable for dirty water or other liquids (e.g. fuel oil, diesel, vegetable oil, lubricating oil, etc.).
The switching contact of the float closes from approx. 4 cm level high and activates the input of the water sensor. By turning the float body, one gets the reverse switching function.
Extension sensor cable:
If required, you can change the sensor cable up to 50 m with a cable (2 x 0.5 mm²) extend. You must re-connect the existing sensor cable cut and terminals.
This text is machine translated.
Features
- Float switch with 2.5 m cable (extendable).
Scope of delivery
- Water detector SHT 241
- Fixings
- User manual.
