Schabus 300761 SHT 3010 Reed switch
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 21.84
3
4% = € 0.86
€ 20.98
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 21.84 / piece)
€ 21.84
plus VAT.
Highlights & Details

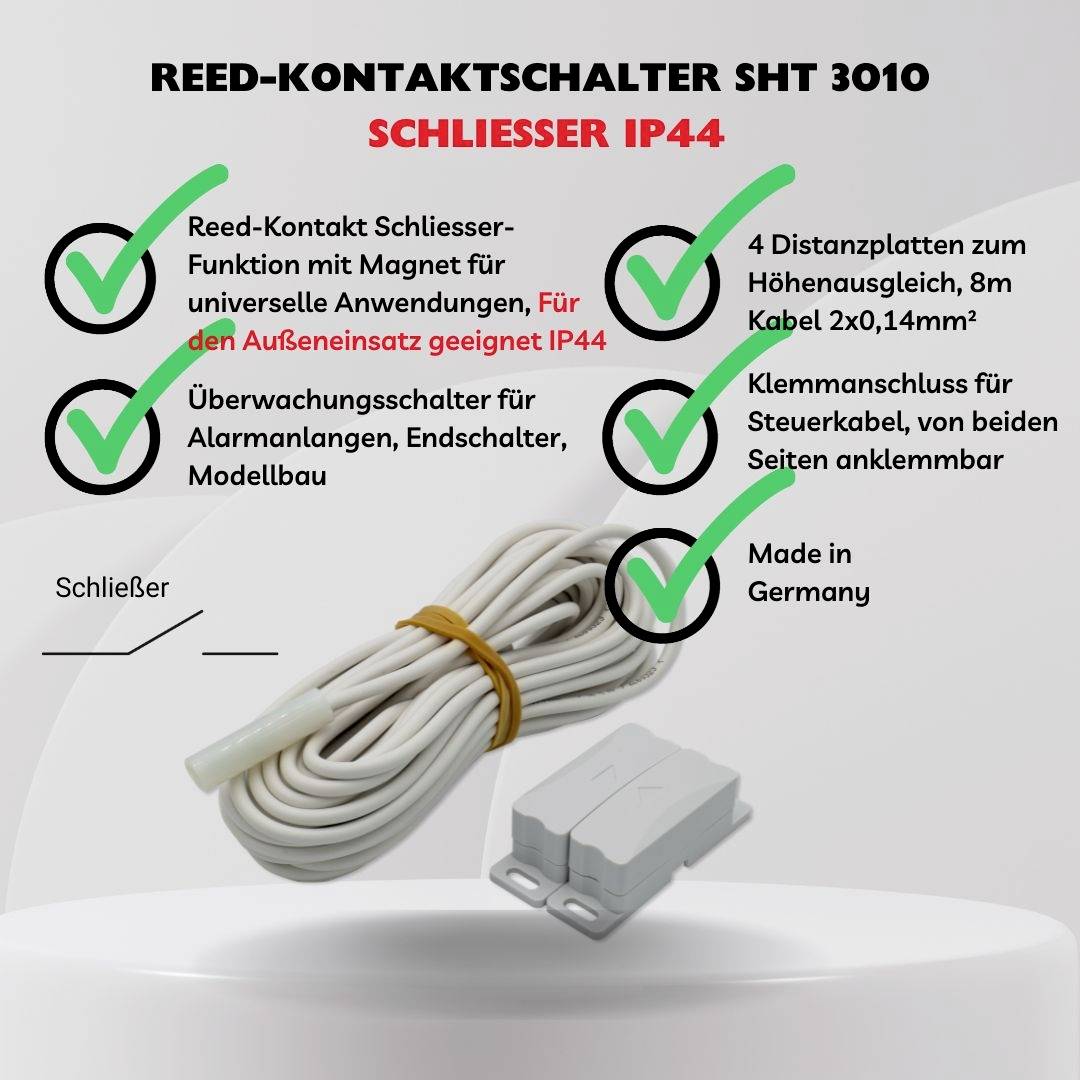

SHT 3010 Reed-contact switch, closer
- Closing contact
- For outdoor use
- Cable length 8 m
Technical specifications
- Reed contact NO
- SWITCHING VOLTAGE 25 V AC / 60 V DC
- Switching current: 0.5 A
- Operating range: -15 °C to +40 °C.
- Protection class: IP44
- Cable: 2polig
- Dim. Magnetic switch, magnet (H x W x D) 18 x 15 x 55 mm
- Dim. Spacer plate (H x W x D) 5 x 15 x 55 mm
- Product type
Reed switch
- Cable length
8.00 m
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2111187 Schabus 300761 SHT 3010 Reed switch
Conformity certificate
Conformity certificate 2111187 Schabus 300761 SHT 3010 Reed switch
Description

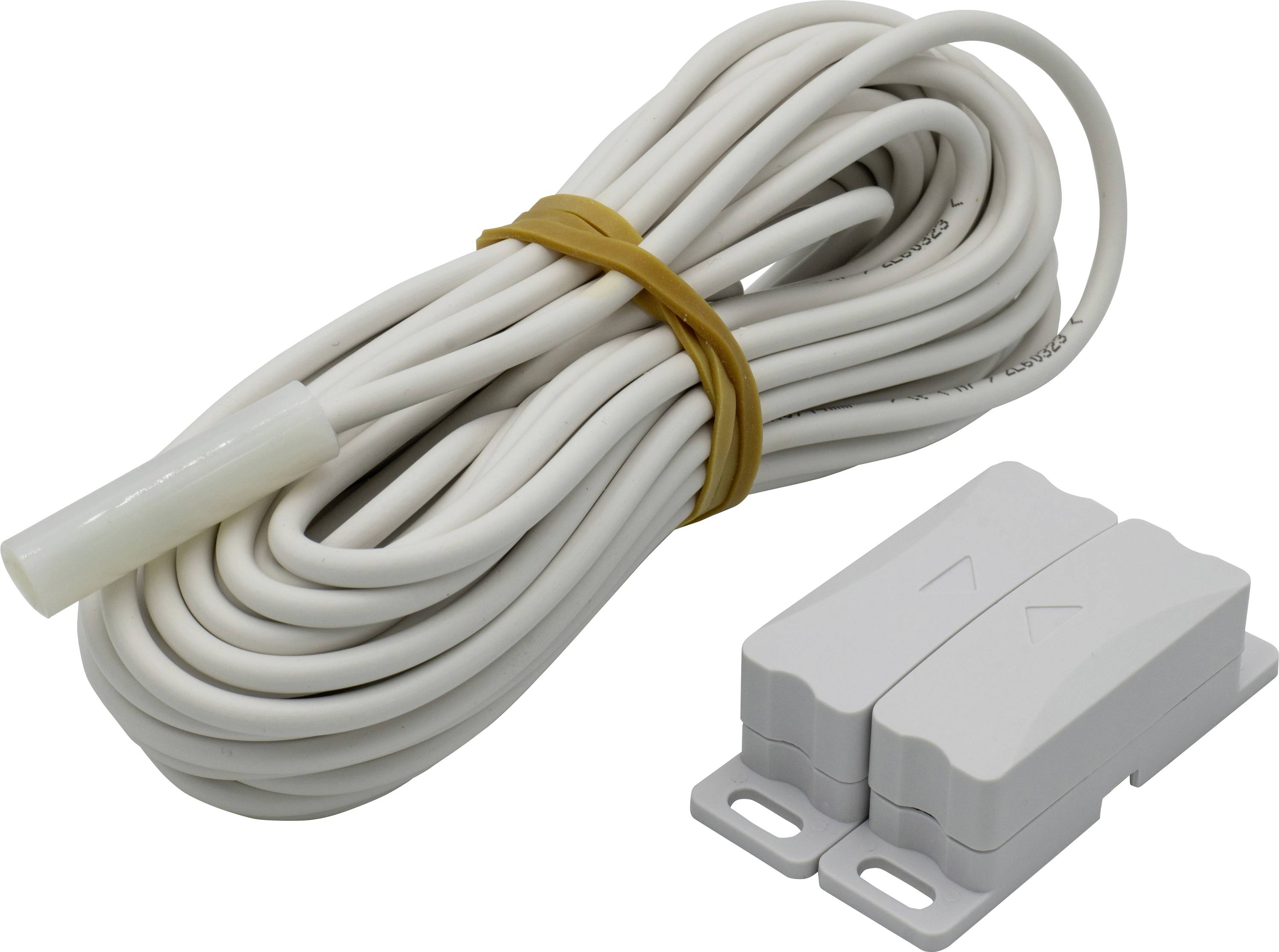

This normally open reed switch with magnet is especially suitable for outdoor use. The kit is attached to a door or window by simple mounting. The supplied spacer plates can be used for height compensation.
Possible applications: Door/window switch, monitoring switch, limit switch, model construction and much more.
This text is machine translated.
Possible applications: Door/window switch, monitoring switch, limit switch, model construction and much more.
This text is machine translated.
Scope of delivery
- Magnetic switch
- Magnetic contact
- 4 x spacer plate
- 6 x mounting screws
- User manual.
