Sygonix SY-7107672 Magnetic contact
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 11.76
3
5% = € 0.59
€ 11.17
5
7% = € 0.82
€ 10.94
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 11.76 / piece)
€ 11.76
plus VAT.
14-day return policy included
Highlights & Details

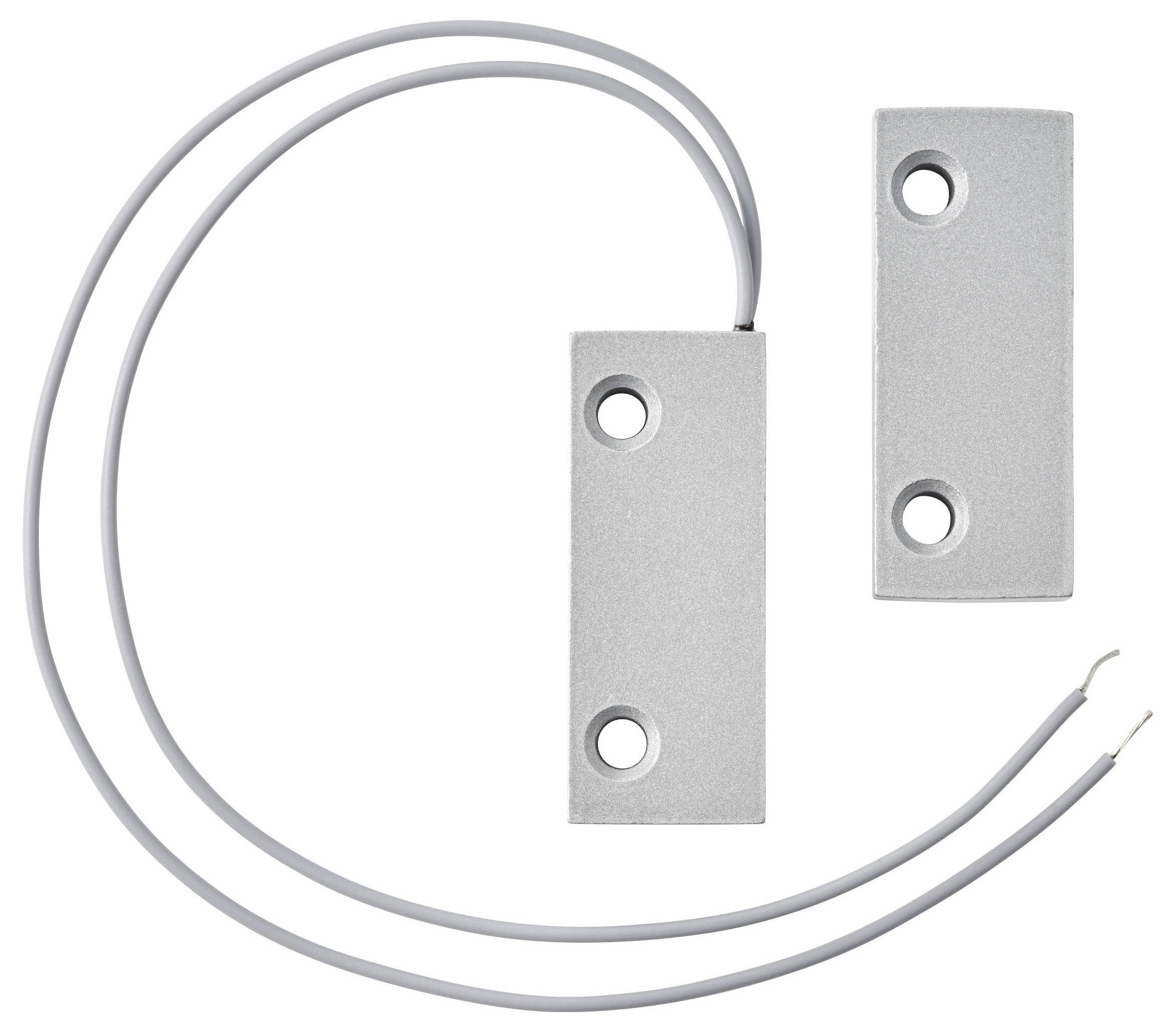

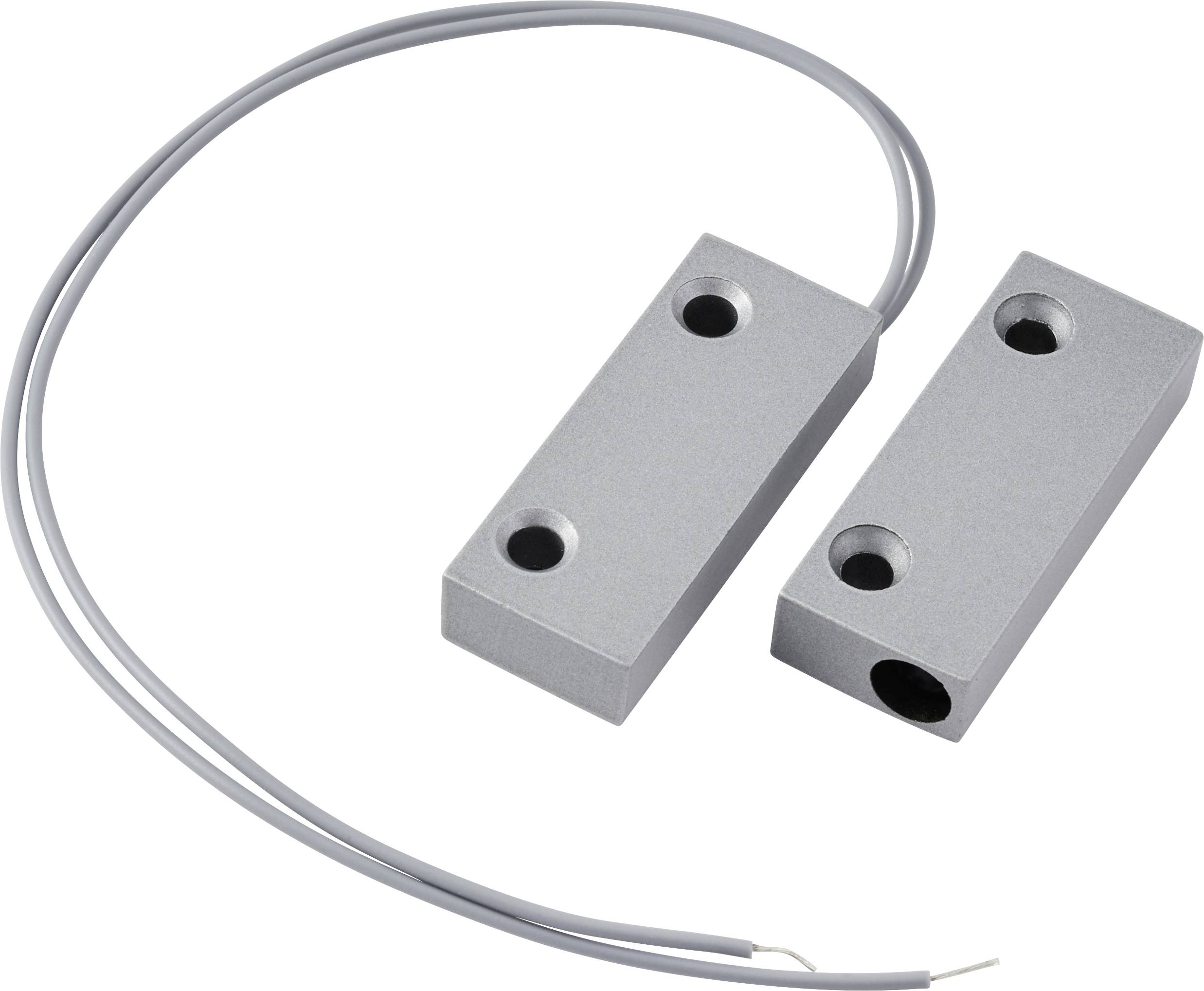

Magnetic contact, NC metal heavy duty, grey
- Zinc alloy housing for better rust resistance, durability and strength.
- Contact type: NC (Normal Closed)
- Supports surface and flush mounting
- Ideal for window and door security
Technical specifications
- Operating Voltage: 0 - 24 V/DC
- Max. Rated power: 10 W
- Contact type: NC (Normally Closed)
- Cable length: approx 25 cm
- Material: Zinc-alloyed
- Separation distance: 25 - 35 mm
- Product type
Magnetic contact
- Operating voltage
24 V DC
- Cable length
25 cm
- Width
50 mm
- Height
9.6 mm
- Depth
20 mm
- Weight
50 g
- Dim

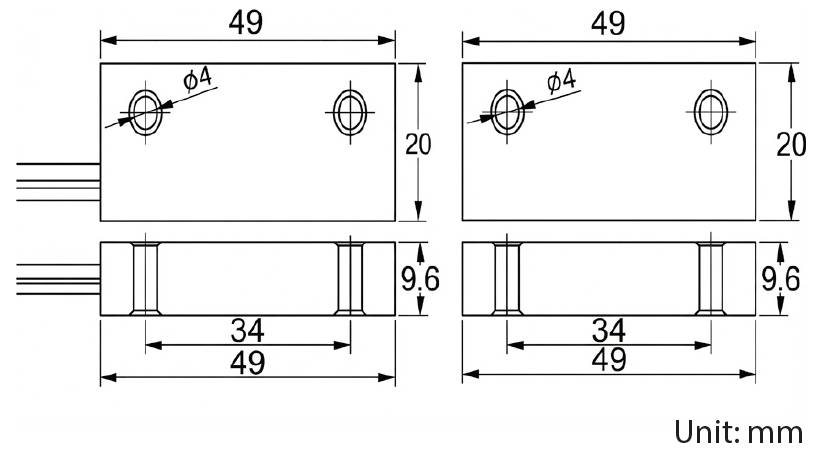

(W x H x D) 50 x 9.6 x 20 mm
- Content
1 Set
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3553836 Sygonix SY-7107672 Magnetic contact
User & Safety Instructions
User & Safety Instructions 3553836 Sygonix SY-7107672 Magnetic contact
Warranty Terms
Warranty Terms 3553836 Sygonix SY-7107672 Magnetic contact
Description
Features
- Suitable for metal doors and windows include rolling doors
- Can be integrated with access control or anti-theft alarm system
- Features a recessed door sensor, hidden window contact and reed switch
Scope of delivery

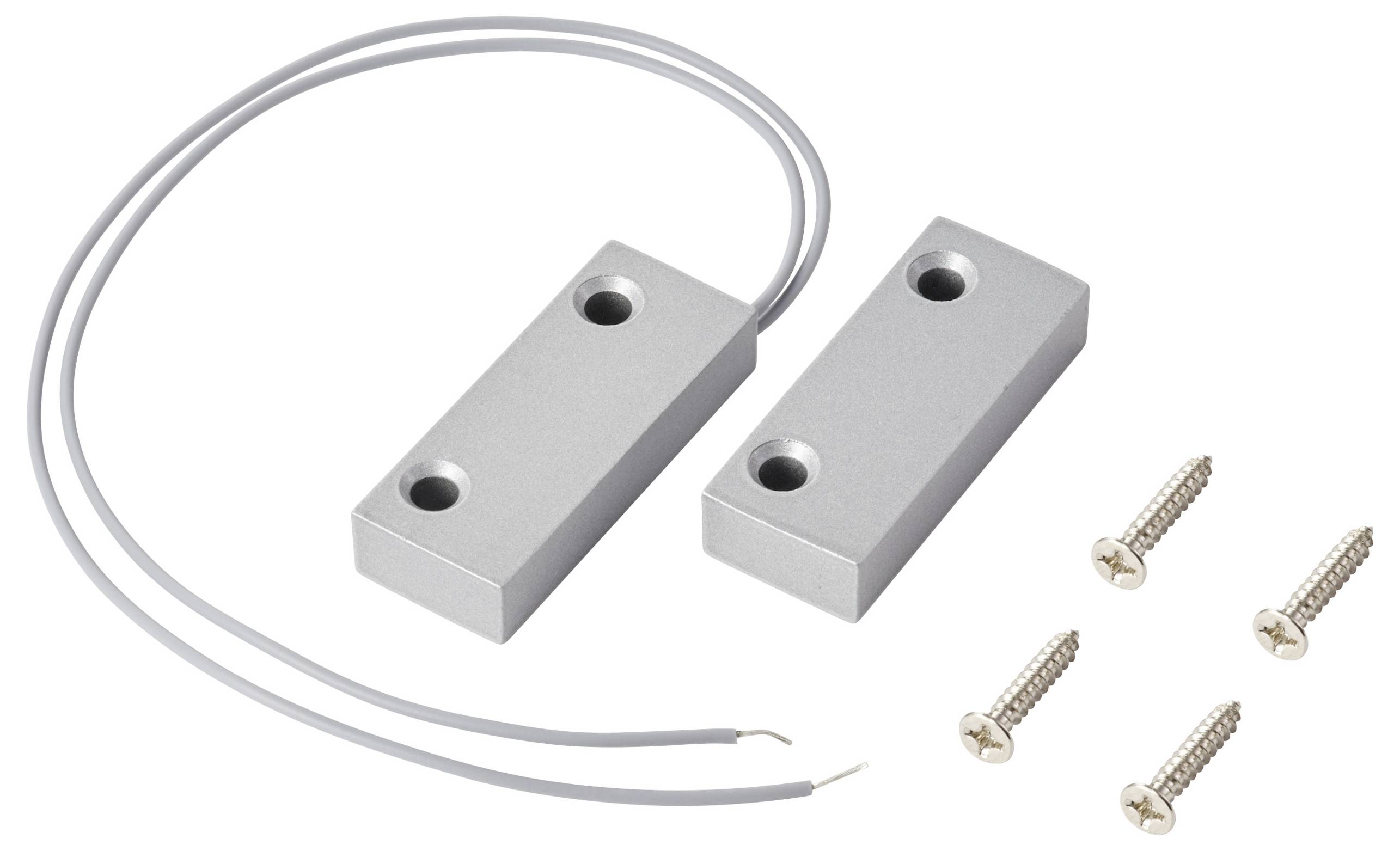

- 1x Door/window sensor
- 4x Screws
- User manual
