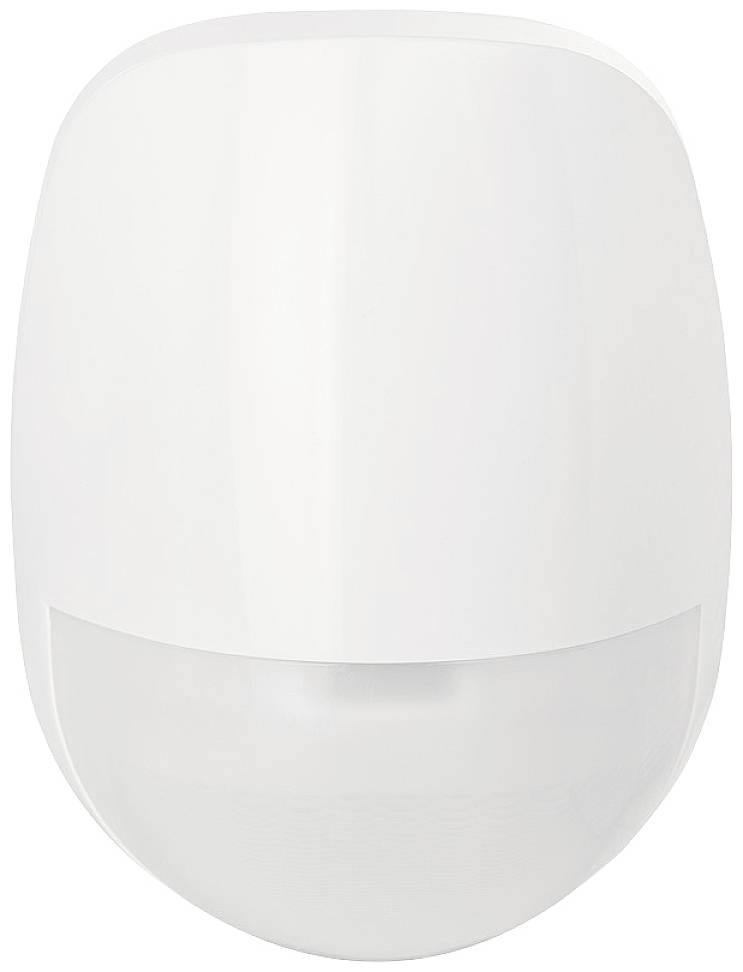

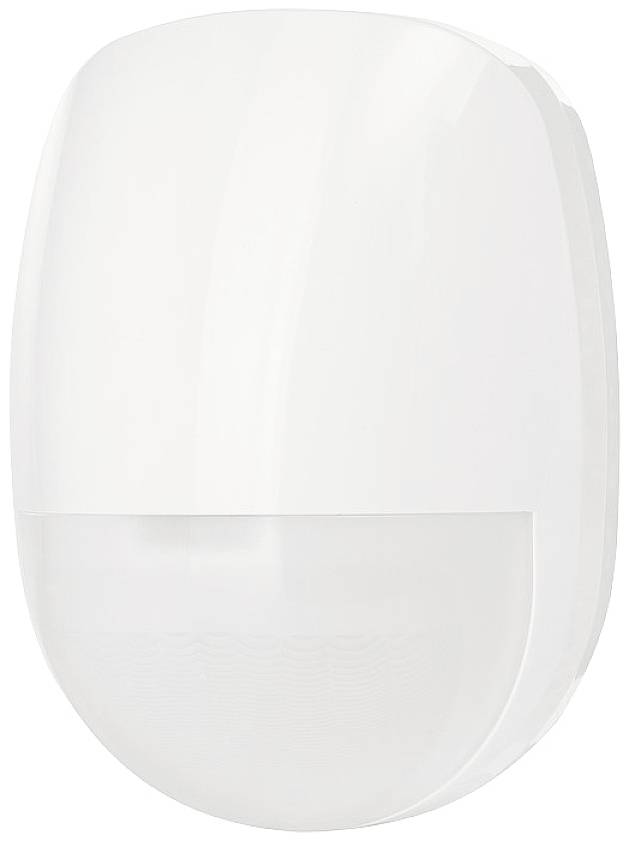

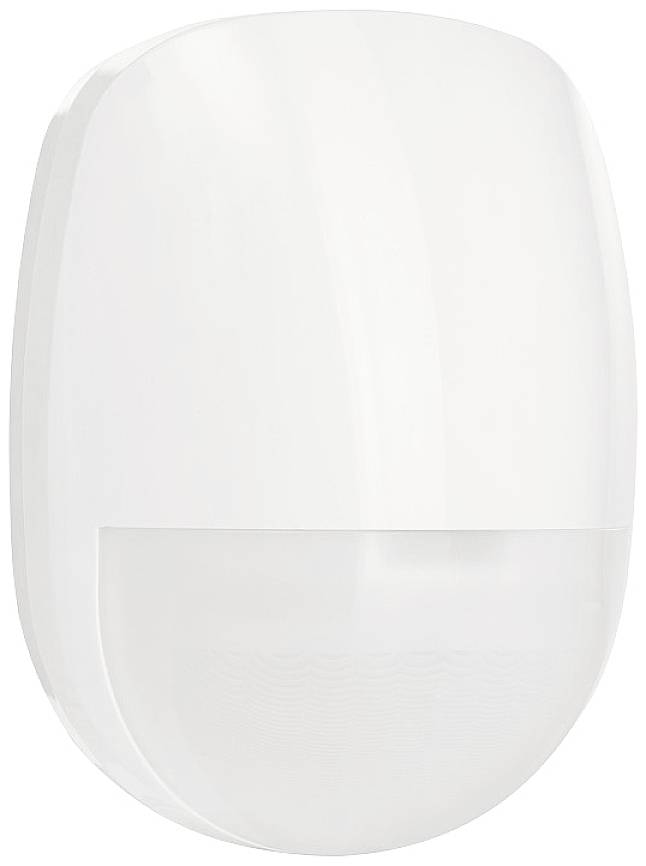

ABUS AZBW10000 AZBW10000 Motion detector

SAFE LIFE: WATCH YOUR INTERIORSPIR detector: Inconspicuous, effective, energy-saving: The wire motion detector is equipped with a passive infrared sensor (PIR). It detects heat movements caused by humans in its detection field and reports every event to the alarm control center. Optional PET immunity: For the beloved pet. Optional "Animal immune" function, individually adjustable in 3 stages: This distinguishes between humans and animals: Moving persons are reliably detected, pets up to 15 kg are ignored. In rare cases, however, a lighter animal may also trigger the detector, e.g. when it moves close to the detector, jumps or flies. The ability to optionally configure animal immunity on the detector reduces the complexity of planning, installation and storage.Technology and installation: Optimum mounting location is in a corner, about 1.80 to 2.40 meters above the ground. The expected direction of an intruder's movement should be across the detector. The viewing angle is about 90 degrees, the detection range (depending on the mounting height) up to 18 x 18 meters. The new spherical lens design makes the detector even more reliable and offers a much more even cover. Thanks to the integrated low-level protection, the detector does not have a blind spot and also detects people directly below its mounting position. Use the jumper to set the sensitivity of the detector. With its integrated, common resistance combinations, which are configured by means of jumpers, the wiring to the alarm control center is flexible and quick.

This text is machine translated.
