Sygonix SY-7107670 Magnetic contact
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.08
3
5% = € 0.53
€ 9.55
5
7% = € 0.74
€ 9.34
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 10.08 / piece)
€ 10.08
plus VAT.
14-day return policy included
Highlights & Details

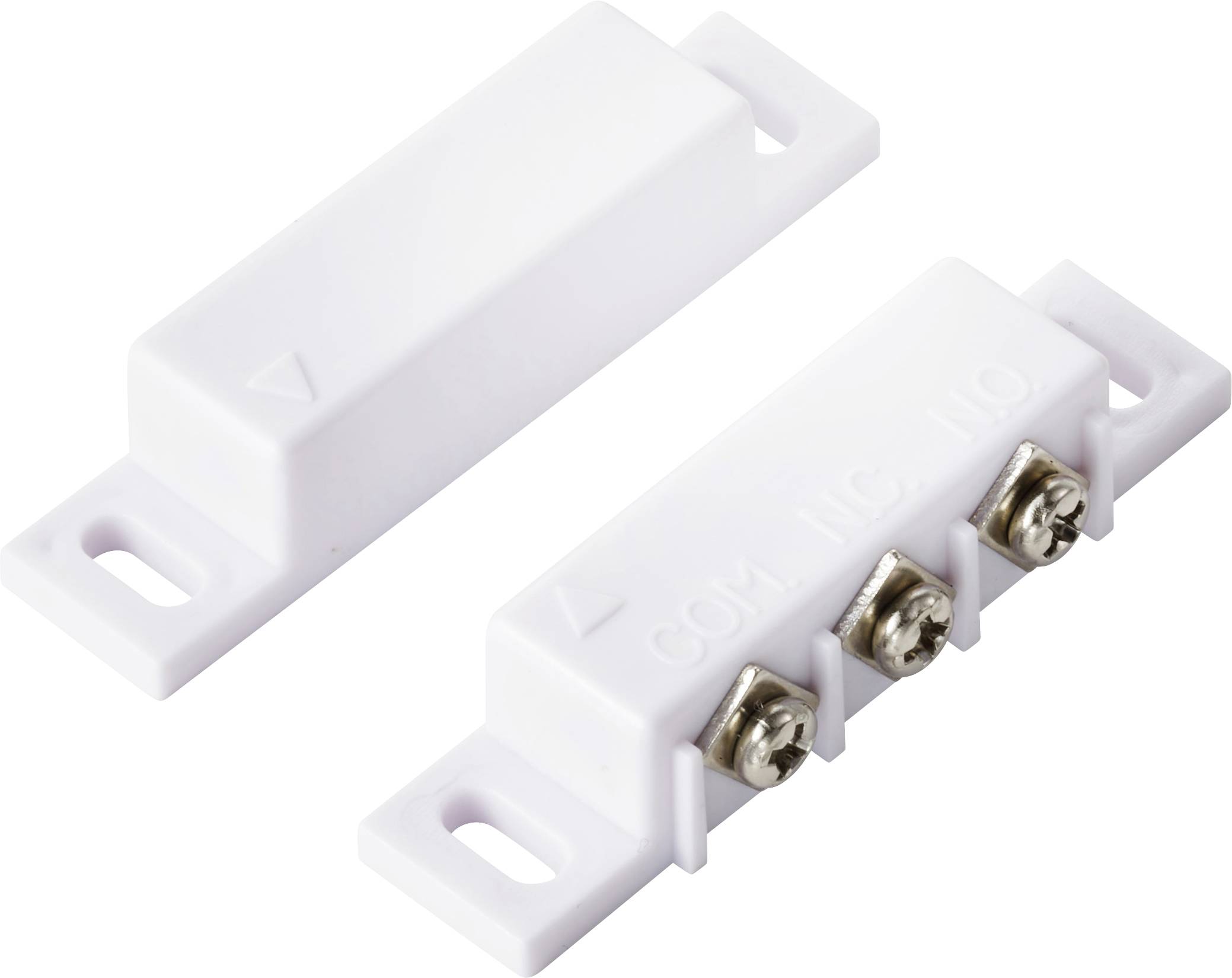

Magnetic contact, NC/NO ABS, white
- Easy installation
- Selectable contact type: NC/NO (Normal closed) or (Normal Opened)
- Supports surface and flush mounting
- Ideal for door and window security.
Technical specifications
- Operating Voltage: 0 - 24 V/DC
- Max. Rated power: 10 W

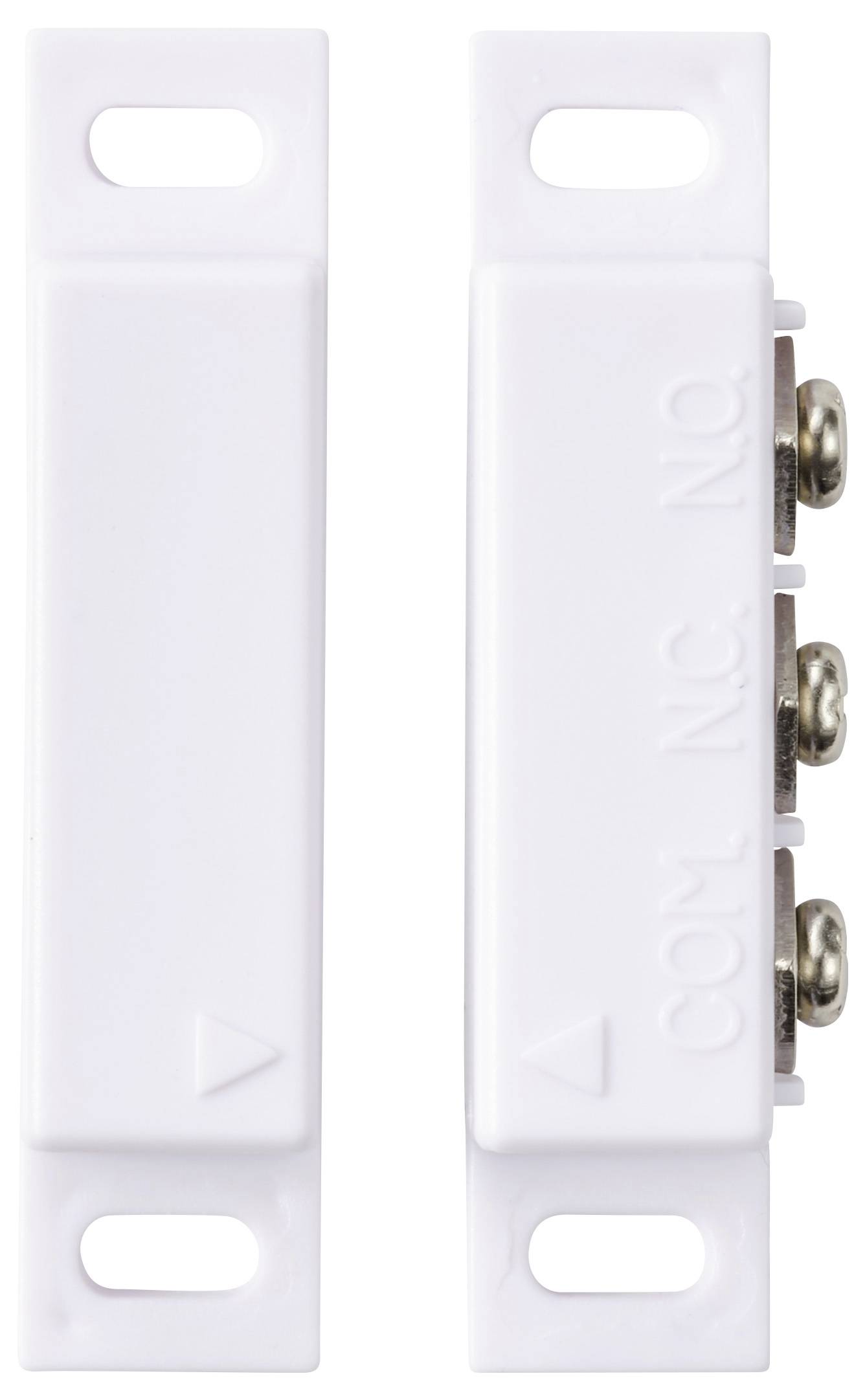

- Contact type: NC/NO (Normally Closed or Normally Opened)
- Material: ABS
- Separation distance: 15 - 25 mm
- Product type
Magnetic contact
- Operating voltage
24 V DC
- Factory colour
White

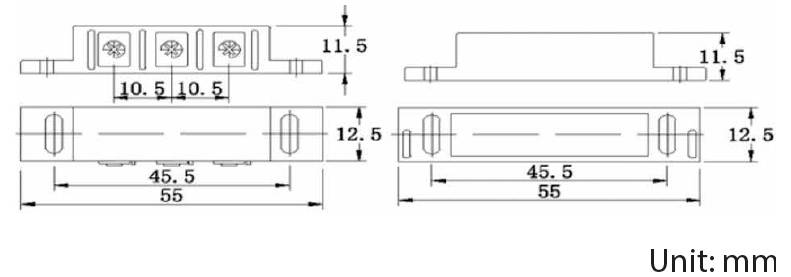

- Width
55 mm
- Height
11.5 mm
- Depth
15 mm
- Weight
20 g
- Dim
(W x H x D) 55 x 11.5 x 15 mm
- Content
1 Set
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3553835 Sygonix SY-7107670 Magnetic contact
User & Safety Instructions
User & Safety Instructions 3553835 Sygonix SY-7107670 Magnetic contact
Warranty Terms
Warranty Terms 3553835 Sygonix SY-7107670 Magnetic contact
Description
Features
- Suitable for installation in windows, doors, and cabinets.
- Controls lighting in cabinets, kitchens, and wardrobes.
- Features a recessed door sensor, hidden window contact, and reed switch.
- Ideal for access control and lighting applications.

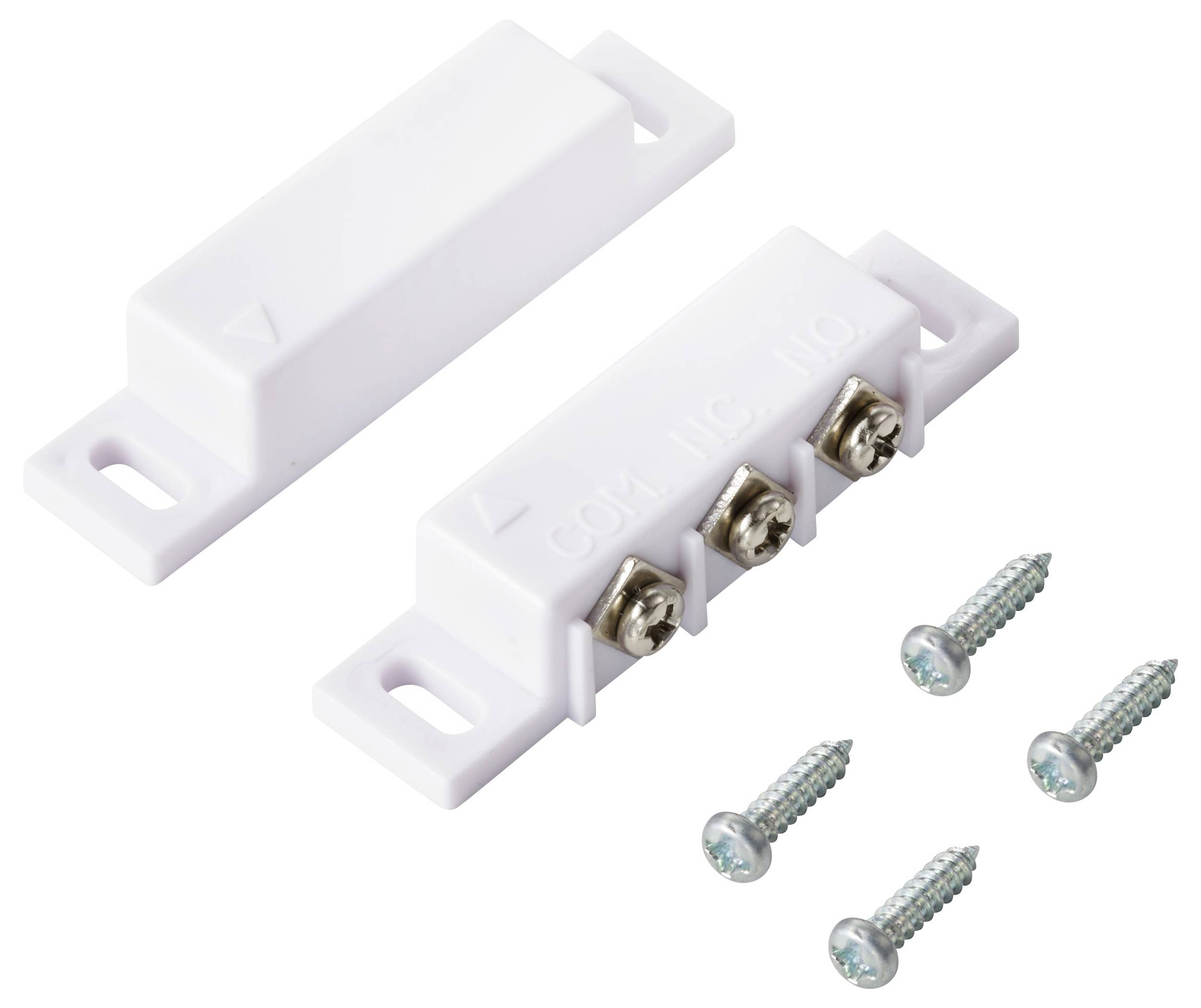

Scope of delivery
- 1x Door/ window sensor
- 4x Screws
- 1x User manual
