Schabus 300770 SHT 3002 Magnetic contact
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 15.12
3
4% = € 0.67
€ 14.45
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 15.12 / piece)
€ 15.12
plus VAT.
Highlights & Details
SHT 3002 Reed contact switch, NC contact
- NC contact
- For indoors
Technical specifications
- Reed contact: NC contact
- SWITCHING VOLTAGE 25 V AC / 60 V DC
- Switching current: 0.5 A
- Operating range: -15 °C to +40 °C.
- Protection class: IP20

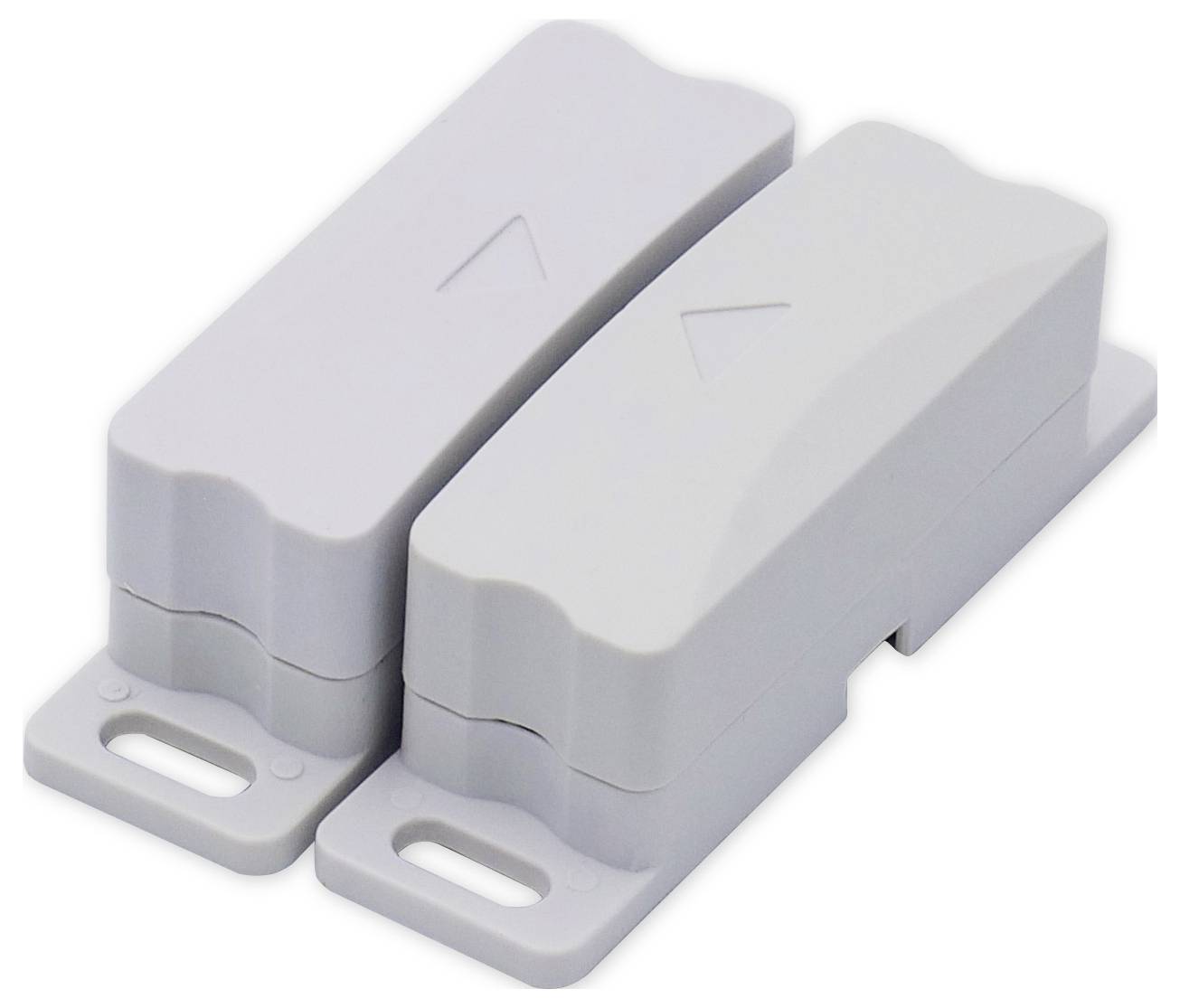

- Dim. Magnetic switch, magnet (H x W x D) 18 x 15 x 55 mm
- Dim. Spacer plate (H x W x D) 5 x 15 x 55 mm
- Product type
Magnetic contact
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2111186 Schabus 300770 SHT 3002 Magnetic contact
Conformity certificate
Conformity certificate 2111186 Schabus 300770 SHT 3002 Magnetic contact
Description

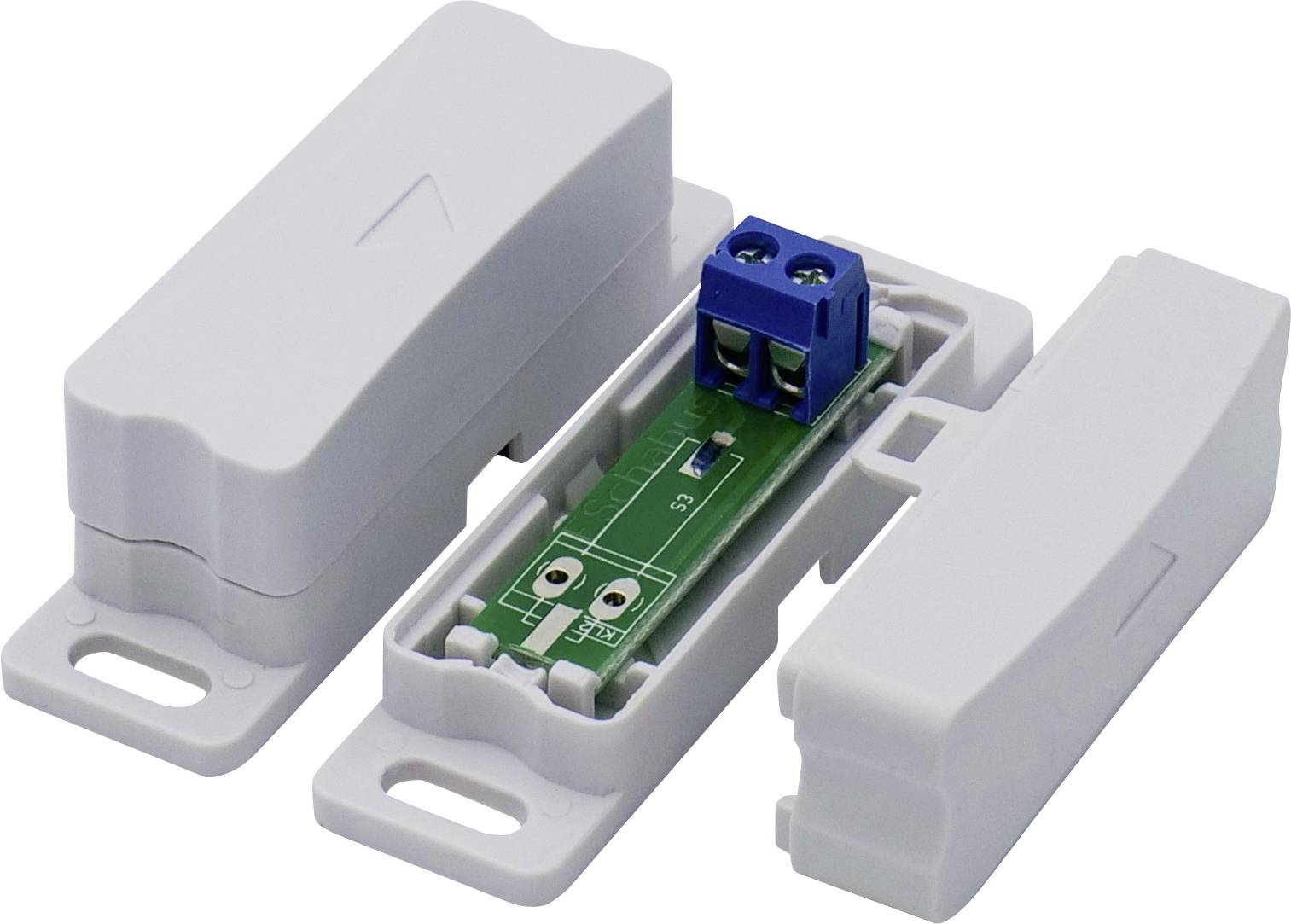

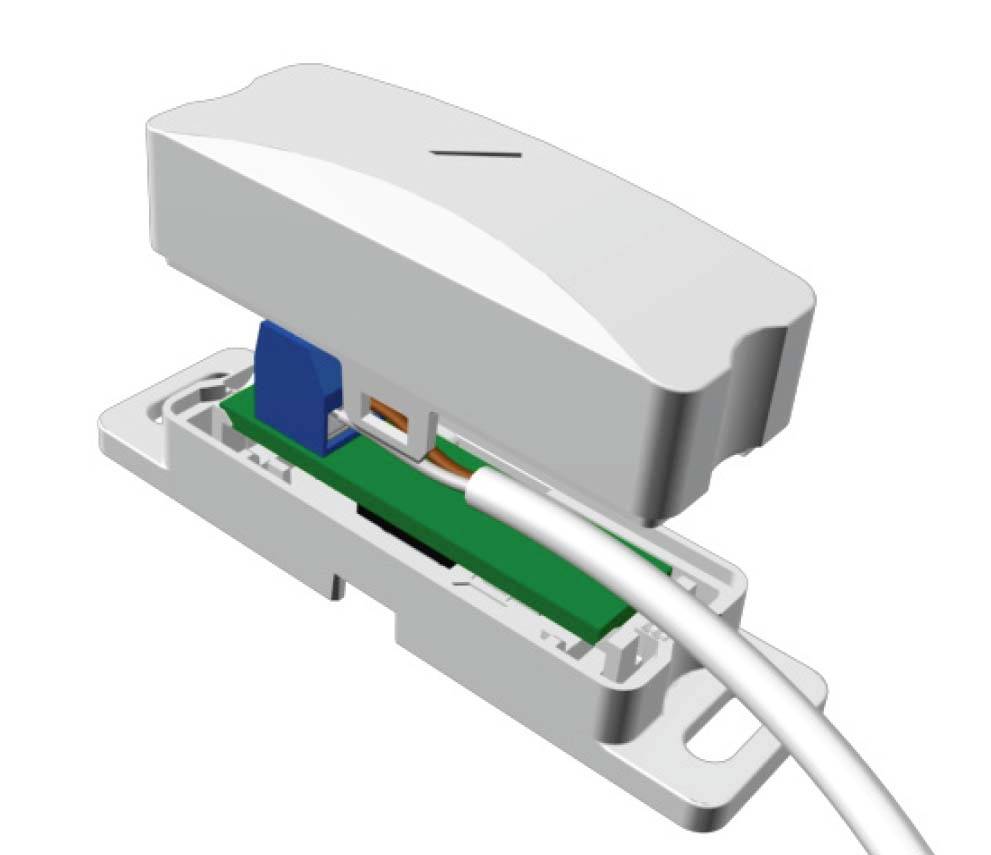

This NC reed switch with magnet can be used universally for different applications. The kit is attached to a door or window by simple mounting. The supplied spacer plates can be used for height compensation. A standard cable (LIYY 2x0,14mm²) is connected to the terminal and can be inserted from both sides. This enables a series connection of several contact switches.
Possible applications: Door/window switch, monitoring switch, limit switch, model construction and much more.
This text is machine translated.
Possible applications: Door/window switch, monitoring switch, limit switch, model construction and much more.
This text is machine translated.
Features

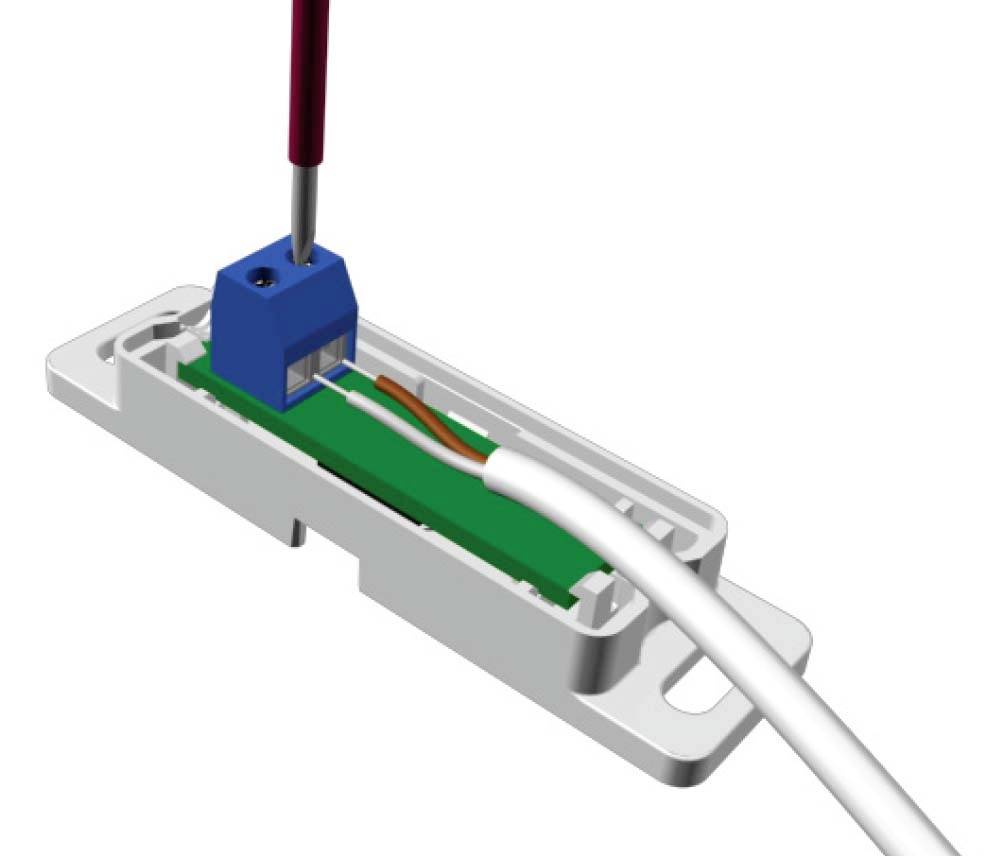

- Terminal connection for control cable
- Control cable can be inserted from both sides.
Scope of delivery
- Magnetic switch
- Magnet
- 4 x spacer plate
- 6 x mounting screws
- User manual.
