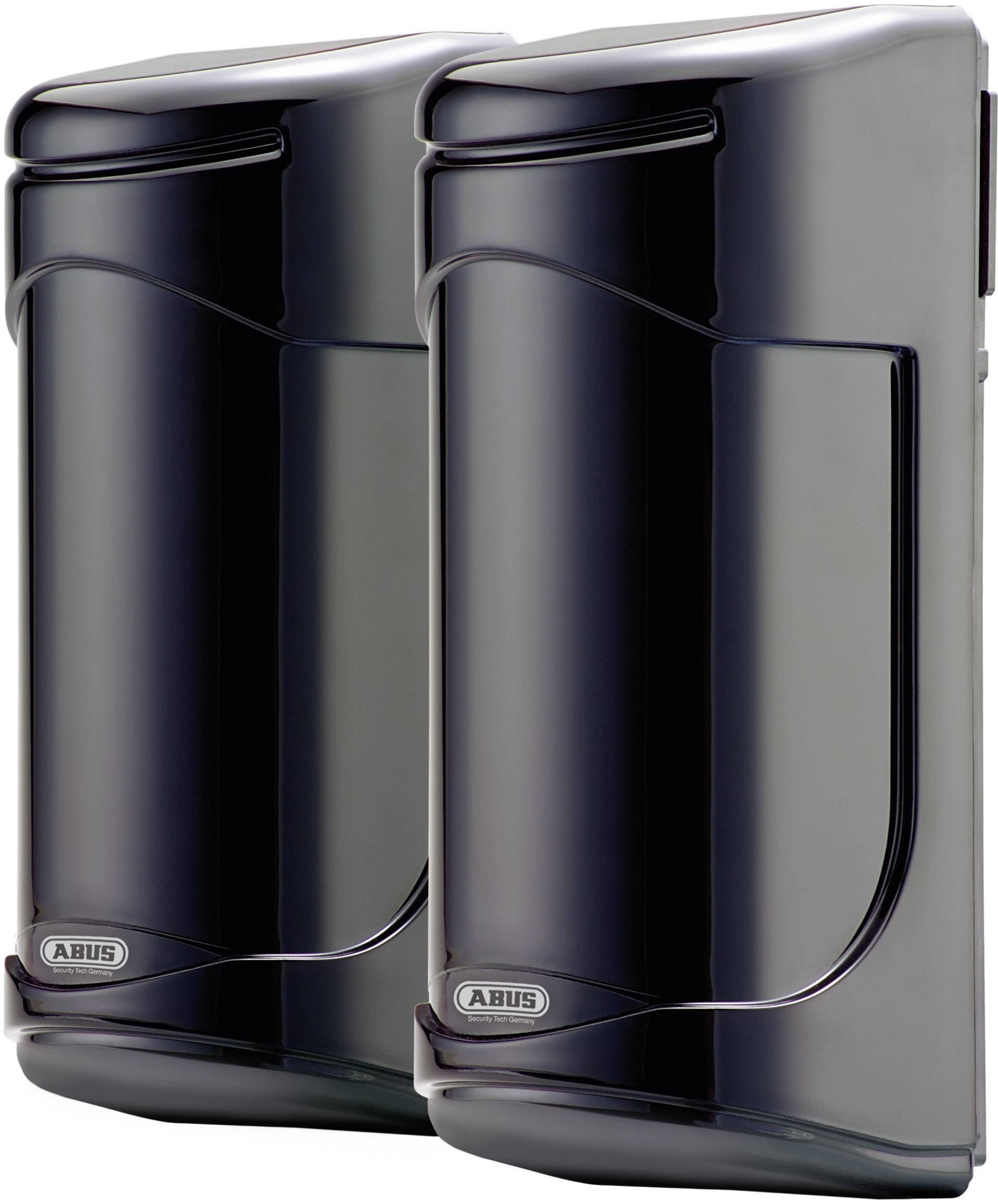

Two black, modern motion sensors by Abus, mounted side by side. They have a glossy, sleek look.

Two black outdoor enclosures, standing side by side. They are smooth and appear to be made of glossy material.

1/3

Fast track dispatch on Mon, 14 Sep

10 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 96.63 / piece)

€ 96.63

plus VAT.

Only 10 Piece(s) available

Report legal concerns

IR-LIGHT BARRIER PROFILINE 30 M

Highlights & Details

Water-proof (IP55)
Sabotage monitor
30 m Range

Technical specifications

Laser wavelength 650 nm
Operating voltage: 10 - 30 V
Operating temperature range: -25 to +55 °C
Maximum range in free field: 30 m
Sabotage protection: Yes
Power consumption: 65 mA

Product type: IR light barrier

Features: Tamperproof

Switched outputs: Alarm output: relay (NO / NC): 1 A / 120 V / AC · Sabotage Output: NC contact: 1 A / 120 V / AC

: IP55

Width: 74 mm

Height: 173 mm

Depth: 72 mm

Dim: (L x W x H) 150 cm x 74 mm x 173 mm

Content: 1 Set

Length: 150 cm

Power consumption (idle/triggered): 65 mA

Operating temperature: -25 - +55 °C

Operating voltage: 10 - 30 V DC

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 751418 ABUS LS2030 PROFILINE IR light barrier

Description

This innovative Profiline infrared light beam can detect at a distance of 60 meters indoors and 30 meters outdoors. Dual-rays and sabotage monitoring of the transmitter and receiver to ensure the safe functionality. Thanks to the horizontal and vertical adjustability of the transmitter and receiver that the setting by laser and LED display is the quick and easy installation.
