Schabus 300790 SHT 5000 24V Water leak detector no sensor battery-powered
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 105.03 / piece)
€ 105.03
plus VAT.
Only 1 Piece(s) available
Highlights & Details

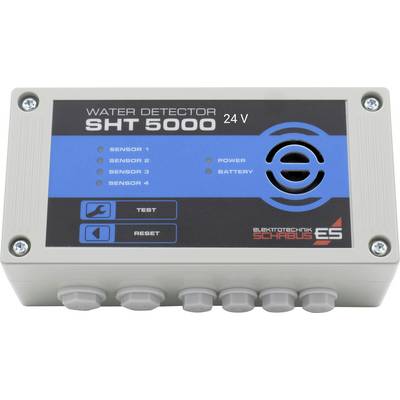

Water detector SHT 5000 24 V
- 4 inputs for water sensors or float switch (several per input can be connected in parallel)
- Optical alarm message of the individual reporting lines via LEDs
- Audible alarm is provided by piezo sensor (each input can be switched off individually)
- Battery mode when power fails
Technical specifications
- Product type
Water leak detector
- Detector features
no sensor
- Mounting type
Wall
- Operating voltage
24 V
- Power supply (LOV)
battery-powered
- Sound pressure
90 dB
- Width
160 mm
- Height
80 mm
- Depth
55 mm
- Dim
(W x H x D) 160 x 80 x 55 mm
- Function
Water leak detector
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1405684 Schabus 300790 SHT 5000 24V Water leak detector no sensor battery-powered
User & Safety Instructions
User & Safety Instructions 1405684 Schabus 300790 SHT 5000 24V Water leak detector no sensor battery-powered
Description
The water detector SHT 5000 - 24 V is a powerful multi-function device for monitoring cellars, ships, trucks, mobile equipment etc. The device, per input a water sensor or a float level switch or several connected in parallel. A signal transmitter is installed for a loud alarm for each input can be switched on or off. Four LEDs indicate the status of the water alarm sensors. In addition, there are two adjustment options for each input. First, the triggered alarm is saved and can be acknowledged by pressing a button. Secondly, the alarm is automatically deleted with falling below the water level.
Battery operation in case of power failure:
With the option "Battery Operation" is a 9 V battery pack fitted water detector. In the brief power failure, however, an audible alarm is triggered and the relay such as a emergency control circuit.
Use in non-conductive liquids:
You can use the water detector SHT 5000 also with other liquids, the non-conductive or dangerous properties. Combine the SHT 5000 simply with float switches.
This text is machine translated.
Battery operation in case of power failure:
With the option "Battery Operation" is a 9 V battery pack fitted water detector. In the brief power failure, however, an audible alarm is triggered and the relay such as a emergency control circuit.
Use in non-conductive liquids:
You can use the water detector SHT 5000 also with other liquids, the non-conductive or dangerous properties. Combine the SHT 5000 simply with float switches.
This text is machine translated.
Scope of delivery
- Water detector SHT 5000.
- Fixings
