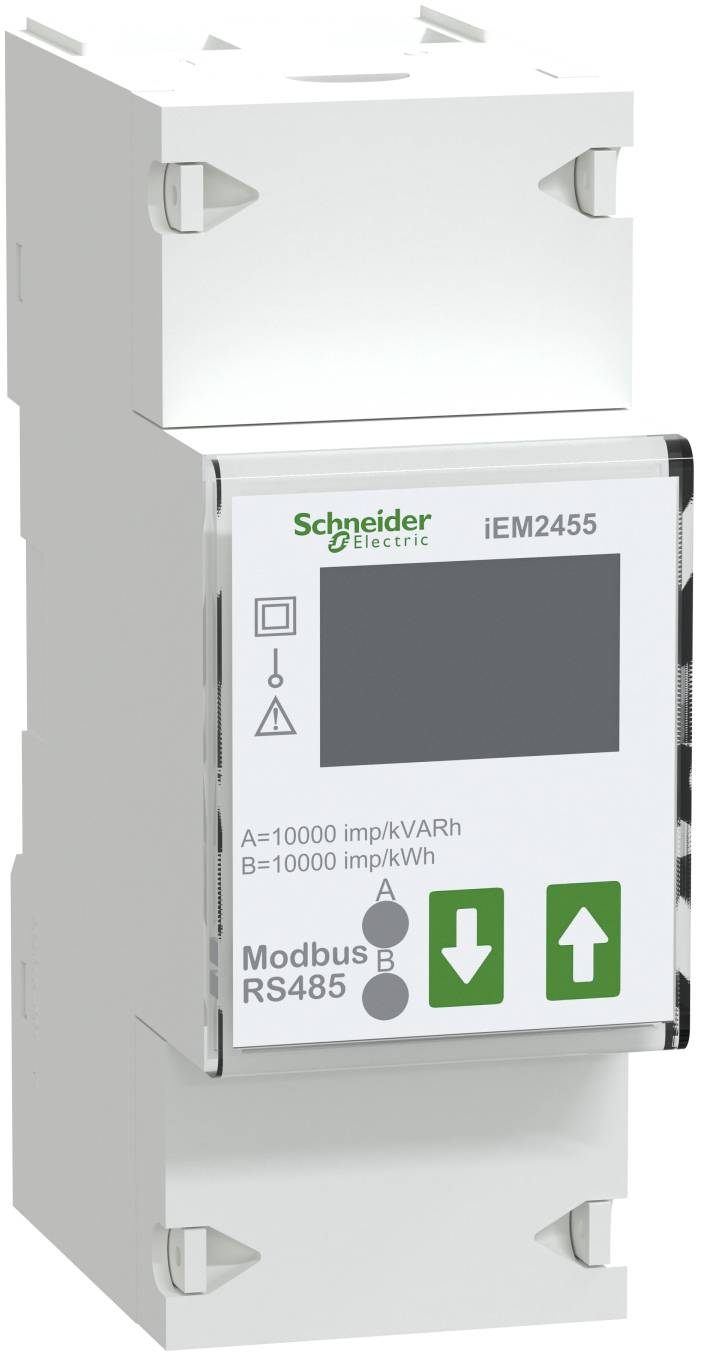

Schneider Electric A9MEM2455 A9MEM2455 Energy logger Digital MID-approved: Yes Piece 1 pc(s)
EAN:
Part number:
Item no:
Product type
Energy logger
Display
Digital

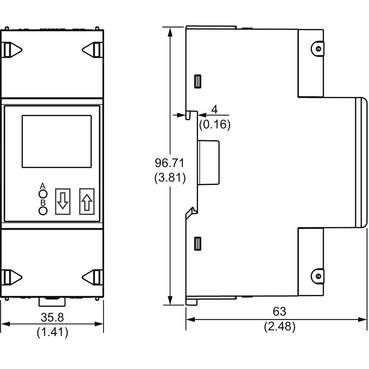

Dim
(L x W x H) 63 x 35.8 x 96.71 mm
Weight
220 g
Operating voltage
230 V AC
Datasheet (PDF)
Number
Total (€ 138.65 / piece)
€ 138.65
plus VAT.
14-day return policy included
Technical specifications
- Product type
Energy logger
- Display
Digital
- Dim
(L x W x H) 63 x 35.8 x 96.71 mm
- Weight
220 g
- Operating voltage
230 V AC
- MID-approved
Yes
- Reading type
Active power
- Nominal voltage range
96 up to 276 V AC
- Mains voltage (max.)
276 V AC
- Mains voltage (min.)
96 V AC
- Width
35.8 mm
- Height
96.71 mm
- Length
63 mm
- Current (max.)
100 A
- Current range
100 A (max)
- Type
A9MEM2455
- Packaging type
Piece
- Effective current range
bis zu 100 A
DRA (DIN-rail adapter)
35.8 mm
Direct measurement
96.71 mm
63 mm
Purchase
Digital
45-65 Hz
100 A
2
7
Electronic
IP20
Modbus
Effecive and reactive power
Two-tariff
External
FALSE
TRUE
Measuring Instruments Directive
Electrical
S0
0.01-10000 Imp/kWh (kvarh)
B
Single phase
FALSE
FALSE
FALSE
195-253 V
100 A
4X
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3342945 Schneider Electric A9MEM2455 A9MEM2455 Energy logger Digital MID-approved: Yes Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3342945 Schneider Electric A9MEM2455 A9MEM2455 Energy logger Digital MID-approved: Yes Piece 1 pc(s)
Information
Repairability/durability data sheet 3342945 Schneider Electric A9MEM2455 A9MEM2455 Energy logger Digital MID-approved: Yes Piece 1 pc(s)
Conformity certificate
Conformity certificate 3342945 Schneider Electric A9MEM2455 A9MEM2455 Energy logger Digital MID-approved: Yes Piece 1 pc(s)
Conformity certificate 3342945 Schneider Electric A9MEM2455 A9MEM2455 Energy logger Digital MID-approved: Yes Piece 1 pc(s)
Conformity certificate 3342945 Schneider Electric A9MEM2455 A9MEM2455 Energy logger Digital MID-approved: Yes Piece 1 pc(s)
Conformity certificate 3342945 Schneider Electric A9MEM2455 A9MEM2455 Energy logger Digital MID-approved: Yes Piece 1 pc(s)
Conformity certificate 3342945 Schneider Electric A9MEM2455 A9MEM2455 Energy logger Digital MID-approved: Yes Piece 1 pc(s)
Conformity certificate 3342945 Schneider Electric A9MEM2455 A9MEM2455 Energy logger Digital MID-approved: Yes Piece 1 pc(s)
Description
The energy meter iEM2455 is a single-phase energy meter mounted on DIN rail for consumption measurement. With this product family the power consumption can be monitored for each area, each unit or workshop and the electrical installation can be managed for the building management. It has a 7-digit LCD-display and a red LED-display for showing the measured electrical parameters. With the accuracy of class 1 for active energy according to standard IEC 62053-21, the meter measures active and reactive power, active and reactive energy, voltage and current. Suitable for a 230VAC network with a supply voltage range from 96 to 276 VAC at 50Hz or 60Hz. Direct current measurement up to 100 A with 32 samples per cycle only in one configuration with one phase and one neutral conductor. The communication protocol is Modbus RTU. You can switch between 2 tariffs via the communication bus. Product dimensions are as follows: Width 35.8 mm, depth 63 mm, height 96.71 mm and product weight 220 g. This version complies with EN 50470-3 Class B standard, Measuring instrument guideline (MID). Compatible with power management software to take advantage of digital installation.
