Name: Schneider Electric MCSESR043F23F0 MCSESR043F23F0 Managed network switch
Brand: Schneider Electric
SKU: 3755367
Availability: BackOrder

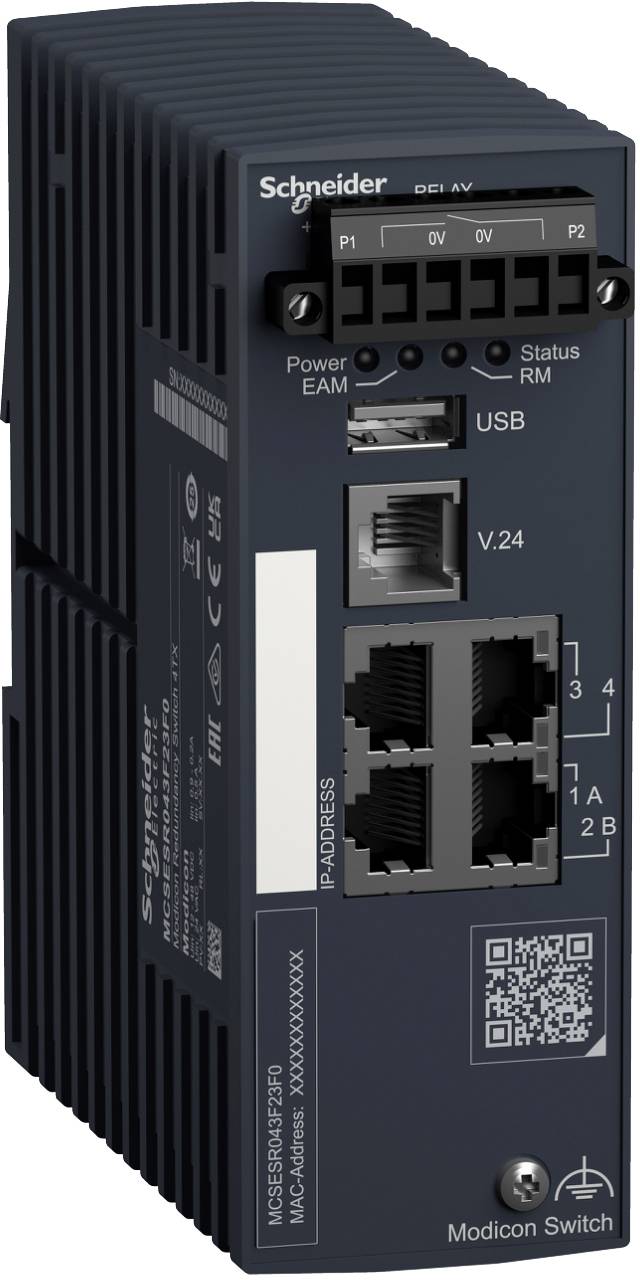

Schneider Modicon Switch industrial Ethernet device with four RJ45 ports, USB and serial connectors, status LEDs, and QR code on the front panel.

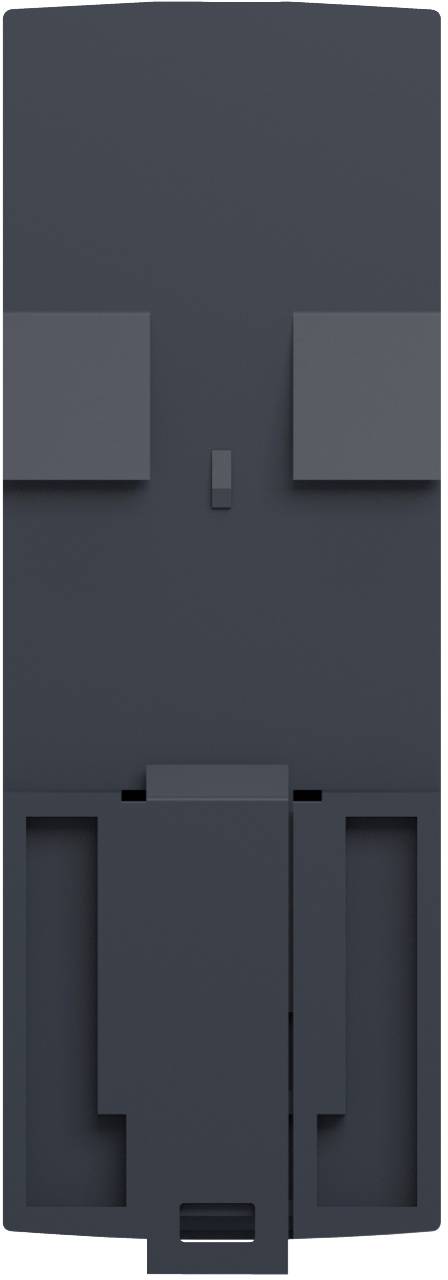

Abstract dark gray geometric panel with two side blocks and a central vertical section, resembling a minimalist face-like design or device front.

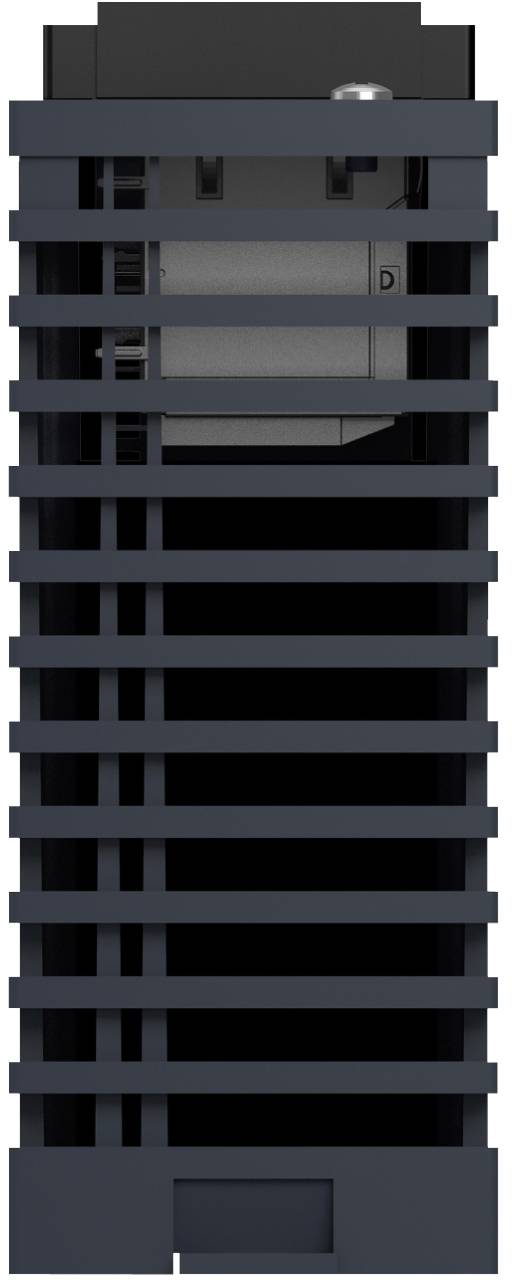

Front view of a dark rectangular building facade with horizontal slats or balconies and a central recessed section, shown in a simple illustration.

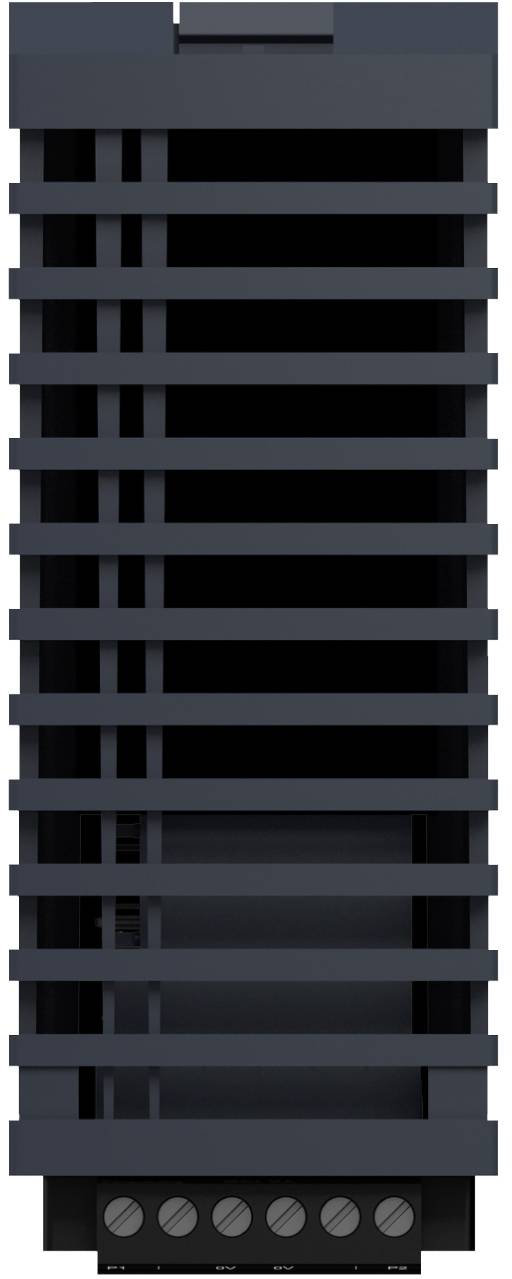

A dark gray server rack or vented equipment cabinet with horizontal slats and a row of six circular fasteners at the bottom.

Schneider Electric Modicon M262 industrial controller module with labeled ports, barcode, and compliance markings.

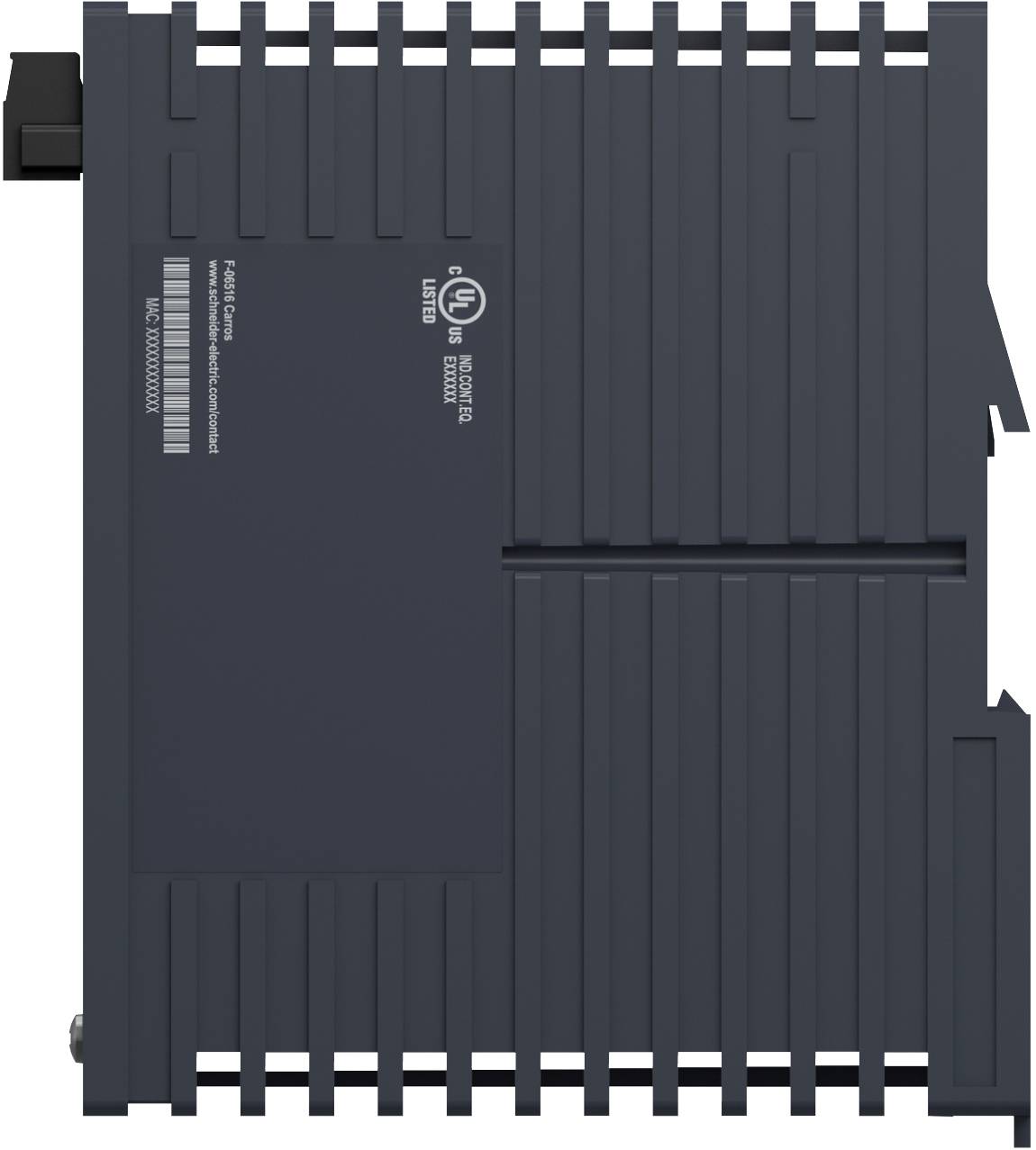

Dark gray industrial control module shown front view, with UL certification marks and barcode label; likely a programmable automation unit.

1/6

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 13 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 1,939.00 / piece)

€ 1,939.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Number of 10 Gbps Mini GBIC ports: 0
Number of 10 Gbps RJ45 ports: 0
Number of 10/100 Mbps M12 ports: 0
Number of 10/100 Mbps RJ45 ports: 4
Number of 10/100/1000 Mbps RJ45 ports: 0
Number of 100 Gbps Mini GBIC ports: 0
Number of 100 Mbps POF ports: 0
Number of 100 Mbps SC ports: 0
Number of 100 Mbps ST ports: 0
Number of 100/1000 Mbps Mini GBIC ports: 0
Number of 1000 Mbps GBIC ports: 0
Number of 1000 Mbps Mini GBIC ports: 0
Number of 1000 Mbps POF ports: 0
Number of 1000 Mbps RJ45 ports: 0
Number of 1000 Mbps SC ports (LX): 0
Number of 1000 Mbps SC ports (SX): 0
Number of 40 Gbps Mini GBIC ports: 0
Number of RJ45/Mini GBIC combo ports: 0
Number of max. stackable switches: 1
Number of module slots: 0
Number of PoE ports: 0
Number of other ports: 0
Ethernet: yes
Compatible with Grade2TV according to XP-C 90-483: No.
Compatible with Grade3TV according to XP-C 90-483: No.
Layer 2: Yes
Layer 3: No.
Manageable: Yes
Power over Ethernet (PoE): No
Redundant power supply: Yes

Product type: Managed network switch

Width: 46 mm

Height: 130 mm

Depth: 105 mm

Type: MCSESR043F23F0

: IP20

Mounting type: DIN rail

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3755367 Schneider Electric MCSESR043F23F0 MCSESR043F23F0 Managed network switch

User & Safety Instructions

User & Safety Instructions 3755367 Schneider Electric MCSESR043F23F0 MCSESR043F23F0 Managed network switch

Description

This product is part of the Modicon Switch range, a Modicon Extended Managed Switch offering. This managed switch comes with Ethernet TCP/IP protocol. It possesses 4 copper cable-transfer connections. It provides simple and complex connectivity for multiple Ethernet devices, network management, improved cyber security, and advanced switching capabilities. This product has a power consumption of 7 W and a nominal voltage of 12 to 24 V DC or 24 V AC. It has a detachable 6-pin power supply plug. It has shielded ports suitable for medium-sized isolated networks or systems with medium network traffic and medium-complexity networks. It is CE, UL, RCM certified and complies with UL 61010 and EN / IEC 61131 standards. It is intended for mounting on a symmetrical 35mm DIN rail. It has a low power consumption and a compact base area. In addition, it offers simple connectivity for several Ethernet devices. The Modicon Networking series provides you with an intelligent and flexible way to integrate Ethernet solutions into your business, from the device level to the control network to your corporate network.
