Buy Siemens 3RK1325-6LS71-1AA5 3RK13256LS711AA5 Motor starter Motor power at 400 V 5.5 kW 400 V Nominal current 12 A | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

Electrical control unit, grey, multiple connections and switches. Model number 'Simatic M200D'. Used in industrial applications.

Electrical control unit, grey, multiple connections and switches. Model number 'Simatic M200D'. Used in industrial applications.

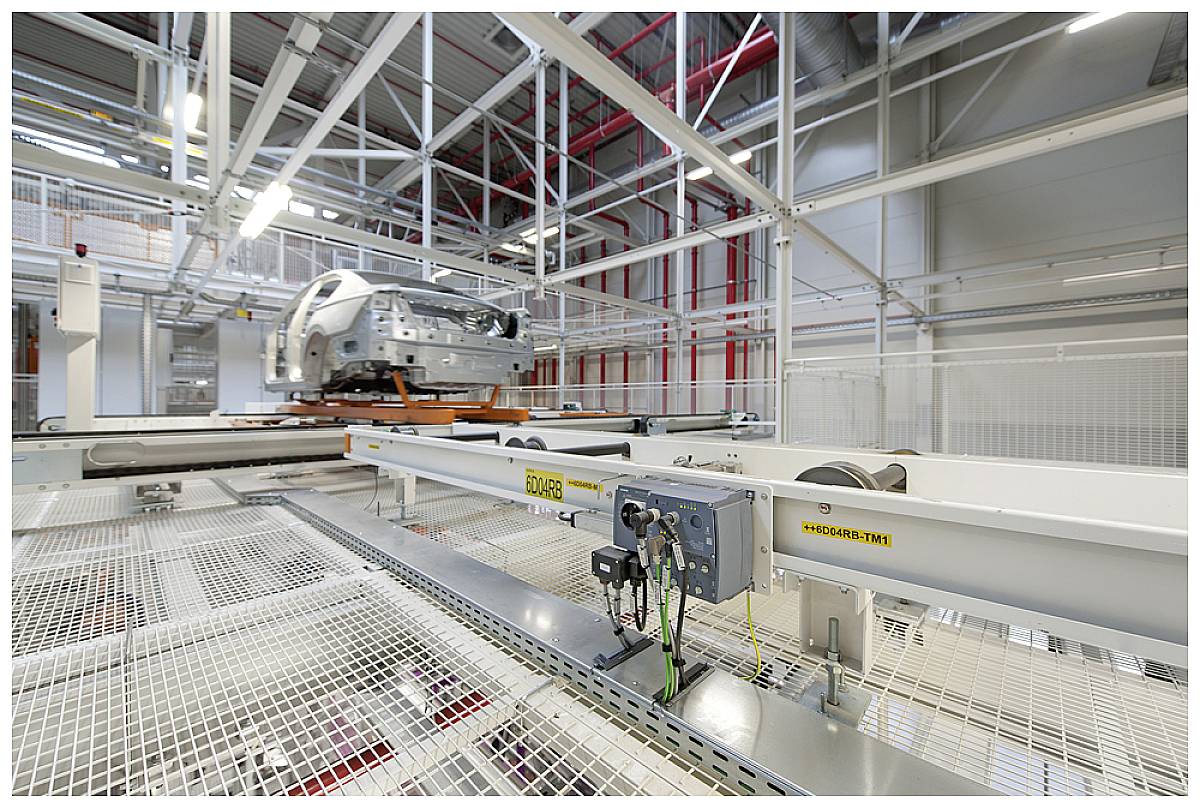

In a production hall, an unpainted car body is being transported on a conveyor belt. Industrial machinery and metal structures are visible.

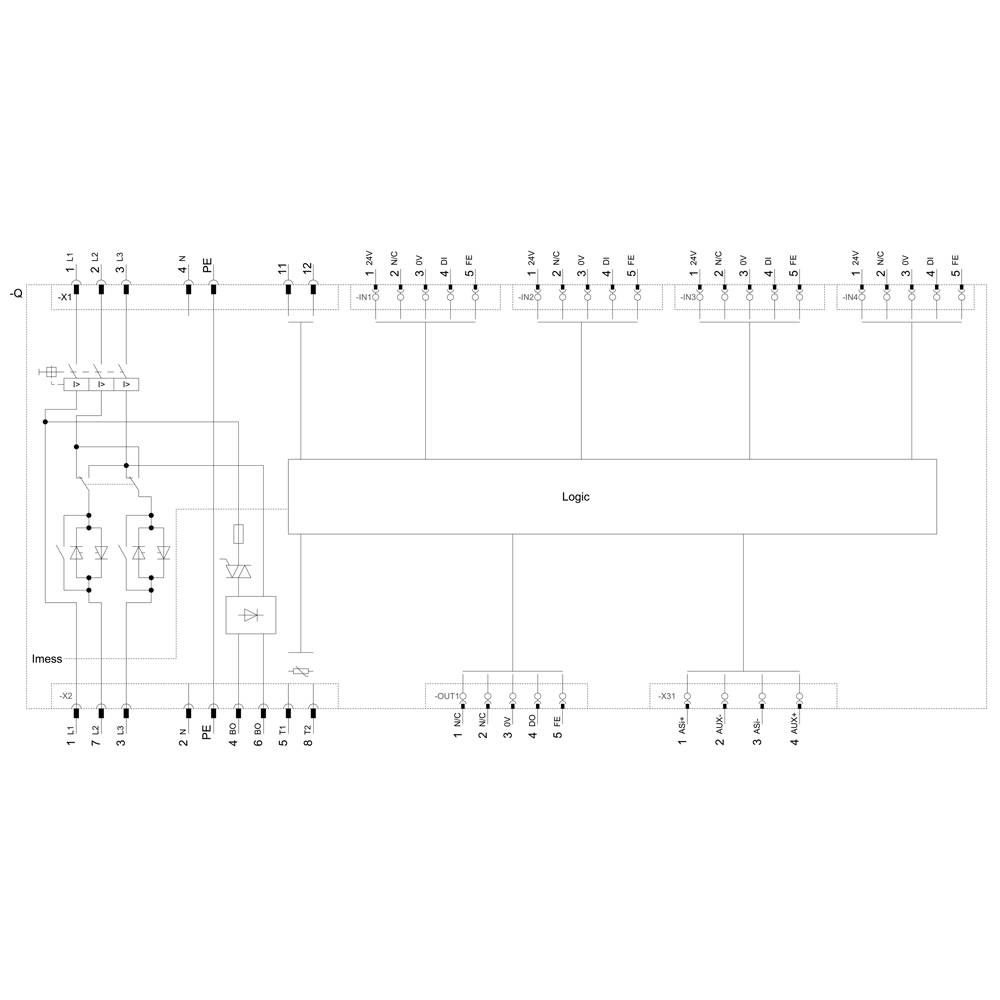

'Electronic circuit diagram with logic block in the centre, surrounded by inputs and outputs, resistors, diodes and transistors.'

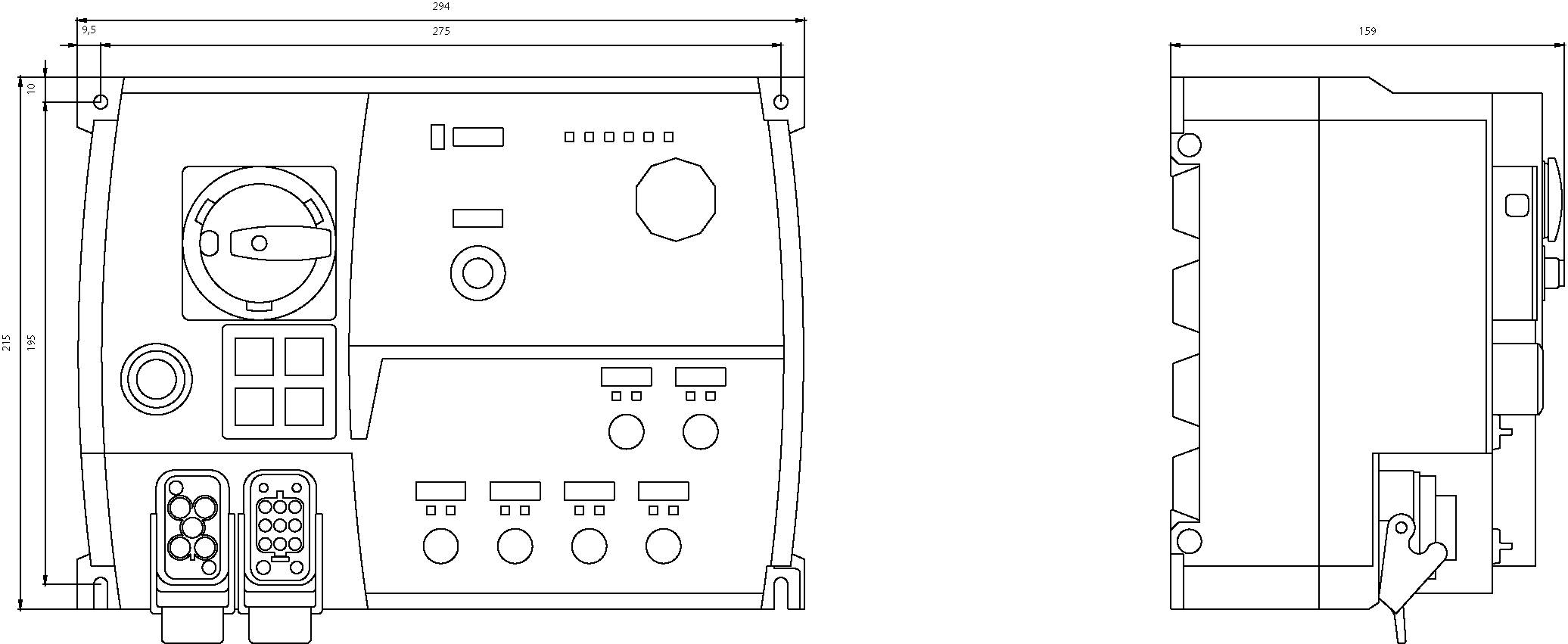

Technical drawing of a device with buttons, switches, and connections. Dimensions and detailed front and side view.

1/4

Image similar

Siemens

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 18 Dec

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 1,489.00 / piece)

€ 1,489.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Mounting type: screw fastening
IP65 rating
Operating frequency: 50/60 Hz
Number of pins: 3
Number of digital inputs: 4

Motor voltage: 400 V

Product type: Motor starter

Supply current: 12 A

Motor power at 400 V: 5.5 kW

Nominal voltage: 400 V

Operating phases: 3

Type: M12-Bush

Manufacturer part #: 3RK13256LS711AA5

Nominal current: 12 A

Nominal current - rounded value: 12 A

Type: 3RK1325-6LS71-1AA5

Motor power at 230V / 400V: 5.5 kW

Dim: (W x H x D) 294 x 215 x 159 mm

Width: 294 mm

Height: 215 mm

Depth: 159 mm

Max. temperature: +55 °C

Min. temperature: -25 °C

: 294

: 215 mm

: 159 mm

: FALSE

: 5.5 kW

: 4

: 0

: 0

: 12 A

: 12

: TRUE

: IP65

: Other

: TRUE

: Other

: Other

: DC

: Reversing starter

: 3 kW

: 5.5 kW

: 12 A

: 40 °C

: 20000

: 12

: Class 1

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1742211 Siemens 3RK1325-6LS71-1AA5 3RK13256LS711AA5 Motor starter Motor power at 400 V 5.5 kW 400 V Nominal current 12 A

User & Safety Instructions

User & Safety Instructions 1742211 Siemens 3RK1325-6LS71-1AA5 3RK13256LS711AA5 Motor starter Motor power at 400 V 5.5 kW 400 V Nominal current 12 A

Description

SIRIUS motor starter M200D Technology module DOL starter Mechanical switching AC-3, 0.75KW / 400 V 0.15 A...2.00 A Electronic overload protection Thermistor: THERMOCLICK / PTC with brake contact 180 V DC 4 DI / 2 DO Han Q4/2 - Han Q8/0 via communication module 3RK1305* can be used on PROFIBUS or PROFINET

Description

SIRIUS motor starter M200D Technology module DOL starter Mechanical switching AC-3, 0.75KW / 400 V 0.15 A...2.00 A Electronic overload protection Thermistor: THERMOCLICK / PTC with brake contact 180 V DC 4 DI / 2 DO Han Q4/2 - Han Q8/0 via communication module 3RK1305* can be used on PROFIBUS or PROFINET
