Siemens 3SU10504GL010AA0 3SU1050-4GL01-0AA0 Key switch 2 x 45 ° IP66, IP67, IP69/IP69K 1 pc(s)

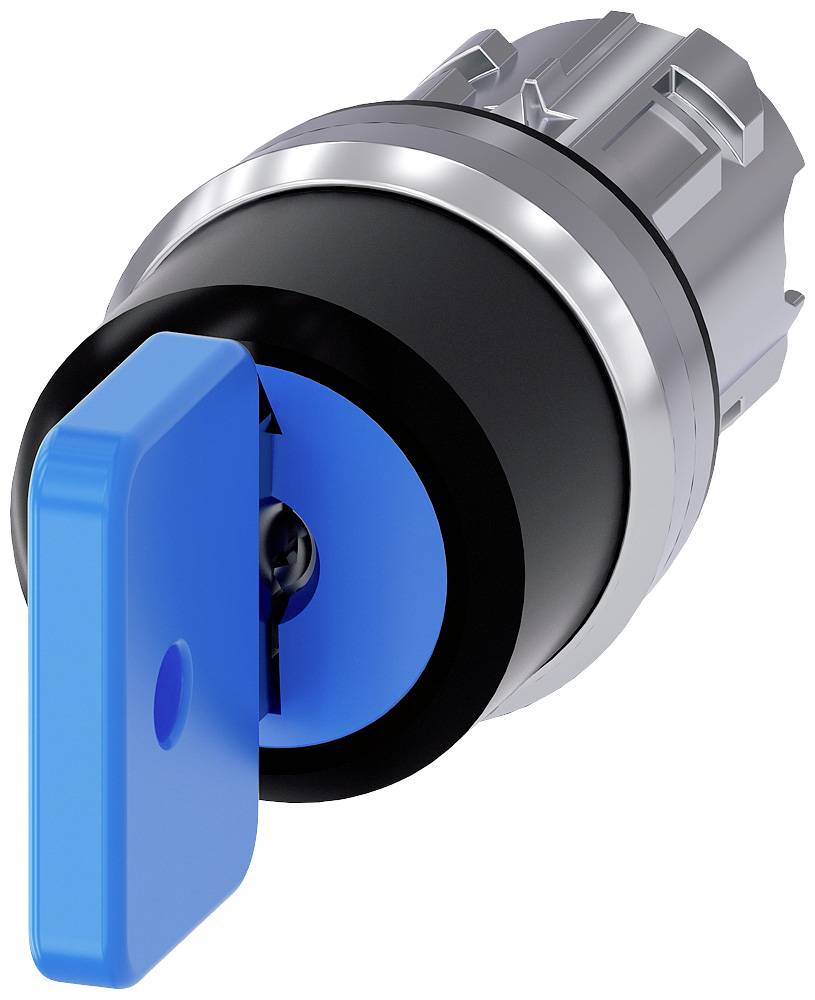

Blue metal key switch with a black ring. The key is pointing to the left, symbolising locking or deactivation.
Cable car station with a modern cabin in a serene mountain landscape; focus on control panel with red and yellow buttons in the foreground.
Technical drawing of a mechanical part with dimensions: Length 77.1 mm, Width 29.5 mm, Sections 51.7 mm and 26.8 mm.
1/3
Image similar
Product type
Key switch
Functions
latch
Switch postions
3
IP rating
IP66
IP67
IP69/IP69K
Casing/button colour
Silver
Blue
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Thu 19 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 61.99 / piece)
€ 61.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • The number of positions: 3
  • Number of key included: 2
  • Mounting height 51.7 mm
  • Mounting depth 25.4 mm
Product type

Key switch

Casing/button colour

Silver

Blue

Functions

latch

Switching angle

2 x 45 °

Switch postions

3

Material

Metal

Min. temperature

-25 °C

Max. temperature

+70 °C

Width

29.5 mm

Height

29.5 mm

(Ø)

29.5 mm

Durability

300000

Shape

Round

Recess diameter

22.3 mm

IP66

IP67

IP69/IP69K

Type

3SU1050-4GL01-0AA0

Content

1 pc(s)

Dim

(Ø x H) 29.5 mm x 29.5 mm

RoHS-compliant

Yes

22.3 mm

3

FALSE

FALSE

Other

IP67/IP69K

29.5 mm

51.7 mm

Metal

TRUE

Rectangular

Other

Blue

TRUE

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 1739032 Siemens 3SU10504GL010AA0 3SU1050-4GL01-0AA0 Key switch 2 x 45 ° IP66, IP67, IP69/IP69K 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1739032 Siemens 3SU10504GL010AA0 3SU1050-4GL01-0AA0 Key switch 2 x 45 ° IP66, IP67, IP69/IP69K 1 pc(s)

Information

Information 1739032 Siemens 3SU10504GL010AA0 3SU1050-4GL01-0AA0 Key switch 2 x 45 ° IP66, IP67, IP69/IP69K 1 pc(s)

Description

Key-operated switch IKON, 22 mm, round, metal, shiny, lock number 360012K1, with 2 keys, 3 switch positions IOII, momentary contact type, actuating angle 2x45°, 10:30h/12h/13:30h, Key removal O
