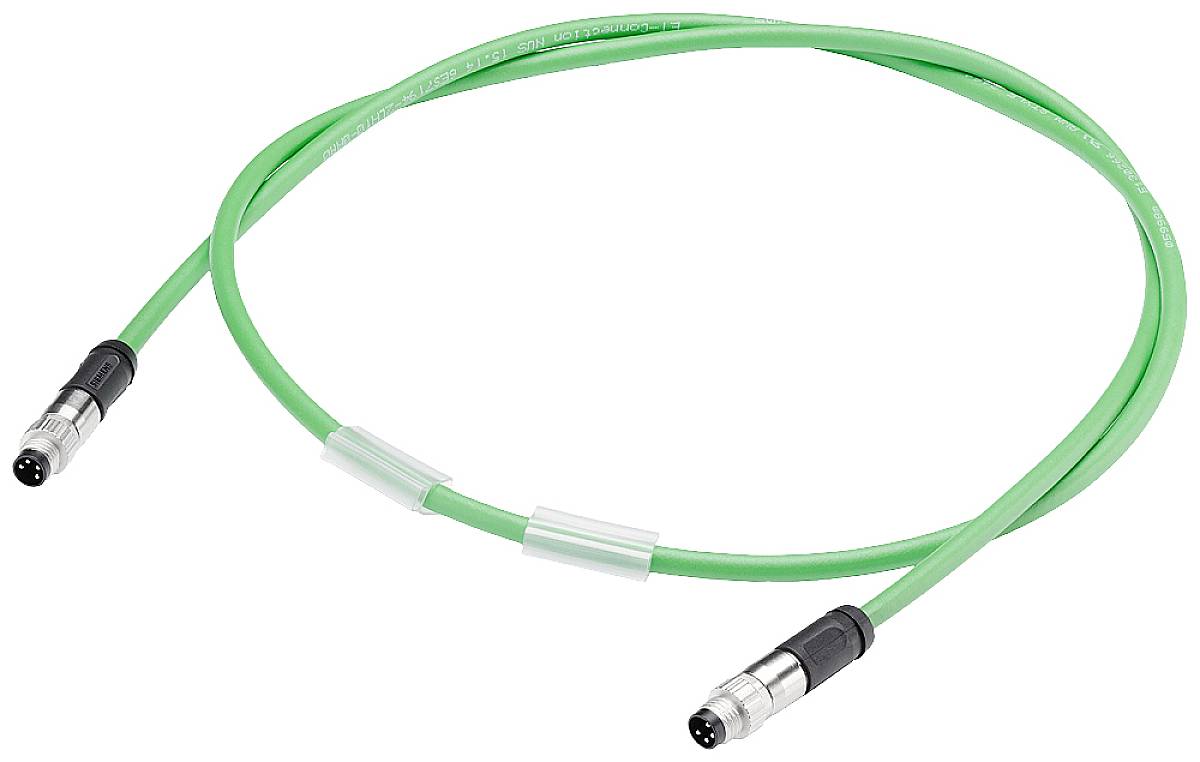

Siemens 6ES71942LH020AD0 6ES7194-2LH02-0AD0 PLC cable
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 29.40 / piece)
€ 29.40
plus VAT.
Technical specifications
- The color of the cable sheath: Green
- Case material: metal
- Material of the cable sheath: PVC
- The material of the wire insulation: PE
- Number of electrical wires: 4
- Outer diameter of the inner conductor: 0.5 mm
- Outer diameter of the wire insulation: 1 mm
- Outer diameter of the cable sheath: 5 mm
- Color of the wire insulation of the data wires: white/yellow/blue/orange
- The type of cable departure: 180° cable outlet
- Compatible with (details)
Bus cable ET connection M8
- Product type
PLC cable
- Type
6ES7194-2LH02-0AD0
- Manufacturer part #
6ES71942LH020AD0
- Type
2 x M8 socket, 4-pin, shielded
- Length
0.2 m
IP65
IP67
- Content
1 pc(s)
- Max. ambient temperature
+80 °C
- Min. ambient temperature
-40 °C
PLC - PLC
4
0.2 m
Circular connector
Circular connector
TRUE
TRUE
TRUE
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1734745 Siemens 6ES71942LH020AD0 6ES7194-2LH02-0AD0 PLC cable
User & Safety Instructions
User & Safety Instructions 1734745 Siemens 6ES71942LH020AD0 6ES7194-2LH02-0AD0 PLC cable
Description
Connecting cable for Bus cable for ET connection M8 assembled on both ends with 2x M8 socket, 4-pole, shielded Length 0,2m
