Name: Sol Expert 96443 Micro gearmotor G 250 Flanged, Steel cogwheels 1:250 6 - 100 U/min
Brand: Sol Expert
SKU: 1676730
Availability: InStock

'A small, cylindrical electric motor made of metal with a visible gear mechanism and a shaft on the front.'

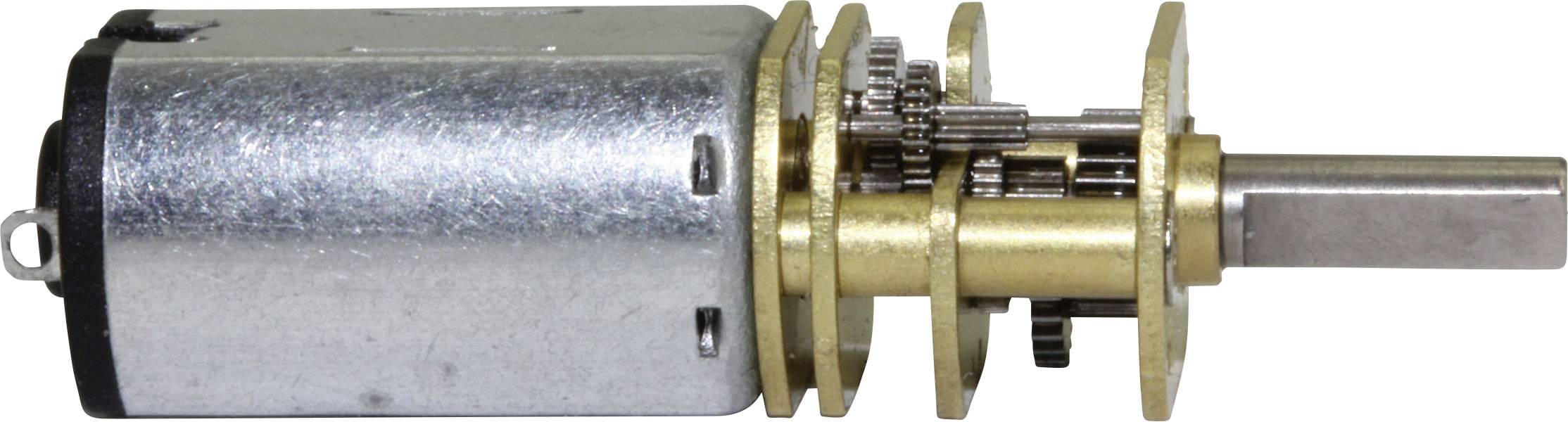

A small metal geared motor with visible gears and a square shaft, positioned horizontally.

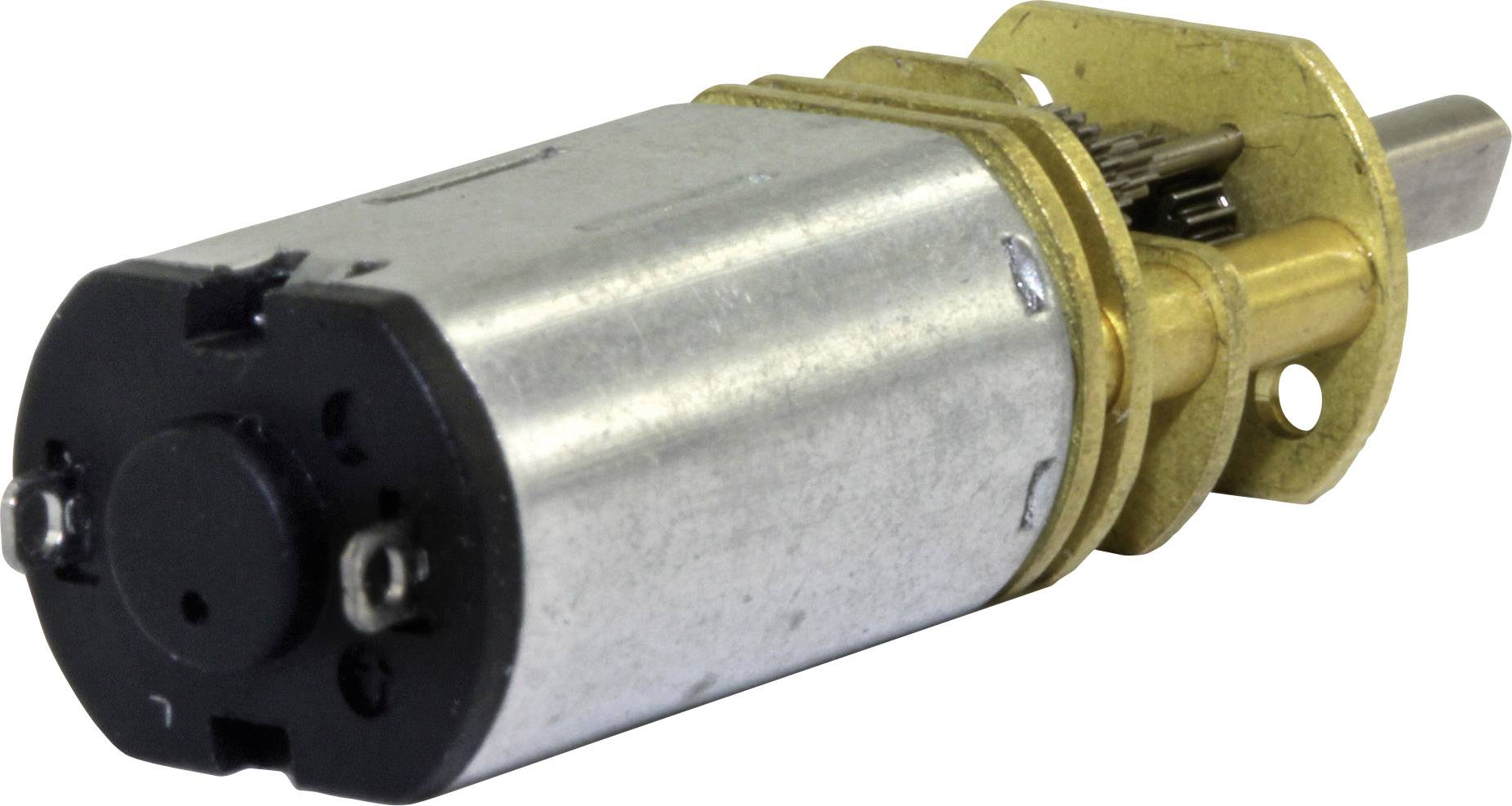

A small direct current geared motor with a rectangular metal housing, gold-coloured mounting plate and visible shaft.

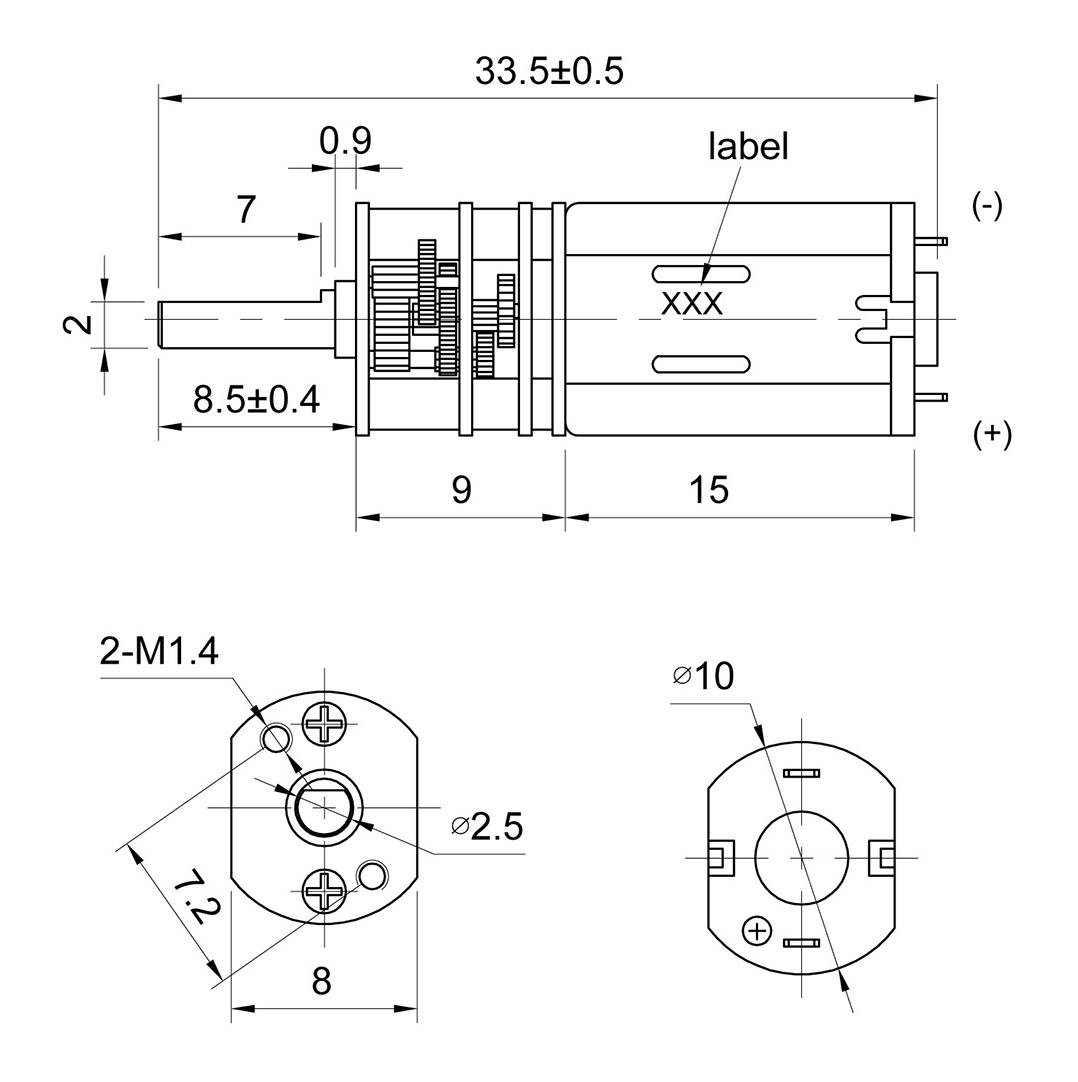

Technical drawing of an electric motor with dimensions; shows measurements, threads, and mounting points. Includes details of motor length and diameter.

1/4

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Tue 3 Nov

1 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 16.99 / piece)

€ 16.99

incl. VAT

Only 1 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

1:250 Micro Drive G250

Model Car Tuning

Technical specifications

Size: Universal

Product type: Micro gearmotor

Type: G 250

Features: Flanged
Steel cogwheels

Gear reduction: 1:250

Axle Ø: 2.5 mm

Rotational speed (min.): 6 U/min

Rotational speed (max.): 100 U/min

Rotational speed range: 6 - 100 U/min

Voltage (min.): 0.3 V

Voltage (max.): 4.8 V

Length: 33.5 mm

Width: 10 mm

Height: 8 mm

Dim: (L x W x H) 33.5 x 10 x 8 mm

Age category: 15 years and over

Documents & Downloads

Datasheet

Datasheet 1676730 Sol Expert 96443 Micro gearmotor G 250 Flanged, Steel cogwheels 1:250 6 - 100 U/min

User & Safety Instructions

User & Safety Instructions 1676730 Sol Expert 96443 Micro gearmotor G 250 Flanged, Steel cogwheels 1:250 6 - 100 U/min

Description

Thanks to the minimal dimensions and a translation of 1:250 offers this new micro-gears for different applications. Whether as a radar drive in ships, as a drive for small standards, winches, etc. wherever motion in a confined space is required, the G250.
The Micro drive is operated with voltages between 0.5 V and 4.8 Volt. This speeds from 6 to 100U/m (depending on the voltage). In the gear used metal gear wheels guarantee a long service life and quiet operation. The abrasion axis is flange-mounted and has a diameter of 2.5 mm.
