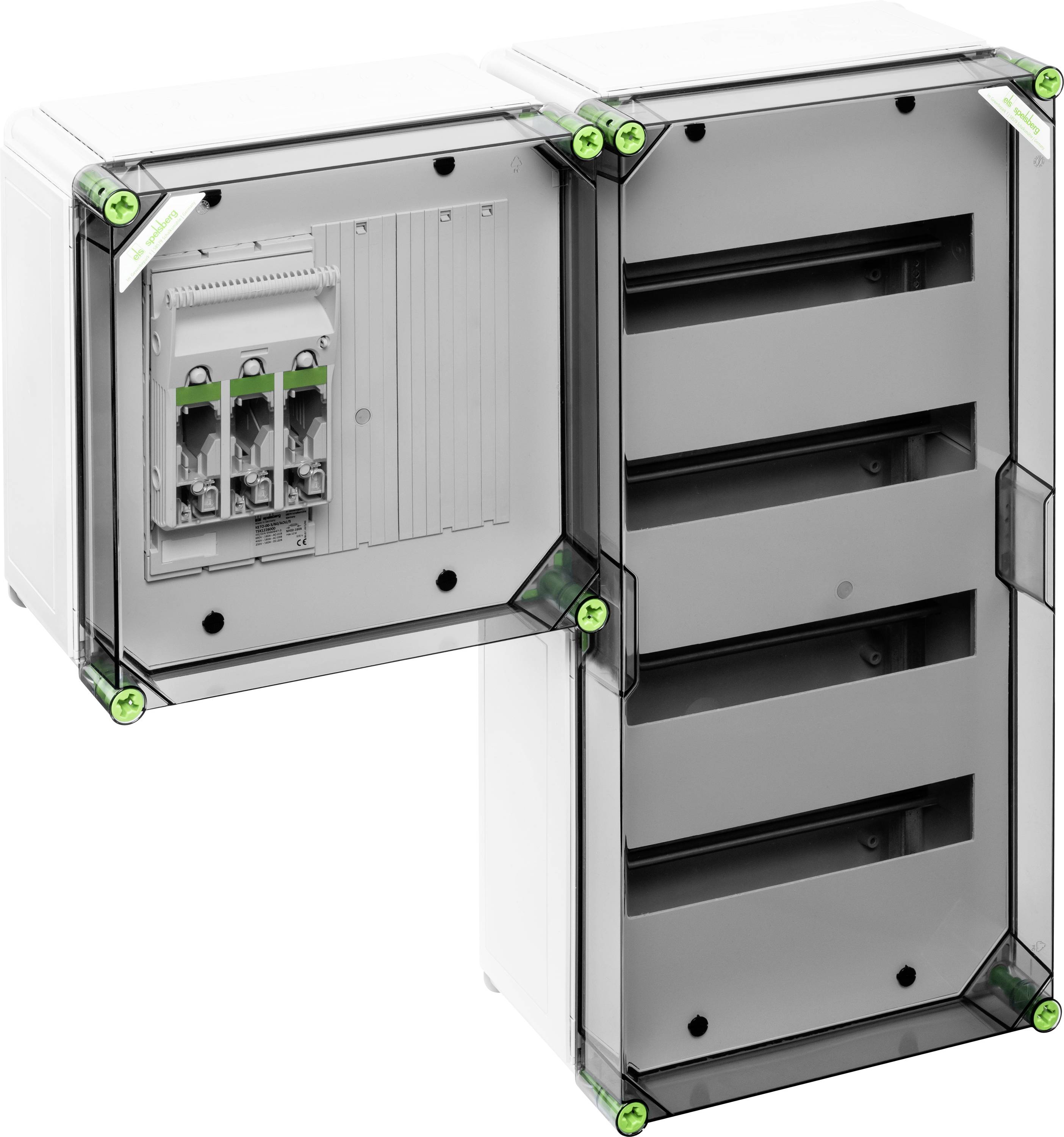

Spelsberg 3350701 GWS 7070 REG Generator junction box
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 1,679.00 / piece)
€ 1,679.00
incl. VAT
14-day return policy included
Technical specifications
- Protection system: IP65
- Number of pins: 5
- Rated operating current Ie: 250 A.
- Max. Rated operating voltage Ue at AC: 400 V
- Product type
Generator junction box
- Dim
(W x H x D) 640 x 640 x 254 mm
- Content
1 pc(s)
- Width
640 mm
- Height
640 mm
- Depth
254 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3374237 Spelsberg 3350701 GWS 7070 REG Generator junction box
User & Safety Instructions
User & Safety Instructions 3374237 Spelsberg 3350701 GWS 7070 REG Generator junction box
Information
Information 3374237 Spelsberg 3350701 GWS 7070 REG Generator junction box
Description
GTi inverter collectors for PV systems, tested according to EN 61439-2, rated power 70 kVA, supplied in assemblies for individual arrangement on site, simple combination by plug system and accompanying accessories, incl. flanges with knockouts for sealing the housing sides, individually expandable by additional GTi housings , consisting of NH-Tab fuse switch disconnectors GST 2015-250, GTA 456-H-t automatic enclosure, Flange with metric imprints, for the installation of max. 18 line circuit breakers (1-phase) for inverter up to max. 6.4 kVA or 6 line circuit breakers (3-phase) for inverter up to max. 19.3 kVA Dimensions: 640 x 640 x 254 mm
