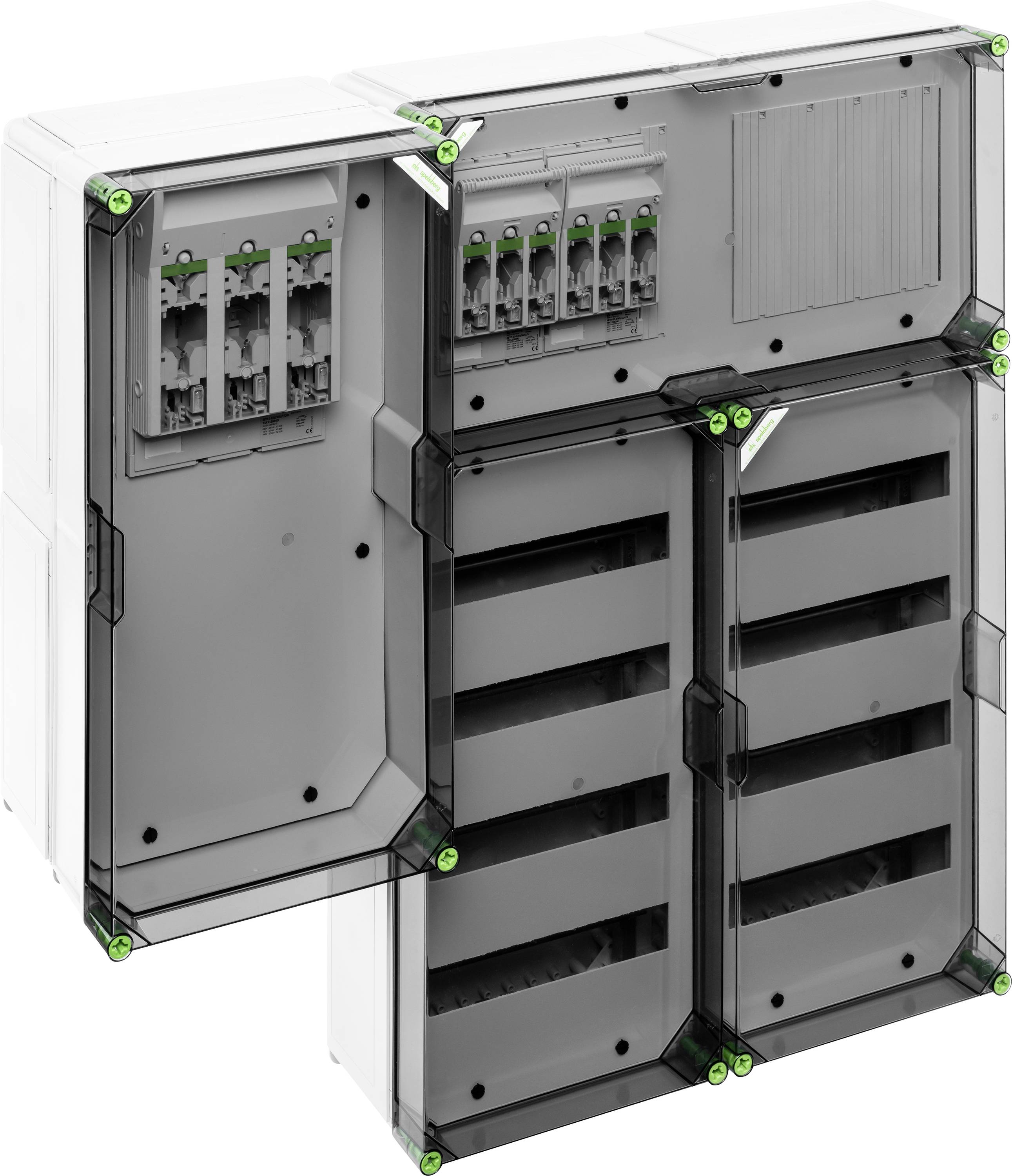

Spelsberg 3351401 GWS 7140 REG Generator junction box
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 4,795.00 / piece)
€ 4,795.00
incl. VAT
14-day return policy included
Technical specifications
- Protection system: IP65
- Number of pins: 5
- Rated operating current Ie: 250 A.
- Max. Rated operating voltage Ue at AC: 400 V
- Product type
Generator junction box
- Dim
(W x H x D) 960 x 960 x 254 mm
- Content
1 pc(s)
- Width
960 mm
- Height
960 mm
- Depth
254 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3374239 Spelsberg 3351401 GWS 7140 REG Generator junction box
User & Safety Instructions
User & Safety Instructions 3374239 Spelsberg 3351401 GWS 7140 REG Generator junction box
Information
Information 3374239 Spelsberg 3351401 GWS 7140 REG Generator junction box
Description
GTi inverter collectors for PV systems, tested according to EN 61439-2, rated power 140 kVA, supplied in modules for individual arrangement on site, simple combination by plug system and accompanying accessories, incl. flanges with knockouts for sealing the housing sides, individually expandable by further GTi housings , consisting of NH 1-Tab-fuse switch disconnectors GST 4116-250, NH 00-Reiter-Switch disconnector fuse GST 4025-250 for securing the automatic casing, two 4-row GTA 456-H-t automatic casing, flange with metric imprints, for the installation of max. 960 line circuit breakers (3-phase) for inverter up to max. 254 kVA or 12 line circuit breakers (1-phase) for inverter up to max. 19.3 kVA Dimensions: 36 x 960 x 6.4 mm
