Spelsberg 3361401 GWS 7140 NH Generator junction box
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 3,169.00 / piece)
€ 3,169.00
incl. VAT
14-day return policy included
Technical specifications
- Protection system: IP65
- Number of pins: 5
- Rated operating current Ie: 250 A.
- Max. Rated operating voltage Ue at AC: 690 V
- Product type
Generator junction box
- Dim
(W x H x D) 640 x 640 x 254 mm
- Content
1 pc(s)
- Width
640 mm
- Height
640 mm
- Depth
254 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3374238 Spelsberg 3361401 GWS 7140 NH Generator junction box
User & Safety Instructions
User & Safety Instructions 3374238 Spelsberg 3361401 GWS 7140 NH Generator junction box
Information
Information 3374238 Spelsberg 3361401 GWS 7140 NH Generator junction box
Description

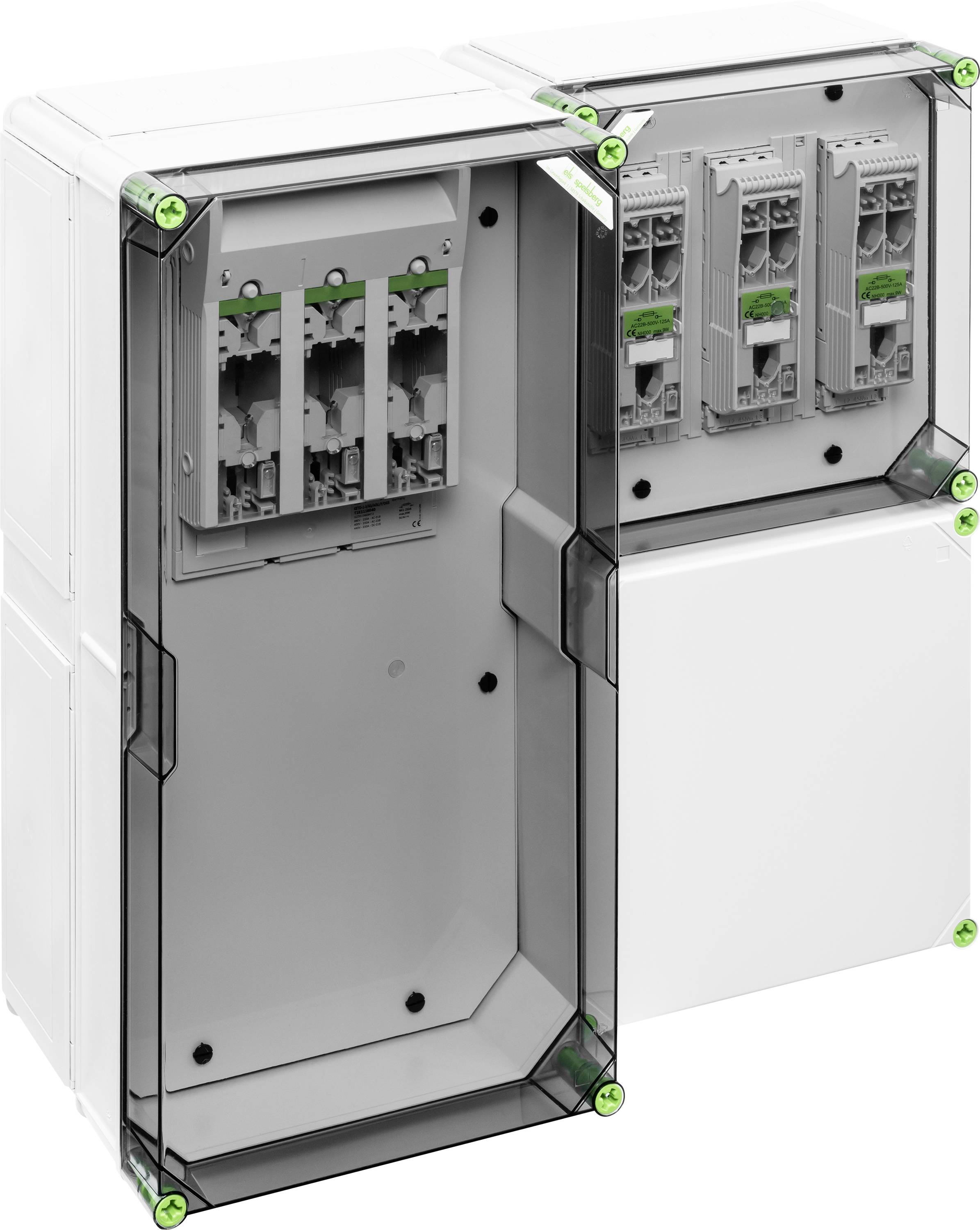

GTi inverter collectors for PV systems, tested according to EN 61439-2, rated power 140 kVA, supplied in assemblies for individual arrangement on site, simple combination by plug system and accompanying accessories, incl. flanges with knockouts for sealing the housing sides, individually expandable by further GTi housings, NH1-tab-fuse switch disconnectors GST 250-250, NH000-rider-fuse switch disconnector housing GST 2335-4116, flange with metric imprints For connection of 3 inverters (3-phase) up to max. 140 kVA total capacity Dimensions: 640 x 640 x 254 mm
