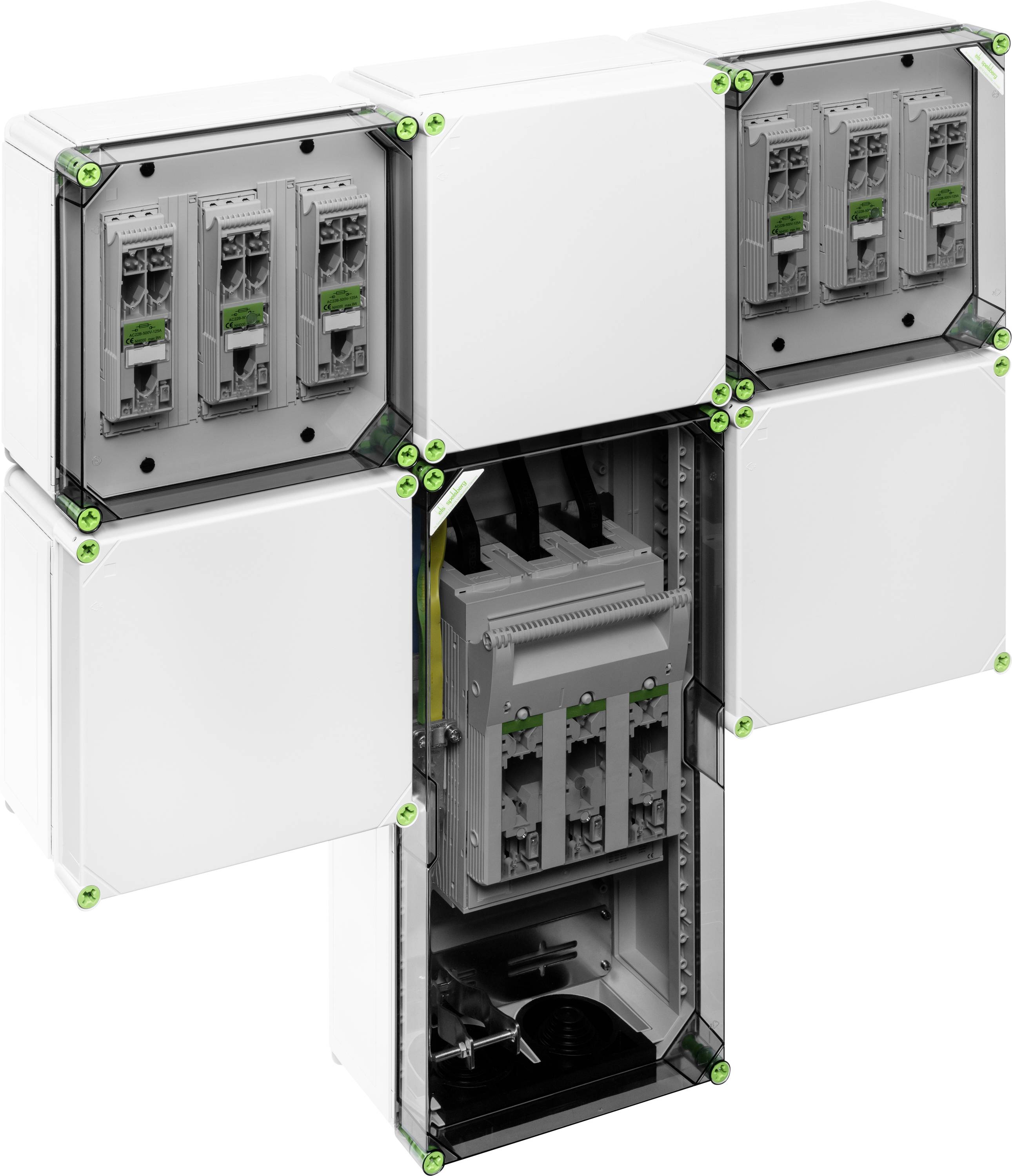

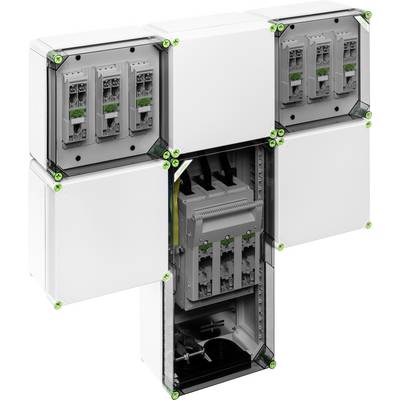

Spelsberg 3362201 GWS 7220 NH Generator junction box
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 5,135.00 / piece)
€ 5,135.00
incl. VAT
14-day return policy included
Technical specifications
- Protection system: IP65
- Number of pins: 5
- Rated operating current Ie: 400 A.
- Max. Rated operating voltage Ue at AC: 690 V
- Product type
Generator junction box
- Dim
(W x H x D) 960 x 960 x 254 mm
- Content
1 pc(s)
- Width
960 mm
- Height
960 mm
- Depth
254 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3374240 Spelsberg 3362201 GWS 7220 NH Generator junction box
User & Safety Instructions
User & Safety Instructions 3374240 Spelsberg 3362201 GWS 7220 NH Generator junction box
Information
Information 3374240 Spelsberg 3362201 GWS 7220 NH Generator junction box
Description
GTi inverter collectors for PV systems, tested according to EN 61439-2, rated power 220 kVA, supplied in assemblies for individual arrangement on site, simple combination by plug system and accompanying accessories, incl. flanges with knockouts for sealing the housing sides, individually expandable by further GTi housings, NH2 fuse switch disconnectors GTT 421, NH000-tab fuse switch disconnectors GST 4365-400, flanges with metric knockouts, For connection of 6 inverters (3-phase) up to max. 220 kVA total capacity Dimensions: 960 x 960 x 254 mm
