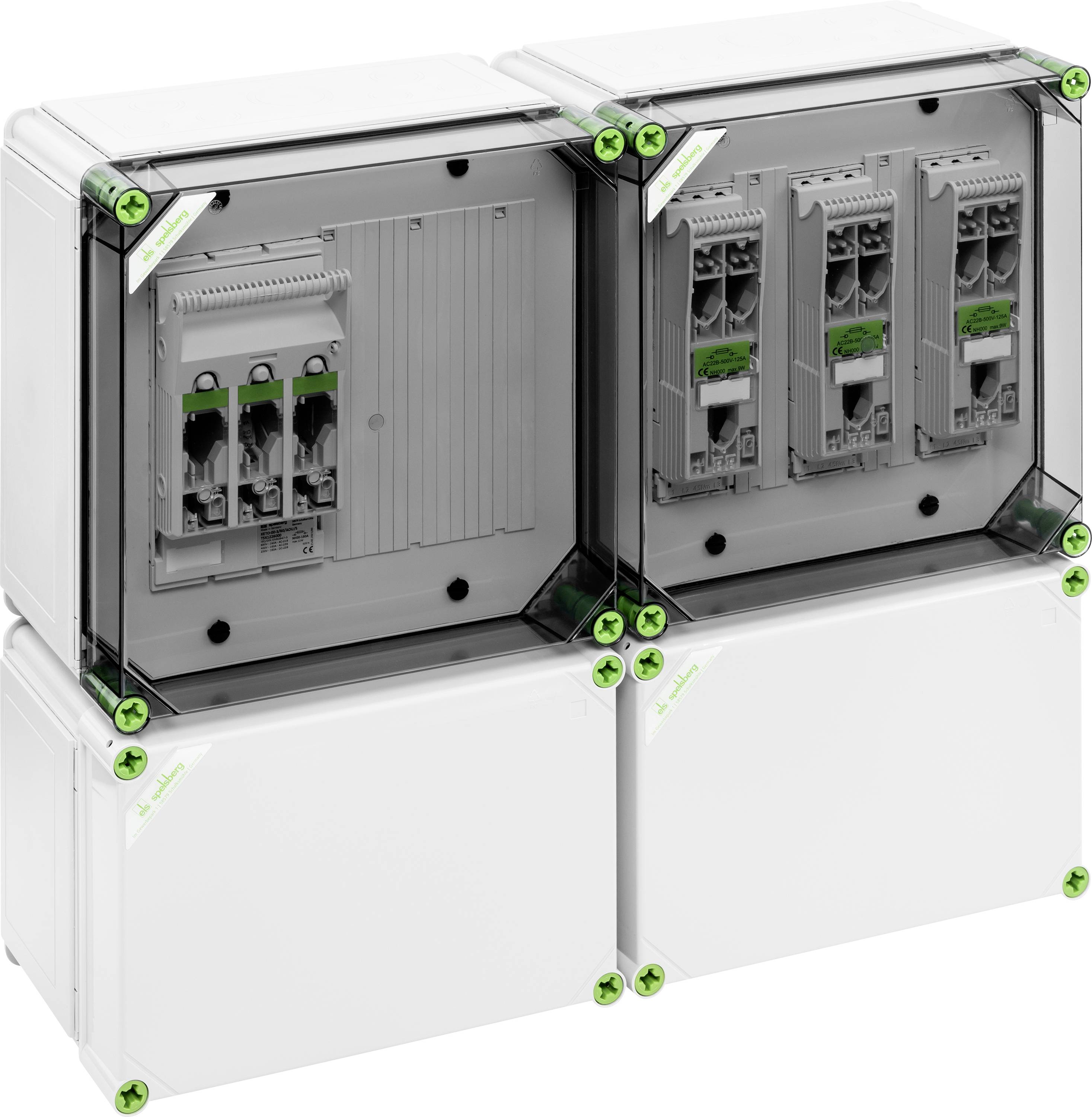

Spelsberg 3360701 GWS 7070 NH Generator junction box
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 2,005.00 / piece)
€ 2,005.00
incl. VAT
14-day return policy included
Technical specifications
- Protection system: IP65
- Number of pins: 5
- Rated operating current Ie: 250 A.
- Max. Rated operating voltage Ue at AC: 690 V
- Product type
Generator junction box
- Dim
(W x H x D) 640 x 540 x 254 mm
- Content
1 pc(s)
- Width
640 mm
- Height
540 mm
- Depth
254 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3374236 Spelsberg 3360701 GWS 7070 NH Generator junction box
User & Safety Instructions
User & Safety Instructions 3374236 Spelsberg 3360701 GWS 7070 NH Generator junction box
Information
Information 3374236 Spelsberg 3360701 GWS 7070 NH Generator junction box
Description
GTi inverter collectors for PV systems, tested according to EN 61439-2, rated power 70 kVA, supplied in modules for individual arrangement on site, simple combination by plug system and accompanying accessories, incl. flanges with knockouts for sealing the housing sides, individually expandable by further GTi housings , comprising: NH00-Reiter-Switch disconnectors GST 2015-250, NH000-tab fuse switch disconnectors GST 2335-250, flanges with metric imprints, for the connection of 3 inverters (3-phase) up to max. 70 kVA total power Dimensions: 640 x 540 x 254 mm
