Steinel 086084 LED light 31 W Neutral white White
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 284.87 / piece)
€ 284.87
plus VAT.
Highlights & Details

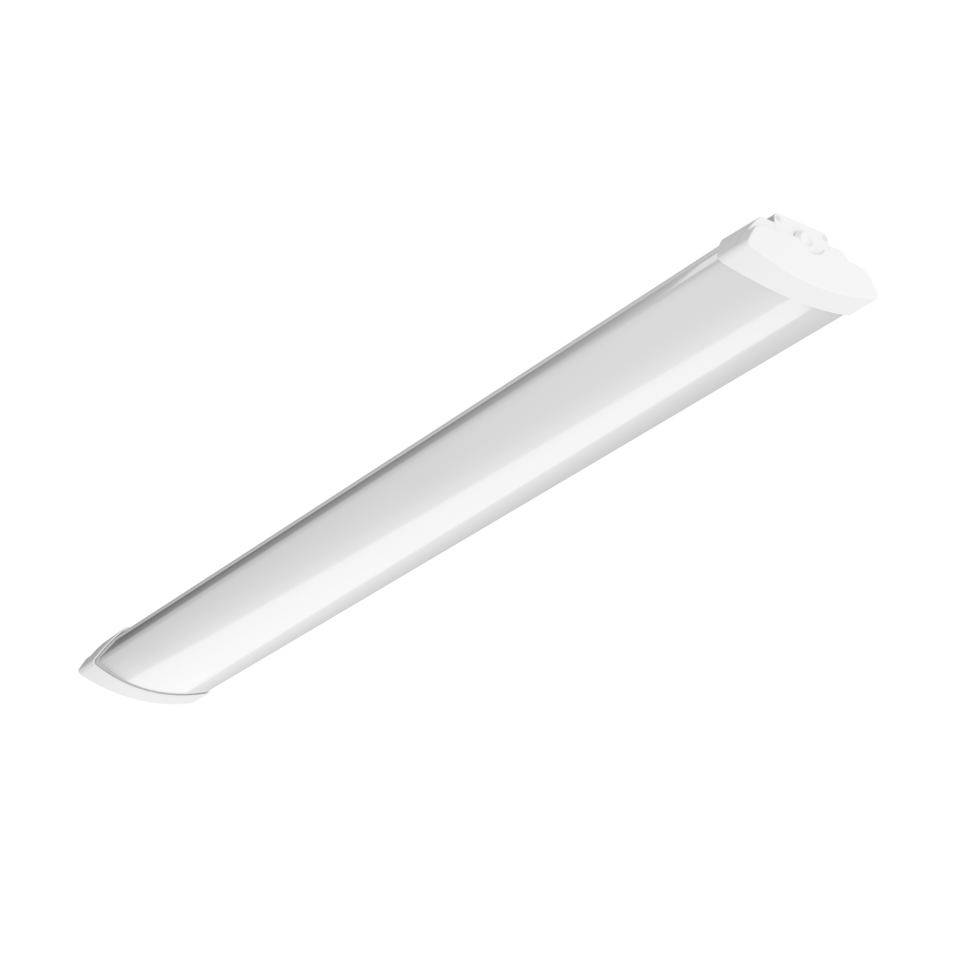

Steinel LED long-field light RS PRO 5500 SC 5C 4000K, motion detector, 120 cm tub lamp, 5-wire wiring
- Power= 31 W Total luminous flux= 4458 lm Colour temperature= 4000 K Neutral white
Technical specifications
- Product type
LED light
- Operating voltage
230 V
- No. of bulbs
1
- Bulb type
LED (monochrome)
w/o
- Rating per bulb
31 W
31 W
4000 K
- Colour
Neutral white
4458 lm
- Total luminous flux
4458 lm
- Light features
Dimmable
- Protection class
I
IP44
- Factory colour
White
- Material
Plastic
- Weight
2.45 kg
- Dim
(L x W x H) 1200 x 164 x 75 mm
n.rel.
Yes
- PIR detection angle (horizontal)
360°
- Vertical detection angle
160°
- Width
164 mm
- Height
75 mm
- Length
1200 mm
Documents & Downloads
Datasheet
Datasheet 3818418 Steinel 086084 LED light 31 W Neutral white White
User & Safety Instructions
User & Safety Instructions 3818418 Steinel 086084 LED light 31 W Neutral white White
Information
Information 3818418 Steinel 086084 LED light 31 W Neutral white White
Conformity certificate
Conformity certificate 3818418 Steinel 086084 LED light 31 W Neutral white White
Description
Attractive long-field lamp – optical, technical and energetic.

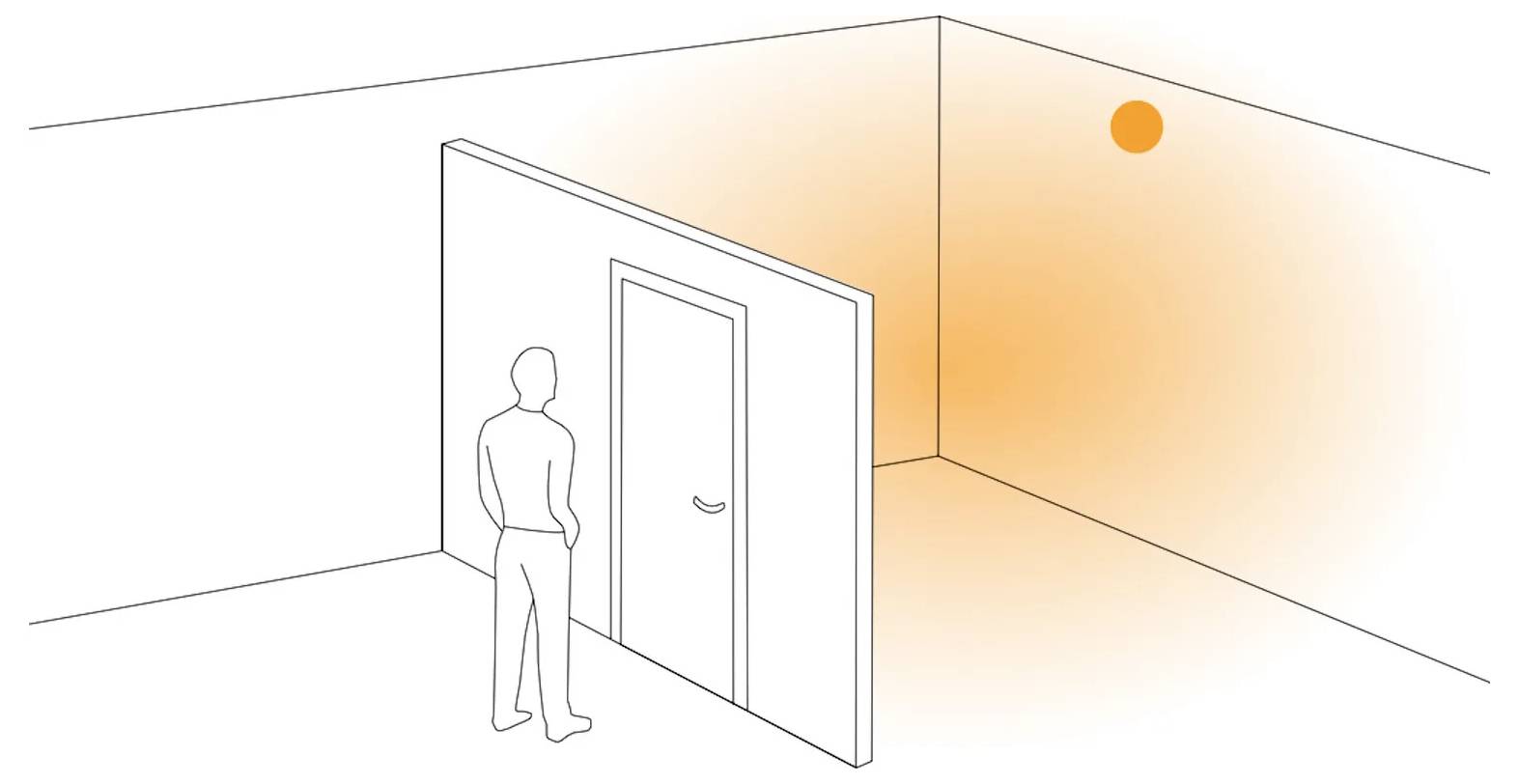

Both in the industrial environment and in transit areas and office environments our two new long-field lamps RS PRO 5500/5550 SC are an excellent figure. Apart from the beautiful look, the inner values are also impressive. The lights provide pleasant lighting comfort and are also a brilliant example of outstanding energy efficiency – not only because of the Bluetooth-based benefits of Steinel-connected lighting. Thanks to the new high-frequency technology with 24 GHz the detection ends at the wall. Added to this is the centimeter range adjustment, which ensures higher detection sensitivity The lamps are deliberately modular for improved repair and a long service life. The sensor, operating device, LEDs, emergency light battery & emergency light operating device, in addition to the cover, can be replaced by a specialist as a spare part. In addition, the cable with 5-wire through-wiring can be inserted at both sides or from behind. The standard version SC enables an emergency light function on the central battery. The SC EM version is available for a distributed single battery solution for 3 hours of emergency light.
This text is machine translated.
Both in the industrial environment and in transit areas and office environments our two new long-field lamps RS PRO 5500/5550 SC are an excellent figure. Apart from the beautiful look, the inner values are also impressive. The lights provide pleasant lighting comfort and are also a brilliant example of outstanding energy efficiency – not only because of the Bluetooth-based benefits of Steinel-connected lighting. Thanks to the new high-frequency technology with 24 GHz the detection ends at the wall. Added to this is the centimeter range adjustment, which ensures higher detection sensitivity The lamps are deliberately modular for improved repair and a long service life. The sensor, operating device, LEDs, emergency light battery & emergency light operating device, in addition to the cover, can be replaced by a specialist as a spare part. In addition, the cable with 5-wire through-wiring can be inserted at both sides or from behind. The standard version SC enables an emergency light function on the central battery. The SC EM version is available for a distributed single battery solution for 3 hours of emergency light.
This text is machine translated.
Features
- DIM function, orientation light, light sensor, connection to central battery systems, motion sensor, Adjustable fade time for switching on and off, free selection of light value in a light group, group parameter assignment, neighboring group function, encrypted communication
Scope of delivery
- 1x LED interior light
- 2x mounting clamp
- 2x sensor cover plate
System requirements
- IOS, Android, Bluetooth
