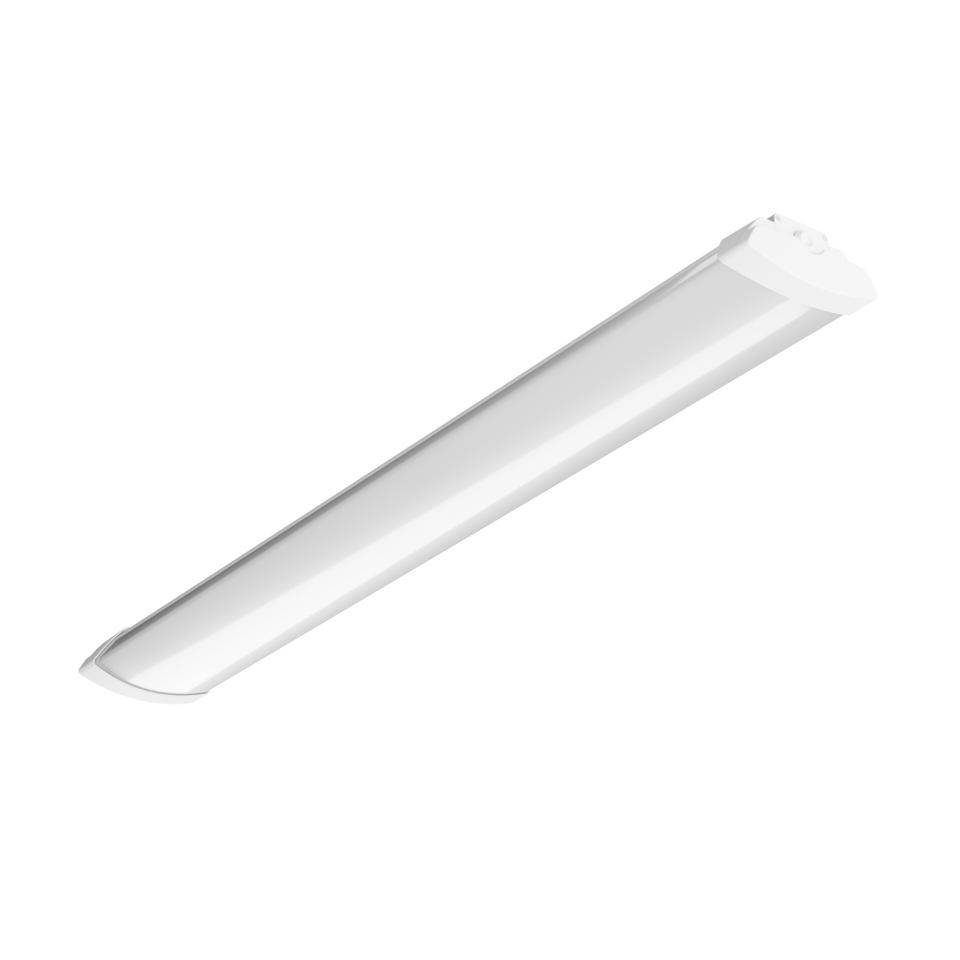

Steinel 086862 LED light 31 W Warm white White
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 500.00 / piece)
€ 500.00
plus VAT.
Only 2 Piece(s) available
Highlights & Details
Steinel LED long-field lamp RS PRO 5500 SC 5C 4000K, motion detector, tub lamp, 5-wire wiring, emergency light
- Power= 31 W Total luminous flux= 4458 lm Colour temperature= 3000 K Warm white
Technical specifications
- Product type
LED light
- Operating voltage
230 V AC
- No. of bulbs
1
LED
- Rating per bulb
31 W
31 W
3000 K
- Colour
Warm white
4458 lm
- Total luminous flux
4458 lm
- Light features
App-enabled
- Protection class
I
IP44
- Factory colour
White
- Material
Plastic
- Dim
(L x W x H) 1200 x 164 x 75 mm
n.rel.
Yes
- PIR detection angle (horizontal)
360°
- Vertical detection angle
160°
- Width
164 mm
- Height
75 mm
- Length
1200 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3818417 Steinel 086862 LED light 31 W Warm white White
User & Safety Instructions
User & Safety Instructions 3818417 Steinel 086862 LED light 31 W Warm white White
Information
Information 3818417 Steinel 086862 LED light 31 W Warm white White
Conformity certificate
Conformity certificate 3818417 Steinel 086862 LED light 31 W Warm white White
Description
Attractive long-field lamp – optical, technical and energetic.

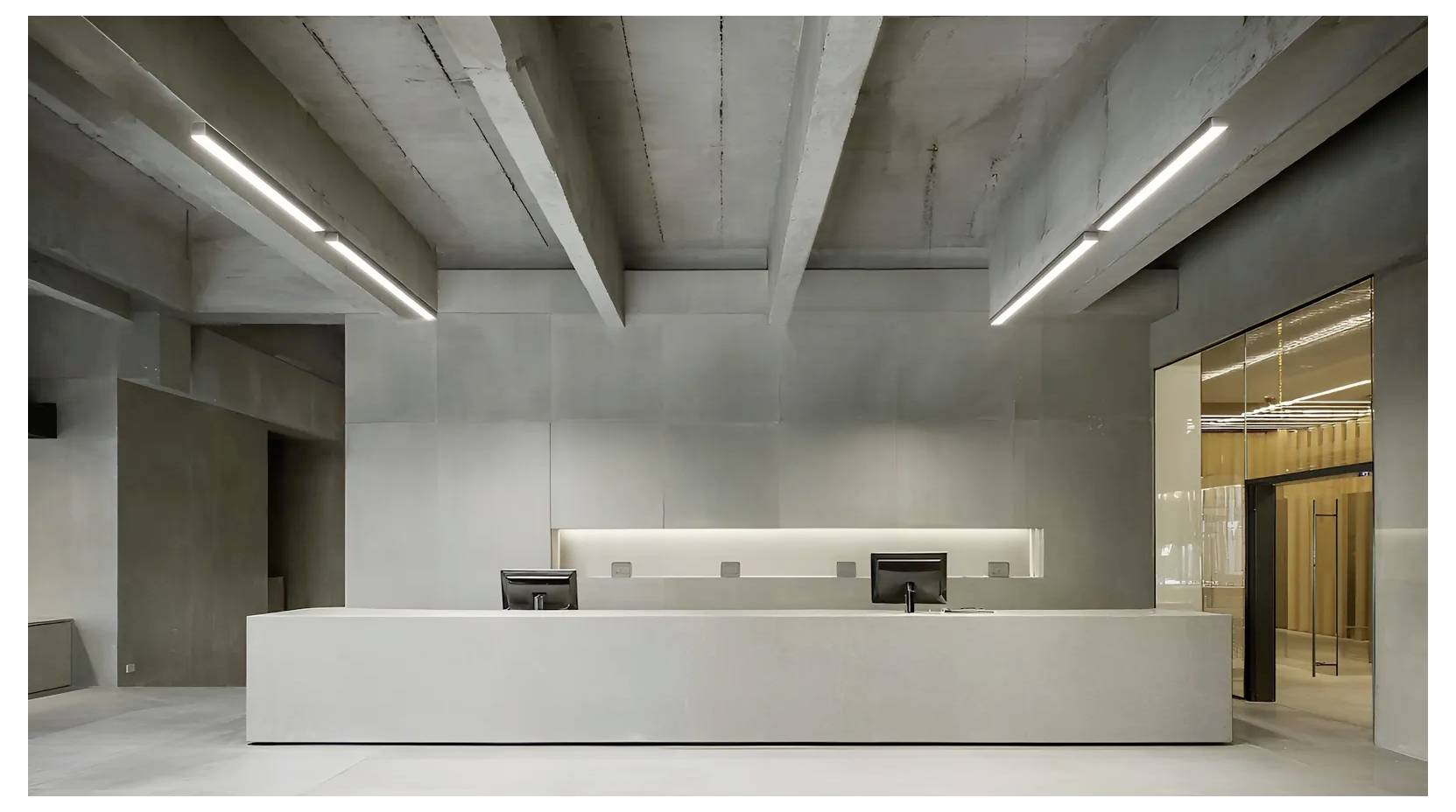

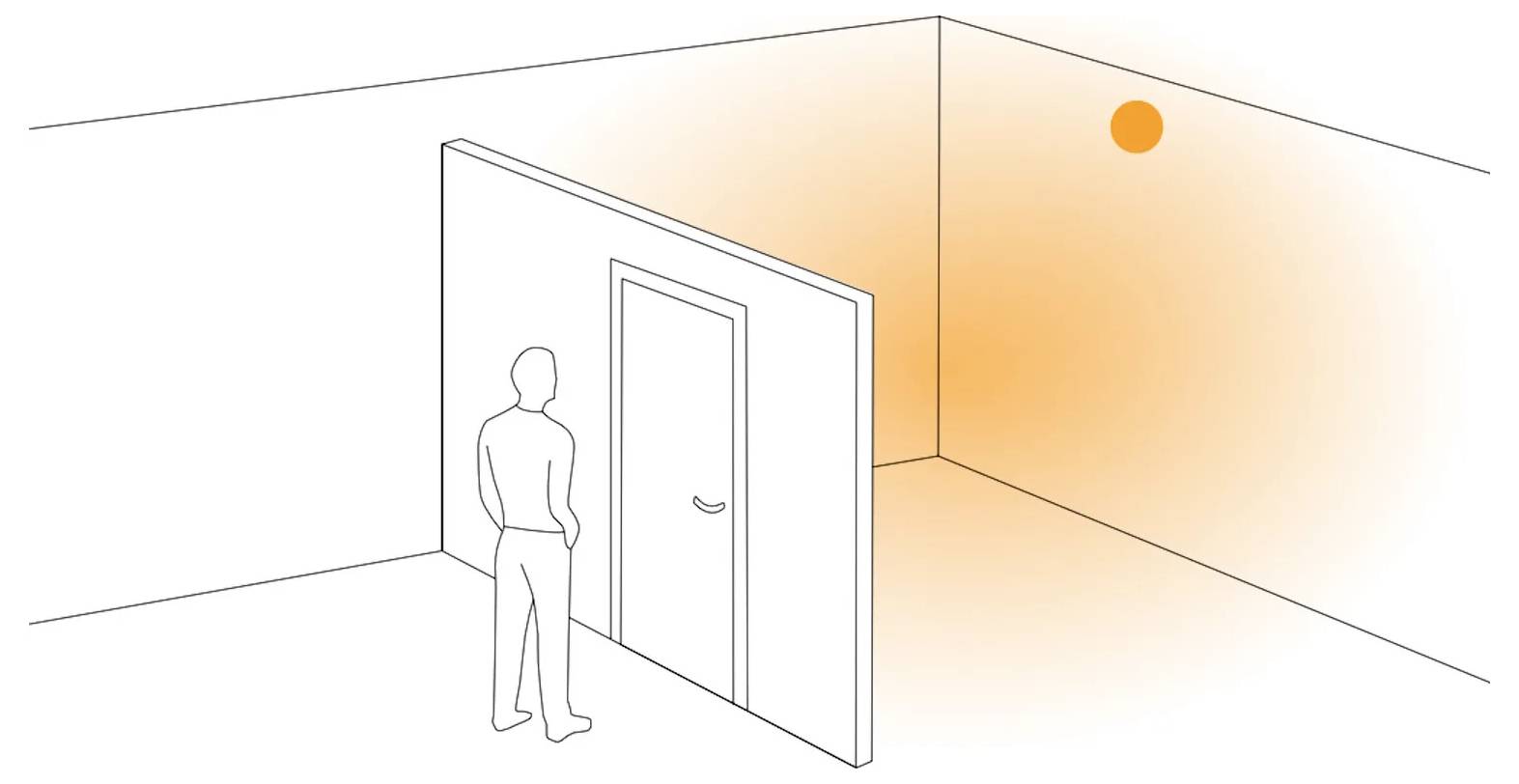

Both in the industrial environment and in transit areas and office environments our two new long-field lamps RS PRO 5500/5550 SC are an excellent figure. Apart from the beautiful look, the inner values are also impressive. The lights provide pleasant lighting comfort and are also a brilliant example of outstanding energy efficiency – not only because of the Bluetooth-based benefits of Steinel-connected lighting. Thanks to the new high-frequency technology with 24 GHz the detection ends at the wall. Added to this is the centimeter range adjustment, which ensures higher detection sensitivity The lamps are deliberately modular for improved repair and a long service life. The sensor, operating device, LEDs, emergency light battery & emergency light operating device, in addition to the cover, can be replaced by a specialist as a spare part. In addition, the cable with 5-wire through-wiring can be inserted at both sides or from behind. The standard version SC enables an emergency light function on the central battery. The SC EM version is available for a distributed single battery solution for 3 hours of emergency light.
This text is machine translated.
Both in the industrial environment and in transit areas and office environments our two new long-field lamps RS PRO 5500/5550 SC are an excellent figure. Apart from the beautiful look, the inner values are also impressive. The lights provide pleasant lighting comfort and are also a brilliant example of outstanding energy efficiency – not only because of the Bluetooth-based benefits of Steinel-connected lighting. Thanks to the new high-frequency technology with 24 GHz the detection ends at the wall. Added to this is the centimeter range adjustment, which ensures higher detection sensitivity The lamps are deliberately modular for improved repair and a long service life. The sensor, operating device, LEDs, emergency light battery & emergency light operating device, in addition to the cover, can be replaced by a specialist as a spare part. In addition, the cable with 5-wire through-wiring can be inserted at both sides or from behind. The standard version SC enables an emergency light function on the central battery. The SC EM version is available for a distributed single battery solution for 3 hours of emergency light.
This text is machine translated.
Features
- DIM function, orientation light, light sensor, connection to central battery systems, motion sensor, Adjustable fade time when switching on and off, free selection of the light value in a light group, group parameterisation, neighboring group function, encrypted communication, emergency light according to EN 60598-2-22 for 3 hours
Scope of delivery
- 1x LED interior light
- 2x mounting clamp
- 2x sensor cover plate
System requirements
- IOS, Android, Bluetooth
