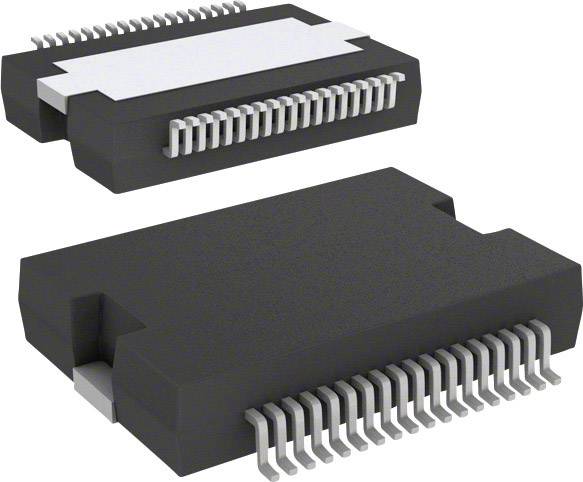

Image similar
STMicroelectronics L6226PDTR PMIC - motor controllers Half-bridge (4) Parallel PowerSO 36
Product type
PMIC - motor controllers
Enclosure
PowerSO 36
Mounting type
Surface-mount
Type
L6226PDTR
Manufacturer
STMicroelectronics
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Minimum order quantity: 5
Total (€ 8.99 / piece)
€ 44.95
incl. VAT
14-day return policy included
Technical specifications
- Type
L6226PDTR
- Product type
PMIC - motor controllers
- Enclosure
PowerSO 36
- Manufacturer
STMicroelectronics
- Manuf. code
STM
- Functions
Fully integrated driver
Control/power stage
- Output configuration
Half-bridge (4)
- Connectivity
Parallel
- Range of uses
Multi-purpose use
- Technology (PMIC)
BiCDMOS
- Power output
1.4 A
- Motor type - stepper motor
Bipolar
- Moto type - AC DC
Brushed DC
- Voltage load (min.)
8 V
- Voltage load (max.)
52 V
- Supply voltage (min.)
8 V
- Supply voltage (max.)
52 V
- Operating temperature (min.)
-25 °C
- Operating temperature (max.)
+125 °C
- Mounting type
Surface-mount
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 1185452 STMicroelectronics L6226PDTR PMIC - motor controllers Half-bridge (4) Parallel PowerSO 36
Description
Integrated circuits from leading manufacturers. Please read our extensive documentation which is free to download.
