SVS Nachrichtentechnik SHT-7 3-channel Handheld Transmitter 433 MHz Assembled

1/3
EAN:
Part number:
Item no:
Fast track dispatch on Fri 30 Oct

108 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions

Number
Total (€ 45.99 / piece)
€ 45.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included

Highlights & Details

SVS Nachrichtentechnik SHT-7 3-channel Handheld Transmitter 433 MHz Assembled

  • Range up to 1000 m

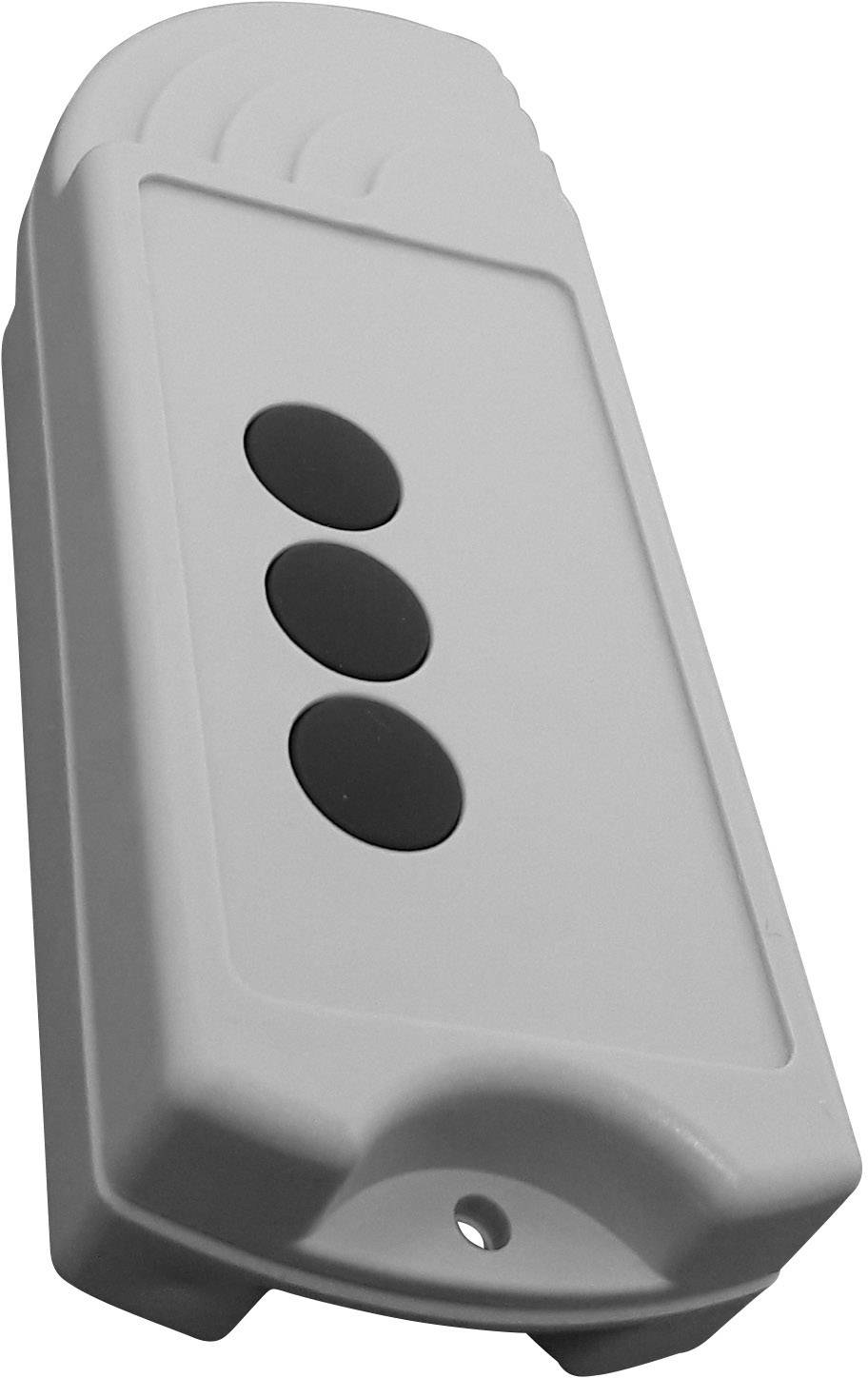

  • Symbol image for SVS Nachrichtentechnik SHT-7 3-channel Handheld Transmitter 433 MHz Assembled

Technical specifications

  • Operating temperature: 0 to +65 °C
Product type

Remote control

Type

SHT-7

Operating voltage

12 V DC

Channels

3

Dim

(L x W x H) 100 x 37 x 19 mm

Height

19 mm

Length

100 mm

Width

37 mm

Version

Assembled

700 m

Transmission frequency

434 MHz

Current consumption

Operation: 14 mA

Operating voltage

12 V DC

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 192481 SVS Nachrichtentechnik SHT-7 3-channel Handheld Transmitter 433 MHz Assembled

Description

Handheld transmitter 3-channel receiver module 19 26 35. In optimum conditions, the hand transmitter is designed for use over extremely large ranges of up to 1000 metres in open air. Things that reduce the range are stray magnetic fields (for example, from other transmitters or high-voltage cables), buildings, interference produced by other equipment (for example, PCs, electric machines, high-power equipment etc.). Three different functions can be controlled by remote control. Multiple assignments are also possible, i.e. several receivers can be switched by one transmitter operation. 6561 codes can be set with one code switch. The unit has general approval in the EU and Switzerland.

Features

  • Extremely low power consumption in standby
  • Robust against mechanical effects and ESD
  • High reliability and long service life
  • Control functions: 3 buttons
  • Max. Power consumption: 14 mA (Standby 0 mA)
  • Temperature range: -20°C to +65°C

Scope of delivery

  • 12 V battery.

Hints

Suitable receivers and modules - see optional accessories.
The free-field range is only under optimal conditions.
Caution: products of the radio series SH-7 are not compatible with products of the radio series SH-12.
