Buy TAMS Elektronik 41-04414-01-C LD-G-41 Next18 Locomotive decoder Module, w/o cable

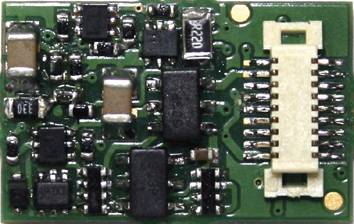

Electronic circuit board with various microchips and a white plug; shows complex circuit arrangement.

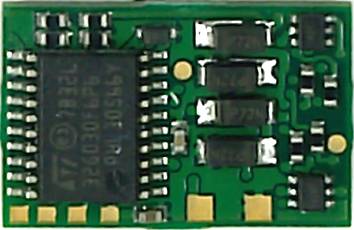

Green circuit board with electronic components, including a large black chip and several smaller components.

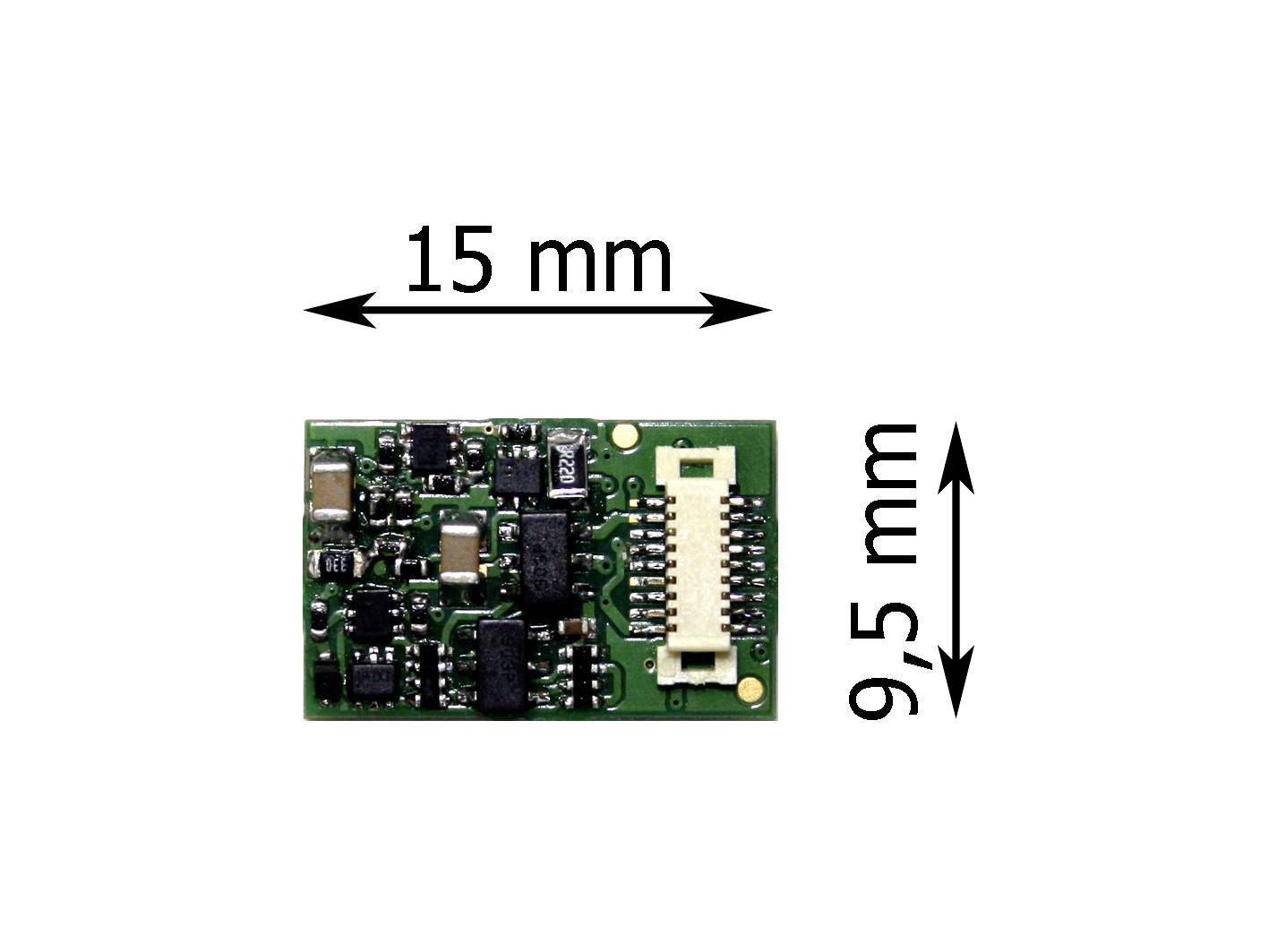

A small electronic module measuring 15 mm x 9.5 mm.

1/3

Fast track dispatch on Mon, 14 Sep

19 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 27.72 / piece)

€ 27.72

plus VAT.

Report legal concerns

Highlights & Details

LOC.decoder LD-G-41 with Next18 interface

Next18 interface fully assigned
Support for ABC braking and constant braking

Technical specifications

Data formats: Motorola-II (MM2/14, MM2/27b), DCC (DCC/14, DCC/28, DCC/128, DCC/SDF in accordance with NMRA and RCN standard)
Formats for automatic registration of vehicle decoders: DCC-A in accordance with RCN-218 (can be switched off)
RailCom feedback format to RCN-217 (can be switched off)
Next18 interface to RCN-118
4 amplified function outputs (F0f, F0f, AUX1 and AUX2)
2 unamplified outputs (AUX5 and AUX6)
Depending on the configuration: 2 unamplified outputs (AUX3 and AUX4) or 2 connections for the train bus, e.g. "Data (DATA)" and "Clock (CLOCK)" of the SUSI interface
1 connection for an external support capacitor (capacity 100 to 220 µF, voltage strength min. 25 V) or an external buffer circuit
Power supply: 12 - 20 Volt digital voltage or analog travel transformer (DC voltage)
Power consumption (without connected consumer load): Max. 20 mA
Maximal total current: 1,000 mA
Maximum motor output 500 mA
Maximum current per function output: Amplified function outputs (F0f, F0f, AUX1 and AUX2): 100 mA, unamplified function outputs (AUX3, AUX4, AUX5, AUX6): 0.5 mA
Protection class: IP 00 (meaning: No protection against foreign objects, contact or water)
Overload protection: Automatic switch-off of the decoder when the permissible motor or total current is exceeded
Weight: approx. 0.6 g

Decoder manufacturer: Tams

Digital format: DCC
MM

Motor: DC motor

Decoder type: Module
w/o cable

Interfaces: w/o cable

No. of outputs: 4 x

No. of switch modes: 2

Speed levels: 14, 27b

Current at outputs (max.): 100 mA

Max. total current: 1000 mA

Max. motor current: 500 mA

System auto-recognition: Yes

Load control: Yes

RailCom support: Yes

SUSI interface: Yes

Automatic pendulum movement: Yes

Built-in automatic shuttle: Yes

Length: 15 mm

Width: 9.5 mm

Height: 2.9 mm

Age category: 15 years and over

Dim: (L x W x H) 15 x 9.5 x 2.9 mm

Manufacturer part #: 41-04414-01-C

Product type: Locomotive decoder

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3207329 TAMS Elektronik 41-04414-01-C LD-G-41 Next18 Locomotive decoder Module, w/o cable

Description

Digital mode in Motorola II-format:
Maximum 255 addresses
14 or 27B driving speeds
Functions F0 to F8 (F5 to F8 via second address)
Programming: Register

Digital mode in DCC format:
127 base addresses or 10,239 extended addresses
14, 28 or 128 speed settings
Functions F0 to F28
Programming: Configuration variables (direct programming on the programming track, DCC-compliant) or POM (Programming on Main = main track programming)

Analogue mode:
Analogue systems with DC travel transformer
Automatic analog detection
Can be switched off

Adaptation to different engine types and locomotive types:
Setting the load control parameters (KP, AI, KD)
Gain factor
Definition of a linear speed characteristic (if necessary, bent) by setting the start-up, middle and highest speed
In 27 / 28 gear drive mode: Individual assignment of a motor voltage to each of the drive positions
Kick-off

Shunt:
Reduction of the speed of all driving stages by approx. 50 %
Switch to the marshaling mode with a function key

Start-up and braking delay:
Can be set separately
Switch on and off with a function key

Automatic processes
Automatic braking when an asymmetric track voltage is applied (ABC process)
Automatic shuttle (via ABC method)
Braking at DC voltage (Märklin braking distance)
Speed-dependent switch-on and off. Application examples: Switching on and off of the high beam or the lighting of the driver's cab.
Shunting function and the marshaling light for the same function key
Constant braking distance
Automatic registration via DCC-A

Function outputs
Assignment of the functions to the outputs with function mapping according to RCN-227. Each function (F0 to F28, each separately for forward and reverse drive) can be assigned one or more outputs. In addition, there is the option of assigning the functions to a function other than "OFF" switch.

Effects of the function outputs:
Direction-dependent switching
Patch light: When switching to marshaling mode, the marshaling locomotive signals are switched on and the signals for normal operation are switched off at the same time.
Inverted switching: When set to "on", the assigned output is switched off, when set to "off".
Flashing: By assigning the flashing function to 2 outputs and the function "inverted switching" to one of the two outputs, an alternating flashing is generated. The flashing frequency is set separately for each output.
Dimming: To reduce the voltage at the output. Application example: The lamps of older vehicles intended for analog operation can be dimmed and then do not need to be replaced after the decoder is installed.
Gradually dimming up and down: To gradually increase or decrease the voltage at the output: Application example: Simulation of old oil or light bulbs.
Fire simulation
On/off at a defined voltage (speed)

Triggering the functions:
Press the function keys / switch on/off the functions

Feedback with RailCom
RailCom-Sender according to RCN-217: Send the decoder address
Transmission of dynamic RailCom information: Reception statistics
Reading out the CVS
