Image similar
1/3
Image similar

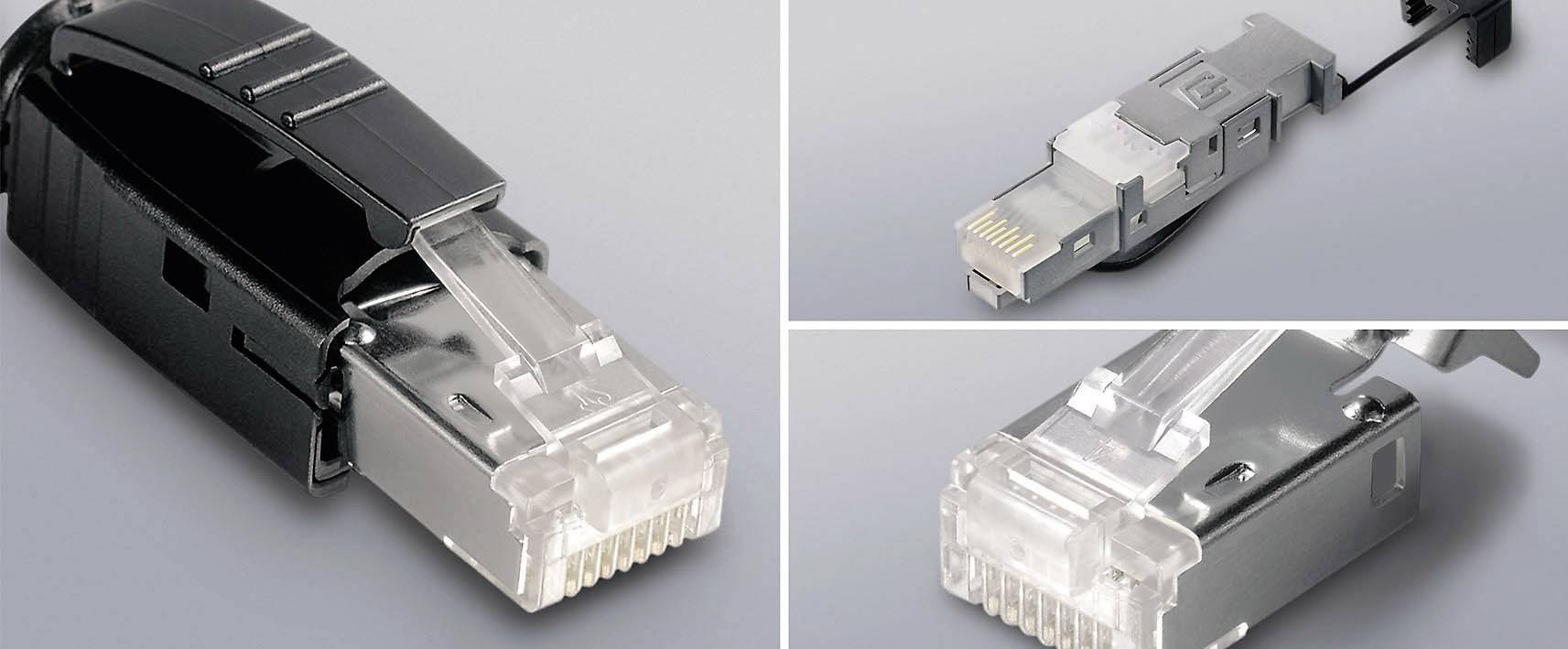

Telegärtner 100007453 Telegärtner 100007453 N/A 100007453 Plug, straight Pins: 8P8C 1 pc(s) 100007453 Plug, straight Pin
EAN:
Part number:
Item no:
Product type
RJ45 connector
Connector type
Plug, straight
Specification
CAT 6
Connector standard
RJ45
Type
100007453
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 17.64
3
5% = € 0.88
€ 16.76
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 17.64 / piece)
€ 20.16
-13 %
€ 17.64
plus VAT.
Technical specifications
- Type
100007453
- Product type
RJ45 connector
- Connector type
Plug, straight
CAT 6
- Connector standard
RJ45
- AWG max.
22
- AWG (min.)
26
- Connection
Cut & Clip
- Content
1 pc(s)
- RoHS-compliant
Yes
- Standards
IEC 60603-7-5
IP20
- Material (details)
Nickel plated die cast zinc.
- Type
Straight
- Nominal current (details)
1.0 A at 50°C
22-26
- Pins
8P8C
- Mating cycles
min. 750
- Temperature range
-40°C to + 70 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1179960 Telegärtner 100007453 Telegärtner 100007453 N/A 100007453 Plug, straight Pins: 8P8C 1 pc(s) 100007453 Plug, straight Pin
User & Safety Instructions
User & Safety Instructions 1179960 Telegärtner 100007453 Telegärtner 100007453 N/A 100007453 Plug, straight Pins: 8P8C 1 pc(s) 100007453 Plug, straight Pin
