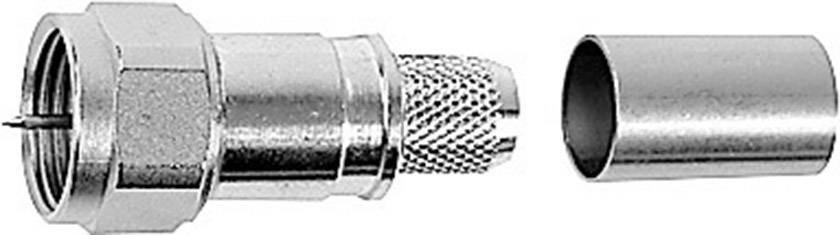

Name: Telegärtner 100025618 100025618 F connector Plug, straight 75 Ω 1 pc(s)
Brand: Telegärtner
SKU: 1366445
Availability: InStock

Highlights & Details

F-Plug connectors

Our service for you

Technical specifications

Cable category: Draka 0.6/2.8 AF

Product type: F connector

Connector type: Plug, straight

Impedance: 75 Ω

Connection: Crimp

Content: 1 pc(s)

Cable Ø: 6.80 mm

Max. frequency: 3 GHz

Case material: Brass tin plated

Manufacturer part #: 100025618

Insulation material: PTFE

Contact material: Brass gold plated

RoHS-compliant: Yes

Temperature range: -40 - +155 °C

Type: 100025618

Seal type: Screw-on

Documents & Downloads

Datasheet

Datasheet 1366445 Telegärtner 100025618 100025618 F connector Plug, straight 75 Ω 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1366445 Telegärtner 100025618 100025618 F connector Plug, straight 75 Ω 1 pc(s)

Description

The F Series RF connectors from Telegärtner are designed for use up to 3 GHZ and as such are ideally suitable for HDTV applications. The F series connectors have a threaded coupling mechanism; the impedance is controlled at 75 Ohm. Cable terminations are either crimp or solder designs. The F series connectors are primarily used in the transmission of analogue and digital video signals. With regards to return loss Telegärtner offers optimized types for professional applications, in particular for HDTV signal transmission, which feature excellent transmission performance up to 3 GHz respectively up to 4.5 GHz.
