Name: TP-LINK INSIGHT S245(4MM) INSIGHT S245(4MM) Corded IP CCTV camera
Brand: TP-LINK
SKU: 3808178
Availability: InStock

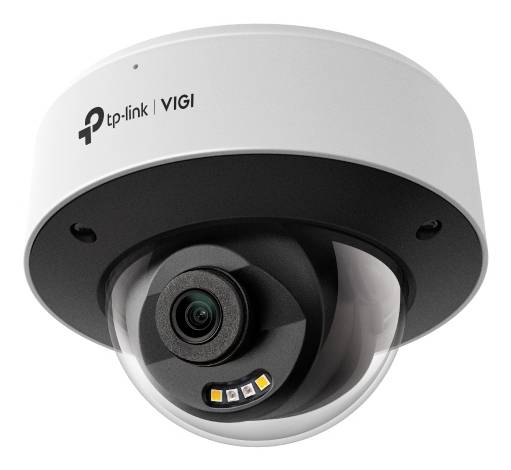

TP-Link VIGI dome security camera with black lens and clear protective cover, shown on a white background.

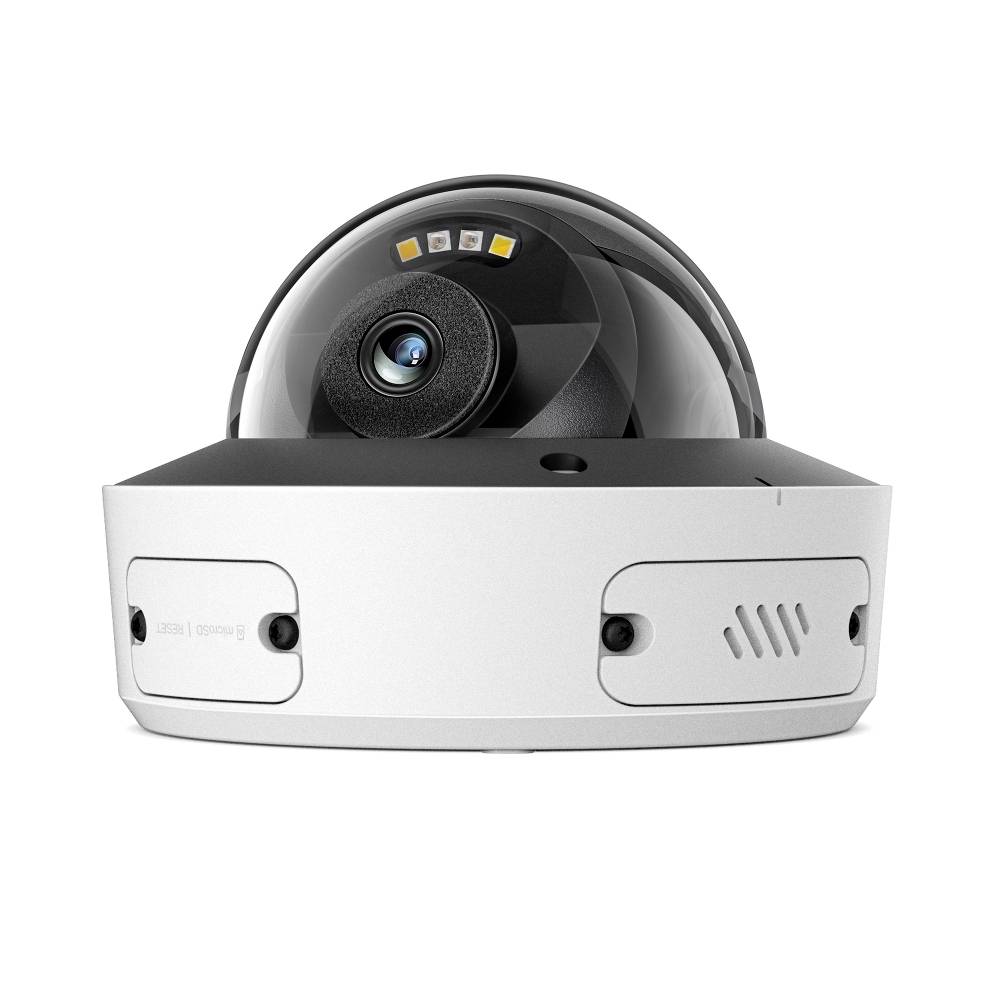

Compact dome security camera with visible lens and infrared LEDs in a silver housing, shown front view on a white background.

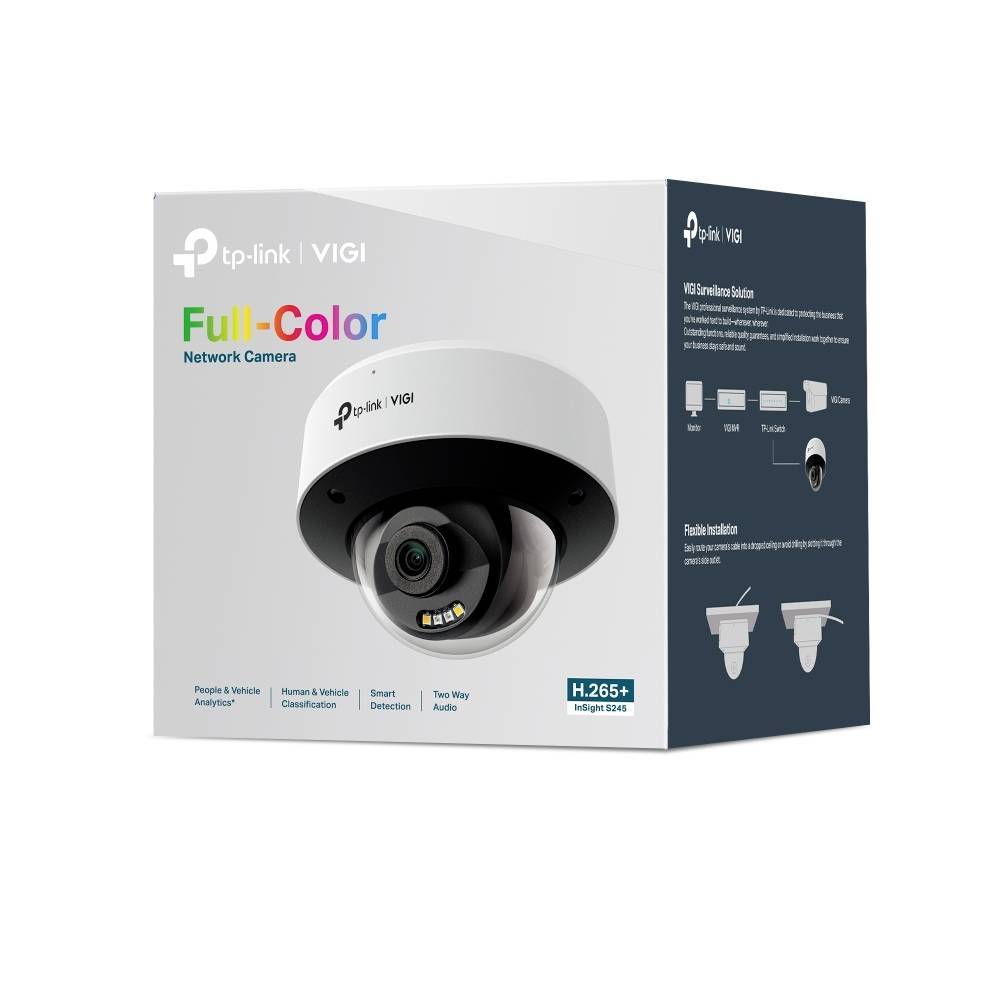

Boxed TP-Link VIGI Full-Color network camera, showing a dome security camera and features like H.265+ video, two-way audio, and smart detection.

1/3

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Tue 10 Nov

2 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 174.99 / piece)

€ 174.99

incl. VAT

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Corded IP-TP-LINKINSIGHT S245(4MM);INSIGHT S245(4MM)Outdoors

Outdoor IP security camera
CMOS 25.4 / 2.7 mm (1 / 2.7") 4 MP 2688 x 1520 pixels
Wired Ethernet/LAN
Night vision IR/white
Dome room ceiling Waterproof
IP67 IK10 weather proof
White
620 g

Technical specifications

Supported positioning: Outside
Form factor: Dome
Tilt angle range 0 - 75°
Supported audio formats: G.711 A-law

Product type: CCTV camera

Transfer type: Corded

Used at: Outdoors

Width: 122 mm

Height: 89 mm

Depth: 122 mm

Dim: (W x H x D) 122 x 89 x 122 mm

Weight: 620 g

Enclosure material: Metal

Factory colour: White

: IP67

Signal standard: IP

Bluetooth: No

Display resolution: 2688 x 1520 Pixel

Material (details): Metal

Microphone: Yes

Type: IP-security camera

10/100/1000 Mbps ports: 1 x

Sensor type: CMOS

Wi-Fi: No

UKCA: yes

Operating temperature (T-T): -30 - 60 °C

Weatherproof: yes

Ethernet LAN: yes

Storage relative humidity (H-H): 0 - 95 %

Minimum illumination: 0 Lux

Password protection: yes

Optical sensor size: 25,4 / 2,7 mm (1 / 2.7")

Detection distance: 80 m

Maximum operating distance: 80 m

Power consumption (Power over Ethernet (PoE)): 12.52 W

Infrared (IR) cut-off filter: yes

DC-in jack: yes

Remote viewing: yes

Built-in speaker(s): yes

Web browser: yes

Highlight Compensation (HLC): yes

Digital Wide Dynamic Range (DWDR): yes

Observe distance: 33 m

Detect distance: 80 m

Recognize distance: 16 m

Identify distance: 8 m

Dynamic range: 120 dB

Progressive scan: yes

Web-based management: yes

Camera pan control: yes

Mirror: yes

Reset button: yes

Camera tilt control: yes

Manual: yes

Cloud-managed: yes

Bit rate range: 0 - 64 Kbit/s

Human and vehicle targets classification: yes

Digest authentication: yes

Maximum aperture number: 1.6

Night vision: yes

Live view: yes

Fixed focal length: 4 mm

Built-in siren: yes

Video motion detection: yes

IP address filtering: yes

Maximum memory card size: 512 GB

Operating relative humidity (H-H): 0 - 95 %

Number of microphones: 1

Storage temperature (T-T): -40 - 60 °C

Total megapixels: 4 MP

Back Light Compensation (BLC): yes

Video recording: yes

HTTPS encryption: yes

Wide Dynamic Range (WDR): yes

Day/night mode: yes

Number of cameras: 1

Motion sensor: yes

Sample rate: 8 kHz

Documents & Downloads

Datasheet

Datasheet 3808178 TP-LINK INSIGHT S245(4MM) INSIGHT S245(4MM) Corded IP CCTV camera

User & Safety Instructions

User & Safety Instructions 3808178 TP-LINK INSIGHT S245(4MM) INSIGHT S245(4MM) Corded IP CCTV camera

Information

Information 3808178 TP-LINK INSIGHT S245(4MM) INSIGHT S245(4MM) Corded IP CCTV camera

Description

All colors, at any time

4 MP full-color mode dome network camera

Vehicle analysis

Search and filter for people or vehicles of interest based on different attributes to make post-processing faster and easier.

Human and vehicle classification

Differentiate people and vehicles from other objects and get more accurate event notifications.

Intelligent video-improvement technology

- True WDR: By analyzing and combining different exposures, true WDR ensures that both bright and dark areas remain correctly exposed. This provides a balanced and natural picture, even in environments with Hohem contrast.
- Intelligent IR: Intelligent IR adjusts infrared lighting dynamically to avoid overexposure and glare, improve visibility across distances and ensure clearer images.
- 3D DNR: 3D DNR is a noise suppression technology that analyzes image data across multiple frames to selectively reduce noise while preserving important details.
- White balance: White balance ensures that white appears neutral in an image, regardless of the lighting conditions.

Efficient H.265+ compression technology

H.265+ reduces the bandwidth and storage requirements required for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space as compared to H.264 and H.265.
