Name: TP-LINK INSIGHT S445ZI INSIGHT S445ZI Corded IP CCTV camera
Brand: TP-LINK
SKU: 3808189
Availability: InStock

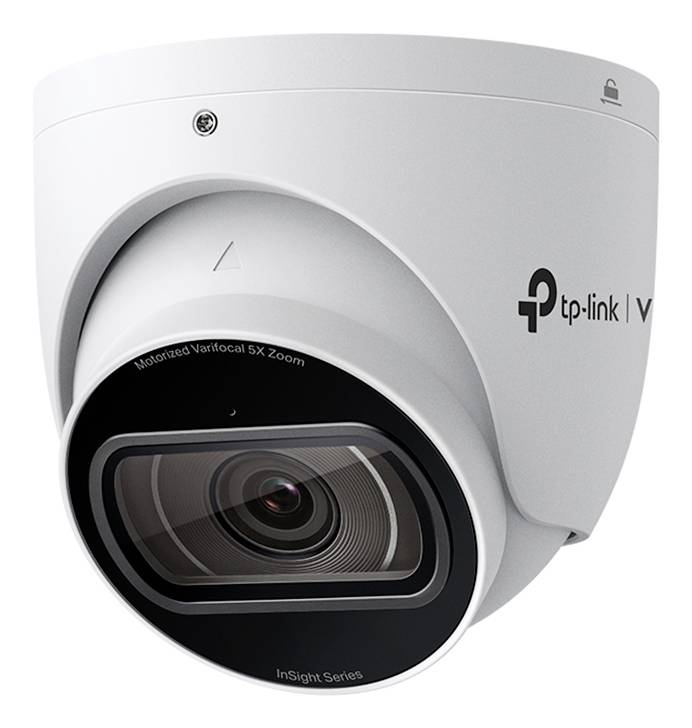

White TP-Link VIGI security camera with a large motorized zoom lens, shown close-up on a white background.

TP-Link VIGI IR Motorized Varifocal network camera box showing a white outdoor security camera, 5X optical zoom, 4MP H.265+ and weatherproof features.

1/3

EAN:

Part number:

Item no:

Fast track dispatch on Tue 10 Nov

2 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 295.00 / piece)

€ 295.00

incl. VAT

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Corded IP-Dome camera;TP-LINKINSIGHT S445ZI;INSIGHT S445ZIOutdoors

Outdoor IP security camera
CMOS 25.4 / 2.9 mm (1 / 2.9") 4 MP 2688 x 1520 pixels
Wired Ethernet/LAN
Night view 60 m IR
Optical Zoom: 5x
Turret room ceiling Waterproof
IP67 weather proof
710 g

Technical specifications

Supported positioning: Outside
Form factor: Turret
Tilt angle range 0 - 77°
Supported audio formats: G.711 A-law
Number of simultaneous live view channels: 6 channels
Viewing angle:
Horizontal 29.6° – 102.0°
Vertical: 16.8° – 53.8°
Diagonal: 34.1° – 122.8°
Infrared LEDs: 4 LEDs (wavelength: 850 nm)
Audio features: Built-in microphone with a recording radius of approx. 5 meters, an integrated speaker, external audio inputs and outputs (audio in/out interface) are however installed
Alarm interfaces: 1 alarm input (alarm in) and 1 alarm output (alarm out) for flexible alarm integration
DORI removal (depending on focal length 2.7–13.5 mm):
Detection (detect): 66–207 m.
Observe (Observe): 28–86 m.
Recognition: 13–41 m.
Identify (Identify):7–21 m.
VIDEO COMPRESSION: H.265+, H.265, H.264+, H.264

Product type: CCTV camera

Camera type: Dome camera

Power supply: 12 V / DC
PoE (Power over Ethernet)

Sensor type: CMOS

Focal length: 2,7 - 13,5 mm

Max. viewing angle hor.: 102°

Transfer type: Corded

Light sensitivity (+ IR): 0 lx

Light sensitivity (- IR): 0.0005 lx

IR range (max.): 60 m

Used at: Outdoors

Type: microSD card (up to 512 GB)

Width: 112.3 mm

Height: 92.5 mm

Depth: 112.3 mm

(Ø): 112.3 mm

Dim: (Ø x H) 112.3 mm x 92.5 mm

Weight: 710 g

F-numbers: F1.6

Enclosure material: Metal

Factory colour: White

: IP67
IK10

Signal standard: IP

Bluetooth: No

Display resolution: 2688 x 1520 Pixel

Material (details): Metal

Microphone: Yes

Type: IP-security camera / Turret-network camera

Rotation: 360°

10/100/1000 Mbps ports: 1 x

Sensor type: CMOS

Wi-Fi: No

UKCA: yes

Screws included: yes

Operating temperature (T-T): -30 - 60 °C

Weatherproof: yes

Ethernet LAN: yes

Storage relative humidity (H-H): 0 - 95 %

Video streaming: yes

Signal-to-Noise Ratio (SNR): 52 dB

Minimum illumination: 0 Lux

Password protection: yes

Auto focus: yes

Optical sensor size: 25,4 / 2,9 mm (1 / 2.9")

Alarm input channels: 1

Alarm output channels: 1

Number of lenses: 1

Power consumption (Power over Ethernet (PoE)): 12 W

Privacy protection: yes

Infrared (IR) cut-off filter: yes

DC-in jack: yes

Remote viewing: yes

Noise reduction: yes

Web browser: yes

Pan range: 0 - 360°

Detect distance (wide): 66 m

Detect distance (tele): 207 m

Observe distance (wide): 28 m

Observe distance (tele): 86 m

Recognize distance (wide): 13 m

Recognize distance (tele): 41 m

Identify distance (wide): 7 m

Identify distance (tele): 21 m

Highlight Compensation (HLC): yes

Digital Wide Dynamic Range (DWDR): yes

Region of Interest (ROI) encoding: yes

Smart IR: yes

Dynamic range: 120 dB

Progressive scan: yes

Card reader integrated: yes

Mirror: yes

Reset button: yes

Manual: yes

Cloud-managed: yes

Bit rate range: 0 - 64 Kbit/s

Human and vehicle targets classification: yes

Digest authentication: yes

Drilling template included: yes

Number of Privacy masking areas: 4

Zoom capability: yes

Maximum aperture number: 1.6

Night vision: yes

Live view: yes

Number of illumination LEDs: 4

Built-in siren: yes

Video motion detection: yes

IP address filtering: yes

Maximum memory card size: 512 GB

Operating relative humidity (H-H): 0 - 95 %

Number of microphones: 1

Optical zoom: 5 x

Storage temperature (T-T): -40 - 60 °C

Package weight: 960 g

Total megapixels: 4 MP

Back Light Compensation (BLC): yes

Mounting kit: yes

Video recording: yes

HTTPS encryption: yes

Wide Dynamic Range (WDR): yes

Infra-red wavelength: 850 nm

Day/night mode: yes

Number of cameras: 1

Power consumption (max): 10.8 W

Motion sensor: yes

Sample rate: 8 kHz

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3808189 TP-LINK INSIGHT S445ZI INSIGHT S445ZI Corded IP CCTV camera

Information

Information 3808189 TP-LINK INSIGHT S445ZI INSIGHT S445ZI Corded IP CCTV camera

Description

See every detail at close range

4MP IR motorized varifocal Turret network camera

Motorised varifocal function
By adjusting the field of view (FOV), this feature helps to focus on relevant areas, minimize irrelevant detection zones, and improve target clarity.

Human & vehicle classification
Differentiate people and vehicles from other objects and get more accurate event notifications.

Intelligent video picture enhancement
- True WDR: By analyzing and combining different exposures, True WDR ensures that bright and dark areas are displayed correctly – for a balanced and natural image, even with Hohem contrast.
- Smart IR: Smart IR adjusts infrared lighting dynamically, prevents overexposure and glare, improves visibility at different distances and ensures clearer shots.
- 3D DNR: 3D DNR is a noise suppression technology that analyzes image data over multiple frames to reduce noise specifically while receiving important details.
- White balance: White balance ensures that white appears neutral in the image, regardless of the lighting conditions.

Efficient H.265+ compression technology
H.265+ reduces the required bandwidth and storage space for videos without compromising image quality. Compared to H.264 and H.265, it saves 57.5% or 15% more storage space.**
