Buy TracoPower TXLN 035-212 AC/DC PSU module (+ enclosure) 5 V DC 4 A 35 W

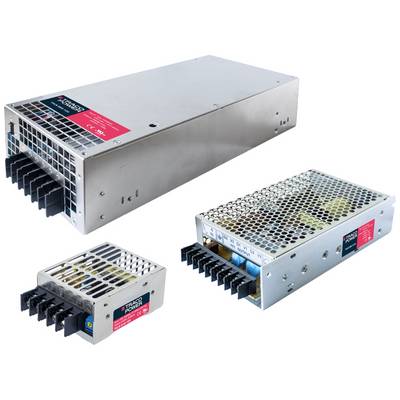

Three power supplies in different sizes, each rectangular with a grid on the top and connection terminals on the front.

Datasheet (PDF)

Show alternatives

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 50.41 / piece)

€

Report legal concerns

Highlights & Details

AC/DC PSU Components

Output 5 V DC / 4 A
Power 35 W
Screw terminal

Technical specifications

Max. output current: 4 A

Output current (max.) - rounded: 4 A

Dim: (L x W x H) 106.8 x 82.0 x 28.0 mm

Height: 28.0 mm

Length: 106.8 mm

Width: 82.0 mm

Connection: Screw terminal

Type: closed

Type: TXLN 035-212

MTBF: 340000 h

Input voltage (max.): 264 V AC

Min. input voltage: 88 V AC

Operating temperature (max.): 70 °C

Operating temperature (min.): -20 °C

Max. operating temperature (derating): 50 °C

Output current 2 (max.): 2.50 A

Output current (min.): 0 mA

Output voltage 2 (max.): 12 V DC

Output voltage 2 (min.): 12 V DC

Output voltage (max.): 5 V DC

Output voltage (min.): 5 V DC

No. of outputs: 2 x

: 35 W

PFC: No

Weight: 350 g

Product type: AC/DC PSU module (+ enclosure)
